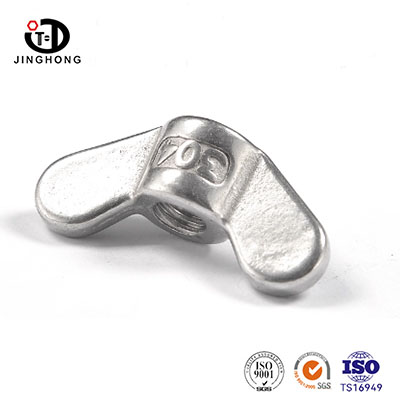

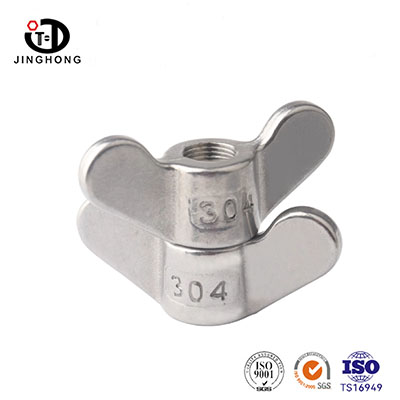

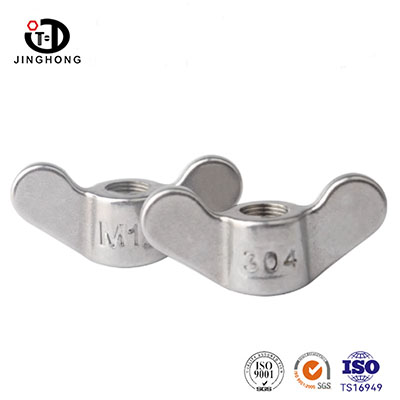

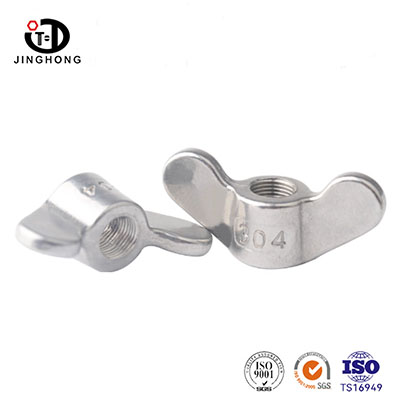

SS304 Wing Nuts

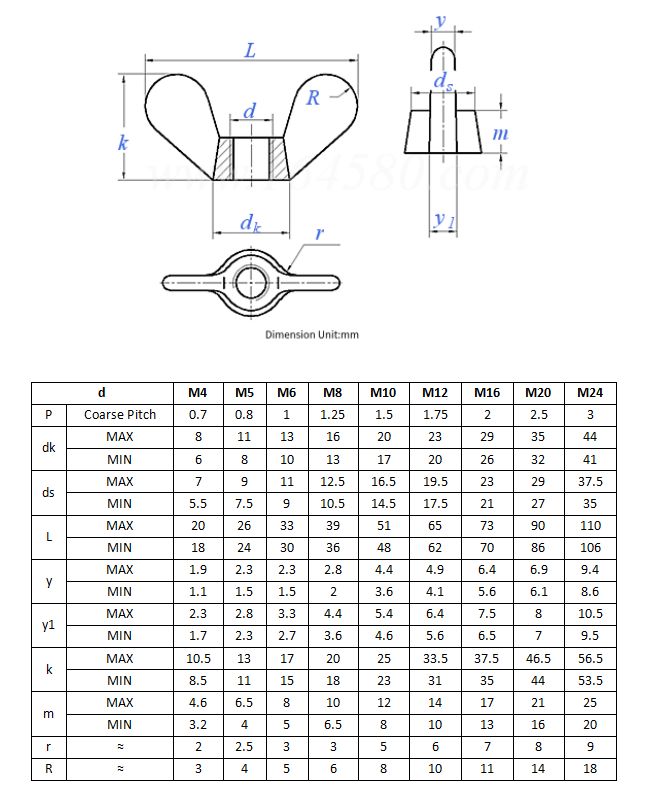

The Wing Nuts we supply are manufactured in strict accordance with the DIN 315 standard. Their most distinctive feature is the pair of protruding circular "wings" on both sides, which can be easily turned by hand for rapid installation and removal. This makes them particularly ideal for situations where tools are inconvenient to use or where frequent adjustments are necessary. The product is offered in multiple material options, such as malleable cast iron, steel, copper-zinc alloy, and austenitic stainless steel, to meet different requirements for strength, corrosion resistance, and conductivity, providing customers with a reliable quick-fastening solution.

Compliant with DIN 315 standard, the unique circular double wing design provides comfortable force application points that can be tightened and loosened by hand without the need for any wrenches or tools, saving time and improving work efficiency. The core material is stainless steel, which is suitable for various environments ranging from general structures to corrosion-resistant and conductive environments. Especially suitable for devices that require frequent disassembly, adjustment of position or pre tightening force, convenient and fast. Simple structure, high cost-effectiveness, especially in assembly lines that require large quantities or manual operation, with obvious advantages.

Our Strength

· Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

These Wing Nuts are widely used in situations that call for quick manual installation or frequent adjustments. Typical applications include: adjustment and securing of laboratory equipment, jigs, and fixtures; components requiring regular removal for cleaning, such as ventilation ducts and filter covers; assembly of temporary structures like stage lighting and exhibition frames; maintenance points on agricultural and garden machinery; and lightweight structures such as electrical cabinet doors or panels that need to be both securely fastened and easily opened.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
