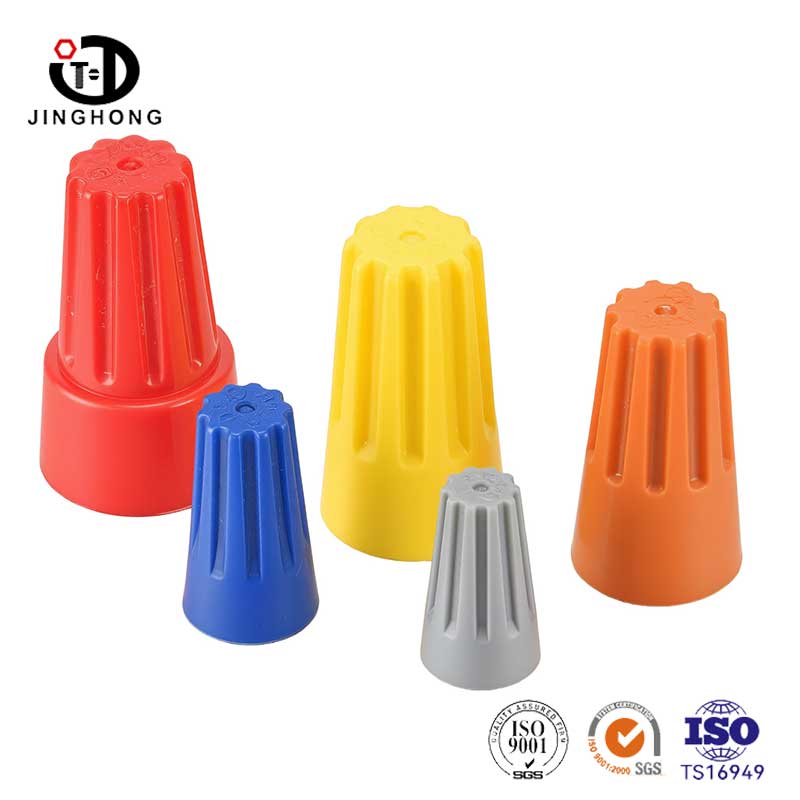

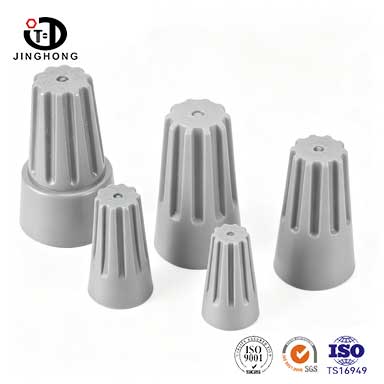

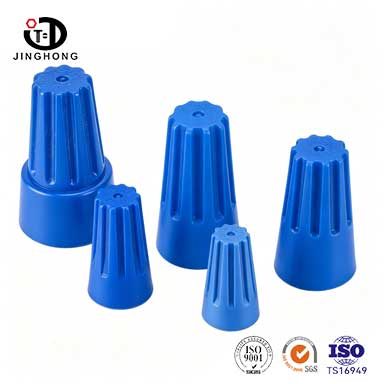

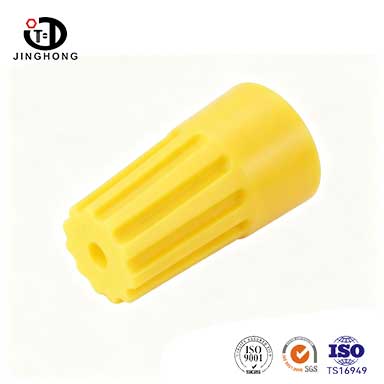

Plastic Wire Nut

Jinghong Factory specializes in the production of Plastic Wire Nuts, made of plastic with a self-locking conical spring inside. These nuts are suitable for insulation protection and mechanical fixation of electrical wire connections. The products are resistant to aging and high temperatures, and require no tools for installation—simply screw the stripped multi-strand wire into place, where the internal spring will secure it firmly. They are widely used in various internal wiring applications.

Send Inquiry

Product Description

The Plastic Wire Nut is a small insulated connector used for joining the ends of wires. Its plastic shell contains a conical spring that secures several stripped wires by twisting them together, inserting them into the nut, and applying slight force with hand or pliers.

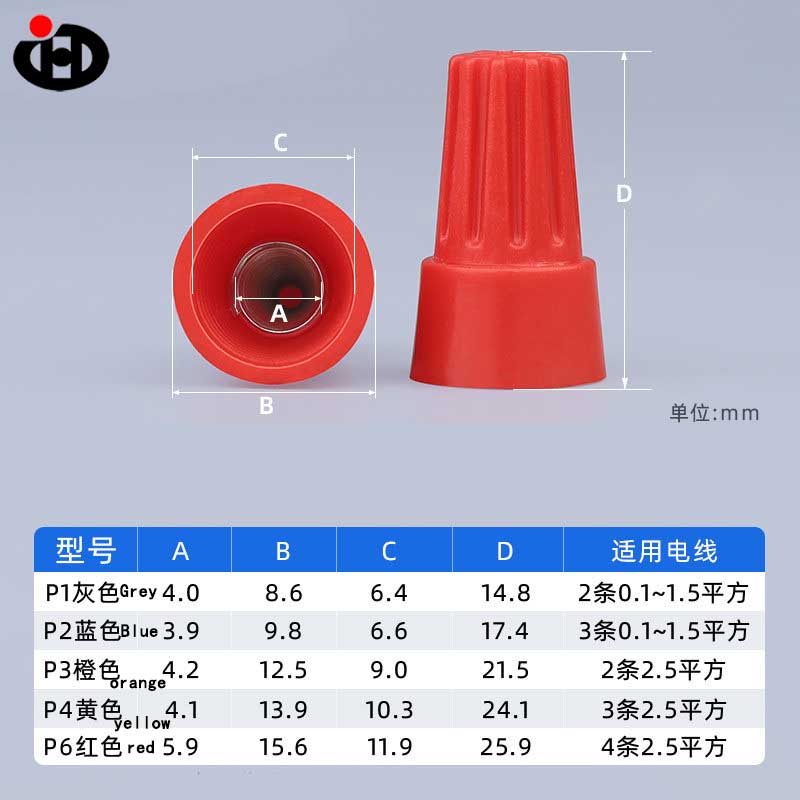

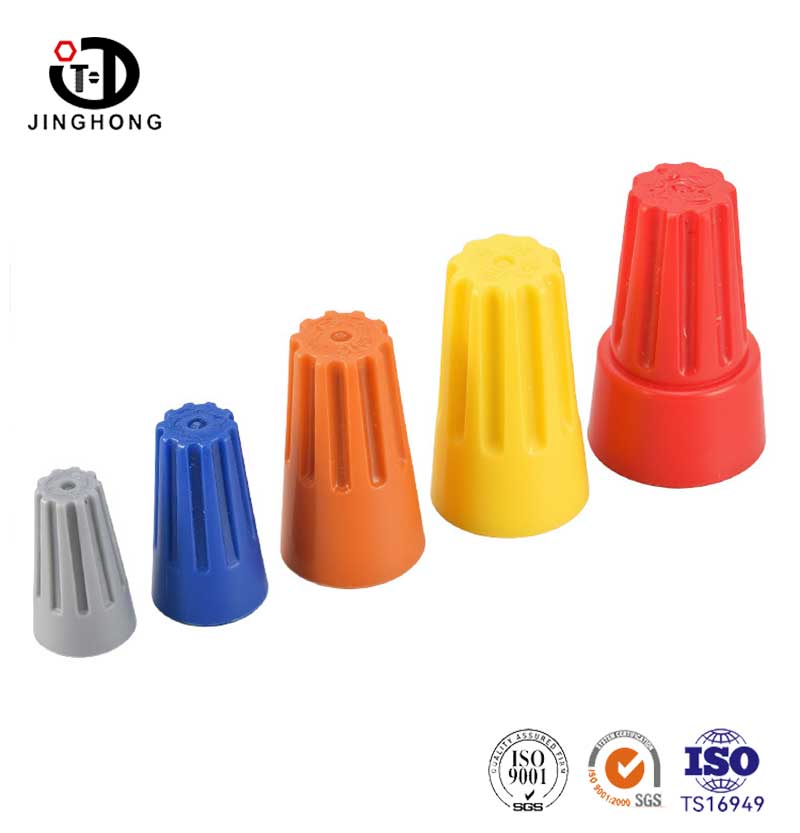

The outer layer of nylon is flame-retardant, resistant to burning, and also waterproof and anti-loosening. After installation, just check the color—gray, blue, orange, yellow, or red—to determine the wire gauge capacity of the terminal.

Name	Plastic Wire Nut
Material	Plastic
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M4-M5.9Metc
Finish	Plain/Red/Yellow/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Installation without tools and fast work: it can be installed by hand without screwdriver, adhesive tape, etc. A novice can install one in a few seconds. For the production line of batch assembly, with pneumatic crimping pliers, hundreds can be installed in an hour, more than three times faster than adhesive tape.

Replace adhesive tape, clean and tidy: After wrapping the electrician adhesive tape for a long time, the tape will turn black and stick to the hands. When removing it, scissors need to be used to cut it. After the plastic wire cap is installed, the surface is clean and can be removed during maintenance. It is much more convenient than using adhesive tape and will not leave any residue on the wire.
