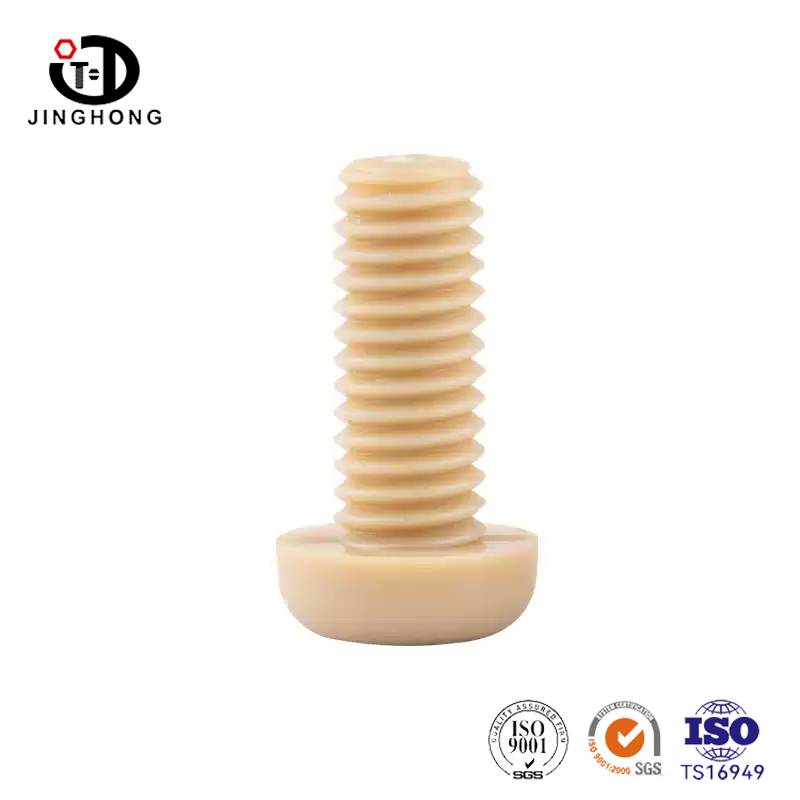

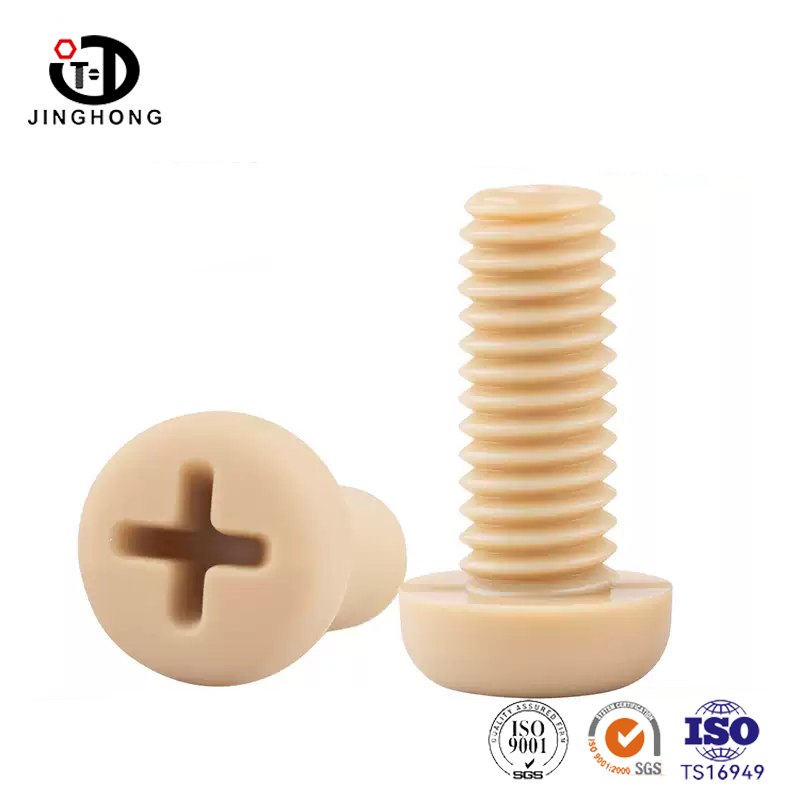

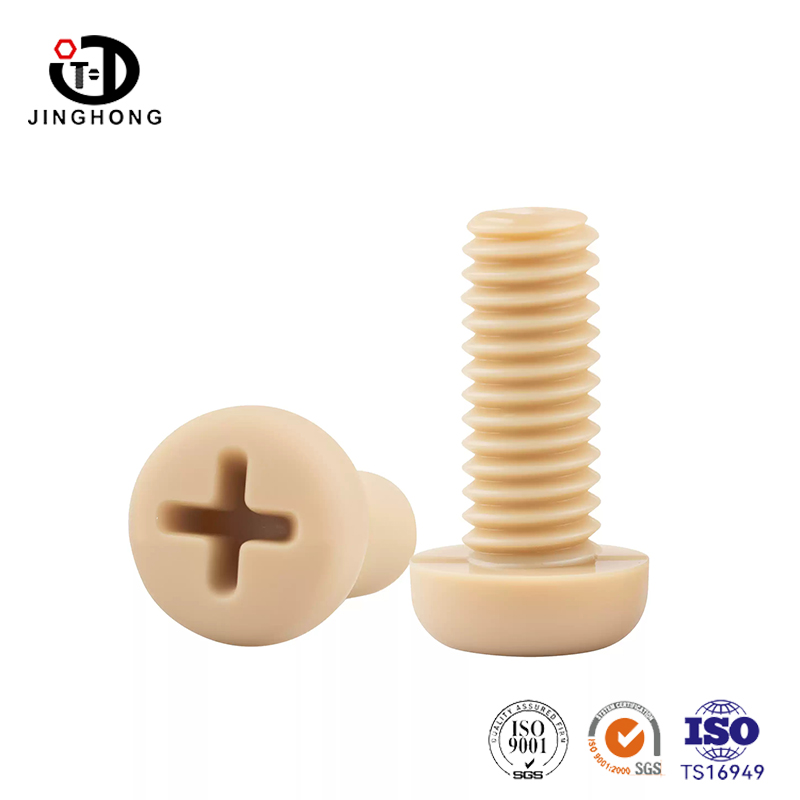

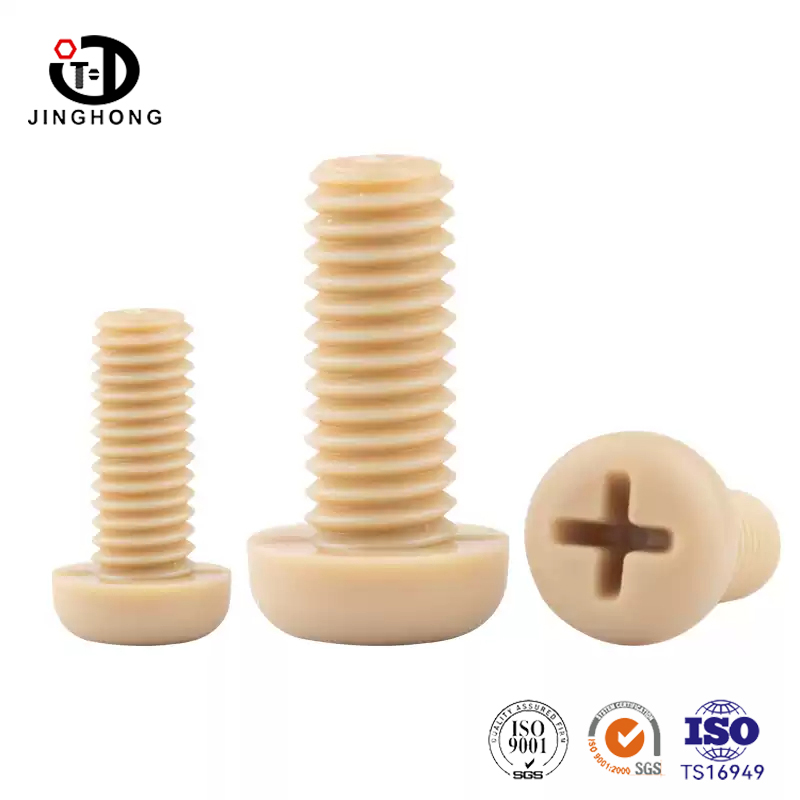

PEEK Cross Pan Head Screw

Our factory produces PEEK cross recessed pan head screws, made from polyetheretherketone, a high-performance special engineering plastic. These screws are rust-proof, non-conductive, non-magnetic, heat-resistant, and resistant to acids and alkalis, and weigh only about half as much as stainless steel. They can solve problems that metal screws cannot. The specifications range from M1 to M10, with cross recessed pan head and regular sizes available in stock.

Send Inquiry

Product Description

PEEK screws are made of polyetheretherketone resin. What is PEEK? Simply put, it is a special engineering plastic with performance that is significantly higher than ordinary plastics, and in some aspects, it even outperforms metal. Metal screws rust, conduct electricity, have magnetism, and are heavy, but PEEK screws avoid all these drawbacks.

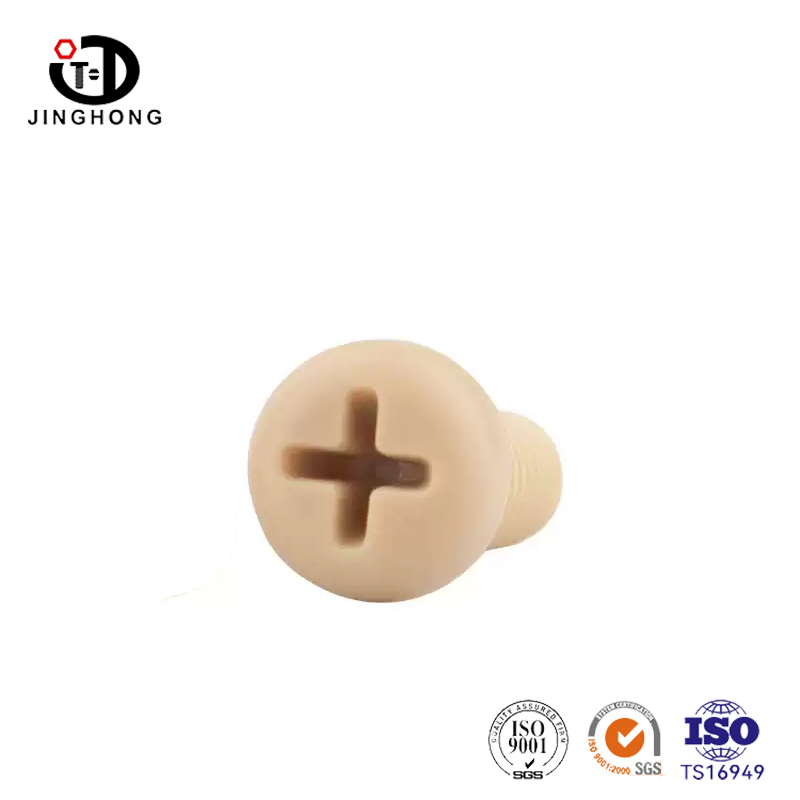

The head is a pan head with a flat bottom surface and a large pressing area. The cross slot can be tightened using a regular Phillips screwdriver or an electric screwdriver. The height of the pan head is moderate, and there is not much protrusion after installation. The PEEK material is softer than metal, so the torque should not be too high when tightening. The recommended tightening torque is about 50% of the torsional breaking torque. Tightening too tightly can cause the cross slot to become stripped.

Name	PEEK Cross Pan Head Screw
Material	PEEK
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

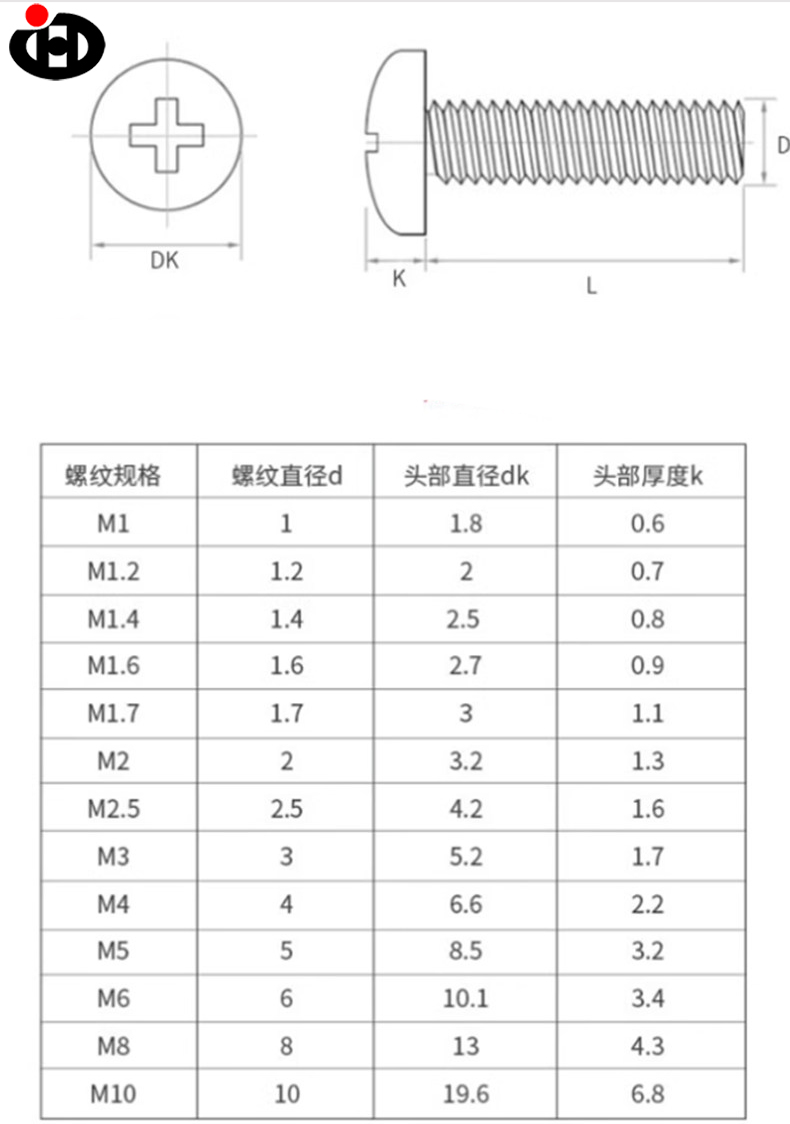

Sizes	M1-M10
Finish	Plain/Black/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

The Phillips head is easy to tighten: it can be tightened with a regular Phillips screwdriver, without the need for specialized tools. The head has a large pressing area, ensuring it doesn't sink into the workpiece when pressed.

Biocompatible and suitable for medical use: PEEK has passed ISO 10993 biocompatibility testing and is used in orthopedic interface screws, surgical instruments, and sterilization equipment. It is transparent to X-rays, ensuring no artifacts during radiographic review.
