Nylon Grub Hex Screw

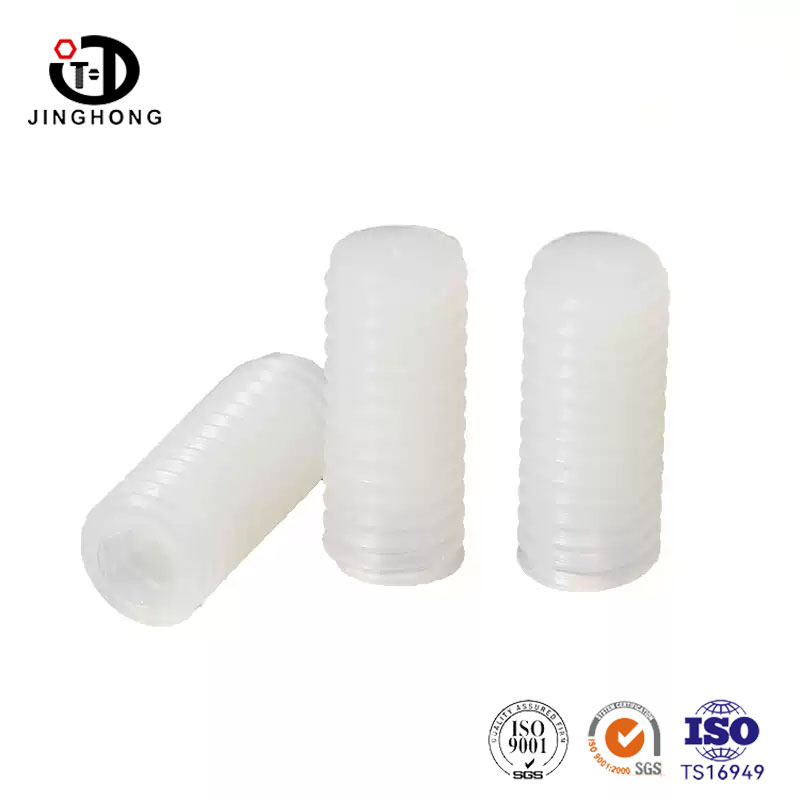

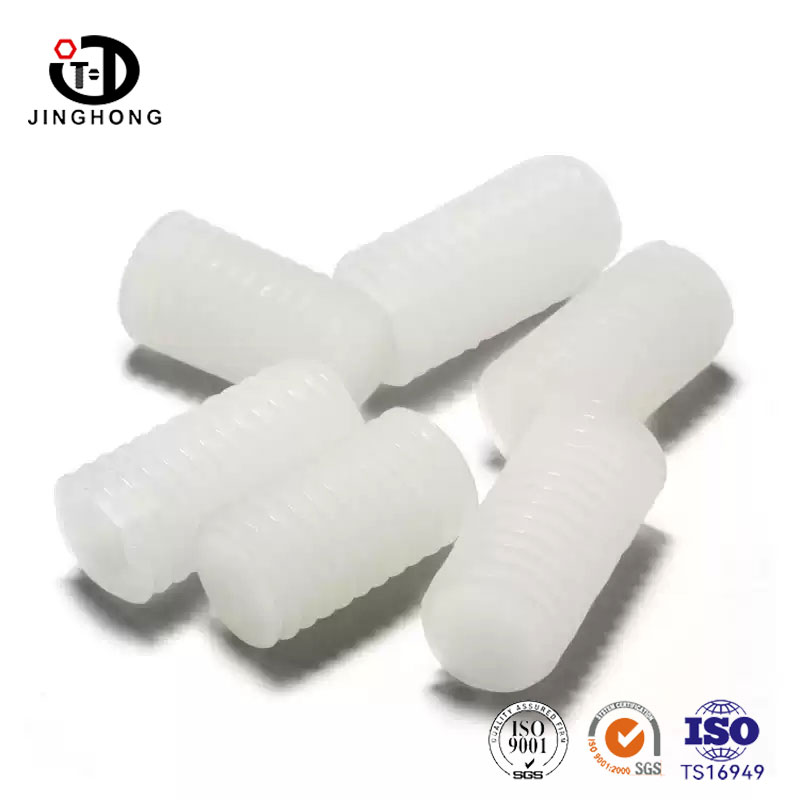

Jinghong Factory specializes in producing Nylon Grub Hex Screw, which is made of high-quality nylon injection molded or machined. The head is an inner hexagon and the tail is flat. Nylon material is non-conductive and non-magnetic, and does not damage the workpiece. After tightening, nylon locks the position by friction, playing a role in preventing loosening. The length can be customized according to demand, and regular sizes are readily available in stock.

Send Inquiry

Product Description

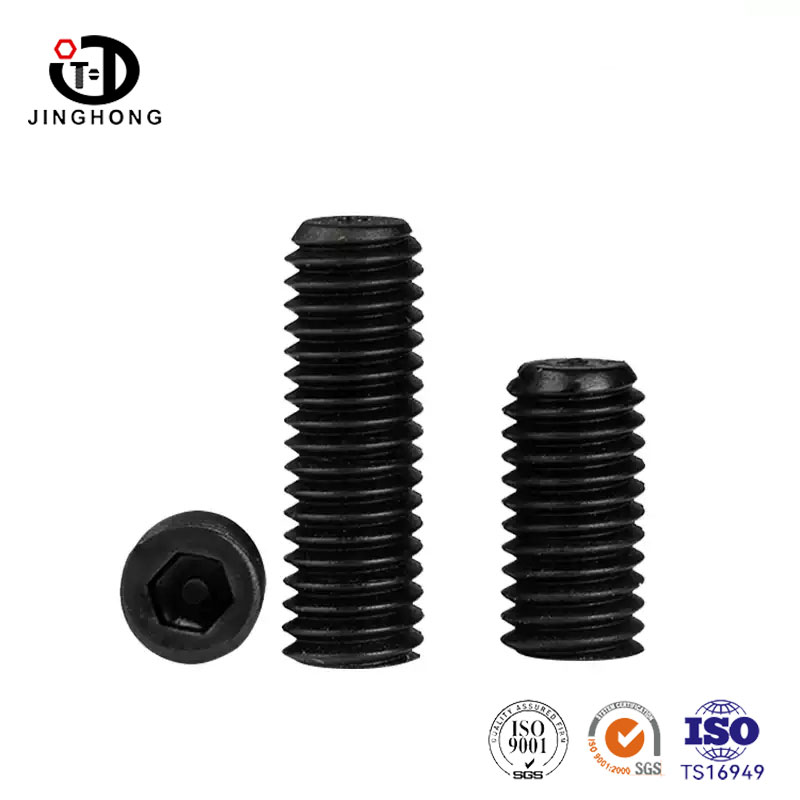

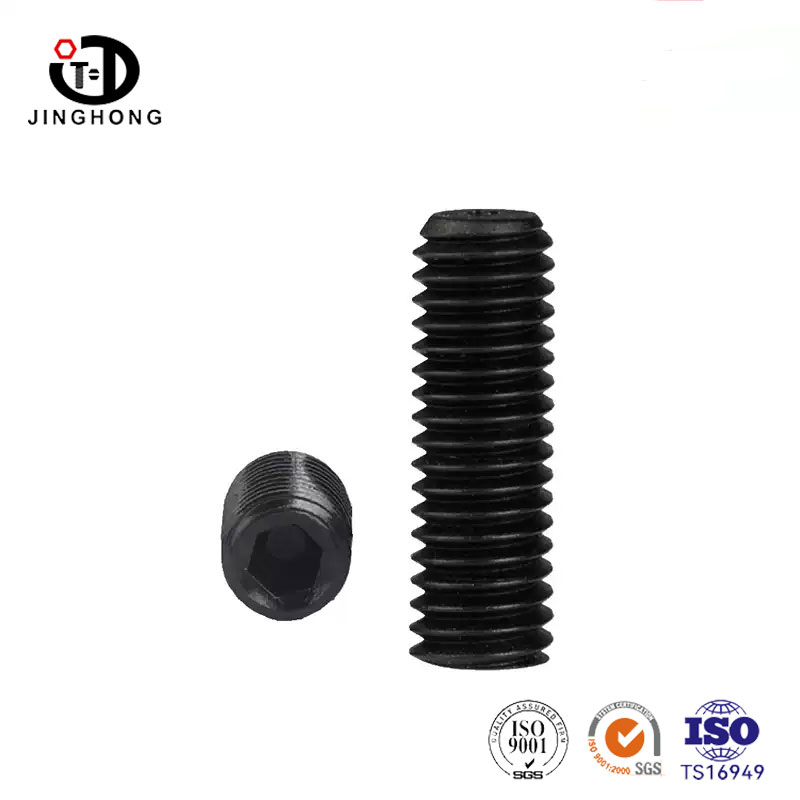

Grub screws are used to secure another component by threading into a tapped hole and pressing against the shaft or positioning block, preventing relative sliding between the two parts. After installation, metal set screws may leave a dent or scratch on the surface of the secured component, whereas nylon ones typically do not.

Flat end means that the tail end is flat, with the end face perpendicular to the screw axis and processed smoothly. The contact area of the flat end is larger than that of the tip, and the pressure is lower when pressing against the workpiece, making it difficult to press out marks. What needs to be resisted are soft metals, plastics, PCB boards, etc., with flat ends being the most suitable.

Name	Nylon Grub Hex Screw
Material	Nylon
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M4-M5Metc
Finish	Plain/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Non conductive, reliable for electronic devices: Nylon itself is an insulating material and will not short-circuit when used near circuit boards. The fixation between components or the positioning of PCB boards using metal screws may cause concerns about touching the circuit. Nylon can be placed casually without insulation sleeves.

Lightweight and does not increase inertia: Nylon of the same specification weighs only one sixth of steel. Nylon has significant advantages when used as a dynamic balance weight on components that rotate at high speeds or on equipment that requires lightweight design.
