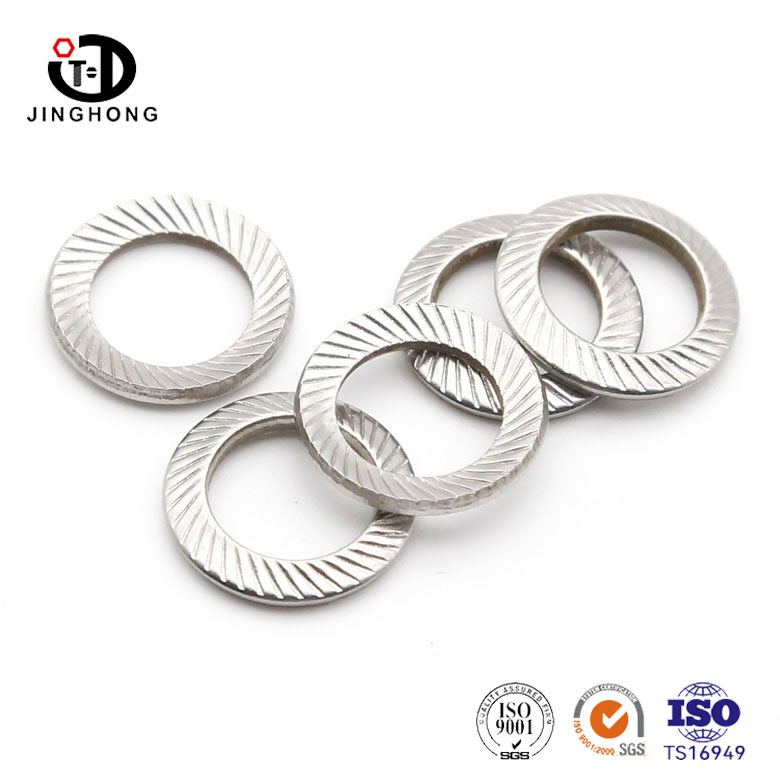

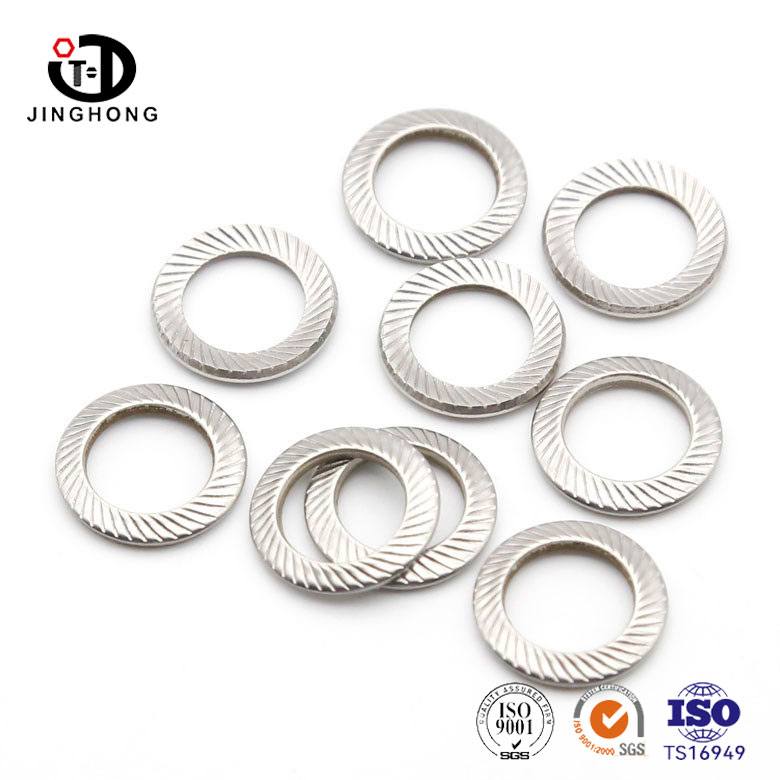

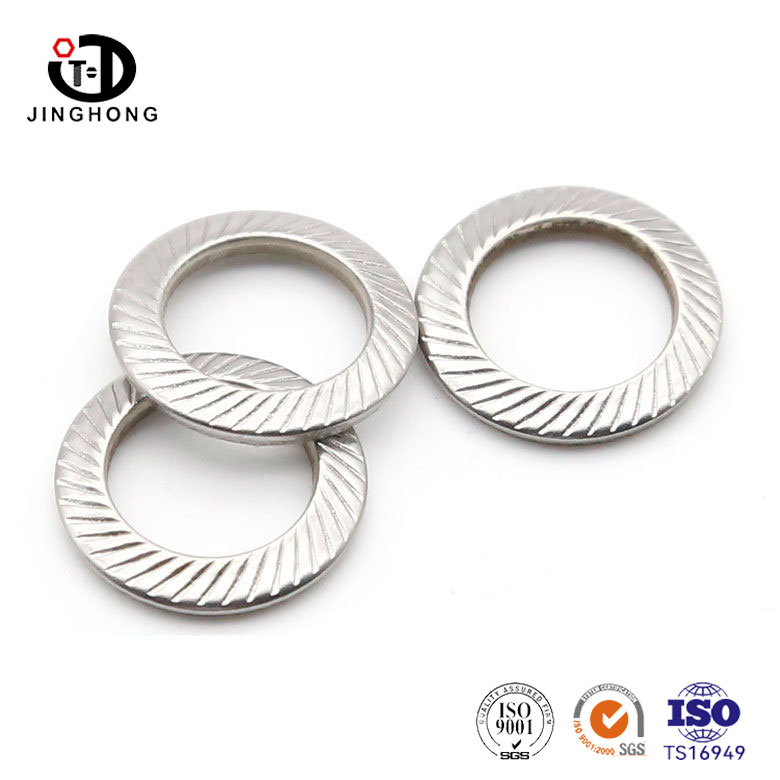

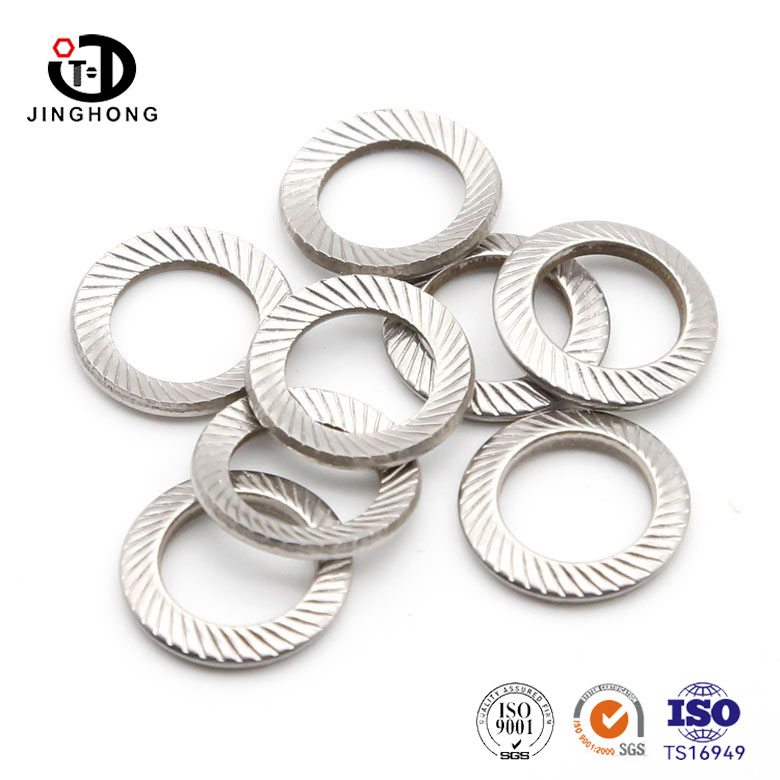

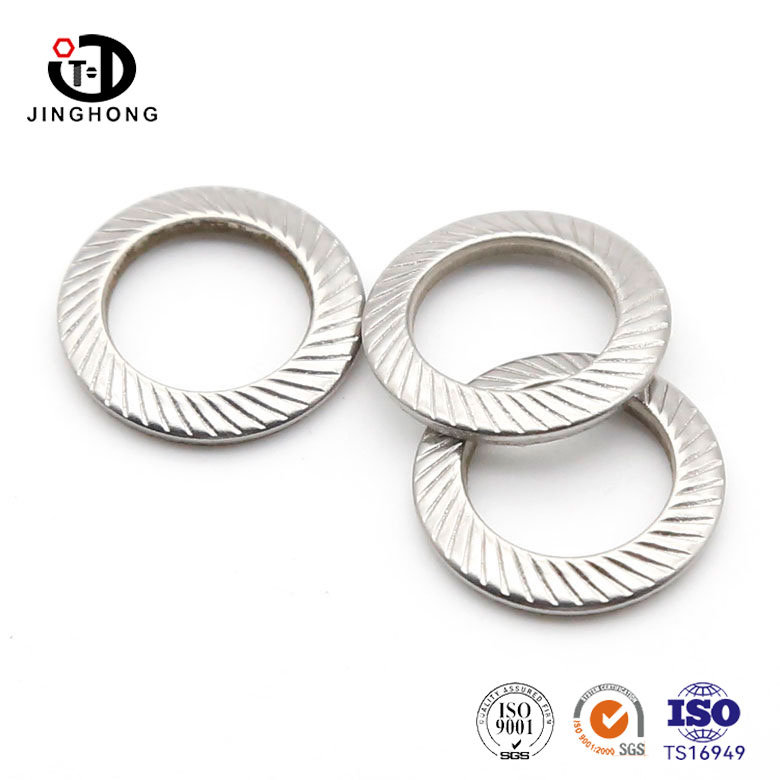

Double Layered Self-locking Anti Loosening Washer

Jinghong Factory specializes in producing Double Layered Self locking Anti Loose Washing, which is made of 304 stainless steel and consists of two pairs of washers with wedge-shaped teeth. The product is locked using the wedging principle and can maintain locking force under severe vibration and temperature changes. It is commonly used in situations with high anti loosening requirements.

Send Inquiry

Product Description

When the nut is tightened, the tooth surfaces of the two washers bite each other, forming a locking structure. To loosen the bolt, it is necessary to overcome the resistance caused by the wedging angle between the washers. This resistance is much greater than the elastic force of a regular spring washer, and the washer is in hard contact and does not rely on elasticity, so it will not lose its locking force even with large temperature changes or long-term vibrations. Ordinary spring washers will experience a decrease in elasticity after thermal expansion and contraction, while double layered washers will not.

A pair can be placed between the nut and the workpiece, or between the bolt head and the workpiece. The flat side of the washer is attached to the workpiece and nut, while the toothed side is opposite. After tightening, the teeth of the two washers are embedded with each other, and there will be no scratches on the workpiece side because the flat surface is attached to the workpiece.

Name	Double Layered Self-locking Anti Loosening Washer
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

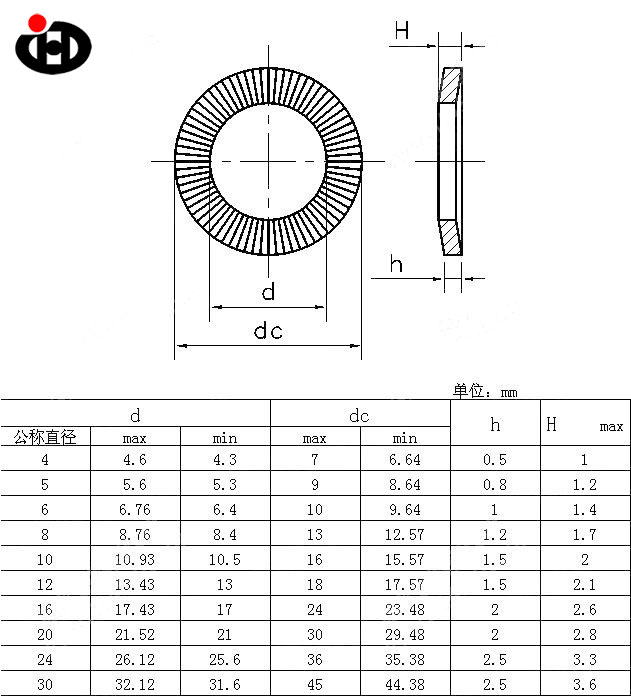

Sizes	M4-M30
Finish	Plain/Black/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Not damaging the surface of the workpiece: The flat surface of the washer has good smoothness, and the side that adheres to the workpiece is flat. After tightening, there will be no tooth marks left on the surface of the workpiece. Some devices require no indentation on the surface, and using this type of gasket is just right.

True anti loosening: Ordinary spring washers rely on elasticity to prevent loosening, and the elasticity disappears after a short period of vibration. The double layered washer is firmly locked by wedge-shaped teeth, and the greater the vibration, the tighter the bite, without loosening on its own. Used on engines, fans, and crushers, one screw tube lasts for several years.
