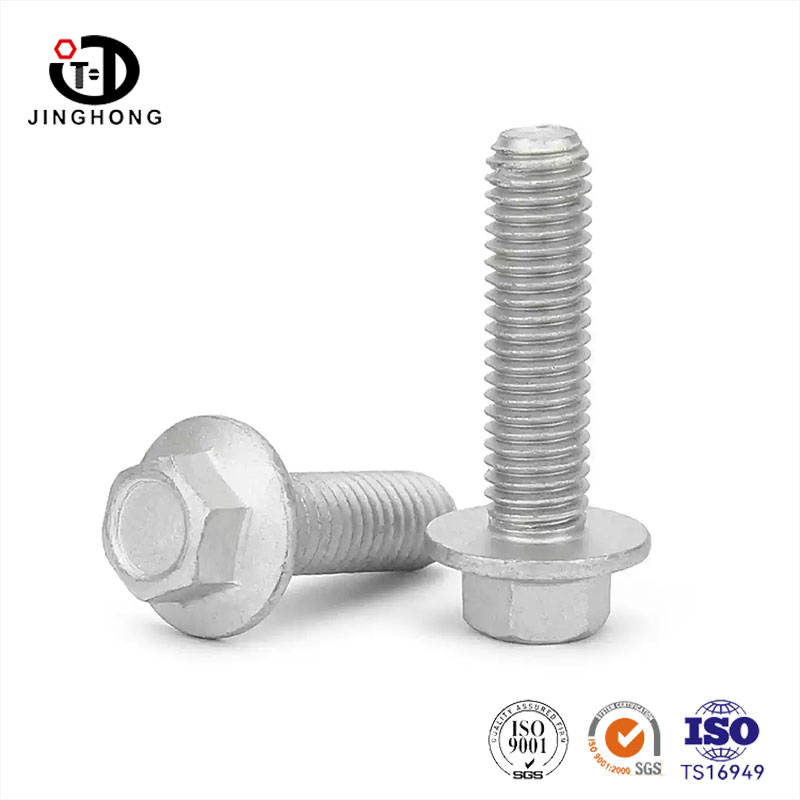

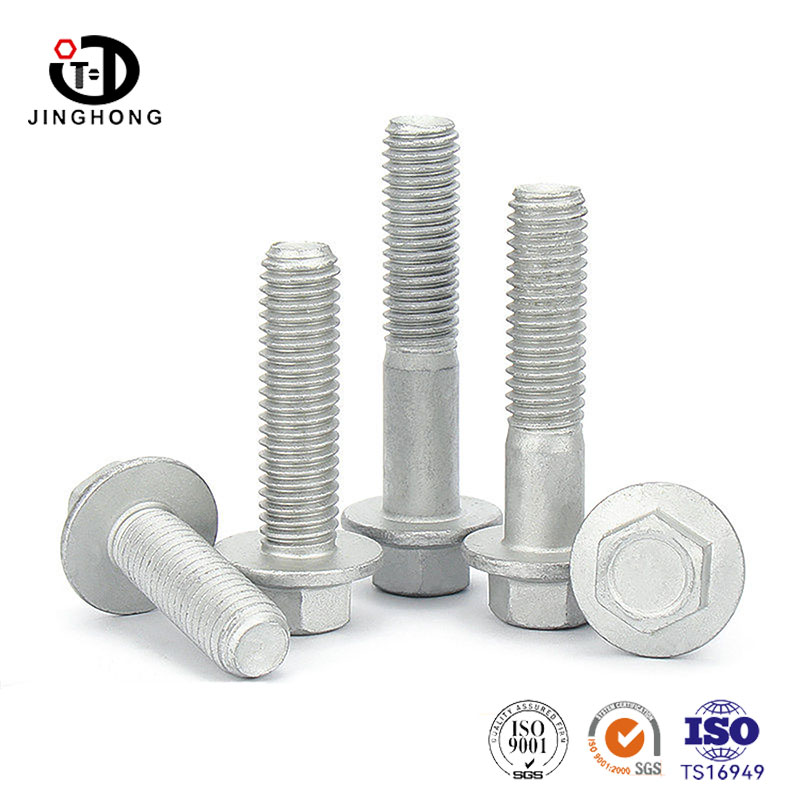

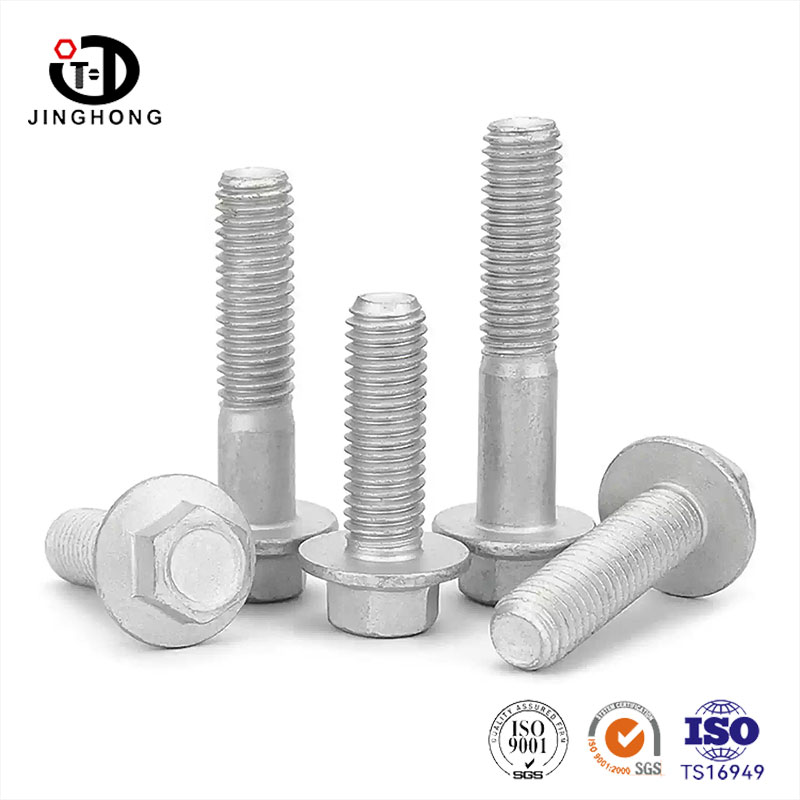

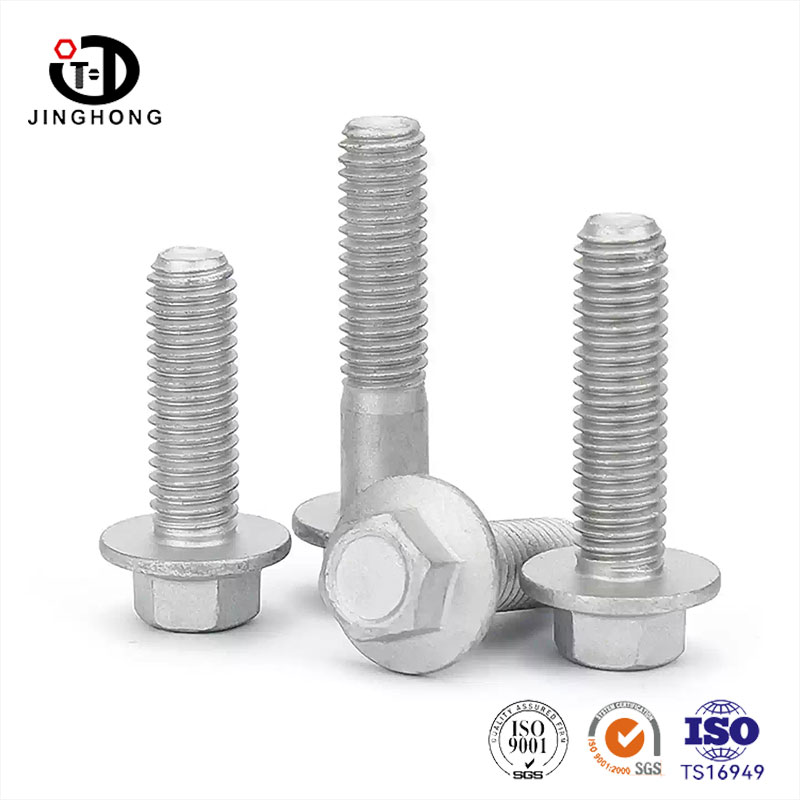

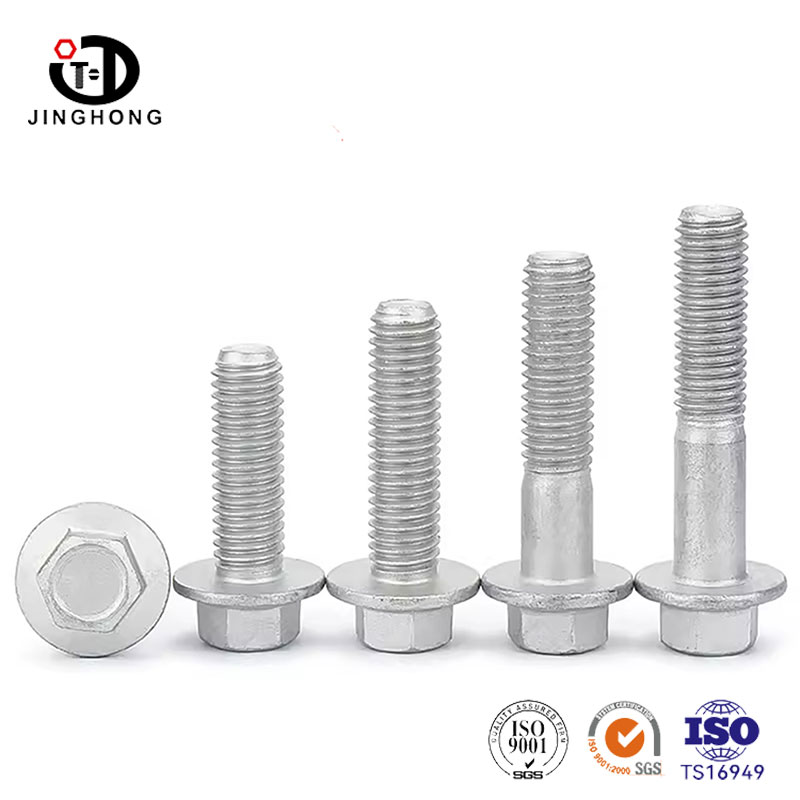

Dacromet Hex Flange Bolt

Our factory specializes in producing Dacromet Hex Flange Bolt, which is made of high-quality carbon steel with a hexagonal flange surface on the head and a Dacromet treatment on the surface. Replacing flat gaskets with flange faces increases the contact area, disperses pressure, and eliminates the need for a separate gasket insertion process. Dacromet coating has excellent salt spray resistance and is suitable for occasions with high requirements for rust prevention. Specifications and lengths can be customized according to needs, and strength grades of 4.8, 8.8, and 10.9 can be produced.

Send Inquiry

Product Description

The flange is one circle larger than the regular hexagonal bottom surface, with a larger compression area. With the same locking force, the pressure exerted by the flange bolt on the workpiece is smaller, and it will not force the thin plate or soft material out of the pit. The back of the flange can have toothed patterns (we call it toothed flange) or not (flat bottomed flange). After tightening with teeth, the teeth bite onto the surface of the workpiece, providing better anti loosening effect and suitable for vibration environments. Flat bottomed surfaces are suitable for applications that require protection of the workpiece surface, and will not scratch the painted surface or stainless steel panel.

Dakro is a zinc aluminum composite coating with a silver gray appearance, not shiny galvanized. Its rust prevention ability is much stronger than galvanizing - no red rust appears after 500 to 720 hours of salt spray testing. Moreover, Dacromet is a high-temperature baking cured coating, and the processing does not involve acid washing or electroplating, so there is no risk of hydrogen embrittlement. Used on high-strength bolts of grade 10.9, there is no need to worry about hydrogen embrittlement fracture.

Name	Dacromet Hex Flange Bolt
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

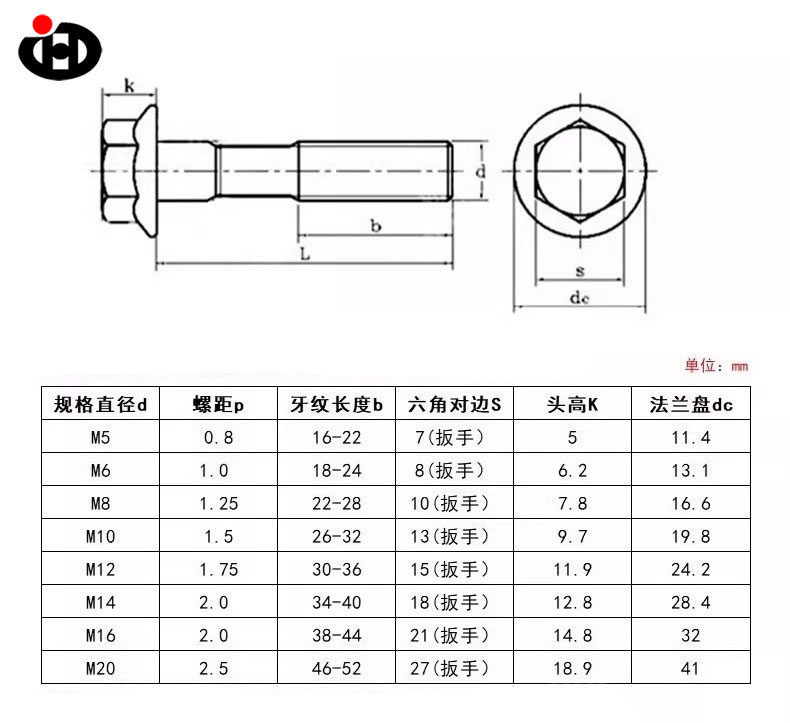

Sizes	M5-M20Metc
Finish	Plain/Dacromet/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Replace the flat gasket with a flange and wear one less: the flange plate is integrated with the bolt, and when tightening, it directly presses the workpiece without the need for a separate flat gasket. Missing one part and one process on the assembly line. When dismantling, the gasket will not fall off and be found everywhere.

Dakro salt spray resistance: Dakro coating does not produce red rust after 720 hours of salt spray testing. Used on car chassis, even when thrown with snow melting agent in winter, it does not rust. Used on photovoltaic brackets, it still turns silver gray after being exposed to wind and rain for several years.
