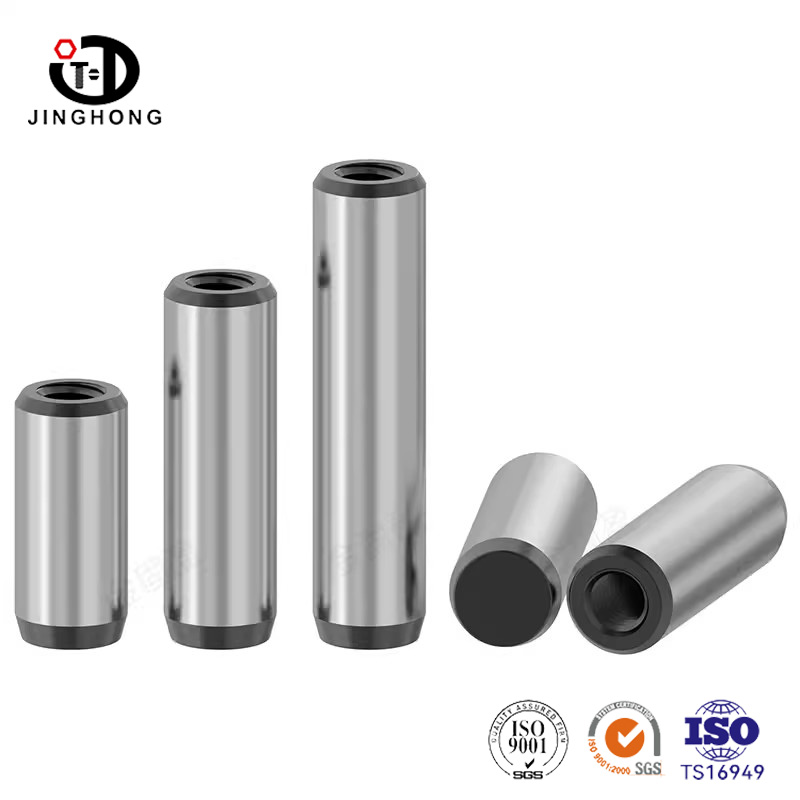

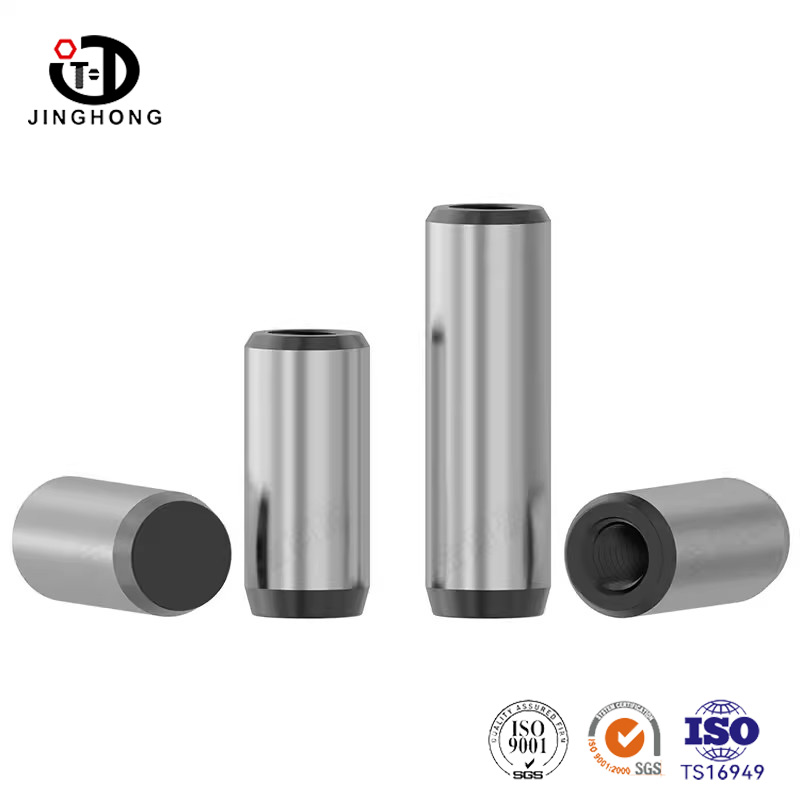

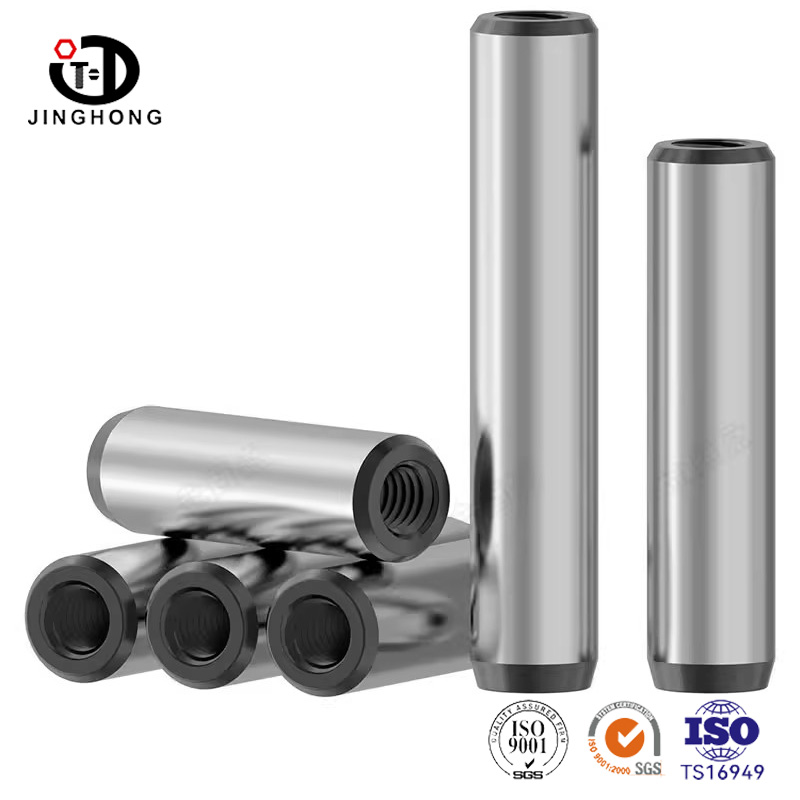

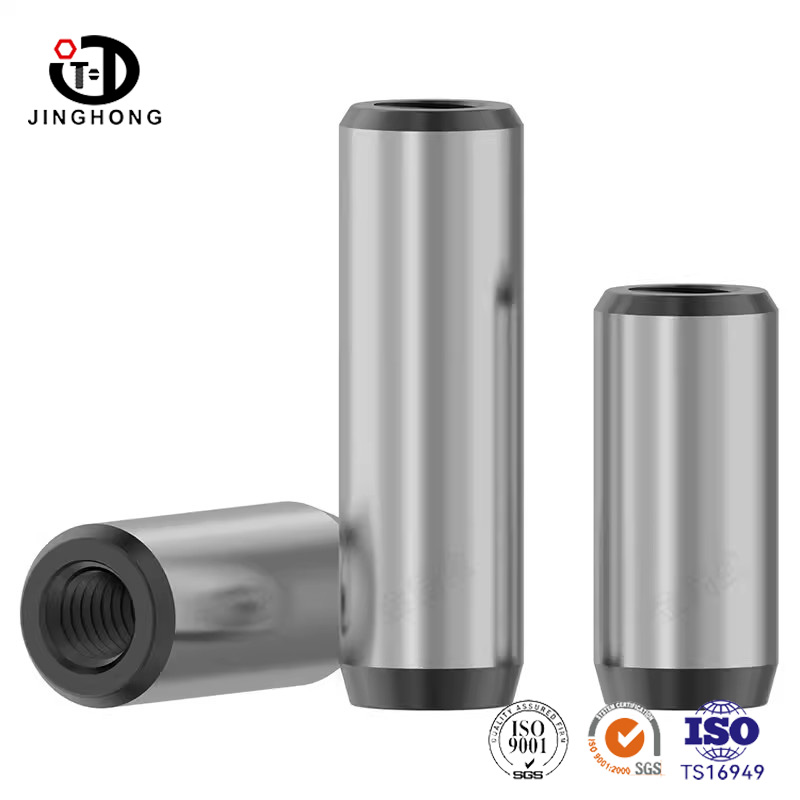

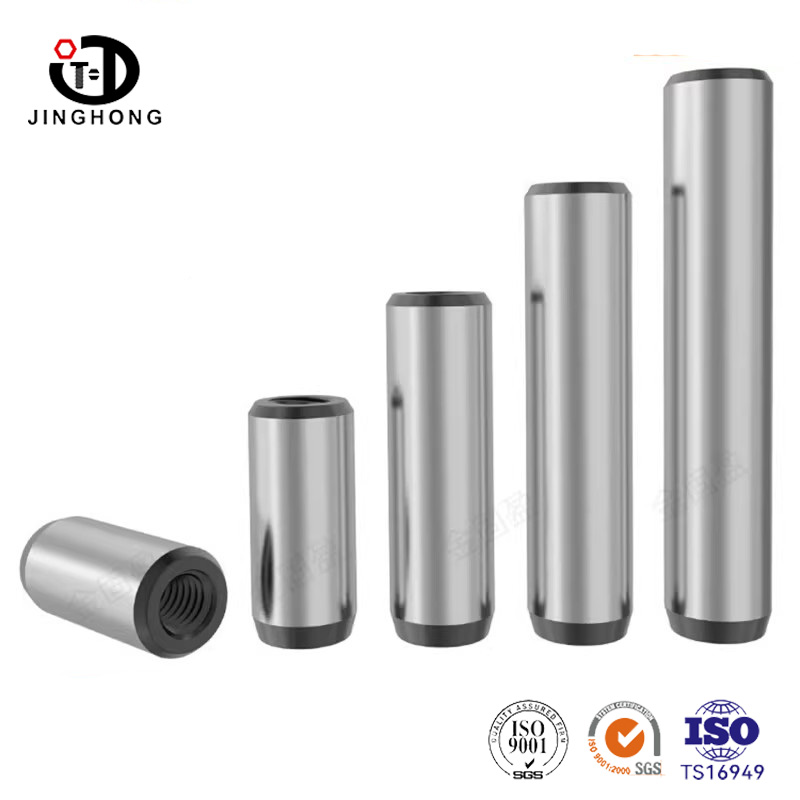

Thread Dowel Pin

Jinghong Manufacturer specializes in providing high-precision Thread Dowel Pins, crafted from premium carbon steel, alloy steel, or stainless steel. Featuring an internally threaded end design for easy installation and removal, these pins serve as ideal components for precise positioning, load transmission, and shaft system fixation. Standard specifications are available in stock, with non-standard customization supported. Inquiries are welcome.

Send Inquiry

Product Description

The Threaded Dowel Pin features precision internal threads on one end, building upon the standard cylindrical pin. This design offers exceptional convenience: when disassembly is required, simply screw in the matching puller tool or a regular bolt into the internal threads to effortlessly remove the pin from blind or through holes. No tapping or part damage is needed, preserving both the pin itself and the precision-fitted installation hole.

The thread dowel pin is essentially a reusable positioning and connecting component. During normal operation, it relies on precise fitting with the bore wall to accurately transmit force and motion. When disassembly of parts is required, it enables damage-free removal through internal threads, significantly enhancing equipment maintainability and the service life of the pin.

Name	Thread Dowel Pin
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

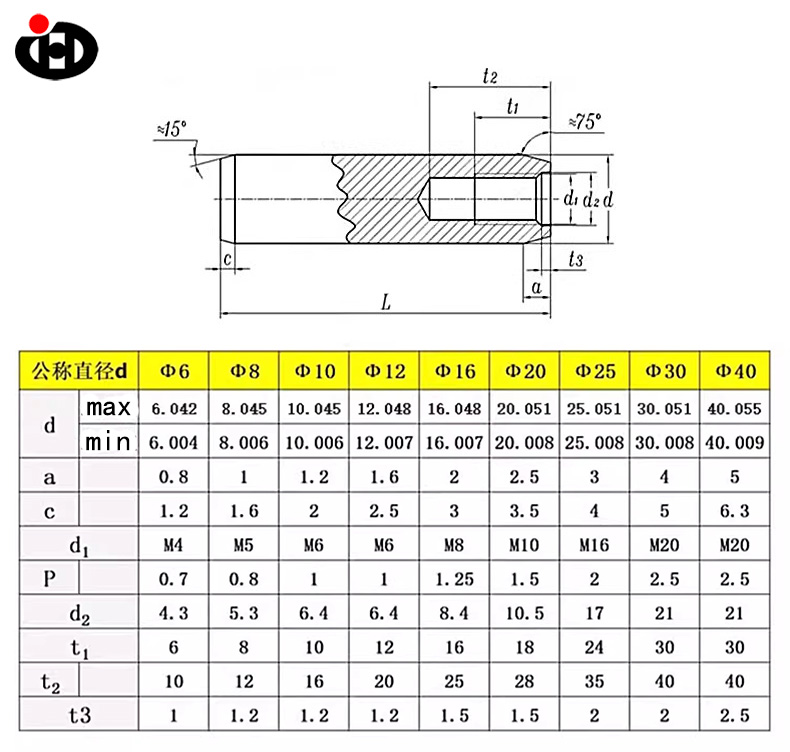

Sizes	Φ6-Φ40Metc
Finish	Plain/Zinc plated/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Internal thread design, easy maintenance: One end has a standard internal thread, which is no different from a regular cylindrical pin during installation. When disassembling, only the bolt needs to be screwed in to easily remove it. This design is particularly suitable for blind hole positioning or situations that require regular maintenance, avoiding damage to the work due to the inability to remove the pin.

Material selection and diverse surface options: We offer a variety of materials such as carbon steel, alloy steel, stainless steel, etc. The surface treatment supports blue and white zinc plating, color zinc plating, blackening, etc., to meet the requirements of different rust prevention levels.
