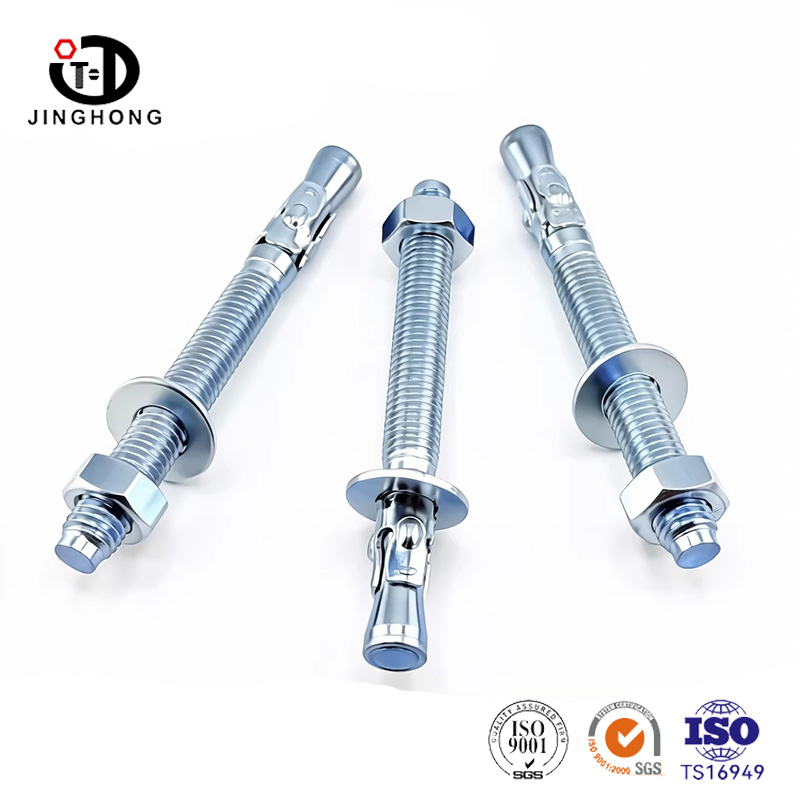

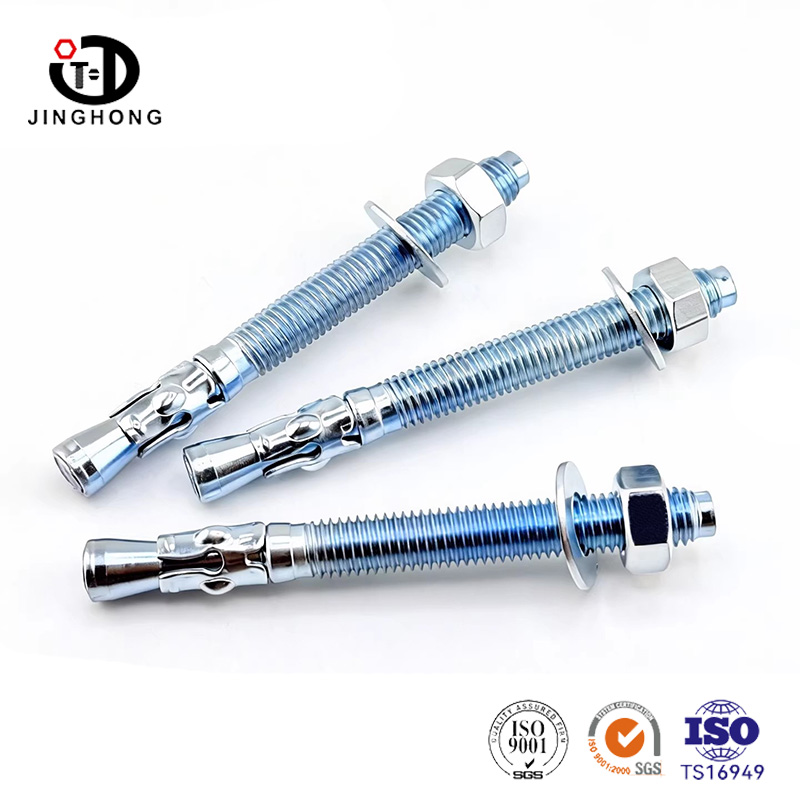

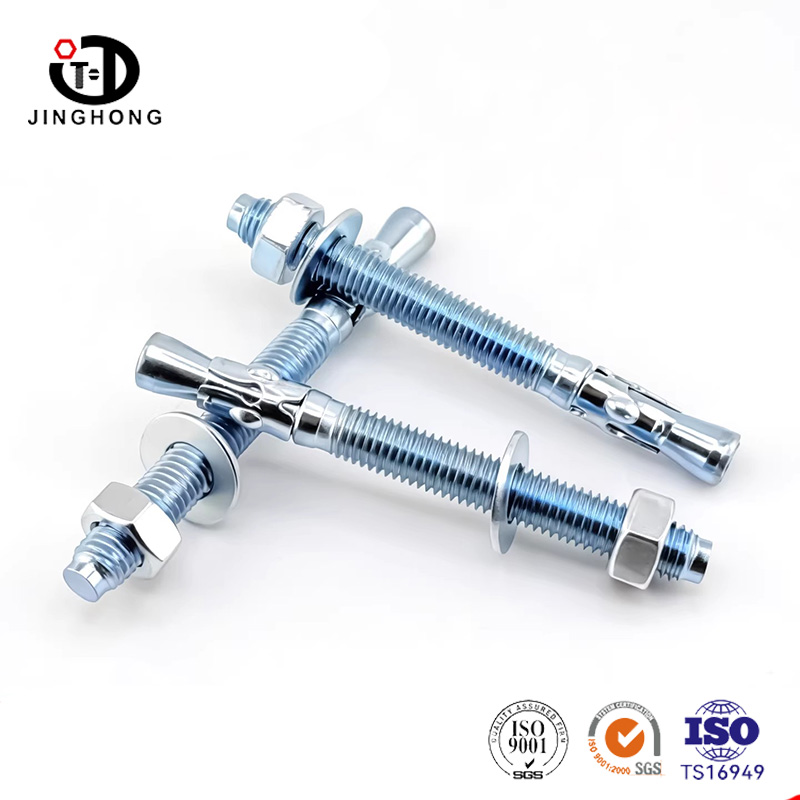

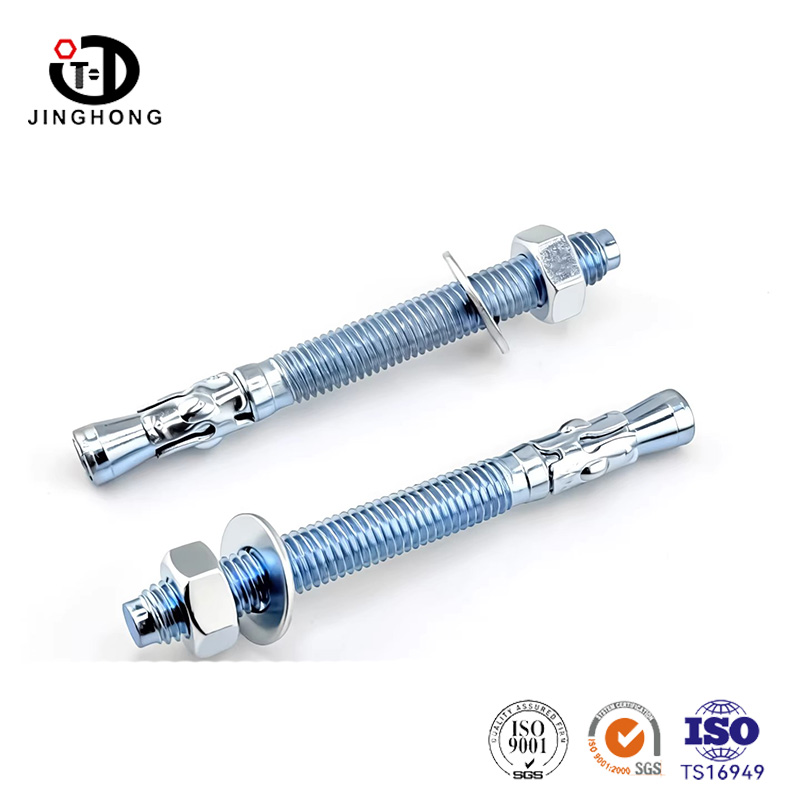

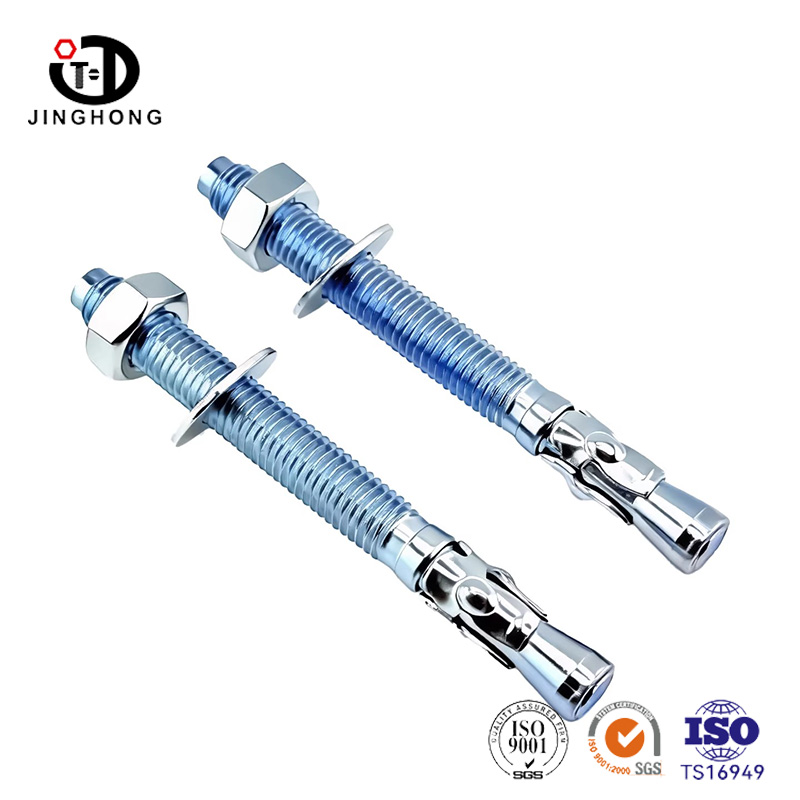

Stud Anchor

Jinghong Factory specializes in the production of Stud Anchors, with specifications ranging from M6 to M16 and lengths available from 50mm to 150mm. Made from high-quality carbon steel (Grade 4.8/8.8) and 304/316 stainless steel, the products can undergo blue-white zinc, colored zinc, or hot-dip galvanization treatments. Suitable for heavy-duty anchoring, these products are widely used in various applications. Standard specifications are available in stock, and non-standard customizations are supported.

Send Inquiry

Product Description

The Stud Anchor manufactured by Jinghong consists of a screw with a conical wedge, an expansion clip, a nut, and a flat washer. During installation, the anchor bolt is driven into a pre-drilled standard hole. By tightening the nut, tension is applied to the conical wedge, causing the expansion clip at the base to radially expand within the deep concrete, forming an irreversible mechanical interlock. This post-expansion function enhances the anchoring force as the embedment depth increases, making it tighter with each turn.

The installation of Stud Anchor does not require chemical agents. After drilling holes according to specifications with an impact drill, the anchor bolt is driven into the hole and secured by tightening the nut. It can immediately bear loads after installation without waiting for curing time. The requirements for the depth and cleanliness of concrete holes are not high, and the construction process is relatively simple.

Name	Stud Anchor
Material	Stainless Steel/Caibon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

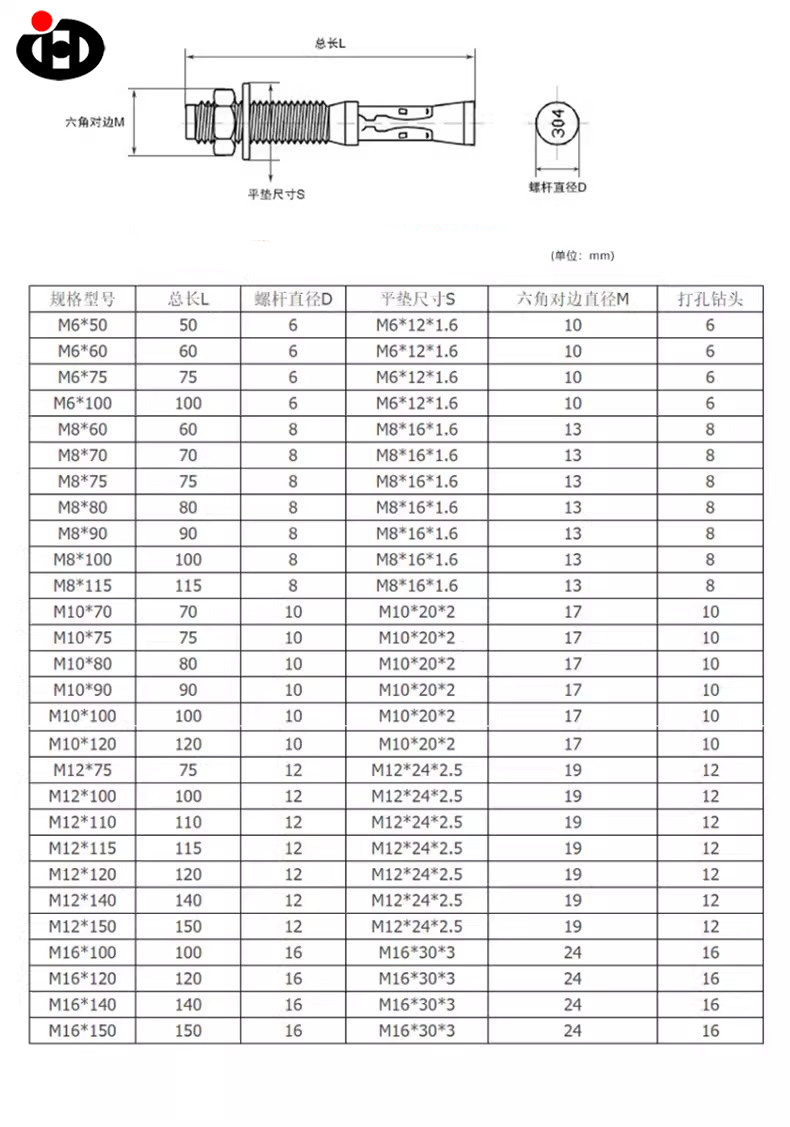

Sizes	M6-M16Metc
Finish	Plain/Black/Zinc plated/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Pure mechanical anchoring, easy installation: Utilizing the mechanical expansion principle, no chemical agents are required. Simply tighten the nut to complete the anchoring process, enabling immediate load-bearing post-installation without waiting. It imposes minimal requirements on drilling depth and cleanliness, ensuring simple construction and saving labor time.

Available in a variety of materials with optional anti-corrosion treatments: Offers options such as carbon steel (Q195/Q235) and 304/316 stainless steel to meet diverse usage environments. Surface treatments include blue-white zinc, colored zinc, and hot-dip galvanization. Stainless steel materials are suitable for coastal environments and humid indoor spaces, providing excellent corrosion resistance.
