Stainless Steel Turnbuckle

Our factory specializes in producing 304/316 stainless steel turnbuckles (also known as turnbuckle screws, turnbuckle turners, and turnbuckle clamps), which are precisely processed and formed using high-quality stainless steel bars or plates. The product achieves precise tensioning of steel wire ropes, cables, or tension rods by rotating the middle sleeve to simultaneously adjust the extension length of the screws at both ends. The end forms include loop type (OO), loop hook type (OC), etc., which are widely used in various industries.

Send Inquiry

Product Description

It has a long sleeve in the middle, with a threaded rod extending from each end. The end of the threaded rod is equipped with a ring, a hook, or a fork. By rotating the middle sleeve, the threaded rods at both ends will simultaneously retract or extend, causing the steel wire rope to tighten or loosen accordingly.

The sleeve of the split turnbuckle is open, with the screw threads visible on both ends when adjusting. The sleeve of the enclosed turnbuckle is a closed tubular shape, with the screw housed inside the tube, resulting in a cleaner and tidier appearance, suitable for occasions where high appearance standards are required.

Name	Stainless Steel Turnbuckle
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

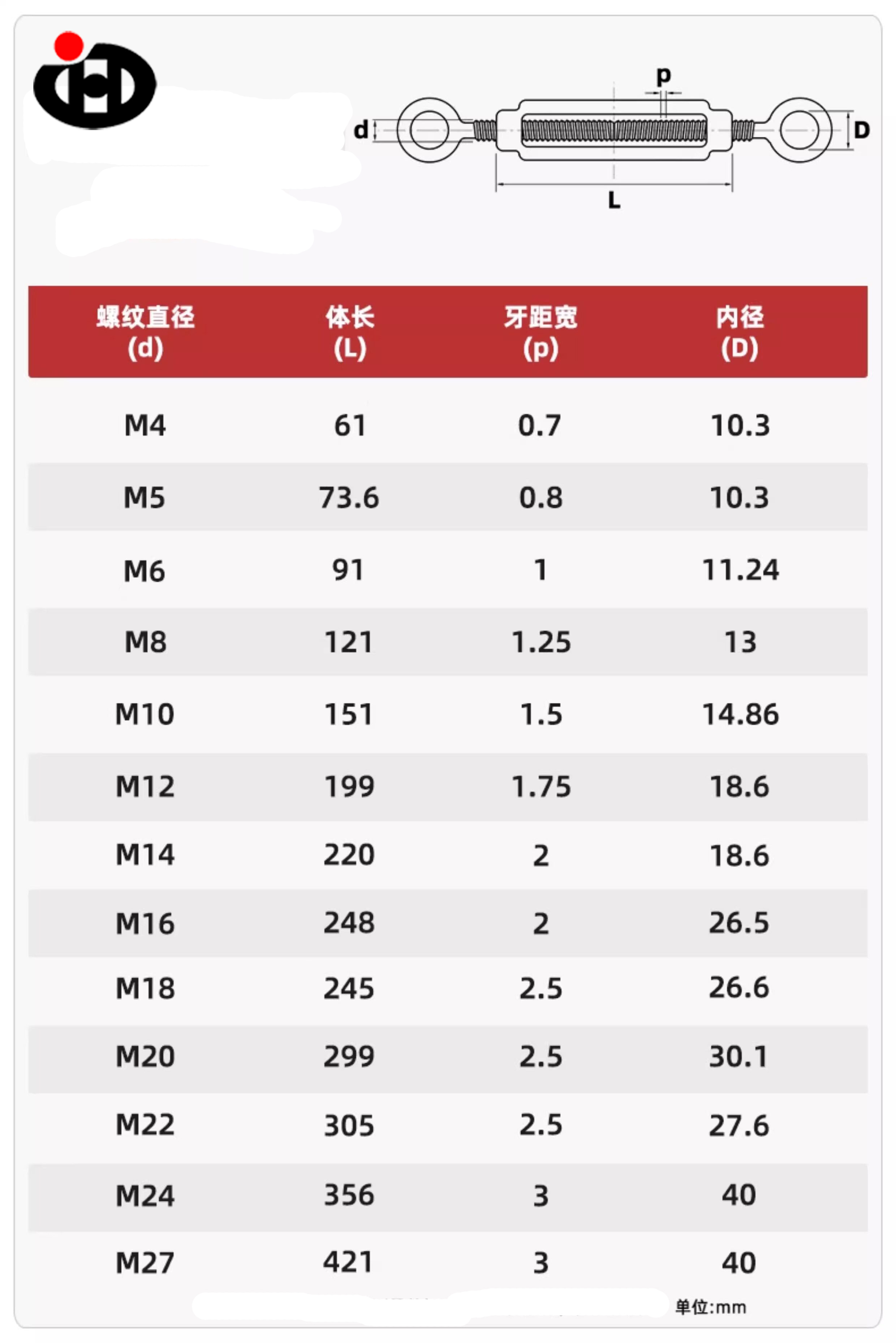

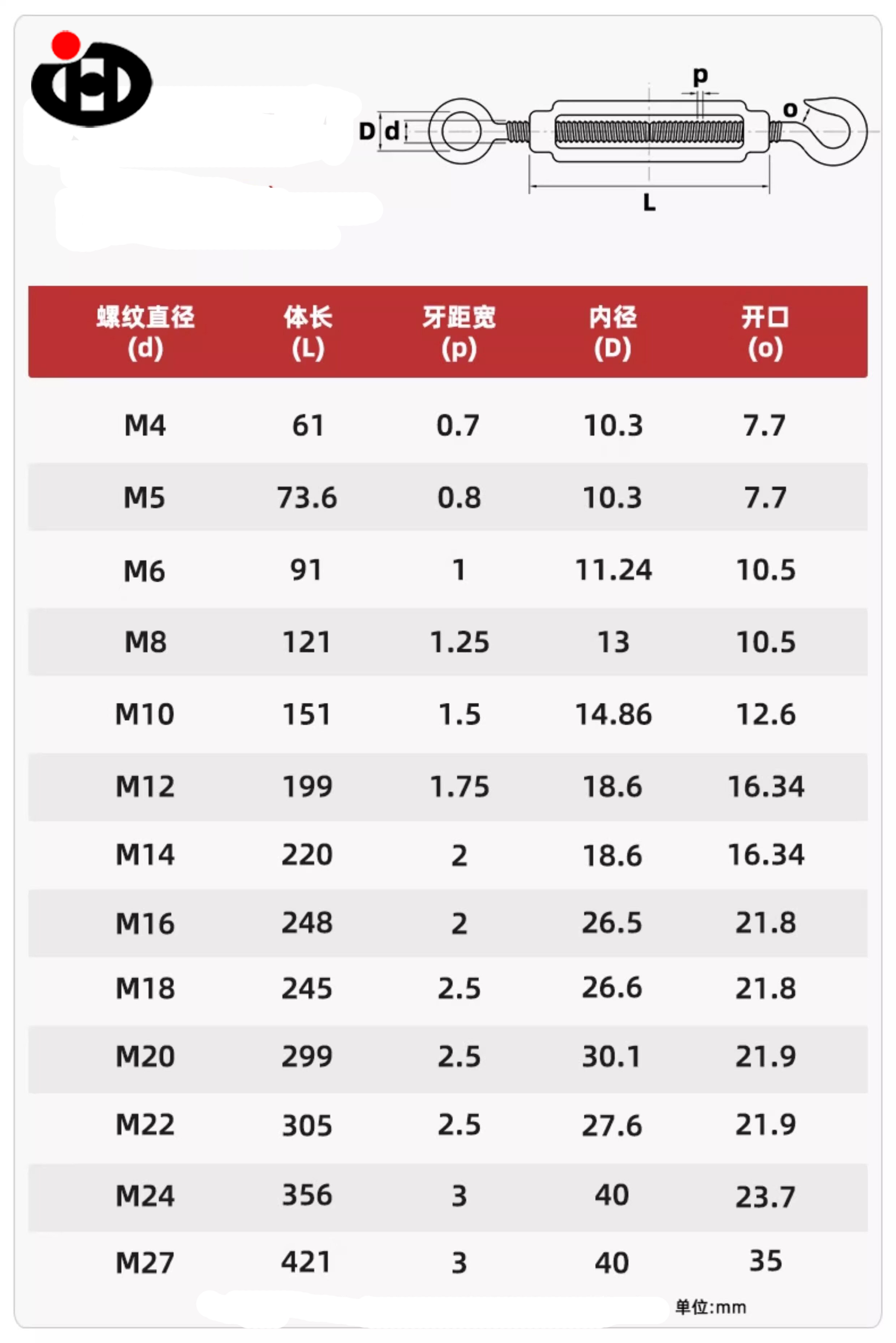

Sizes	M4-M27Metc
Finish	Plain/Black/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

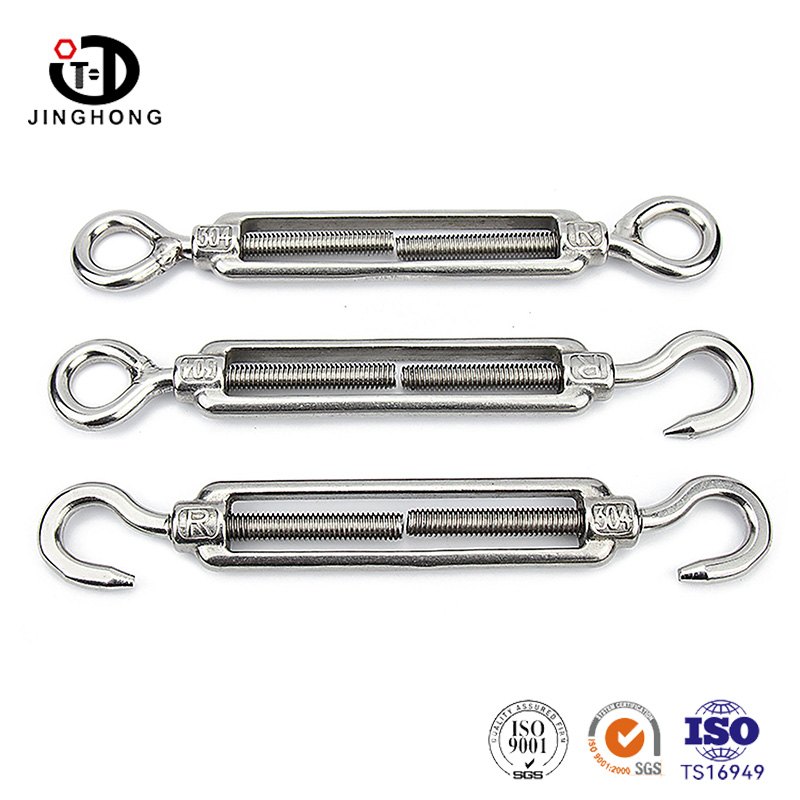

A variety of end forms, suitable for different connection methods: three types of ends - loop, hook, and fork, and five combinations - OO, CC, OC, UU, and OU. The loop can be used to hang ropes, the hook to hang chains, and the fork to pass through pins, covering almost all connection methods for steel wire ropes and cables. Customers provide the connection method, and we recommend the suitable model.

Surface bright treatment, stainless and good-looking: The natural color of stainless steel is polished or passivated, resulting in a silver-white bright surface. When installed on outdoor facilities, it remains stainless and does not get dirty, appearing clean. No additional coating is needed, eliminating the issue of coating peeling off.
