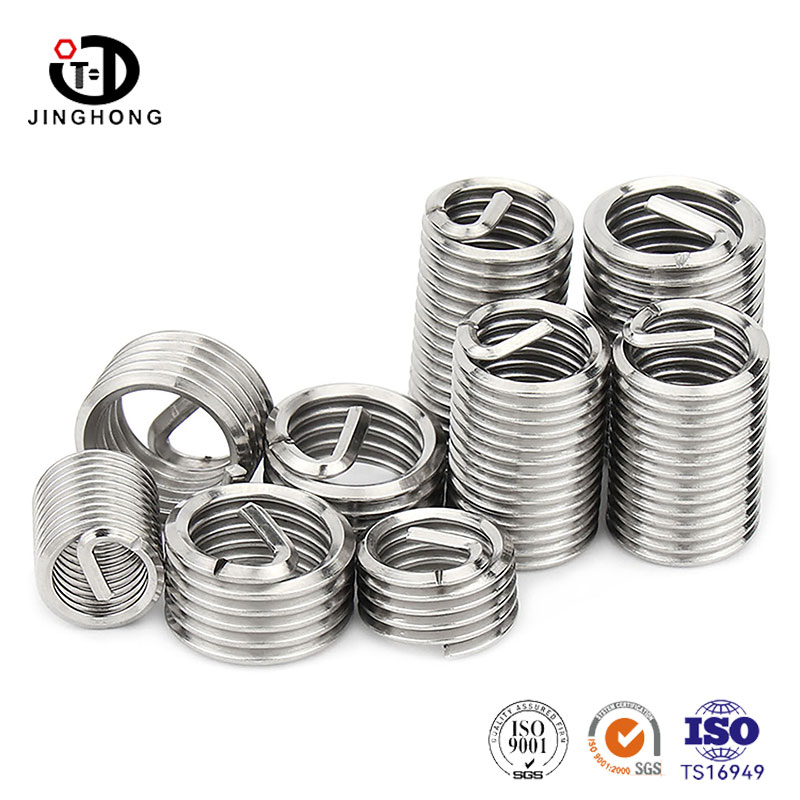

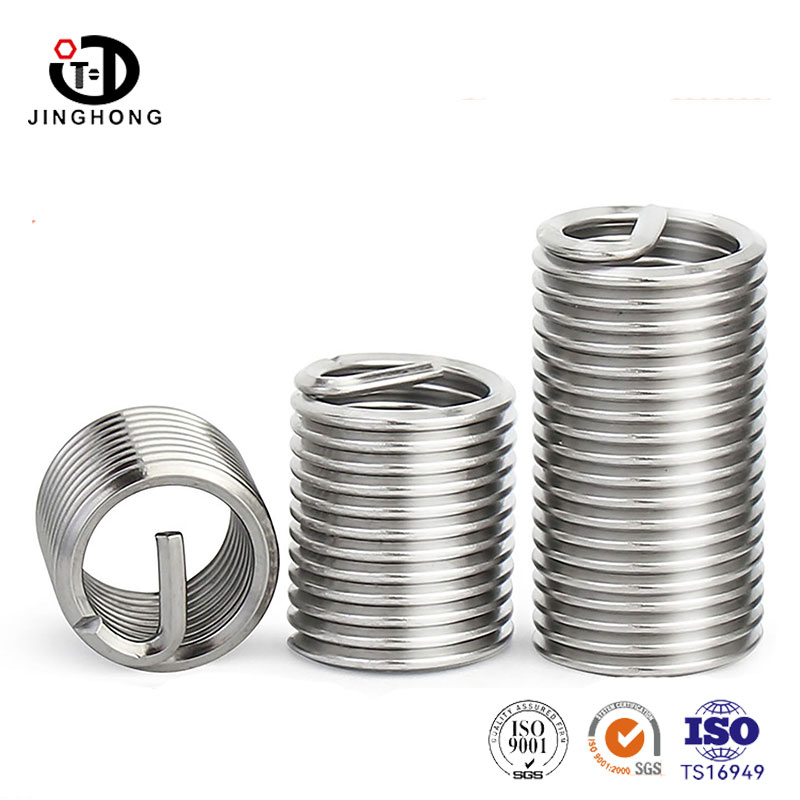

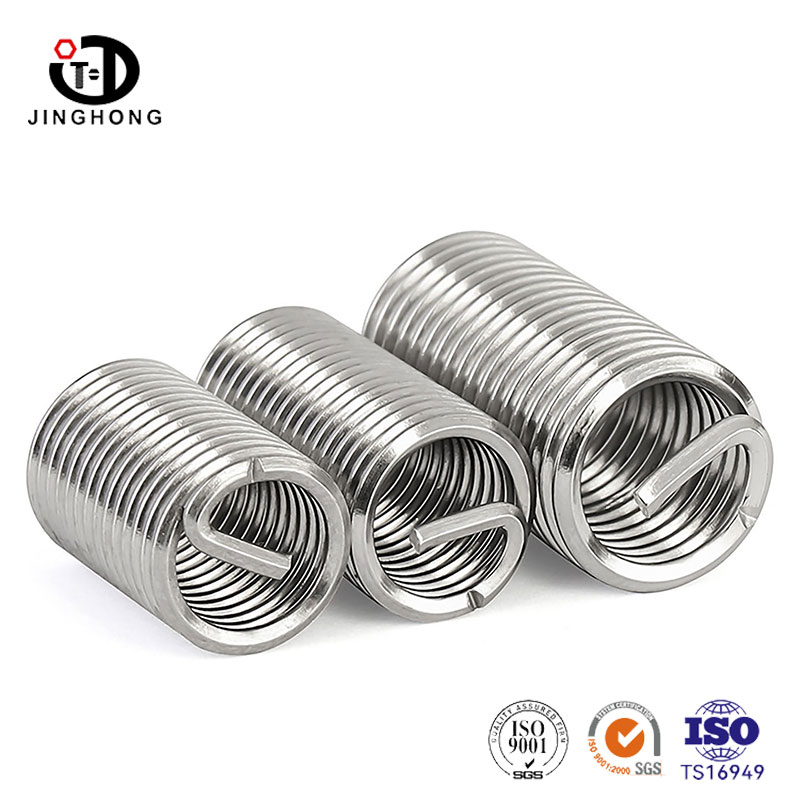

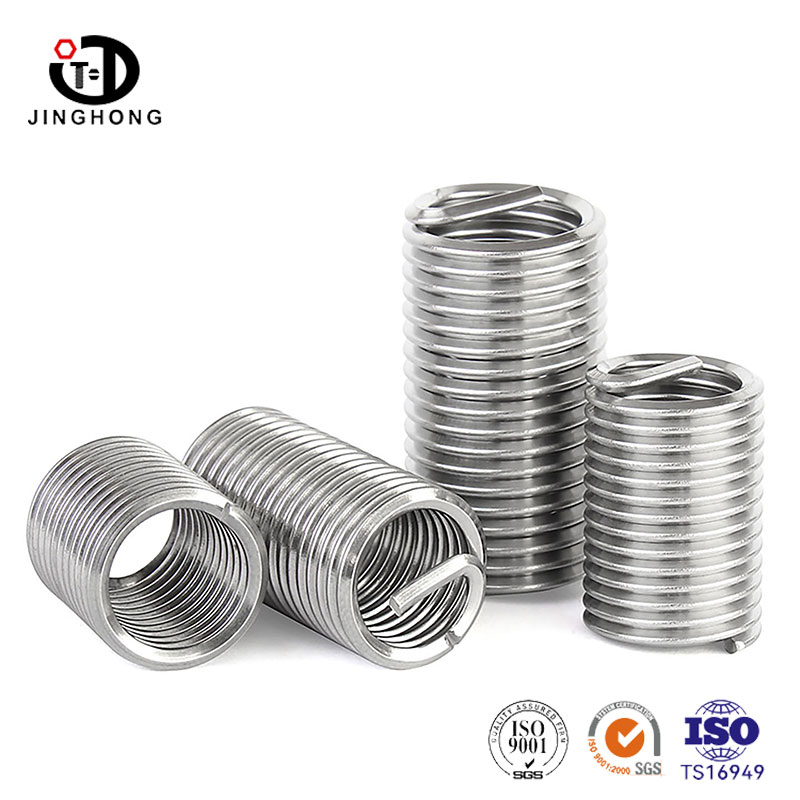

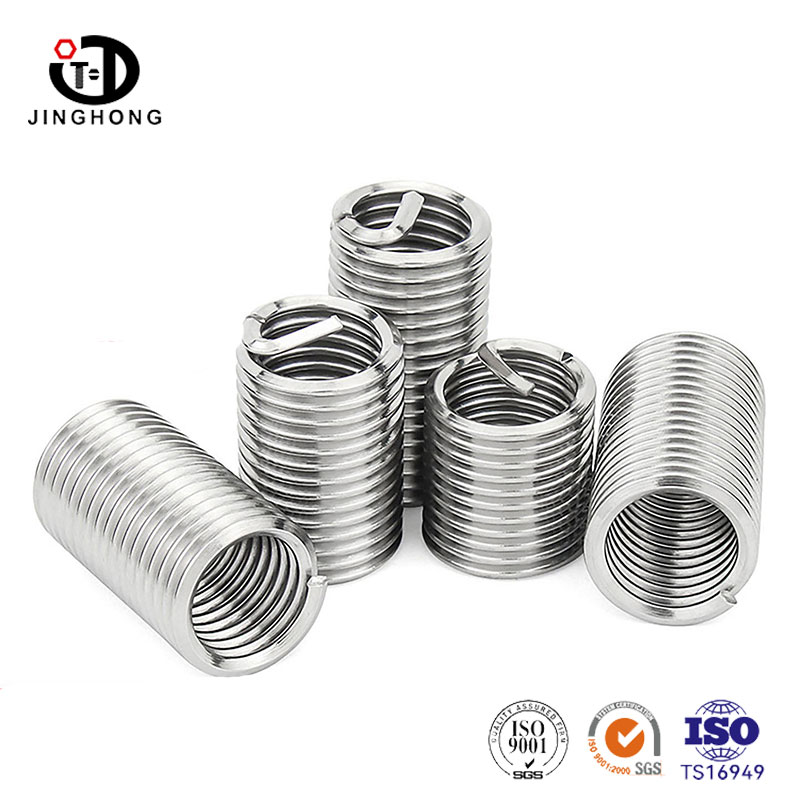

Stainless Steel Helicoil Insert

Jinghong Manufacturer specializes in producing Stainless Steel Helicoil Insertions, which are spiral shaped and can be fitted onto the external threads of bolts or screws to effectively prevent thread collision, rust, and damage during transportation, assembly, and storage. Widely used in automotive parts and other occasions.

Send Inquiry

Product Description

The stainless steel nut thread protector is specifically designed to address this issue. It is a spiral coil formed by high-precision diamond-shaped stainless steel wire, with a diamond-shaped cross-section. When installed in a pre-tapped (using a dedicated tap one size larger) threaded hole, it tightly adheres to the hole wall due to its own elasticity, creating a smooth, high-hardness, wear-resistant, and corrosion-resistant stainless steel internal thread. Subsequent bolt insertion only contacts this stainless steel nut protector, eliminating direct wear on the softer raw material threads.

A thread protector is a spiral metal coil specifically designed to be fitted over bolts, screws, or other threaded parts to prevent damage, rust, and dust ingress. It differs from a thread insert—while the latter is installed in internally threaded holes to enhance thread strength, this protector is applied externally to provide safeguarding.

Name	Stainless Steel Helicoil Insert
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

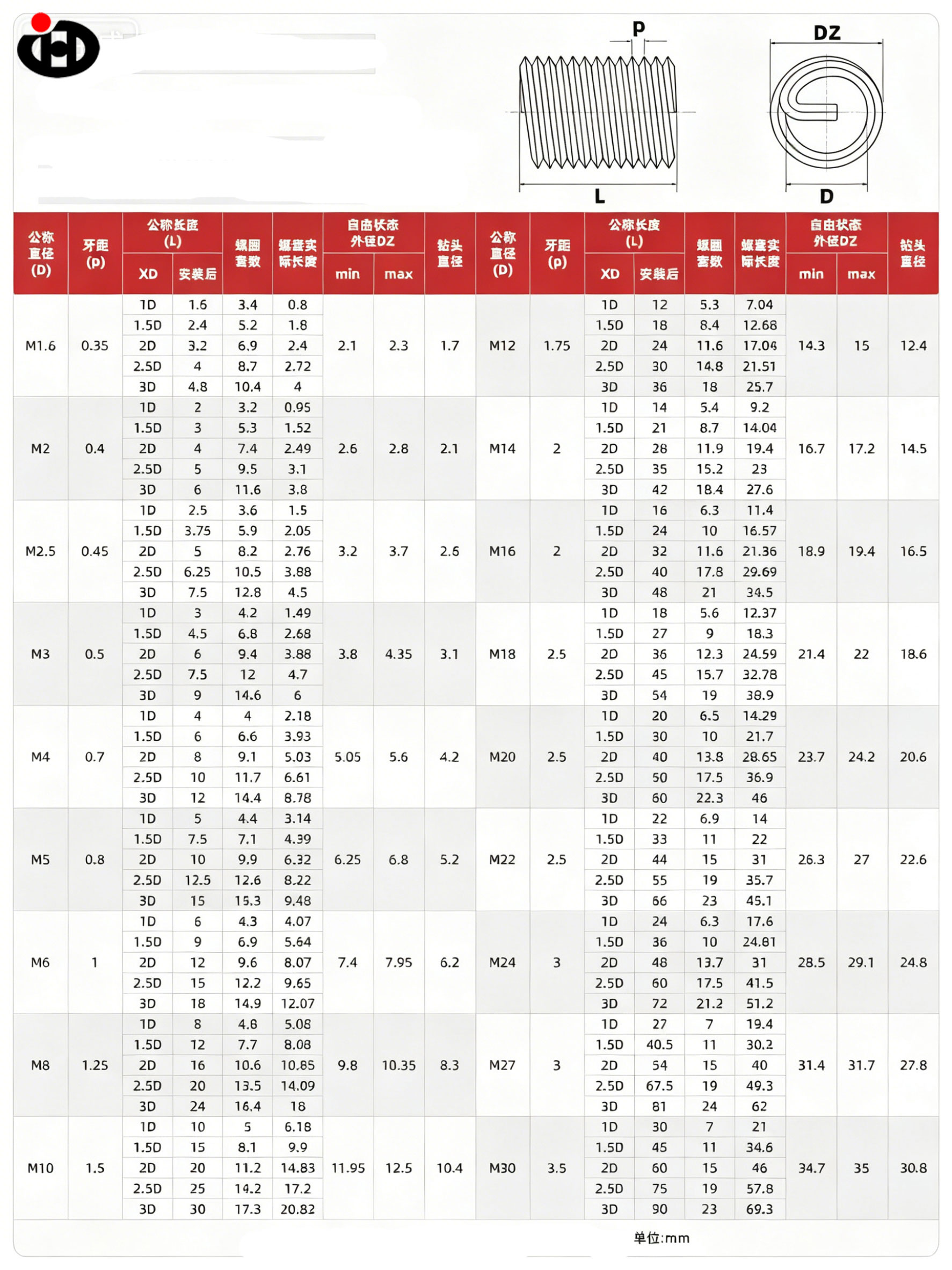

Sizes	M1.6-M10Metc
Finish	Plain/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Spiral structure, hand twisted installation: The inner side of the protective sleeve has a threaded shape, which can be rotated in the direction of the bolt thread. No tools or glue are needed, just install one in a few seconds. When dismantling, it can be removed by turning in the opposite direction and can be reused many times.

Effective anti-denting, preventing damage to thread tips: Bolts colliding with each other in the box most easily flatten the thread tips. After installing stainless steel protective sleeves, the outer stainless steel ring provides support, keeping the bolt threads concealed inside—impossible to damage no matter how they collide. Workers inspect each bolt upon removal, ensuring every thread remains intact.
