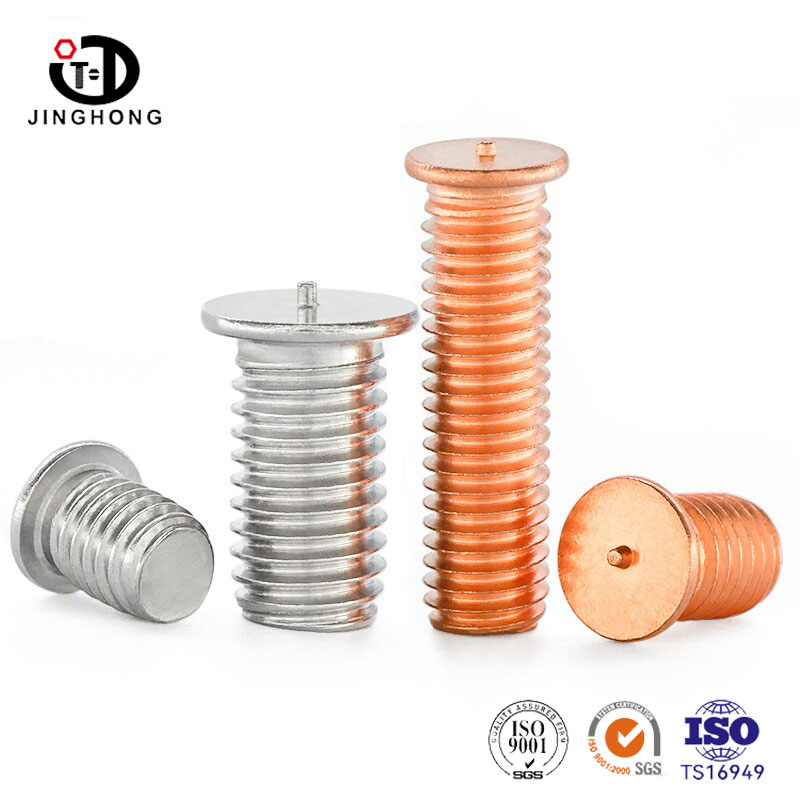

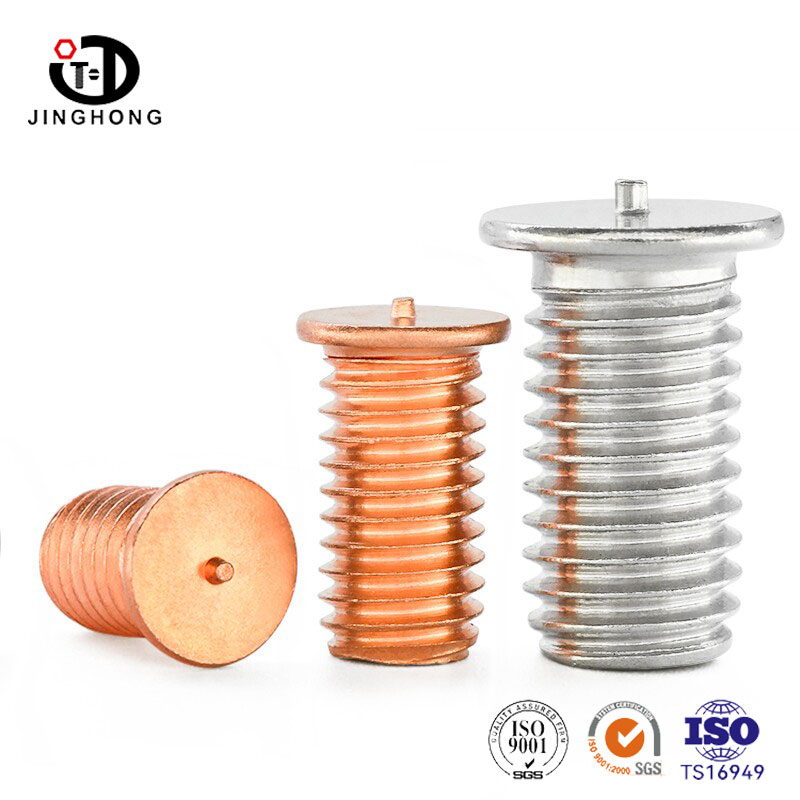

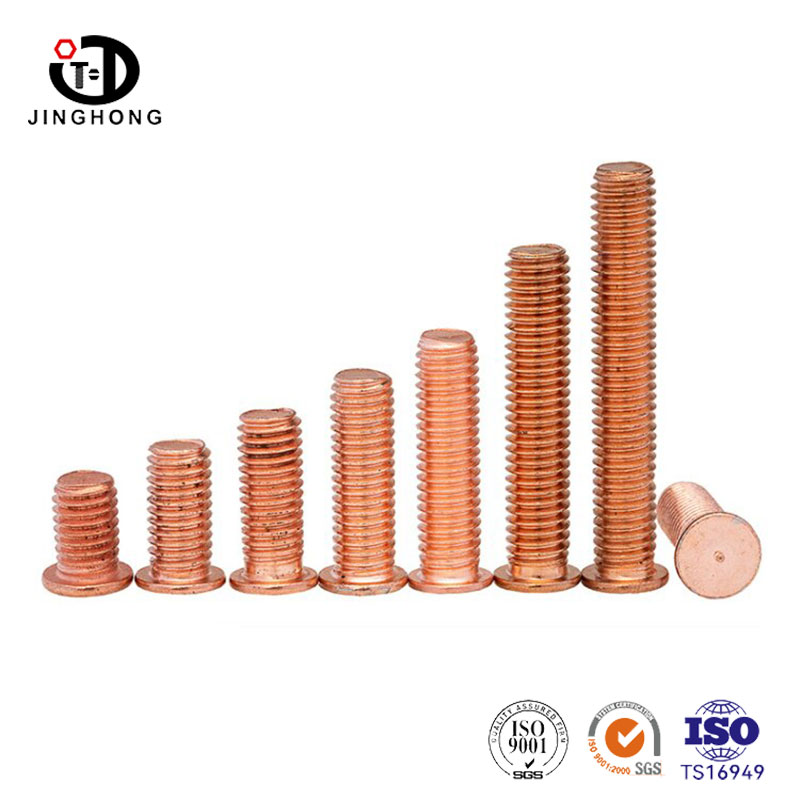

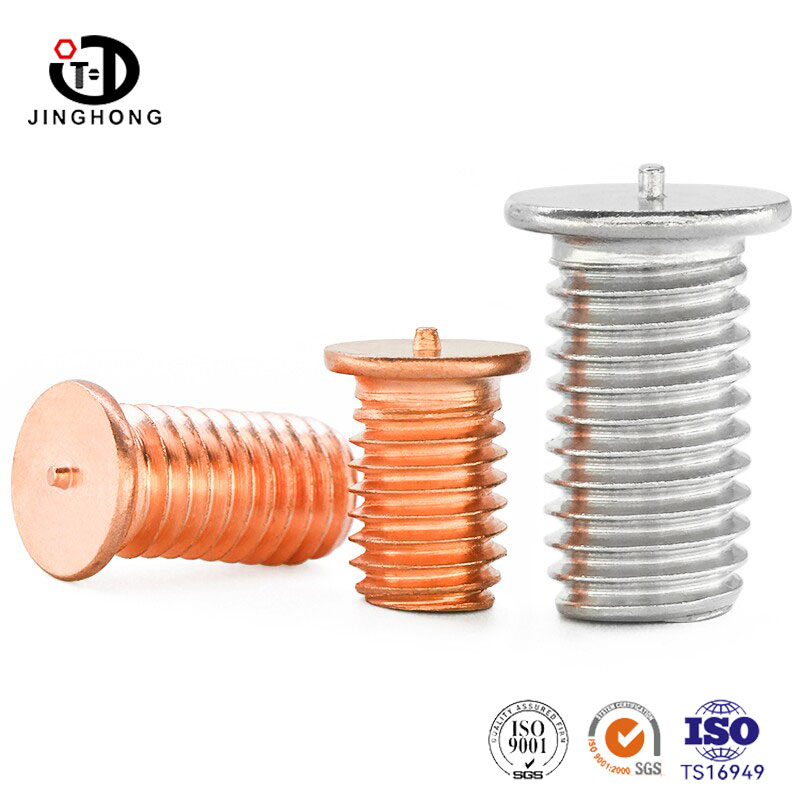

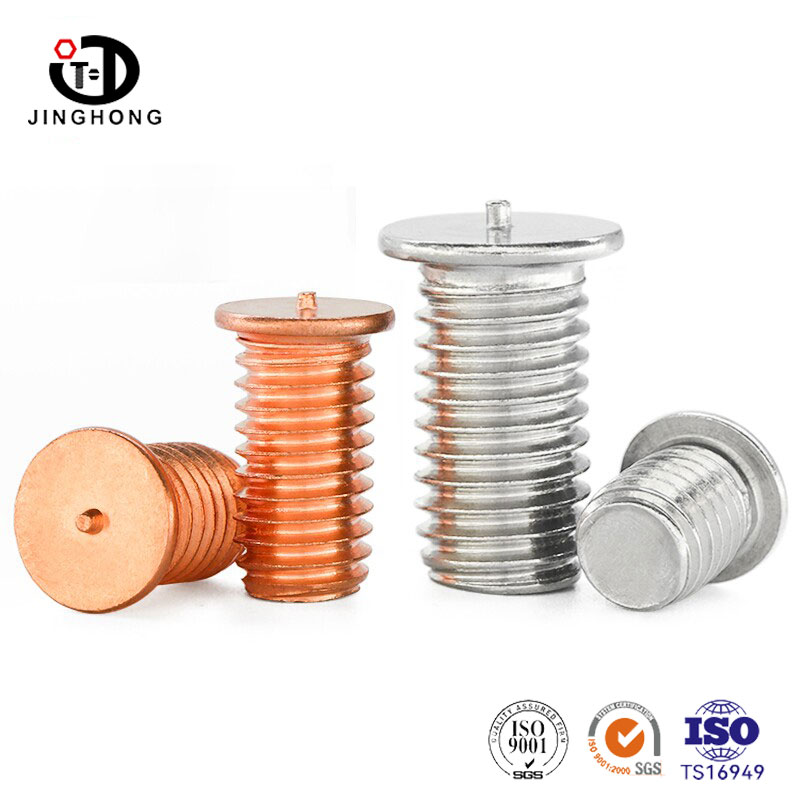

Stainless Steel/Copper Weld Studs

Stainless Steel/Copper Weld Studs (convex welding screws/welding screws), with circular convex points or V-shaped sharp corners at the bottom, can be directly welded to the surface of metal plates with resistance welding equipment. After welding, a permanent threaded connection point is formed without the need for tapping, riveting, or backside operation. 304 stainless steel is rust resistant and corrosion-resistant, and copper material has excellent conductivity.

Send Inquiry

Product Description

Spot welding screws are fasteners specifically used on thin metal plates. Ordinary screws need to be drilled, tapped, and then tightened on the board. When they come into contact with a steel plate that is only 0.8mm thick, they cannot be threaded or welded with nuts. Spot welding screws is the solution to this problem - once it is placed on the board, the two electrodes of the welding machine are pressed together, and a high current is passed through, it can be welded in a few milliseconds, and there is no need to drill or tap holes on the thin plate anymore.

The bottom of Stainless Steel/Copper Weld Studs has a ring of raised circular teeth or several protrusions, which are the parts used for welding. The entire welding process only takes 0.2-0.5 seconds, and the screws are firmly fixed on the plate. From now on, there is a permanent threaded hole in the position of this sheet metal, which can be directly screwed into other parts.

Name	Stainless Steel/Copper Weld Studs
Material	Stainless Steel/Copper
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M3-M12Metc
Finish	Plain/Black/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Directly welded onto the board without the need for holes: the biggest advantage of spot welding screws is that they do not require holes. The back of the board does not require tapping, welding nuts, or riveting. Place the screw onto the board and press the welding machine to complete the task. The surface of the board has no holes, so there will be no water or air leakage, and the appearance is also clean.
