Stainless Steel Butt Screw

Our factory specializes in the production of 304 stainless steel chamfered hexagon head set screws, made from 304 stainless steel, with male and female screws used in pairs. The male screw features a chamfered head and hexagon head, while the bolt passes through the workpiece and connects to the female screw.

Send Inquiry

Product Description

After installation, the surface feels smooth to the touch and won't cut. When used on leather bags, belts, or clothing, it prevents fabric wear or skin abrasions. For acrylic signage, the chamfered screw head transitions naturally with the sign edge, avoiding a jarring appearance.

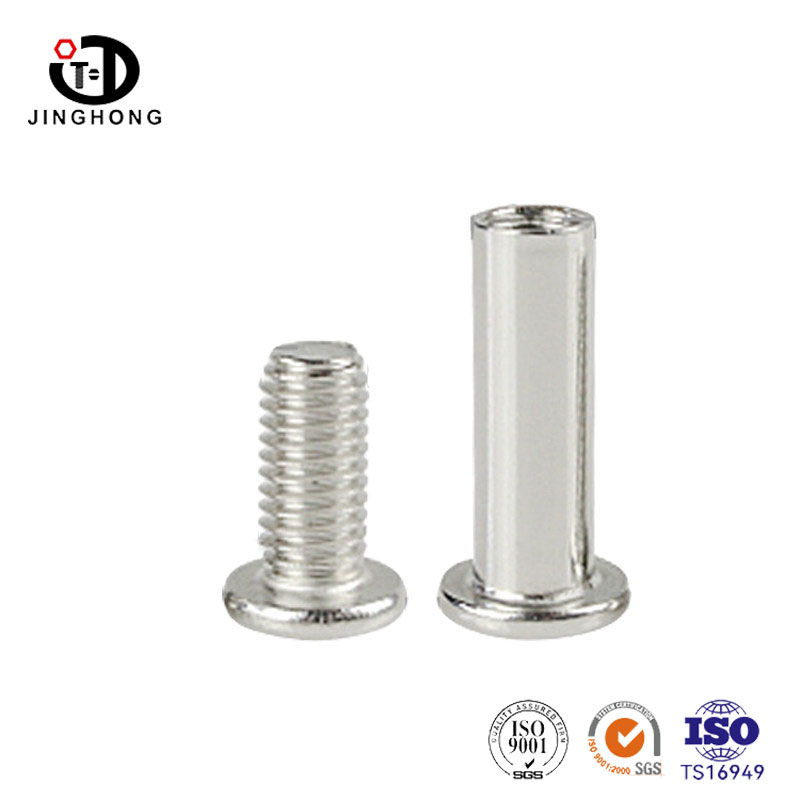

The male and female screws are driven through the workpiece from both sides and secured in the middle. This method is suitable for situations requiring fixation from both sides—such as when it's impossible to reach inside the two layers of a leather bag to tighten the nuts. Simply tighten the through-lock screws from each side. It is also applicable when there is no access space on the back of the workpiece, eliminating the need to reach around to the back.

Name	Stainless Steel Butt Screw
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

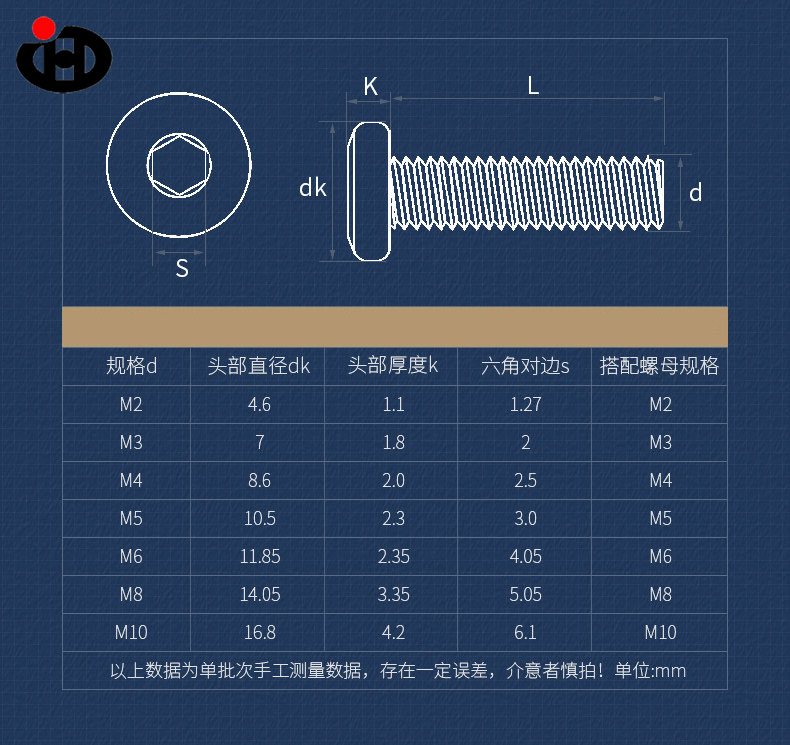

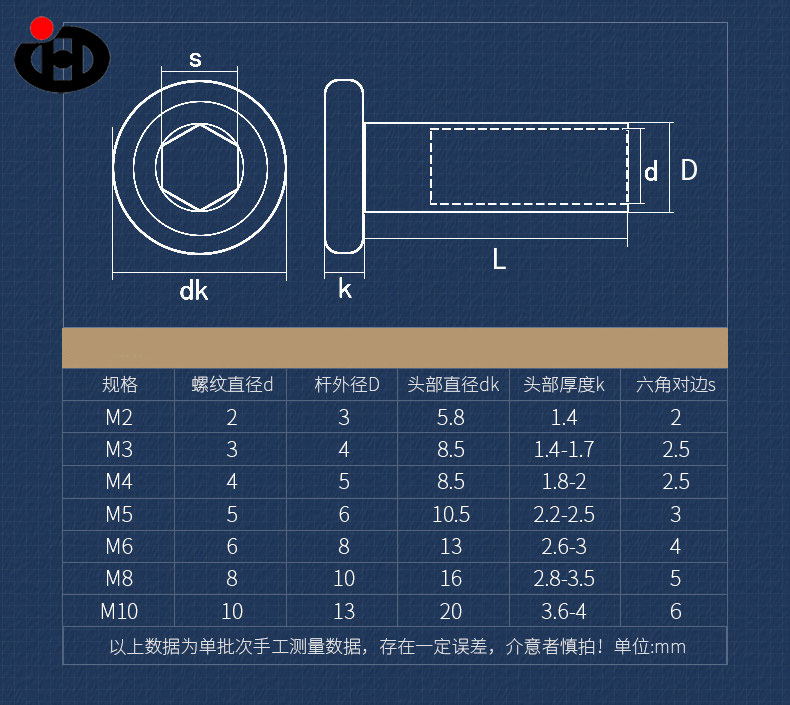

Sizes	M2-M10
Finish	Plain/Black/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Hexagon head does not slip: Tighten with a hex wrench, no matter how hard you push, it won’t slip. When installing leather goods, it’s often necessary to apply high torque for secure fastening. Cross slots tend to slip, while hexagon heads are reliable. The wrench fits snugly and grips firmly, ensuring that even with extra force after tightening, the slot won’t round off.

The male and female heads lock together, eliminating the need to reach to the back: simply tighten from both sides of the workpiece without needing to hold the nut from the back. For finished leather bags, the layered sections prevent reaching inside, making self-locking screws ideal. The male pin is inserted from one side, while the female pin is screwed in from the other—either by two people coordinating or one person moving between both sides.
