Spring-Type Straight Pins-Coiled, Standard Duty

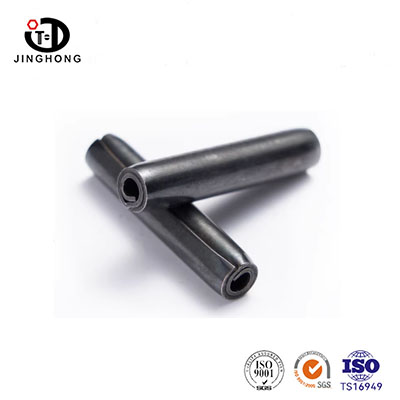

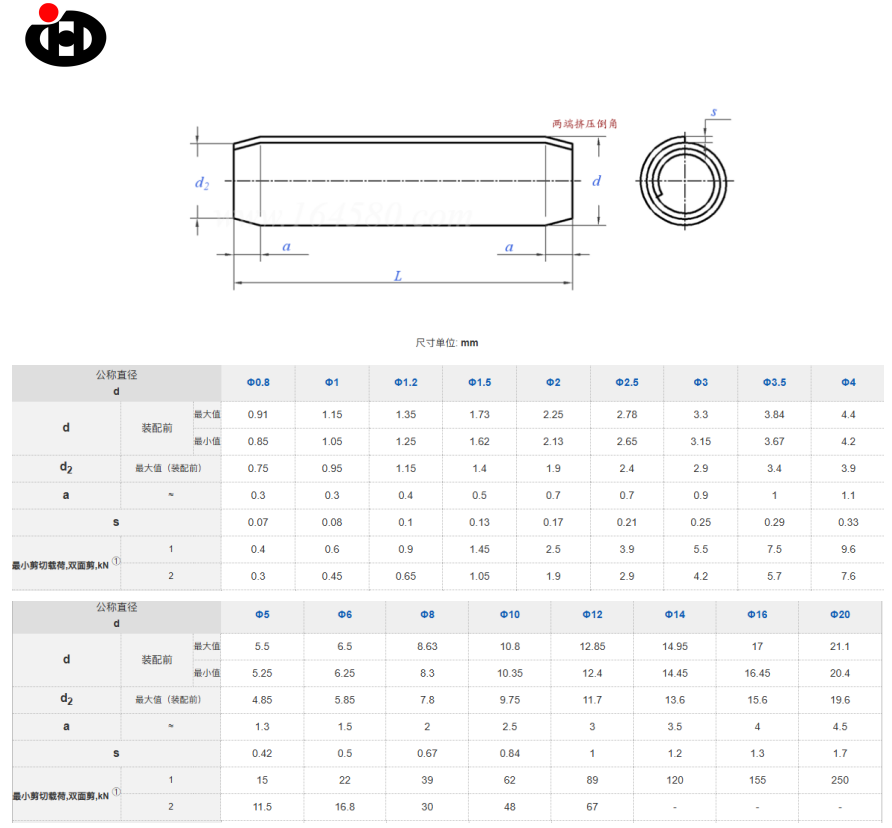

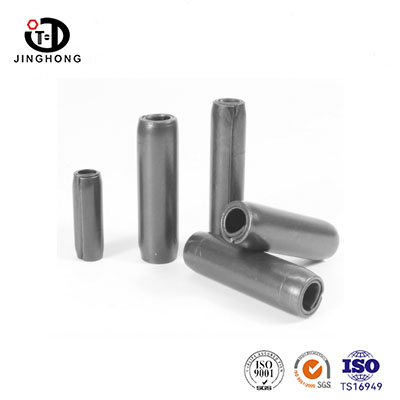

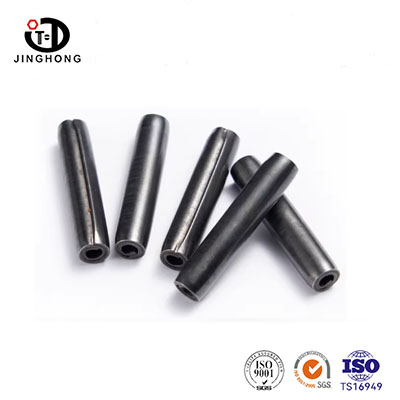

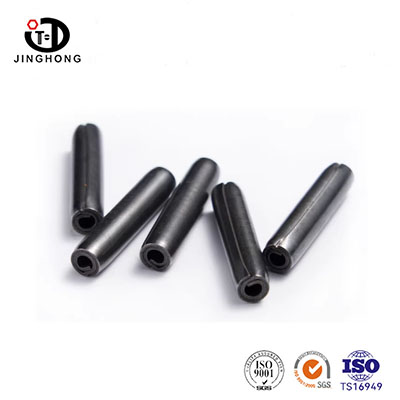

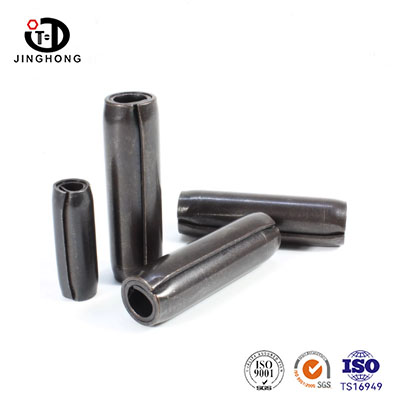

65Mn Spring-Type Straight Pins-Coiled, Standard Duty are rolled elastic pins that comply with the Chinese national standard GB/T 879.4. They are made from 65Mn spring steel strips through precise rolling, heat treatment and blackening surface treatment. The pin body is in the shape of an open cylinder, featuring uniform elasticity. After installation, they form a tight fit with the hole wall through radial tension, achieving reliable connections that resist vibration and shock. The blackening treatment provides basic rust prevention and an aesthetic appearance. The specifications range from 1mm to 20mm in diameter and are suitable for applications such as shaft-hole positioning, hinged fixation and transmission component connection in machinery, automobiles, molds and other fields.

High elasticity material: 65Mn spring steel, after quenching and medium-temperature tempering, has a hardness of HRC 44-50, with lasting elasticity.

Uniform radial pressure: The rolled structure enables the pin body to expand uniformly in all directions by 360°, avoiding single-point stress concentration.

Anti-vibration detachment: After installation, it adheres tightly to the hole wall due to elasticity, and is less likely to loosen and fall off in a vibrating environment.

Easy installation: The opening design allows the pin body to be easily inserted after compression, without the need to be pressed into the equipment.

Our Strength

·  Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

Mechanical transmission: Axial positioning and circumferential fixation of gears, sprockets, and pulleys.

Automobile manufacturing: Shift fork of transmission, clutch pedal shaft, steering knuckle pin connection.

Mold industry: Guide pin of stamping mold, positioning of injection mold push rod, fixation of die-casting mold slider.

Electronic equipment: Robot joint shaft, printer transmission shaft, adjustment mechanism of optical instruments.

General hardware: Hinge connection of agricultural machinery tools, hinge shaft of furniture, rotating parts of sports equipment.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
