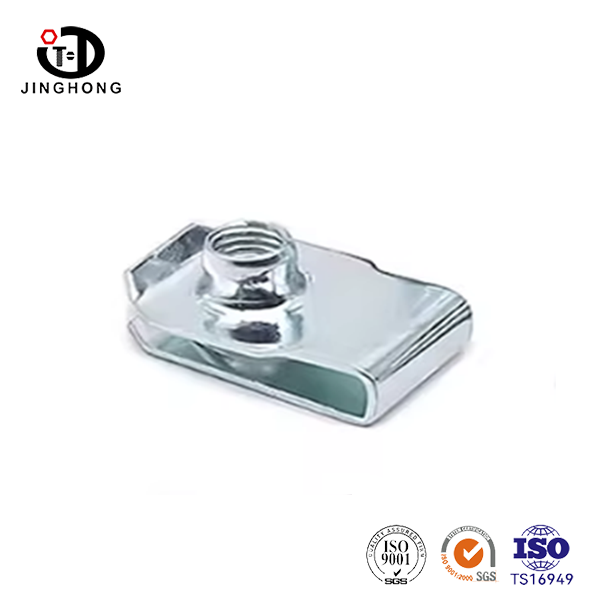

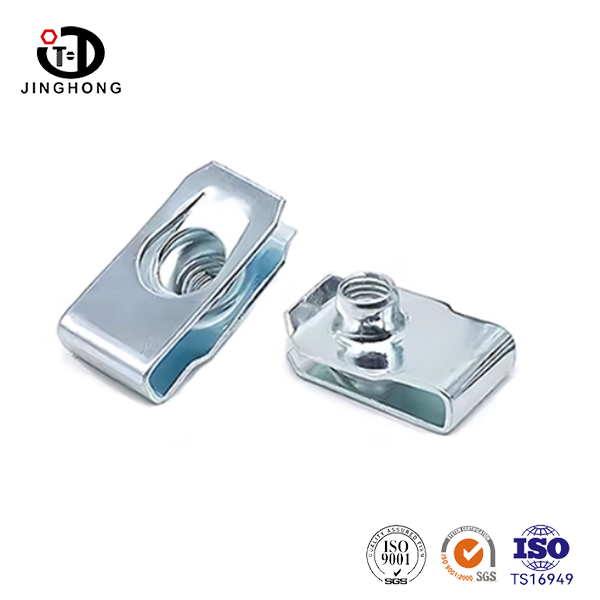

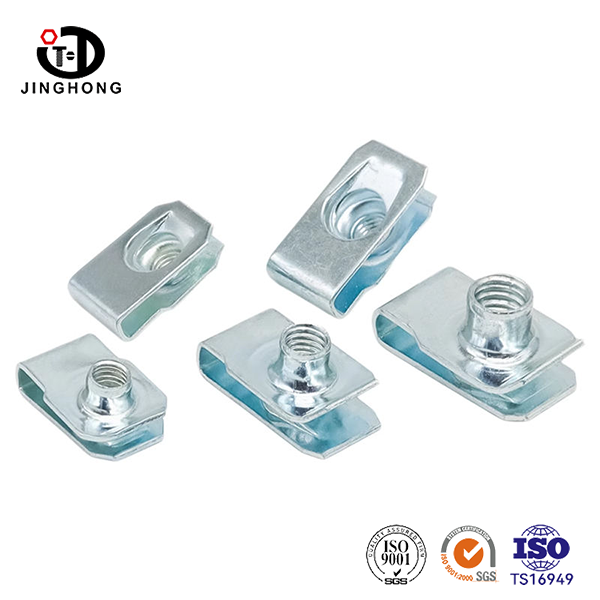

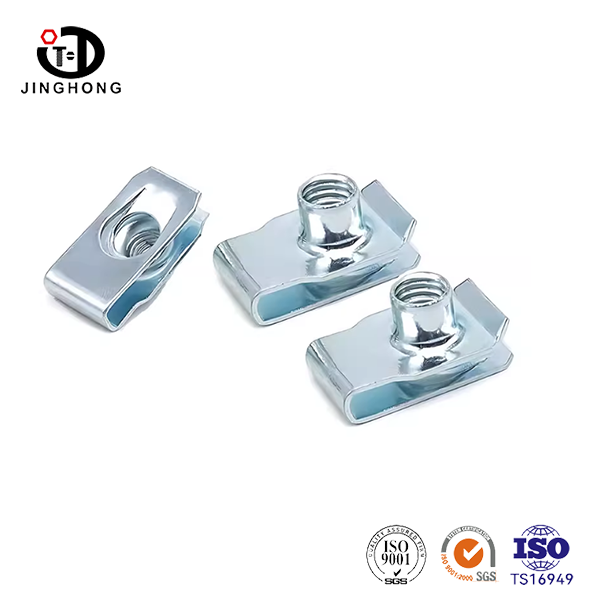

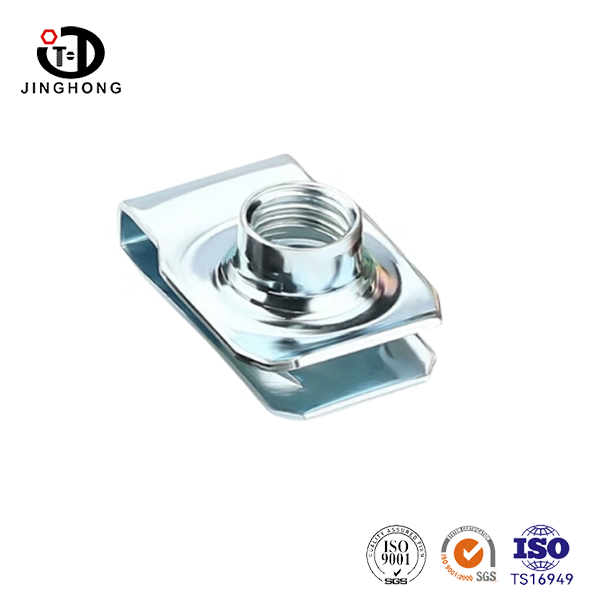

Spring Nuts Type B Reed Nuts

The Spring Nut is a fastener used for quick installation. Its feature is that it is equipped with a spring clamp, which can be easily slid and fixed at any position on the slot rail, facilitating adjustment and disassembly. It is made of high-strength manganese steel, which is corrosion-resistant.

Send Inquiry

Product Description

Through the spring clamp design, it can be directly inserted into the installation holes of thin plate materials such as sheet metal, chassis, and rails without the need for welding or complex tools.

It is suitable for narrow Spaces, especially for metal or plastic plates with a thickness of no more than 3mm.

Jinghong Company was founded in 1993, integrating development, production, and sales. We specialize in manufacturing GB (Chinese standard), DIN (German standard), ANSI (American standard), and Q (automobile standard) standard parts, as well as non-standard fasteners.

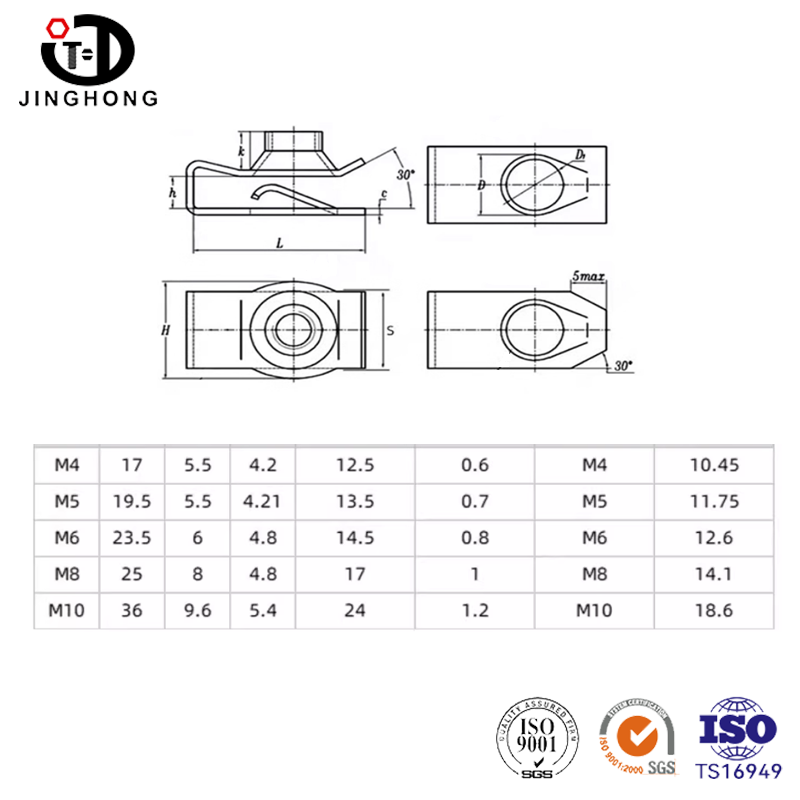

Name	Spring Nuts Type B Reed Nuts
Material	65Mn steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M5M6M8M10
Finish	Blue White Zinc
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Jinghong Company has first-class production technology and can develop non-standard, customized, and high-difficulty fastener products according to the needs of domestic and foreign customers, earning the trust of a large number of customers.

Wenzhou City Jinghong Fasteners Co.，Ltd selects high-quality raw materials, carefully selects each product, and uses stainless steel or carbon steel to make fisheye gaskets to ensure high quality, which is the best choice for customers.
