Small Head Thumb knurled Screw

Jinghong Factory specializes in the production of stainless steel Small Head Thumb knob screws, made of 304 stainless steel material with head embossing treatment. It can be manually adjusted without the need for tools, and the small head design saves space and is suitable for dense installation scenarios. The straight lines on the head can be twisted by pinching with your fingers without the need for tools. Regular size stock is abundant, supporting customized non-standard head and end shapes.

Send Inquiry

Product Description

There is a fine circle of straight or mesh on the side of the head, which has high friction when held by hand and does not slip. Even if the hand is stained with oil or wearing gloves, it can still be twisted. The rolling pattern is produced by the machine tool, and the texture is clear and uniform, without scratching the hand.

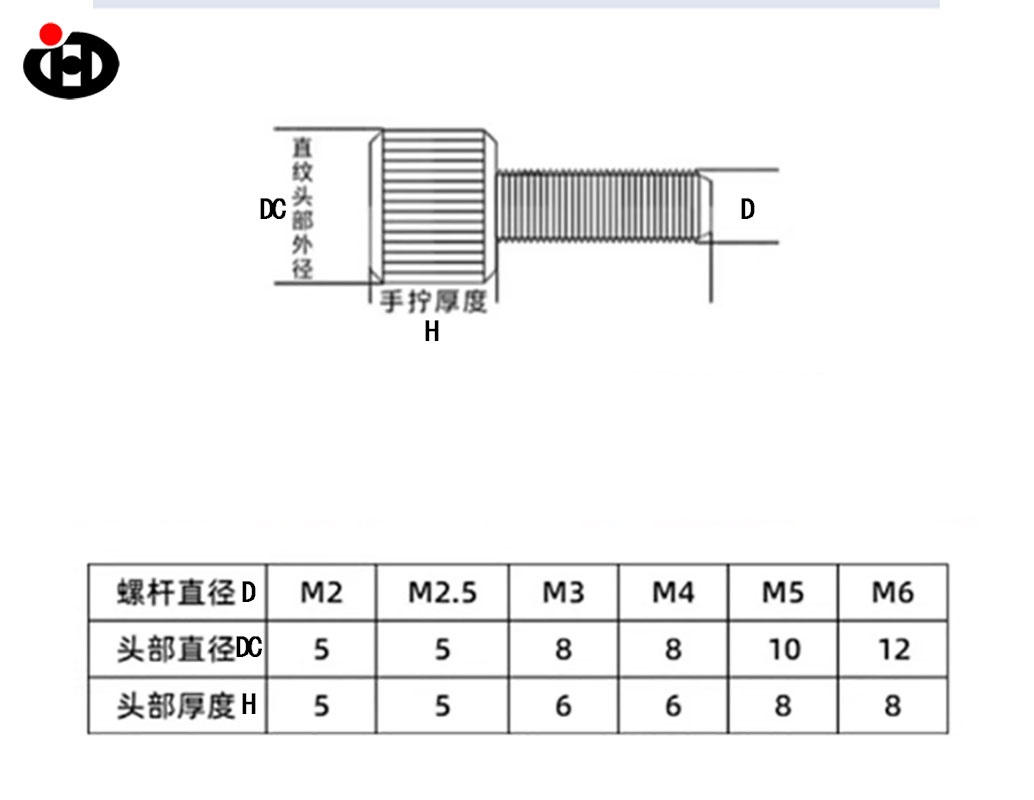

The diameter of the head of a conventional rolling screw is about 1.8 to 2 times the diameter of the thread, while the diameter of the small head is only 1.4 to 1.6 times. For example, for M6 threads, the diameter of the conventional rolling head is about 12mm, and the small head is only 9-10mm. It does not appear abrupt when installed on the product, and multiple screws can be tightened with fingers even when they are close together. Some devices are designed to be compact, and when the large head of the rolling screw is installed, it will touch the adjacent parts, while the small head can avoid them.

Name	Small Head Thumb knurled Screw
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M2-M6Metc
Finish	Plain/Black/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Hand tightening is sufficient, no tools needed: the roller head can be tightened by hand, suitable for equipment that requires frequent adjustment. Twist and loosen, it only takes a few seconds, so there is no need to search for a screwdriver in the toolbox during on-site maintenance and debugging.

Small head does not take up space: The diameter of the head is smaller than that of a conventional knurled screw, and several screws can be installed together with fingers and screwed separately. It is used on compact equipment or panels without touching adjacent parts or appearing abrupt.
