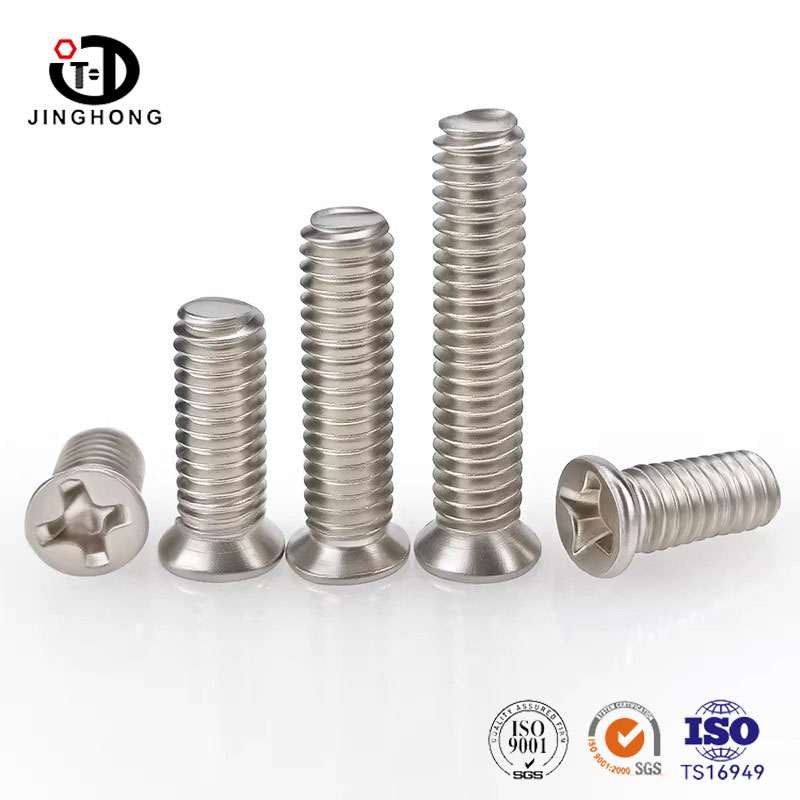

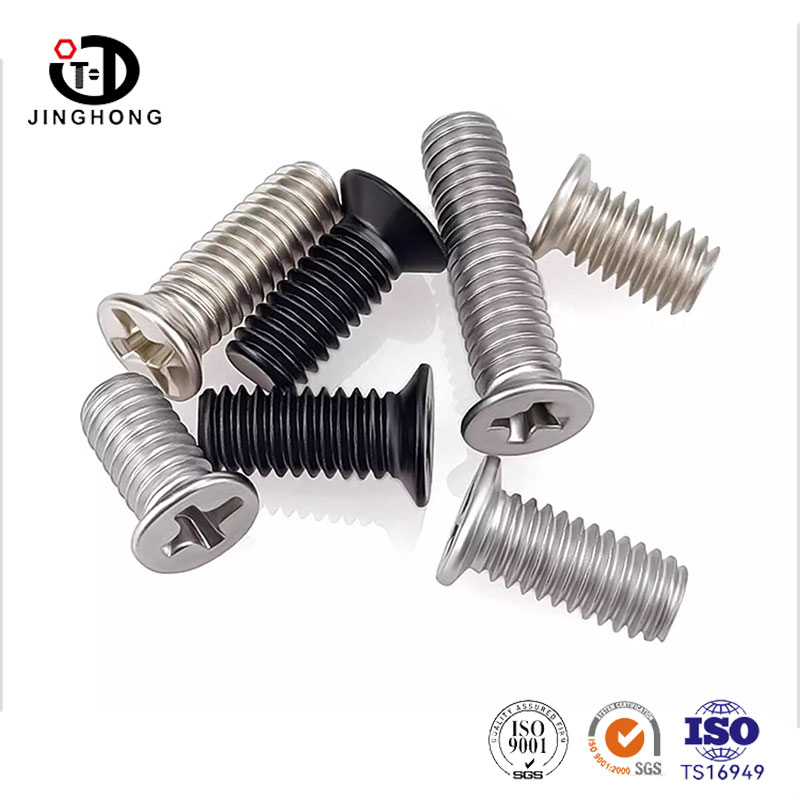

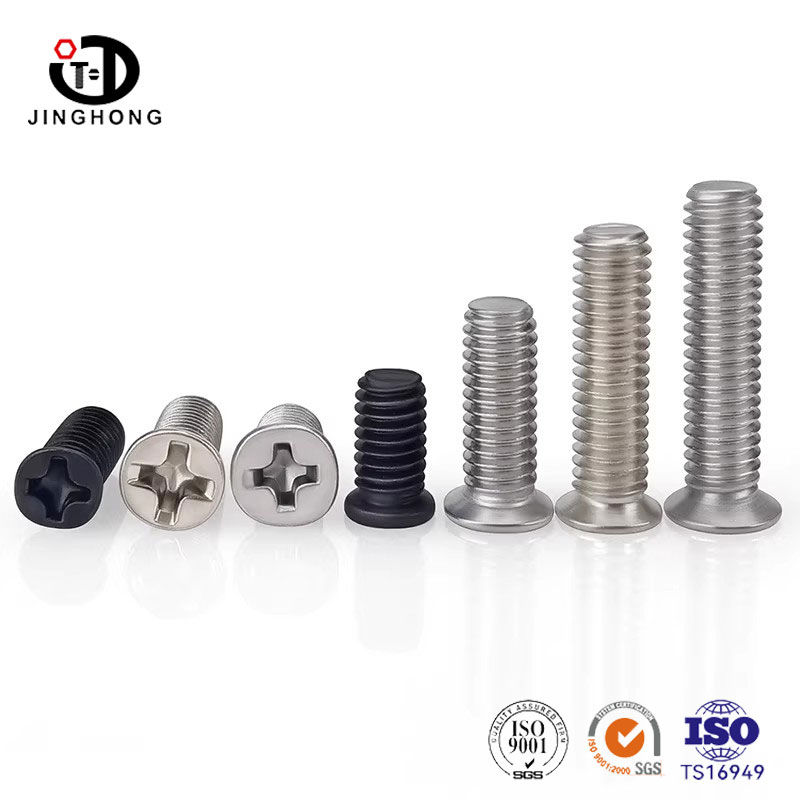

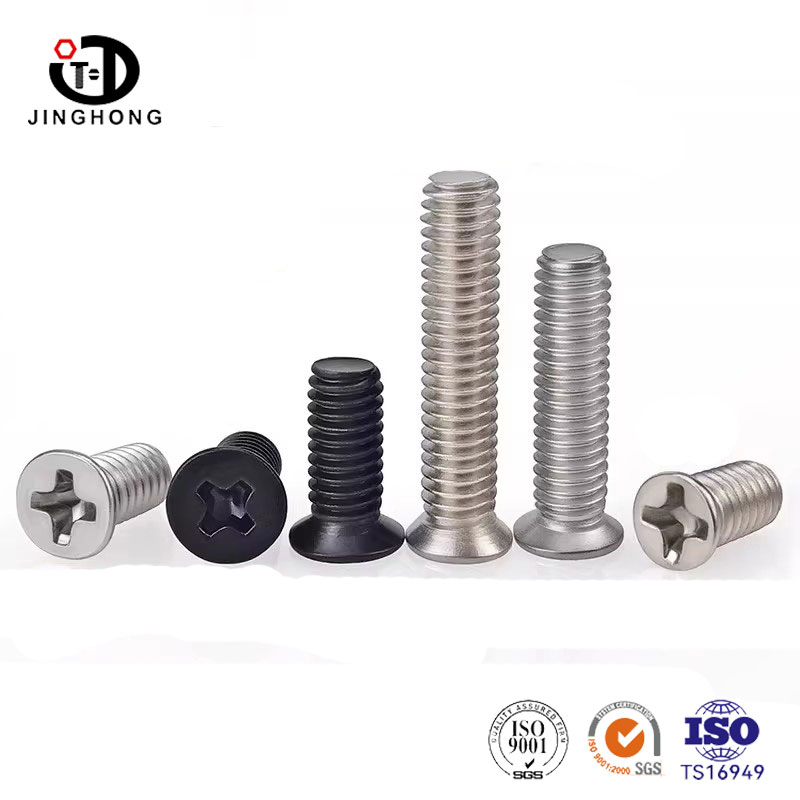

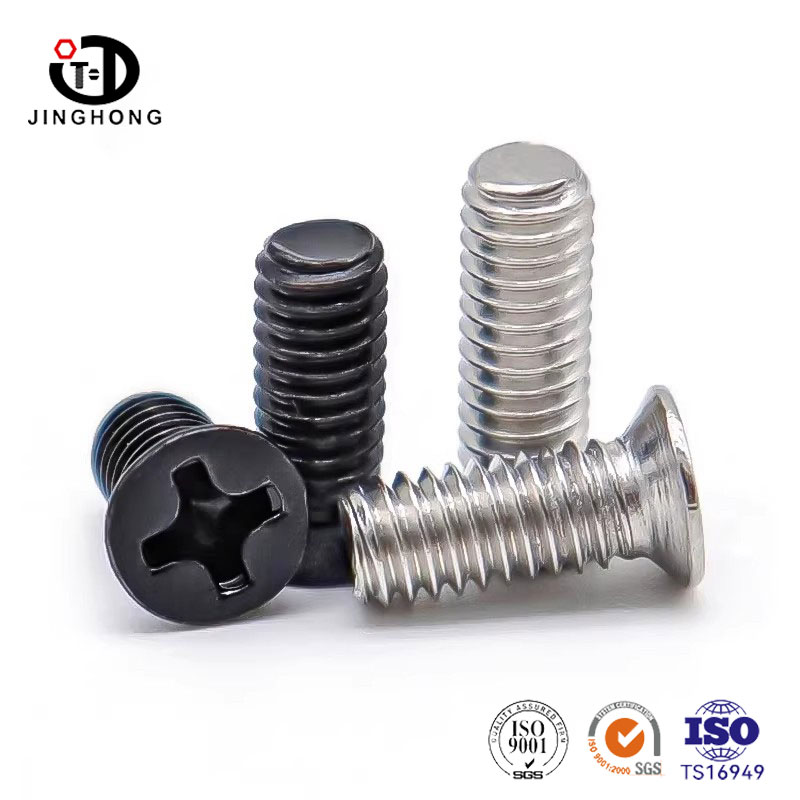

Small Flat Head Laptop Screws

Jinghong Factory specializes in producing Small Flat Head Laptop Screws, which are made of materials such as stainless steel and carbon steel, and can undergo various surface treatments. The product features a cross groove design with a low head height, which can be installed flush with the surface of the mounting component. It is suitable for precision instruments, laptops, and other devices. Regular M2-M4 specifications available in stock, supporting non-standard customization.

Send Inquiry

Product Description

The Small Flat Head Laptop Screws have been upgraded based on traditional countersunk screws, with a countersunk angle controlled at 90 ° or 82 °, and a thinner head thickness than conventional countersunk screws. This means that after being screwed into the matching tapered countersunk hole, the screw head and workpiece surface are almost completely flush, achieving invisible fixation.

This small countersunk design is particularly suitable for thin-walled workpieces. In situations where extremely high surface flatness is required, coupled with ultra-fine micro threads and very short lengths, screws can provide reliable and invisible fastening force in small areas such as micro motor end caps.

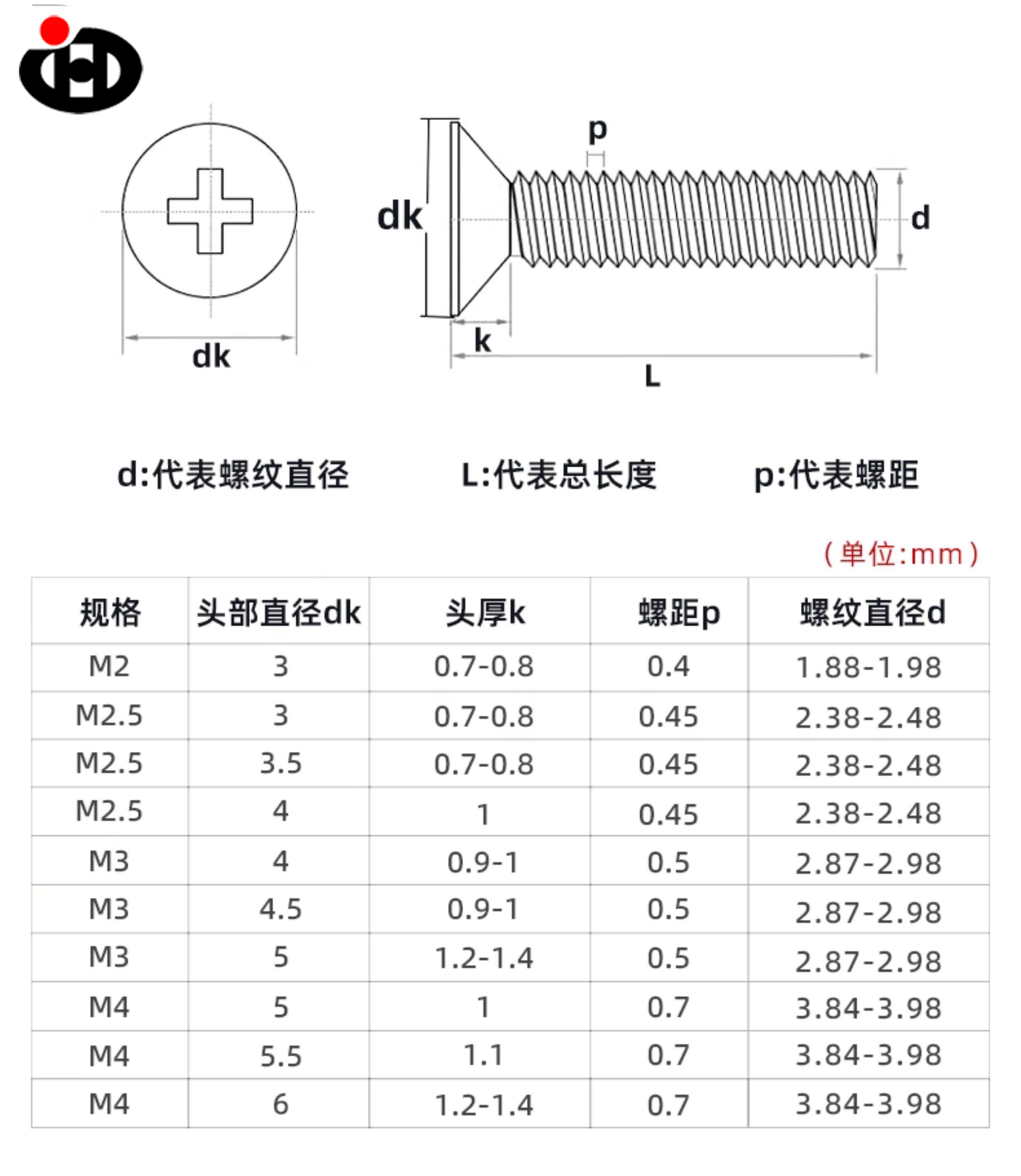

Name	Small Flat Head Laptop Screws
Material	Stainless Steel/Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M2-M4Metc
Finish	Plain/Black/Zinc plated/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Cross groove drive, reliable locking: using standard cross groove drive method, it can be operated with the corresponding cross screwdriver. The cross groove has automatic centering function, which is not easy to slip during locking and has high assembly efficiency.

High quality materials with stable performance: Made of high-quality stainless steel, carbon steel, and other materials with strong strength and processing accuracy. Stainless steel has a bright surface, good appearance, and rust prevention function. Carbon steel can be galvanized or nickel plated to further improve its rust prevention level.

Flexible customization and controllable delivery time: We have stock of M2-M4 commonly used diameters and lengths in stock, which can be quickly shipped. We also undertake customized orders for non-standard lengths, non-standard head shapes, special materials, and different surface treatments.
