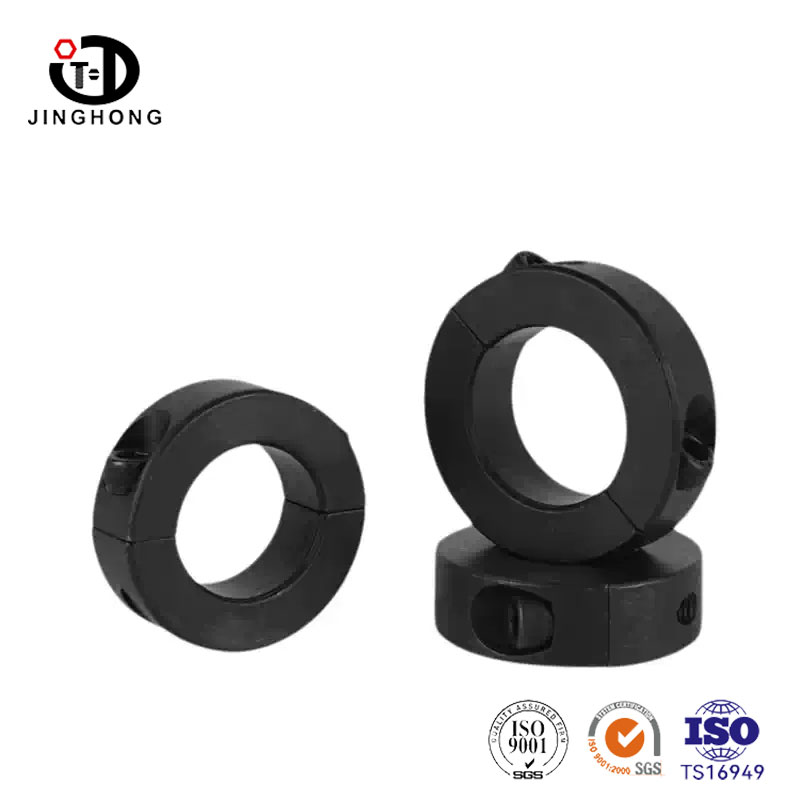

Separable Optical Axis Fixing Ring

Our factory specializes in producing carbon steel open type fixing rings (optical axis locking rings), which are processed with high-quality carbon steel precision turning. The surface can be treated with blackening, galvanizing, etc. The product is designed with an open mouth and equipped with screw locking, used for axial positioning and limiting of cylindrical components such as optical axes, guide columns, and screw rods. Easy to install, no need to drill holes on the shaft, and the position can be adjusted freely.

Send Inquiry

Product Description

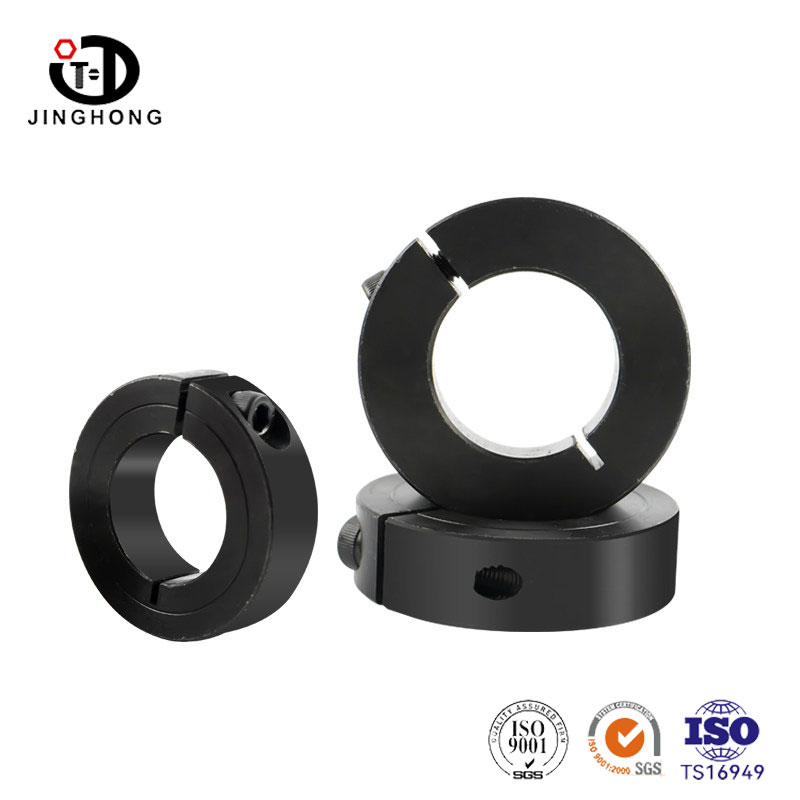

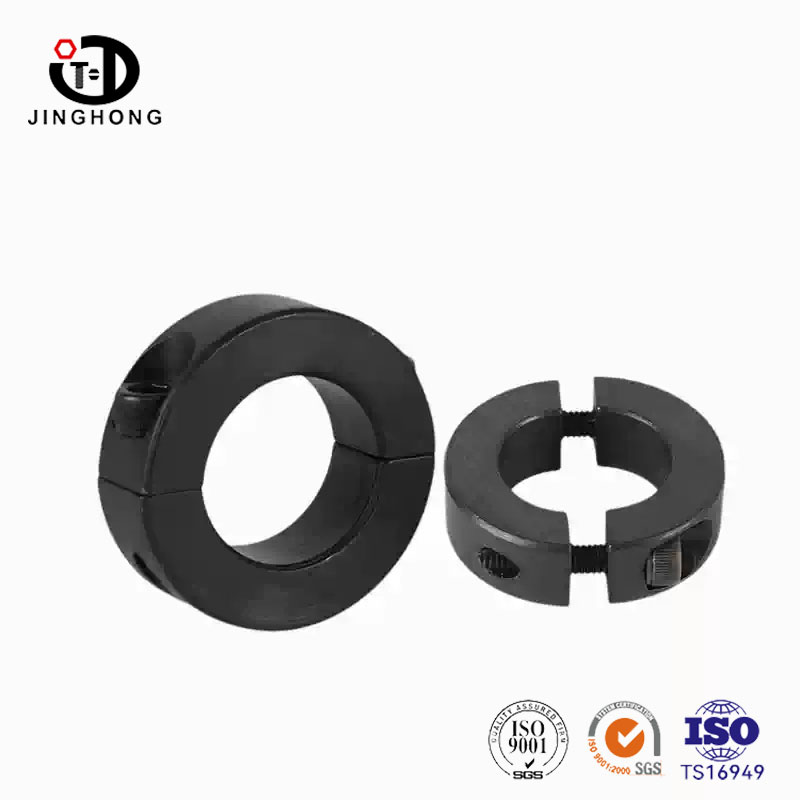

A regular integrated fixing ring needs to be installed on the shaft and must be inserted from the shaft end. If other parts are installed on both ends of the shaft, it cannot be installed. The open type can be inserted from the side and can be installed in any position without dismantling other things on the shaft. And by loosening the screw, you can move the position, and once adjusted, you can lock it again, which is very convenient.

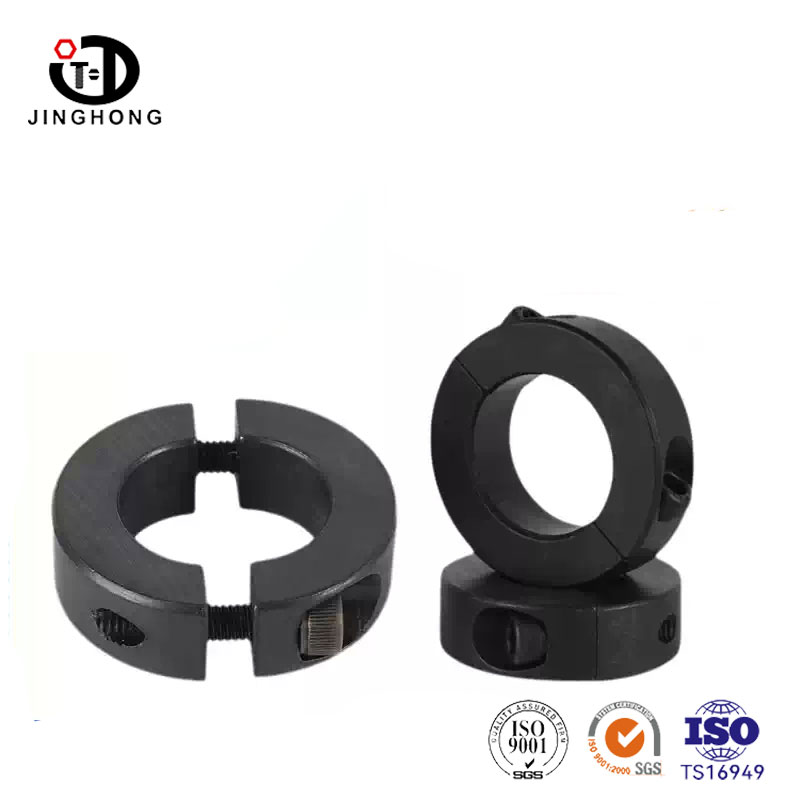

There is a screw hole at the opening, some with single screws and some with double screws. Use one M4 or M5 screw for small specifications, and two screws symmetrically arranged for large specifications, resulting in more uniform locking force and less likely to lock the ring off center.

Name	Separable Optical Axis Fixing Ring
Material	Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

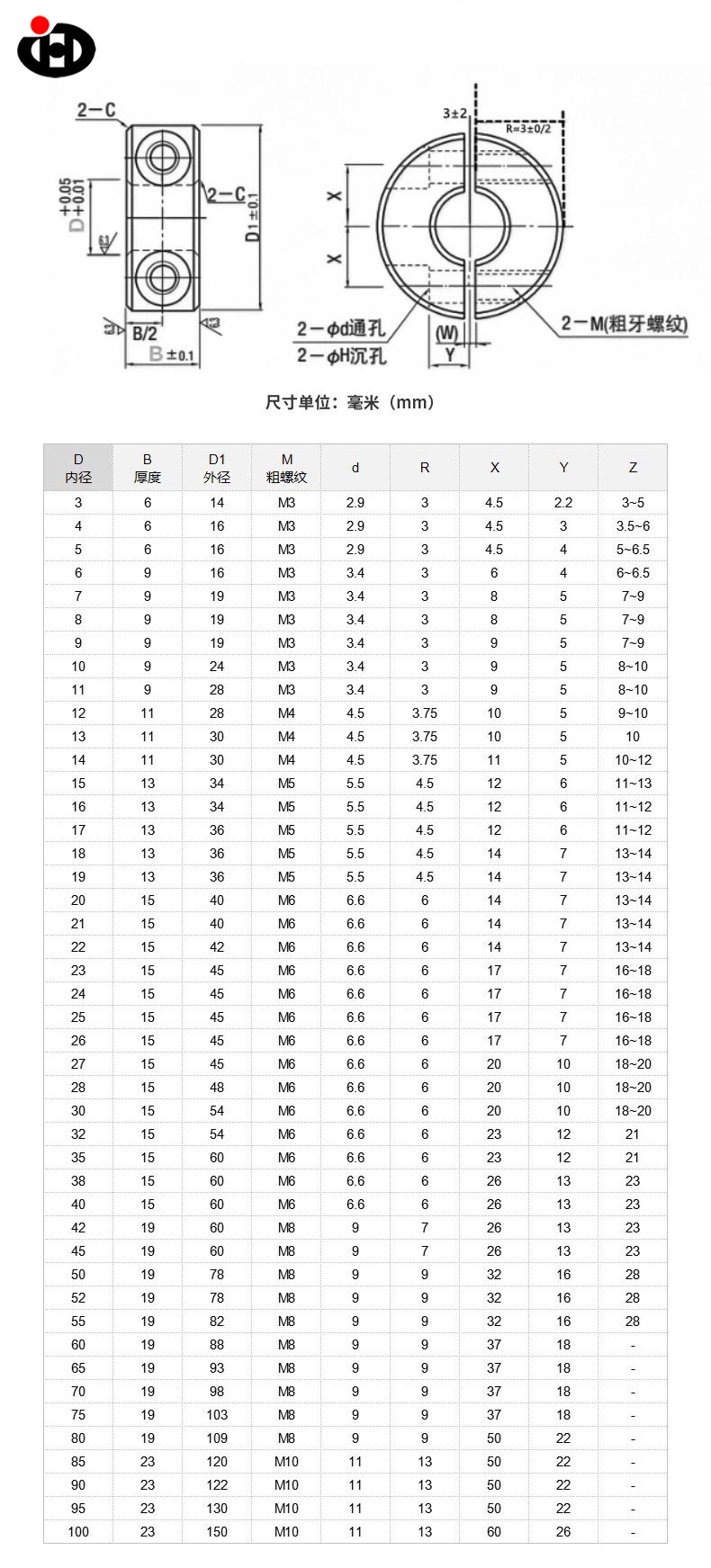

Sizes	Φ3-Φ100

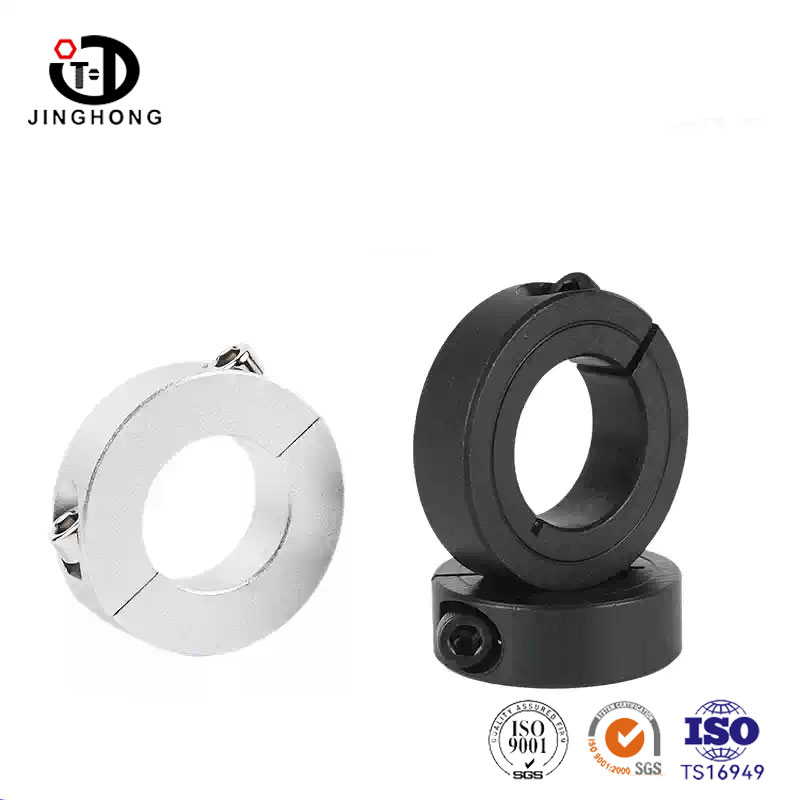

Finish	Plain/Black/Zinc plated/others
Price	1usd/pcs-3usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Carbon steel material, sturdy and durable: 45 # steel, lathe processed, concentric inner and outer circles. Blackened or galvanized surface, rust resistant for several years in indoor environments. Installed on large equipment as a limit, it will not crack even after multiple collisions, and is more durable than aluminum and plastic.

Flat on the side, without scratching: Both sides of the ring are processed by a surface grinder, smooth and without burrs. After installation on the shaft, the side should be tightly attached to the inner ring or baffle of the bearing, without scratching the workpiece. Edge chamfering, workers do not cut their hands during installation.
