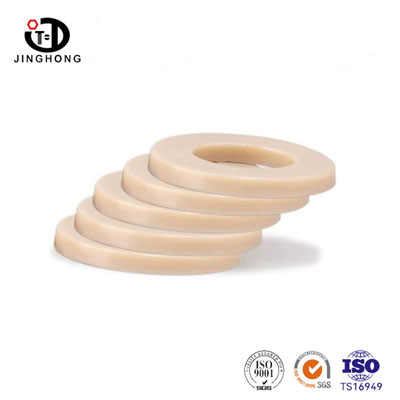

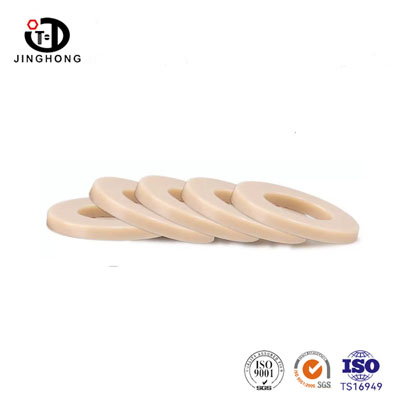

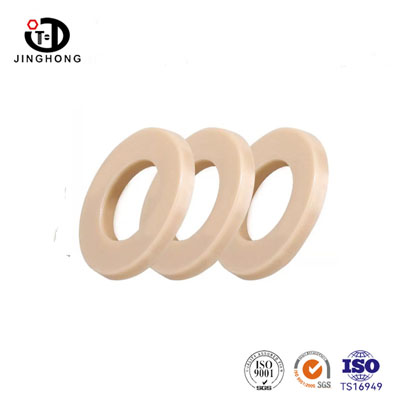

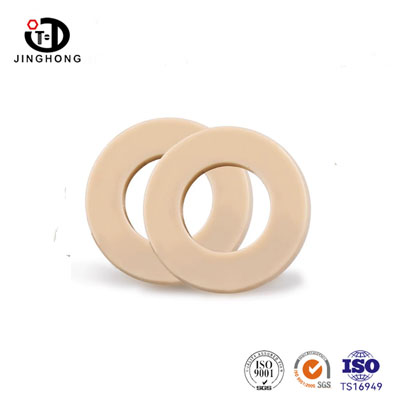

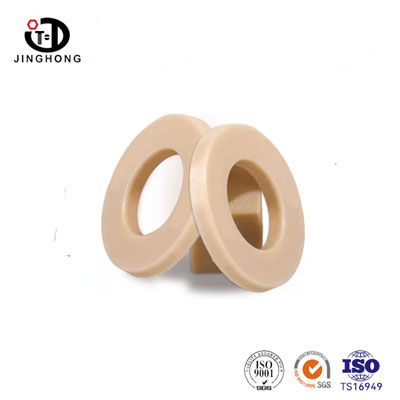

PEEK Flat Washer

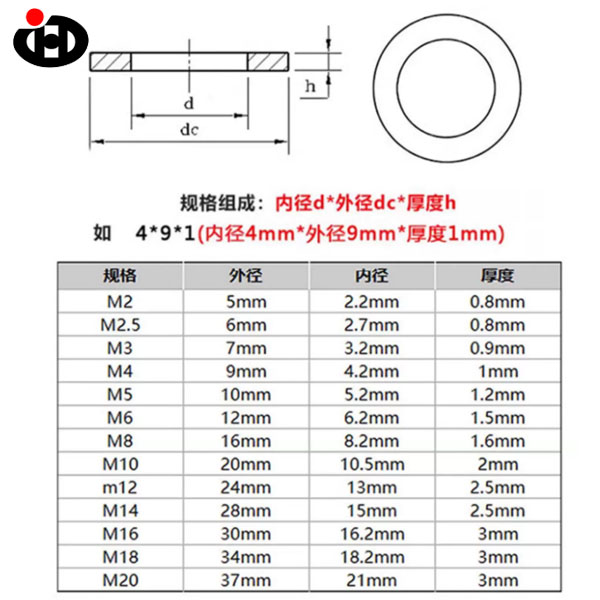

The PEEK flat washer is a high-performance engineering washer meticulously manufactured by JINGHONG FASTENERS using special polymer material, polyetheretherketone. This product demonstrates outstanding reliability and durability under extreme conditions such as high temperature, corrosion, high load, and electrical insulation. It covers conventional and special thread requirements from M2 to M20, meeting diverse tightening and protection needs ranging from precision microelectronics to heavy industrial equipment.

Compared to traditional metal or ordinary plastic washers, PEEK flat washers possess comprehensive characteristics including lightweight, high strength, heat stability, insulation protection, chemical corrosion resistance, self-lubrication, and dimensional stability. They have become the core auxiliary components in semiconductor, medical devices, aerospace, chemical equipment, new energy, and precision instruments, for achieving insulation isolation, corrosion prevention connections, resistance to high-temperature aging, and impact wear resistance. Their performance advantages significantly enhance the operational stability and service life of equipment in harsh environments, and are important functional components that promote modern high-end manufacturing to achieve lightweight, precision, and high reliability.

Product Feature

The PEEK flat gasket is suitable for various extreme working conditions. Its long-term operating temperature range is from -50℃ to 260℃, and it can withstand a short-term temperature of 310℃. It will not deform or soften in high-temperature environments. The product has excellent chemical stability, capable of resisting the erosion of most acids, bases, organic solvents and oils. Its anti-corrosion ability is superior to that of ordinary metals and plastics. It also has good strength, toughness and wear resistance. It can replace metal gaskets in high-load scenarios. It has a low water absorption rate and excellent insulation performance. Even in a humid environment, it can maintain a stable size and have a lasting and reliable insulation effect.

Our Strength

·  Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

The PEEK flat gaskets, with their unique performance combination, are widely used in the following high-end industrial fields that have strict requirements for materials:

Electronics, Electrical and Semiconductor: Used in high-precision equipment, vacuum chambers, RF components, and power equipment as key insulating gaskets to prevent electrochemical corrosion and signal interference.

Chemical and Process Industries: At the connection points of pumps, valves, compressors, and pipeline flanges, used to isolate corrosive media, protect metal components, and withstand high temperatures and high pressures.

Medical Devices and Life Sciences: Used in medical equipment and analytical instruments that require repeated high-temperature and high-pressure steam sterilization (such as autoclaving), meeting biocompatibility requirements (such as in accordance with ISO 10993 standards) and requirements for resistance to chemical cleaning agents.

Aerospace and Automotive: Used for lightweighting, high-temperature resistance, and medium resistance in engine peripheries, fuel systems, sensors, etc.

Food and Pharmaceutical Processing Equipment: Compliant with FDA requirements, used for equipment connections that require high-temperature resistance, corrosion resistance, and no pollution.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
