Open End Blind Rivets with Break Pull Mandrel and Protruding Head
This is a single-sided permanent fastener. It consists of a hollow rivet body and an internal core rod. During installation, the core rod is pulled from one side using a pull riveting gun, causing it to break and fall off in the preset slot. Simultaneously, the tail of the rivet body expands to form a boss, completing the locking. The convex head design provides a larger supporting area, making it suitable for connecting softer or plates with larger diameters. The open structure process is mature and has low costs. The same length can cover a wide range of plate thicknesses. Common material combinations include aluminum/steel, steel/steel, and stainless steel/stainless steel. They can be flexibly selected based on strength and rust prevention requirements. It is widely used in single-sided operation scenarios such as computer cases, car interiors, building facades, and appliance shells, but is not suitable for environments requiring waterproof sealing.
Send Inquiry
Product Description

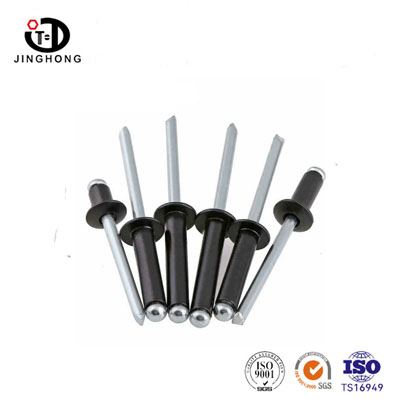

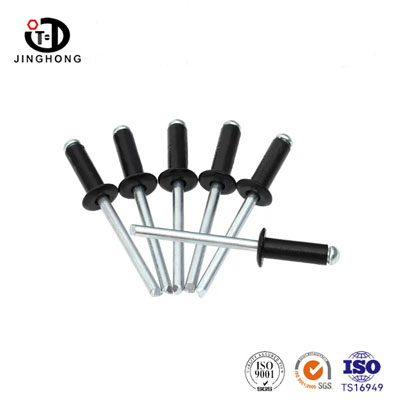

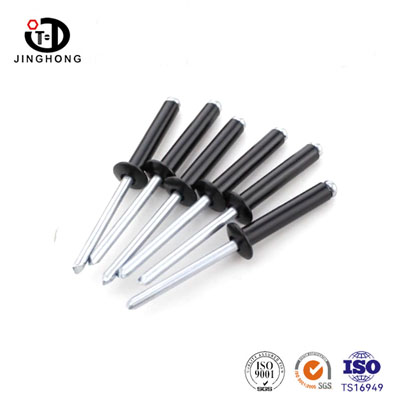

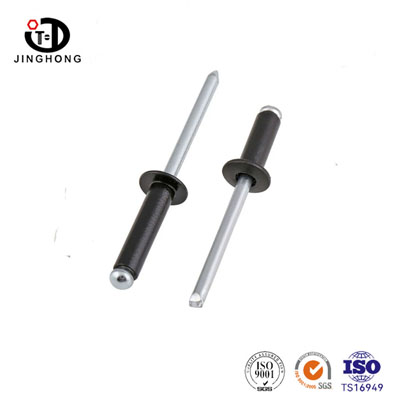

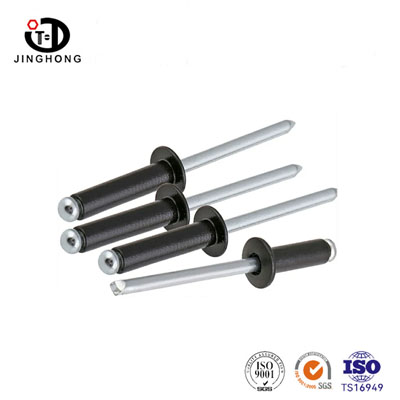

This black Open End Blind Rivets with Break Pull Mandrel and Protruding Head features a composite aluminum-iron material structure: the upper rivet body is made of aluminum alloy and coated with a fine black baked enamel finish, providing a uniform matte texture; the lower mandrel is made of carbon steel and galvanized to enhance corrosion resistance. The product is manufactured in strict compliance with relevant industrial standards for blind rivets, suitable for single-sided riveting operations, where the mandrel is pulled through and broken by a dedicated pull riveter to achieve secure fastening.
Name
Open End Blind Rivets with Break Pull Mandrel and Protruding Head
Material
Black Aluminum/Steel
Standards
GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread
Metric, UNC, UNF, BSW, BSF

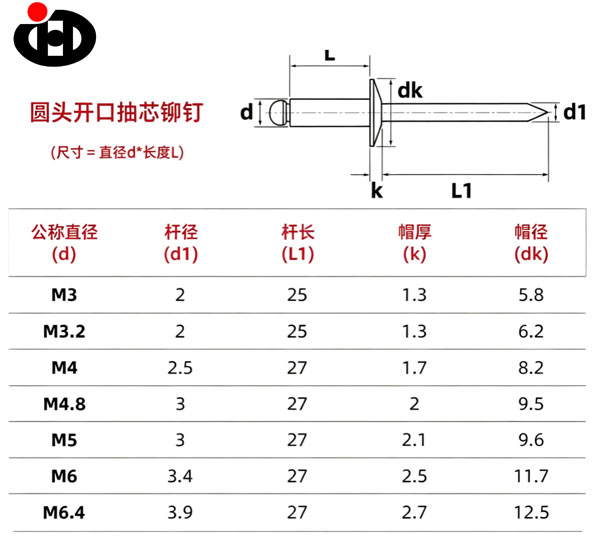

Sizes
M3-M6.4
Finish
Black and zinc plated
MOQ
Stardard item(Usually little hundred-little thousand)
Price
0.3USD/PCS-25USD/PCS
Product Feature
Single-sided construction is convenient and efficient: Only one side of the operation space is required to complete the riveting, and a firm connection is formed within seconds, significantly improving the assembly efficiency of the production line. No back operation coordination is needed.
The protruding head design has strong supporting capacity: Compared to the countersunk head, the protruding head can provide a larger supporting surface, which disperses the surface pressure and is suitable for connecting softer materials (such as plastic, composite materials) or pre-embedded holes with slightly larger diameters.
Self-locking structure of the break-pull mandrel is reliable: The break-pull mandrel design enables the mandrel to break precisely under the rated pulling force, with the remaining part forming a mechanical interlock with the deformed rivet body, and it has certain vibration resistance capability.
Open type has low cost and wide adaptability: The open tail structure has a mature manufacturing process and low manufacturing cost. The same length specification can cover a wide range of plate thickness clamping (Grip Range), but it has no barrier effect against water and dust prevention.
Material combinations are diverse: Common combinations include aluminum/steel, steel/steel, stainless steel/stainless steel, etc. They can be flexibly selected according to strength, rust prevention, and lightweight requirements.
Our Strength
· Direct from manufacturer to customer, On time delivery
· Completely fastener products,offers one - stop shopping service.
· High quality and competitive price, saving your cost.
· Product complies with iso9001 and ts16949 certification
· After shippment, we will offer the Material report and Test report.
Product Application
It is widely used in riveting scenarios where only one side can be accessed and in structural connections with low sealing requirements:
Sheet metal and chassis cabinets: Splicing and fixation of metal thin plate shells of server chassis, power distribution cabinets, control boxes, etc.
Transportation equipment: Interior panels of automobiles, door components, container bodies, internal structures of truck trailers and rail vehicles.
Construction and home appliances: HVAC ventilation equipment, metal ceilings, advertising sign frames, outer shells of white appliances (air conditioners, washing machines), assembly.
General light industry and electronics: Fastening in fields such as ladders, shelves, electronic equipment shells, general mechanical manufacturing, etc.
Send Inquiry
Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.
Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?
A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free,but u need charge the freight at the first time.
Q:Do you sell little quantity,like few hundred and few thousand?
A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
