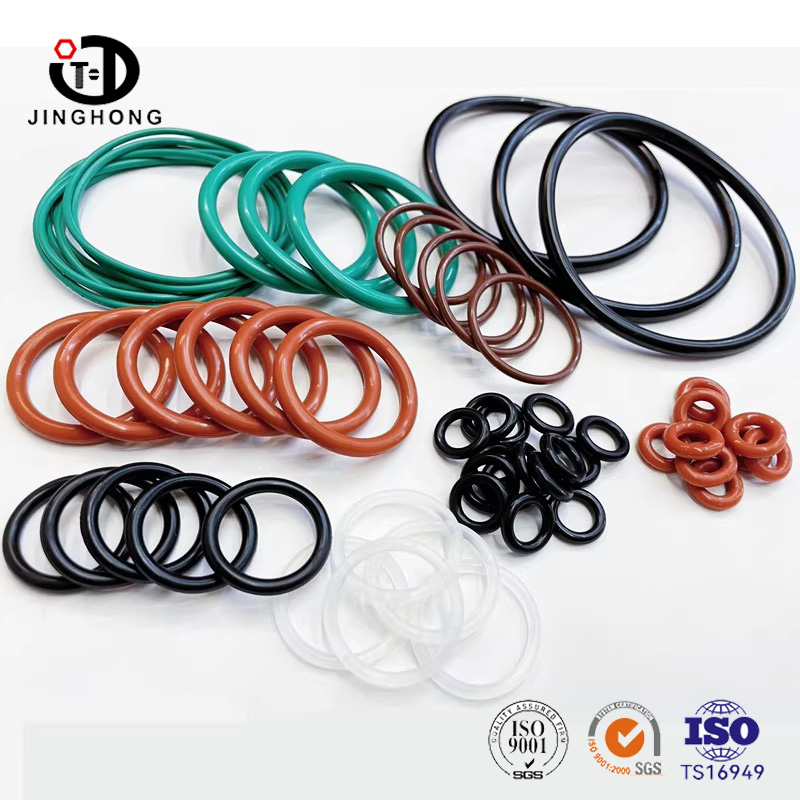

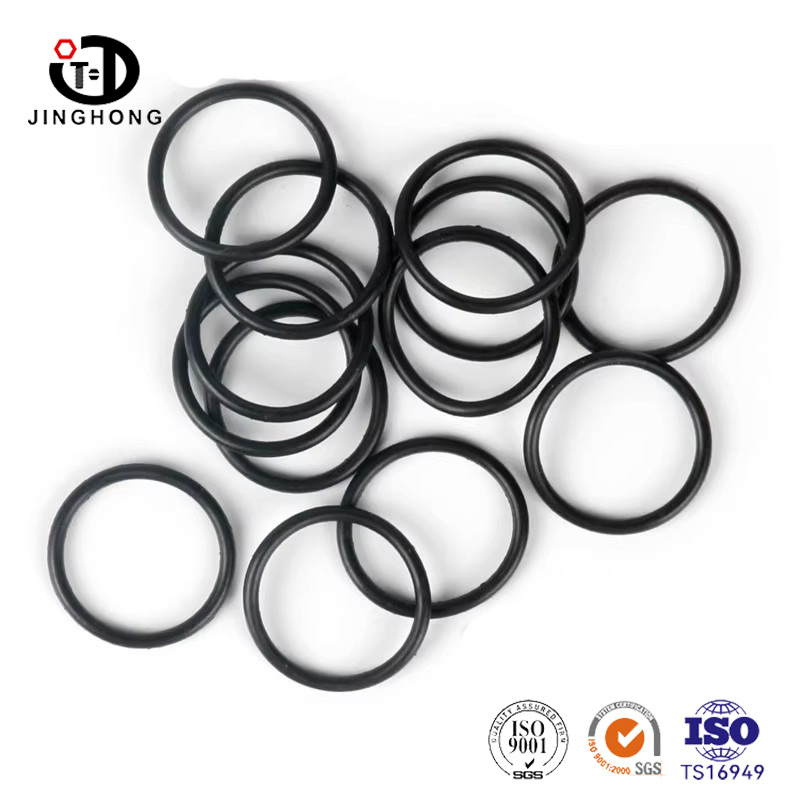

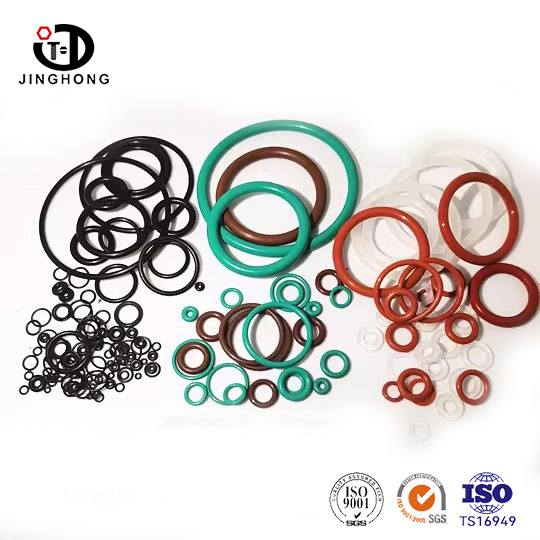

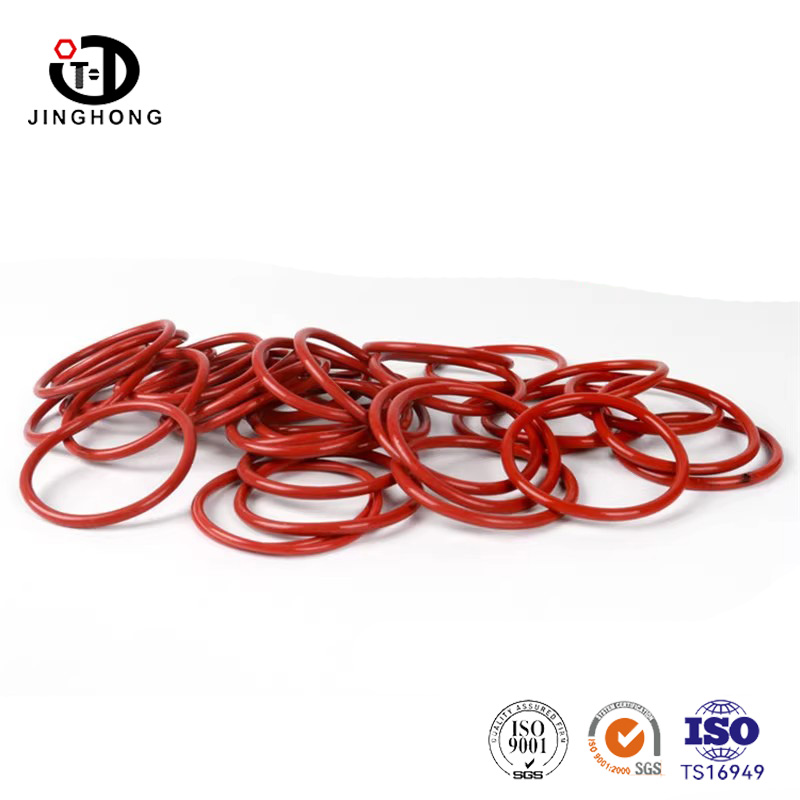

O Type Sealing Ring

Jinghong manufacturer provides various materials of O-ring seals with circular cross-sections, simple structures, and reliable sealing. The material, color, and size can be customized according to requirements, suitable for various sealed scenarios. Having regular inventory specifications, simple structure, and reliable sealing.

Send Inquiry

Product Description

The O-type sealing ring is an elastic rubber ring with a circular cross-section, installed in a groove. It generates contact pressure through pre-compression, blocking the leakage path of fluids or gases. Although its working principle appears simple, it embodies profound wisdom in elasticity mechanics and fluid sealing. As system pressure rises, the medium pressure further drives the sealing ring to tightly adhere to the groove wall, achieving "self-tightening" sealing. The higher the pressure, the better the sealing effect.

Name	O Type Sealing Ring
Material	rubber
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

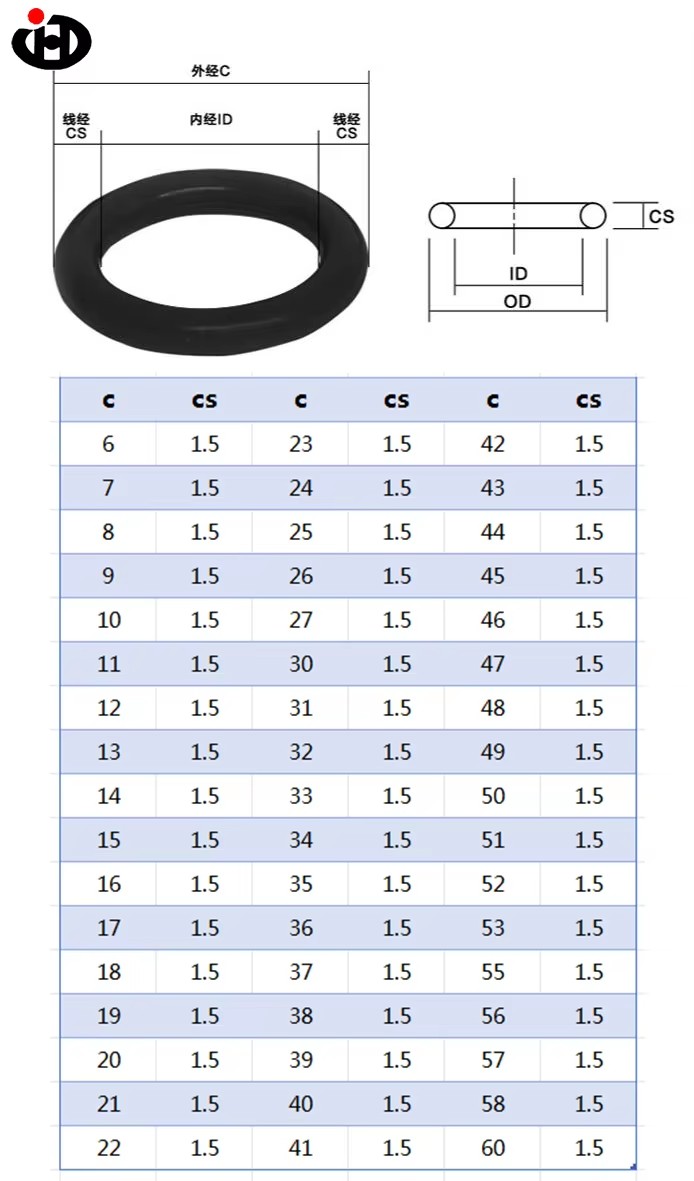

Sizes	Φ6-Φ22Metc
Finish	Plain/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Precision molds, dimensional stability: Utilizing precision manufacturing processes, with clean flash removal and high dimensional consistency. The wire diameter tolerance is controlled within ±0.05mm, ensuring stable and reliable compression rates and sealing effects.

Low permanent compression deformation and long sealing lifespan: High-quality rubber compound is selected with mature vulcanization process, ensuring excellent resilience. The rubber exhibits minimal deformation under prolonged compression, reducing leakage risks and extending maintenance intervals.

Both dynamic and static sealing are acceptable, with flexible application: suitable for both end-face static sealing and reciprocating piston sealing, etc., which can be adjusted according to sealing requirements.

Complete specifications and customization services: We handle the full range of national standards, accommodating diameters from 1mm to 100mm. Non-standard sizes, special cross-sections, and unique colors can be customized upon submission of drawings or samples, with controllable lead times.
