Nylon Spacer

Jinghong Factory specializes in producing Nylon Spacer, which are injection molded from high-quality nylon and have corrosion resistance, good insulation, light weight, and high strength. The product has a T-shaped structure and is installed in pre embedded channels. It is widely used in various occasions and can effectively prevent metal contact corrosion and reduce vibration noise. Regular size stock is sufficient, and non-standard customization is also supported.

Send Inquiry

Product Description

The head size of the Nylon Spacer is slightly larger than the width of the channel opening. When installed, it is inserted through the opening and rotated 90 degrees to lock the head inside the channel and prevent it from coming out. The gasket body extends to the outside of the channel to provide horizontal support for the connector. This design ensures both installation convenience and connection reliability.

This product is made of high-quality nylon material and has excellent performance. Nylon material itself has excellent insulation properties, which can effectively prevent electrochemical corrosion caused by contact between different metal materials, while also playing a role in shock absorption and noise reduction.

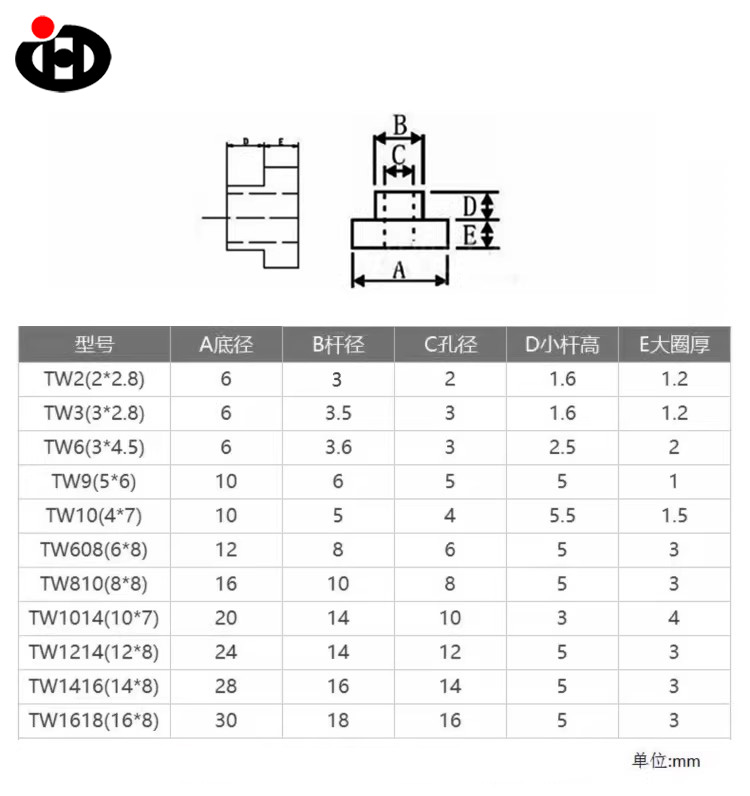

Name	Nylon Spacer
Material	Nylon
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M2-M16
Finish	Plain/Black/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Nylon material, insulation and corrosion resistance: Made of high-quality nylon material injection molding, it has good insulation performance and can effectively isolate different metal materials to prevent electrochemical corrosion caused by potential difference. Especially suitable for isolation protection.

T-shaped structure, easy to install: The T-shaped section design perfectly matches the pre embedded channel. When installing, it can be inserted through the channel opening and rotated 90 degrees to snap into the inner side of the channel without slipping. When used in conjunction with T-bolts, there is no need for additional positioning, and one person can install it, greatly improving construction efficiency.

Shock absorption, noise reduction, and protection of connectors: Nylon material has certain elasticity and damping characteristics, which can play a buffering and shock-absorbing role in vibration environments, reducing noise at the connection parts. Meanwhile, nylon washers are softer than metal washers and will not scratch the surface of the connected parts, protecting the appearance of the workpiece.
