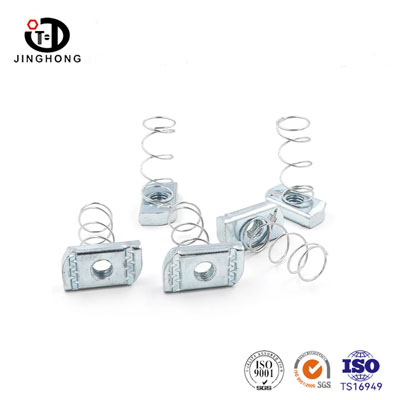

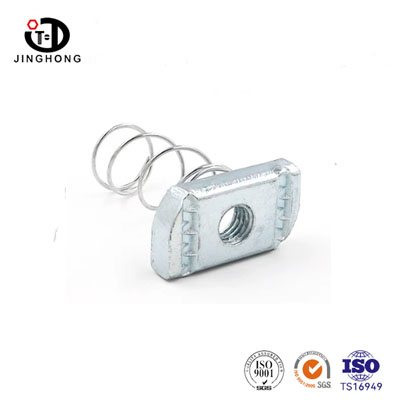

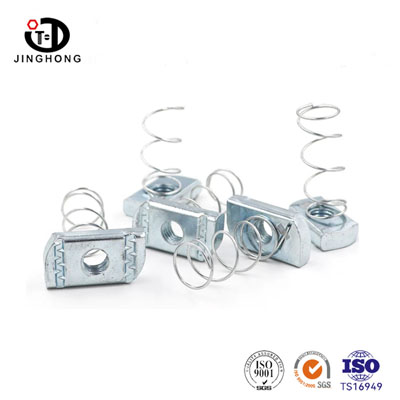

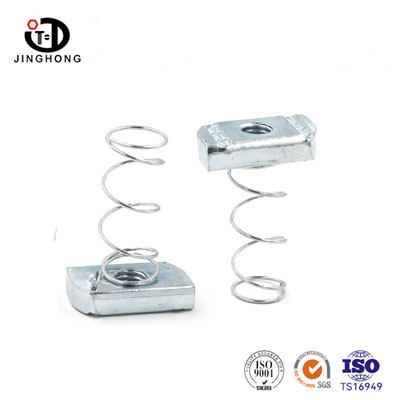

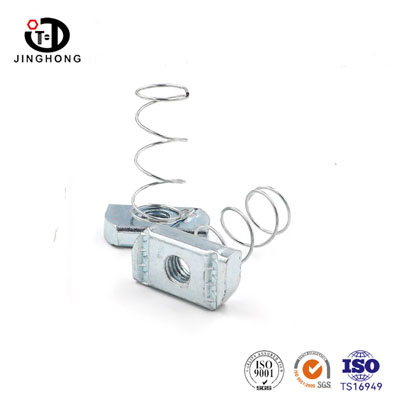

Nuts with Springs

This nut with spring is meticulously manufactured by Jinghong in accordance with relevant industrial standards. The main body is made of high-quality carbon steel or spring steel (such as 65Mn) through injection molding or stamping, and its surface is electroplated with environmentally friendly blue-white zinc and undergoes passivation treatment, presenting a uniform blue-white matte appearance. The core design lies in the presence of elastic steel sheets (or spring structures) on the side or bottom of the nut, which can provide continuous radial clamping force during locking. It is an efficient upgrade solution for traditional flat nuts, with internal thread accuracy meeting standards, and can be used in conjunction with standard metric bolts, particularly suitable for mechanical connection parts with continuous vibration or dynamic stress.

Product Feature

This spring nut is equipped with an internal high-elasticity steel plate or spring structure, which offers excellent anti-loosening and vibration resistance properties. During the tightening process, the structure can generate reverse force, applying additional radial pressure and friction to the thread, thereby preventing loosening under high-frequency vibration or impact. Its surface is electro-galvanized and undergoes a trivalent chromium passivation process, forming a blue-white zinc layer. This not only gives it a neat appearance and complies with industrial standards, but also significantly enhances its corrosion resistance (salt spray protection for 48 to 96 hours), and does not contain the toxic hexavalent chromium, meeting environmental protection export standards. This product is mainly made of heat-treated spring steel, combining high strength with excellent toughness. It is not prone to brittle fracture or fatigue failure under alternating loads. Its elastic design enables quick positioning and can be installed without tools, adapting to different thicknesses of plates, and can be directly inserted into C-shaped slots and aluminum profiles' concave grooves, and can still be reused after disassembly. It is lightweight yet sturdy, maintaining stable performance in conventional industrial temperatures and complex environments, effectively reducing safety hazards caused by loose fasteners.

Our Strength

·  Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

Architecture and mechanical and electrical installation: Fastening of C-shaped steel, U-shaped channel steel and photovoltaic support systems, connection nodes of seismic supports.

Industrial aluminum profile frames: Post-mounted fast connections of automated equipment racks, assembly line workbenches, protective fences, etc. of European or Chinese standards for profile materials.

Automobile and rail transportation: Suspension components, wire harness fixation, anti-loosening fastening of interior structures of carriages, resistance to continuous vibration during driving.

Mechanical equipment and equipment manufacturing: Fastener anti-loosening connections for construction machinery, agricultural machinery equipment, distribution and control hardware, and vibrating screens under dynamic stress environments.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
