High Plastic Hex Cap

Raised plastic hexagonal dust protection cover, made of PE or PP material, with a hexagonal shape that is taller than the regular model. Cover the exposed hexagonal screws, valve handles, and pneumatic joints of the equipment to prevent dust and debris from accumulating, as well as to prevent people from accidentally touching hot or cutting hands. The colors are red, yellow, blue, and black, and can be selected as needed. Sizes range from M6 to M30.

Send Inquiry

Product Description

The bolts on many devices are long bolts, with a large section of the screw exposed. A regular dust cap can only cover the head, and the exposed threads are still exposed to the outside. The increased depth can wrap the entire screw inside.

The protective cover is hexagonal and can be used on hexagonal bolt heads. After being put on, it won't move or fall off. If it's just a circular sleeve, it will come loose and fall off during transportation. After the hexagonal lock is stuck, it cannot be removed without exerting force.

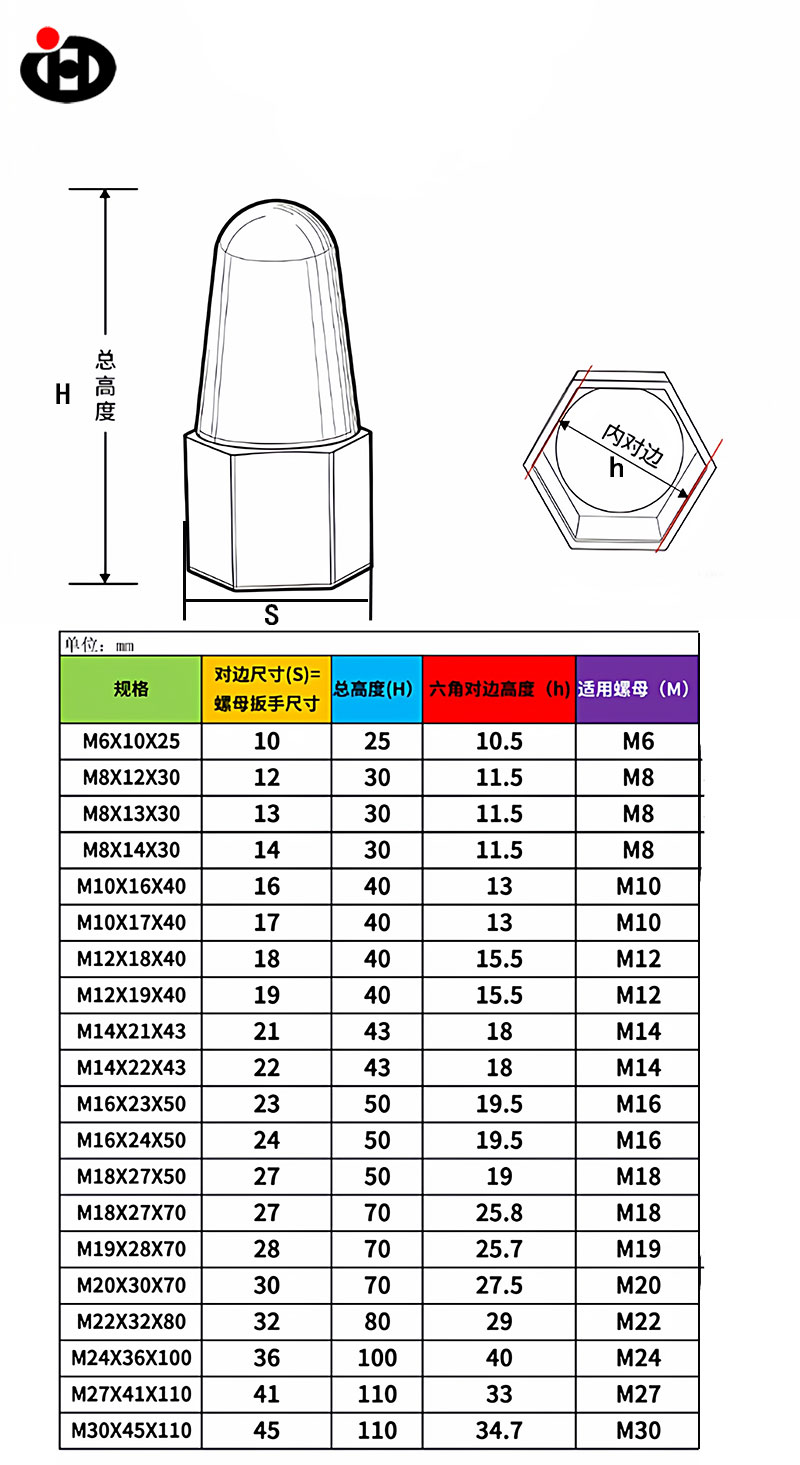

Name	High Plastic Hex Cap
Material	Plastic
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M6-M30Metc
Finish	Plain/Black/Blue/Yellow/Red/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

The hexagonal cavity is tightly clamped and does not fall off: the cavity is hexagonal, and it fits perfectly on the bolt head to hold the edge of the hexagon, without rotating on its own. Transportation bumps, wind and rain cannot fall off. Just pull it out with a little force when taking it.

The colors are eye-catching, visible at a glance: red, blue, yellow, all kinds of colors are available. On the construction site, use red ones so that workers can see from a distance where the bolts are exposed and won't collide. Different regions are distinguished by different colors, making management convenient.

Convenient packaging, packed according to specifications: one bag for each specification, with specification and color labels attached to the outside of the bag. Export orders can be palletized or packed in cardboard boxes according to customer requirements to avoid deformation.
