Hexagon Socket Head Combination Screw

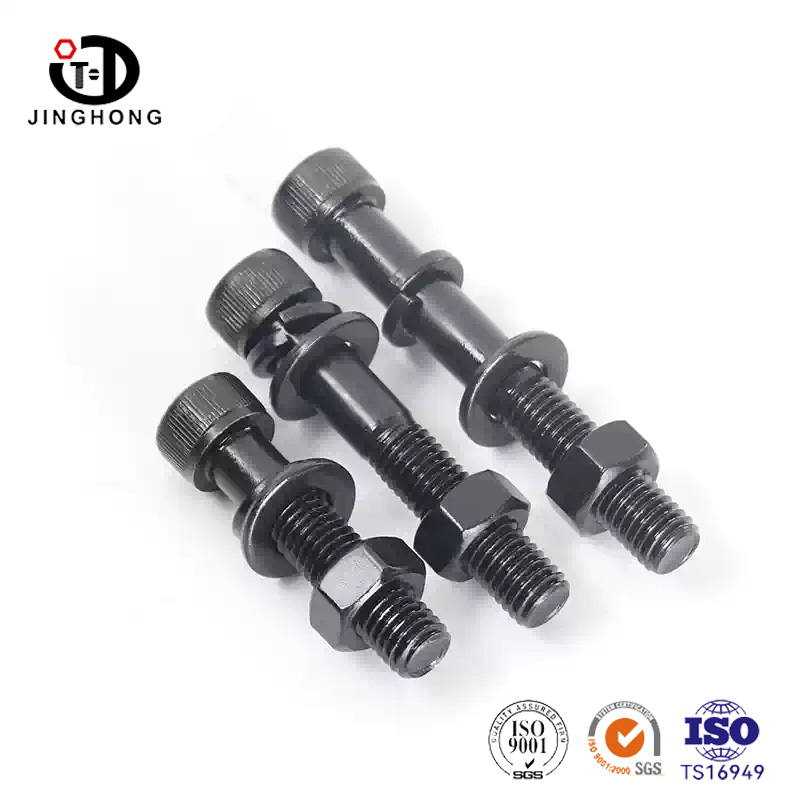

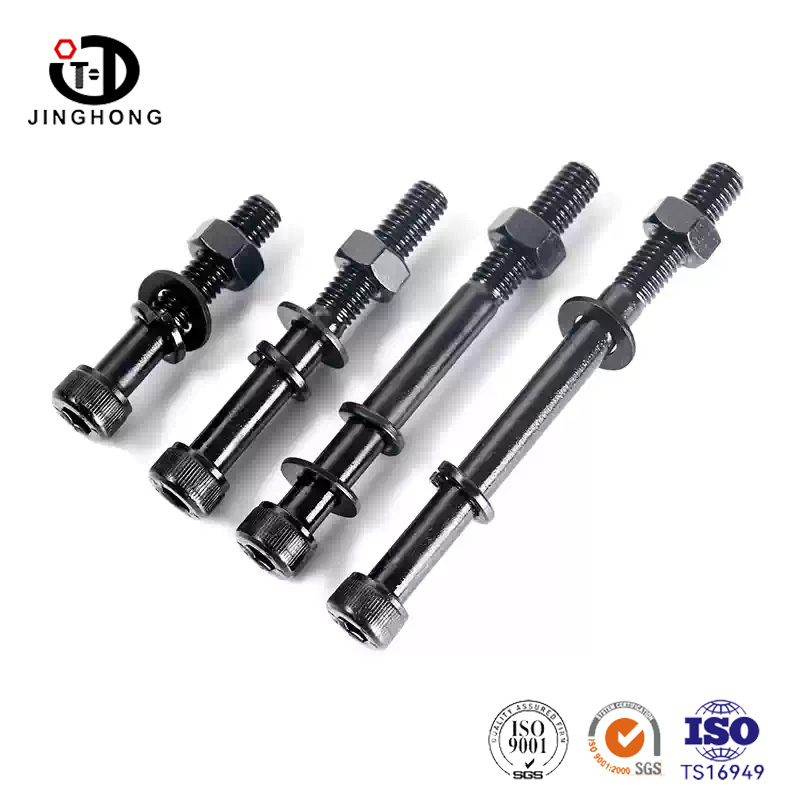

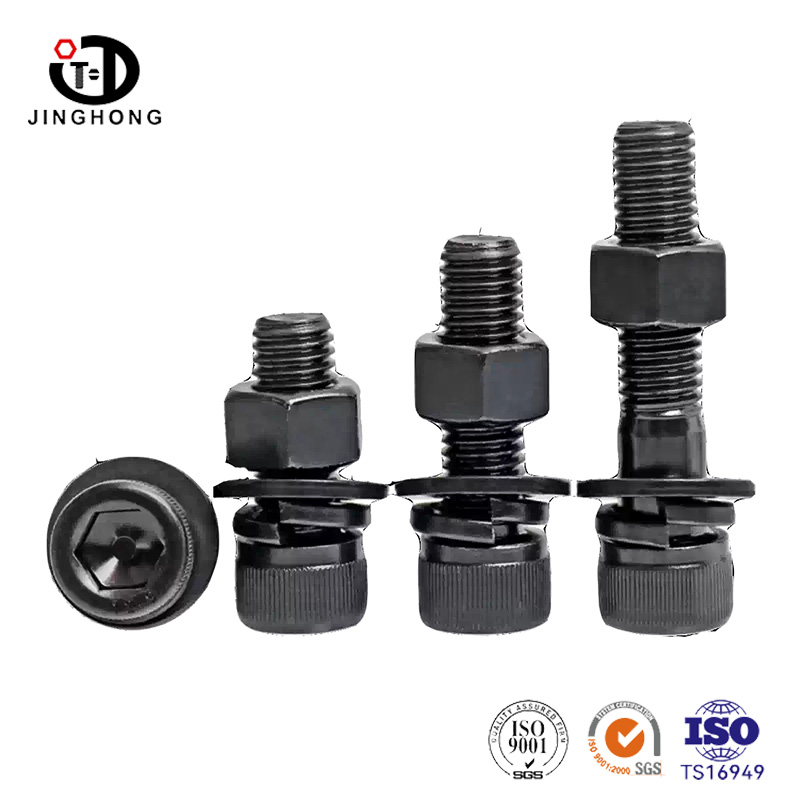

JINGHONG factory produces a set of four blackened carbon steel hexagon socket head cap screws - hexagon socket head cap screw, flat washer, spring washer, and hex nut, all complete and ready for shipment. The screws have a cylindrical head and are tightened with an Allen wrench.

Send Inquiry

Product Description

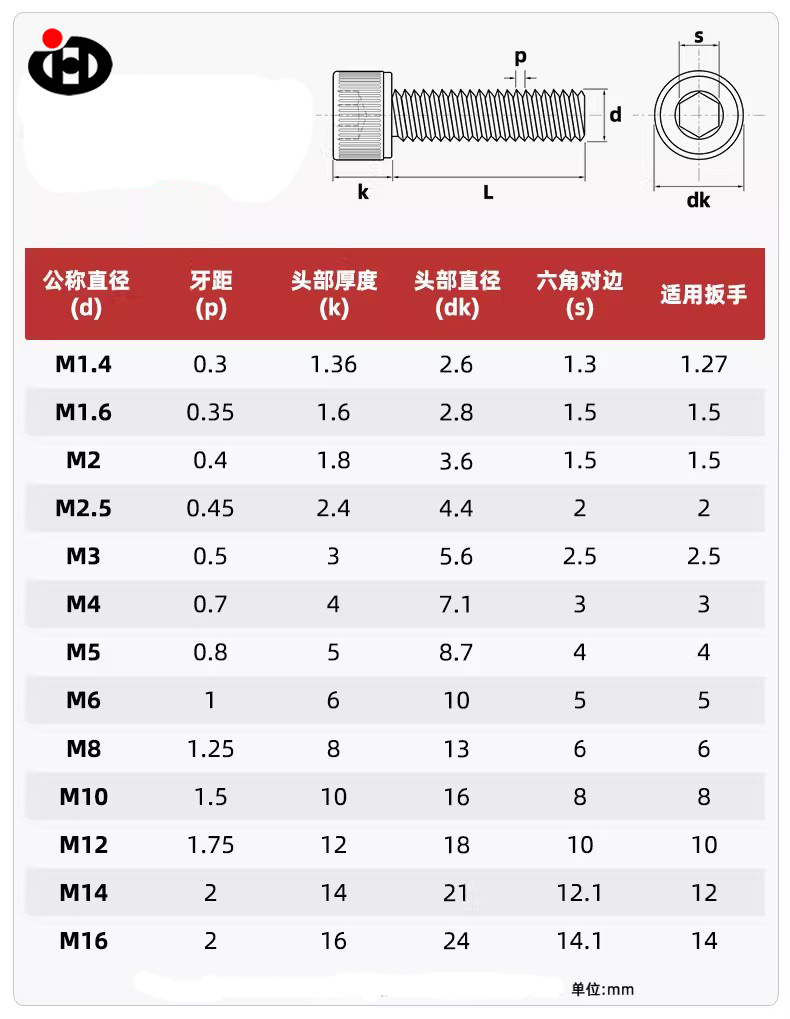

The head is cylindrical, with an inner hexagonal hole on top. Unlike outer hexagonal bolts, which are tightened by gripping from the side with a wrench, inner hexagonal bolts are tightened by inserting a hexagonal wrench from above. The advantage of inner hexagonal bolts is that their heads are shorter, taking up less space. In some locations on the equipment, there are parts blocking the way, making it impossible for an outer hexagonal wrench to reach in. An inner hexagonal wrench can be inserted from above to tighten the bolt. The diameter of the cylindrical head is smaller than that of the disc head, providing a moderate clamping area, ensuring that the head does not sink into the workpiece after tightening.

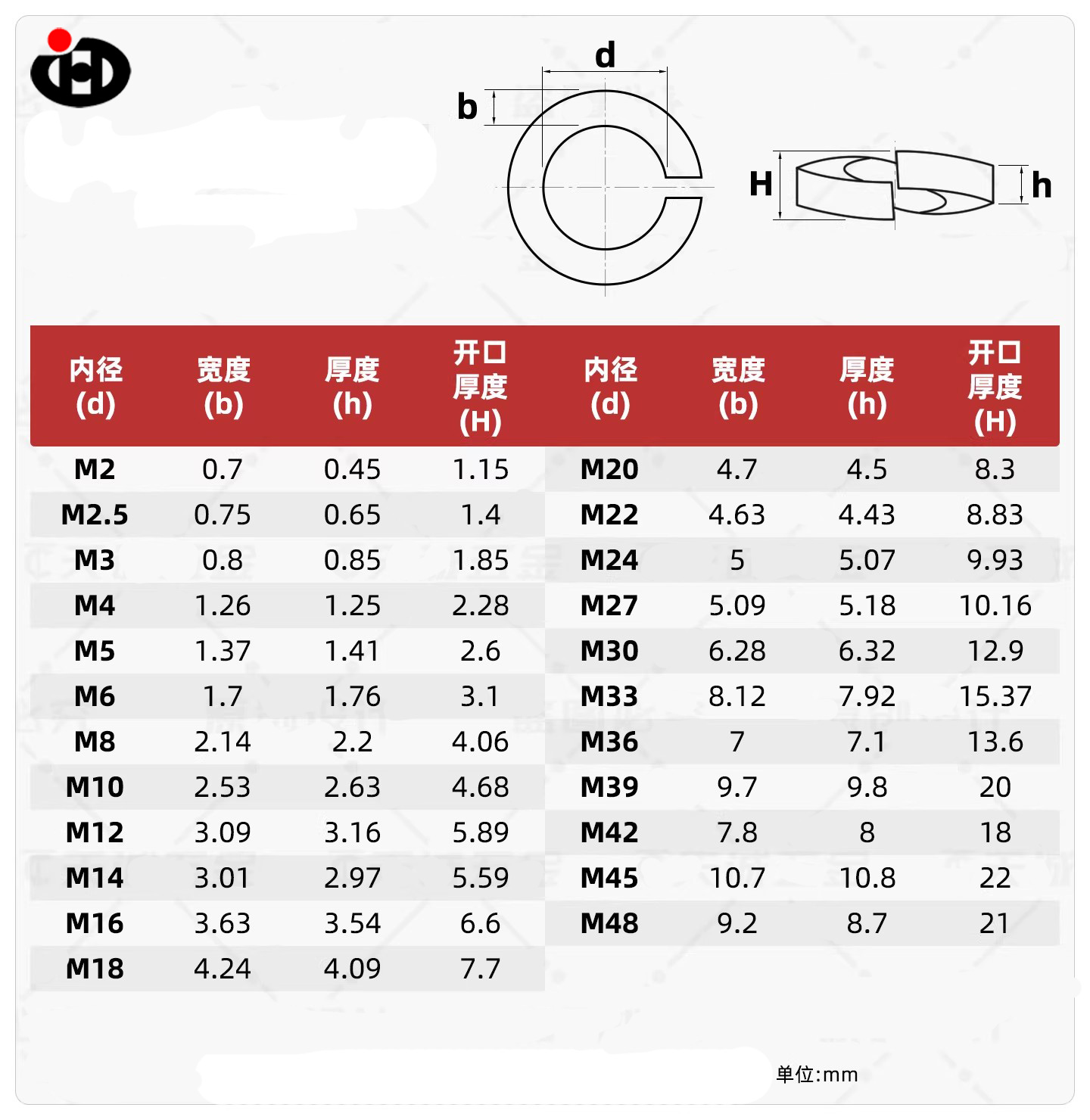

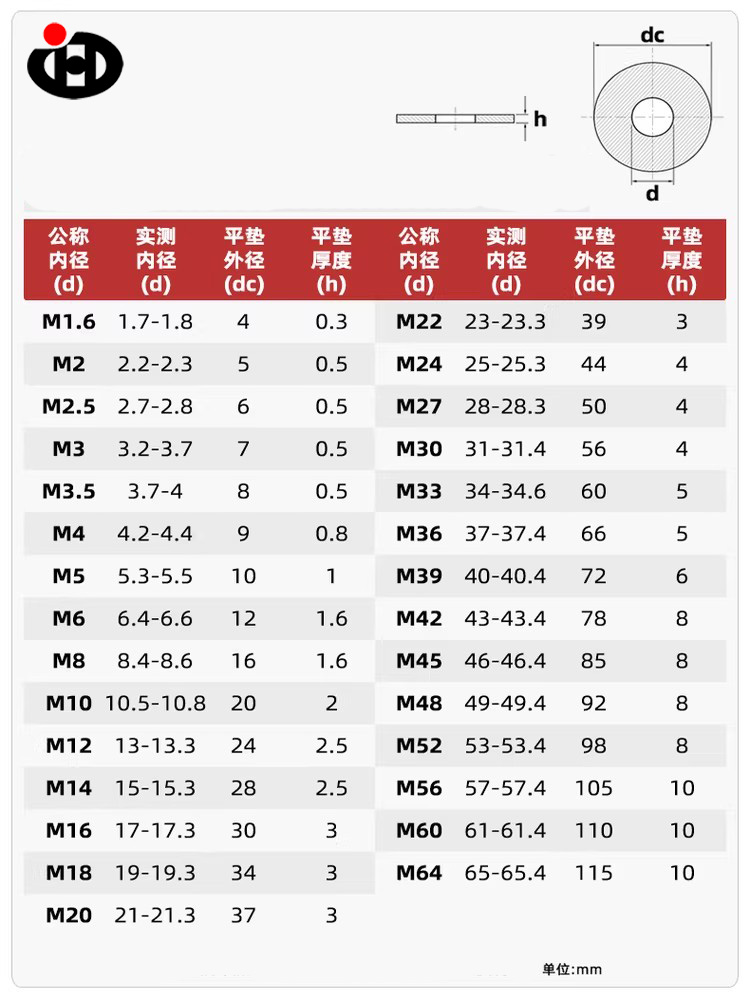

The flat washer is placed on the screw rod, closely adjacent to the screw head. After tightening, the flat washer adheres to the surface of the workpiece, distributing the locking force so that no pits are pressed into the thin plate. The spring washer is sandwiched between the screw head and the flat washer. After being compressed, it generates elastic force. When the equipment vibrates, the elastic force pushes against the screw head, making it difficult for the nut to back out.

Name	Hexagon Socket Head Combination Screw
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M1.4-M16Metc
Finish	Plain/Black/Zinc plated/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

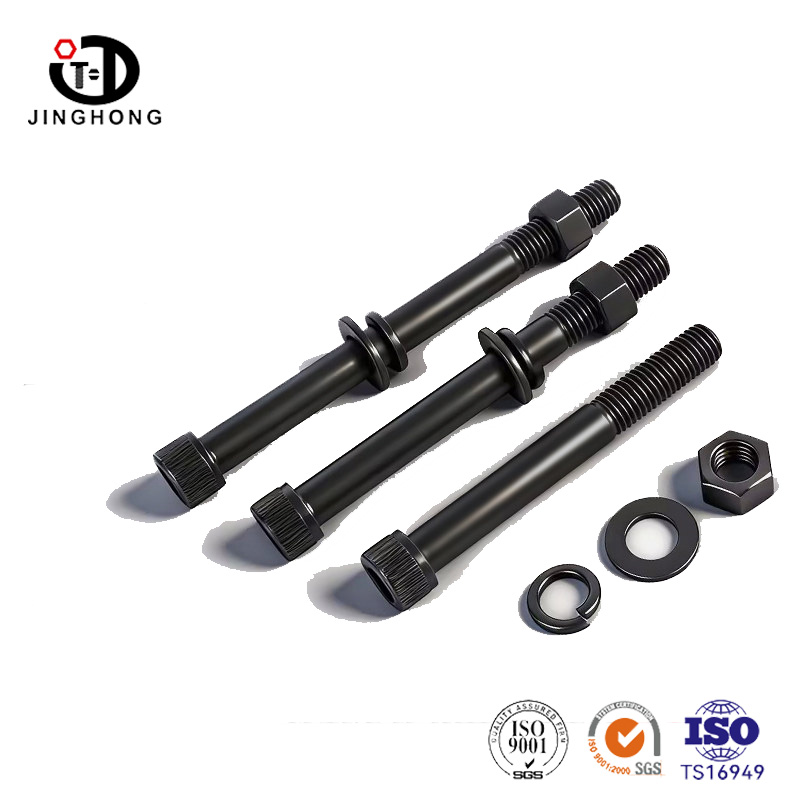

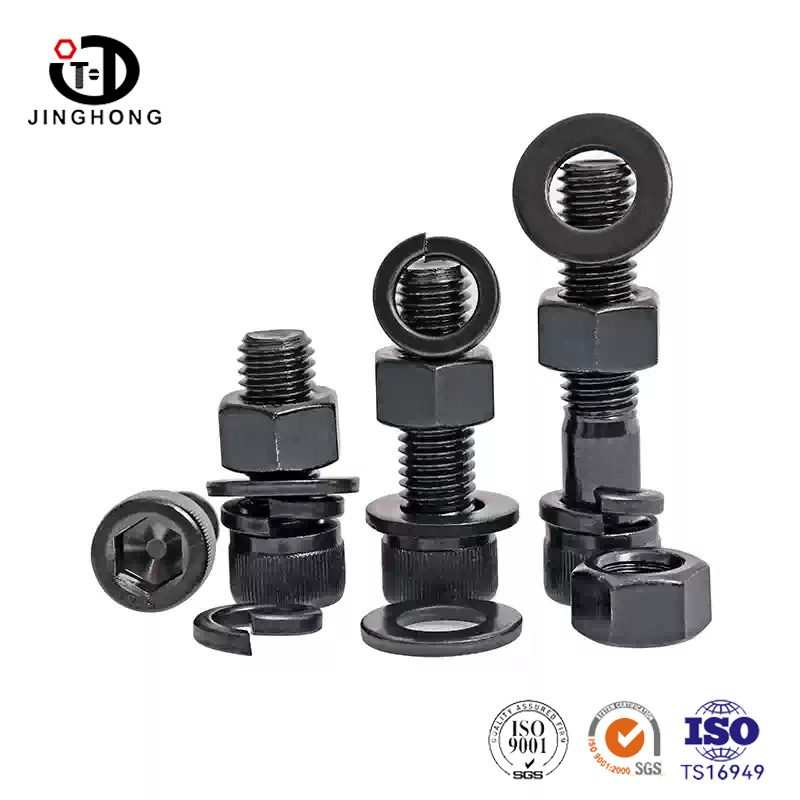

A complete set, no need to search for parts: screws, flat washers, spring washers, and nuts are packed in a bag of four pieces. Workers on the assembly line can take one bag and get a complete set, without having to separately collect screws, washers, and nuts. This saves time and reduces the risk of missing washers during assembly.

Both flat washers and spring washers are available, providing both anti-loosening and protection: the flat washer protects the surface of the workpiece, while the spring washer prevents vibration and loosening. One screw comes with two washers, providing all the necessary functions.
