Hexagon Socket Head Cap Screws with Low Head with Reduced Loadability

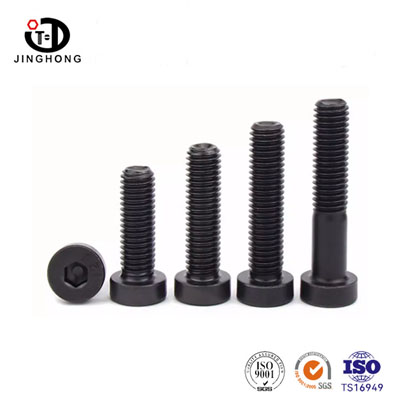

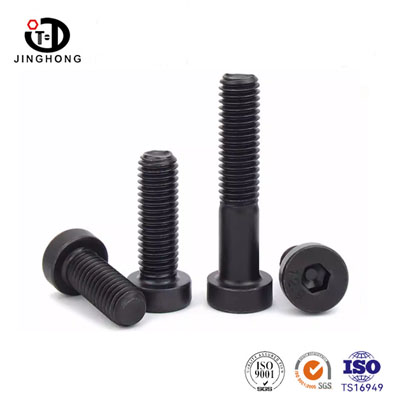

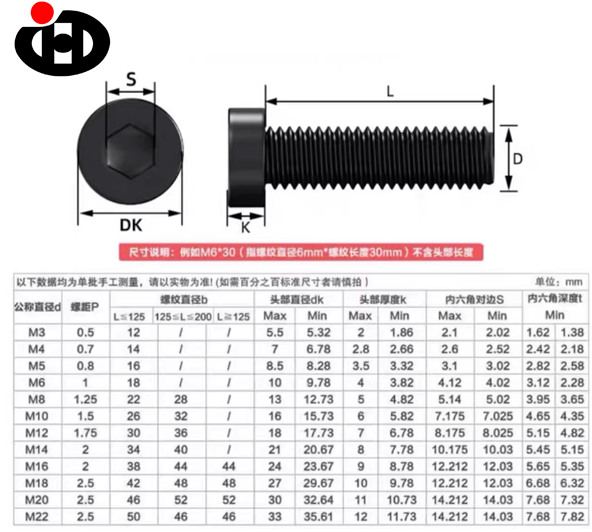

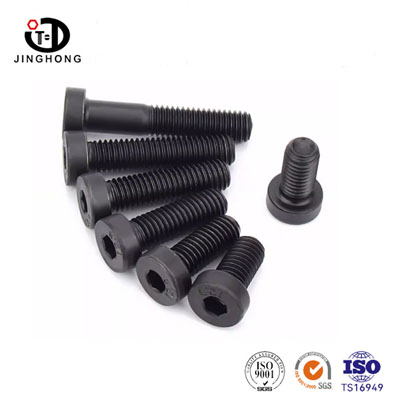

The DIN7984 12.9 grade internal hexagonal flat-head cylindrical head screws (M3-M22) are made of high-strength alloy structural steel and undergo special heat treatment to achieve 12.9 grade mechanical properties. The screw heads adopt a low-flat design, with a height approximately 20%-30% lower than the standard cylindrical heads, ensuring excellent internal hexagonal driving performance even in limited installation spaces. The surface is blackened, featuring both basic rust prevention and low reflectivity properties. They are suitable for industrial scenarios such as precision machine tools, mold manufacturing, and automated equipment that have strict requirements for space limitations, connection strength, and appearance consistency.

The screws produced by Jinghong Fasteners comply with the DIN7984 standard. They are made of 12.9 grade high-strength alloy steel, with high hardness and excellent tensile strength. The short head design effectively saves installation space and is suitable for compact and narrow structures. The internal hexagonal slot type facilitates torque transmission and enables efficient installation. The blackening treatment on the surface has certain anti-corrosion and wear-resistant properties. The overall size accuracy is high, and due to the low-load design, they are more suitable for light to medium load fastening scenarios.

Our Strength

·  Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

It is widely used in spaces with limited dimensions such as mechanical equipment, molds, automation equipment, electronic instruments, automotive parts, and general assembly. It is suitable for bolt connections with strict installation height limitations and certain strength requirements. It is particularly applicable to the fastening and assembly of compact structures such as mold side plates, equipment shells, and tooling fixtures.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
