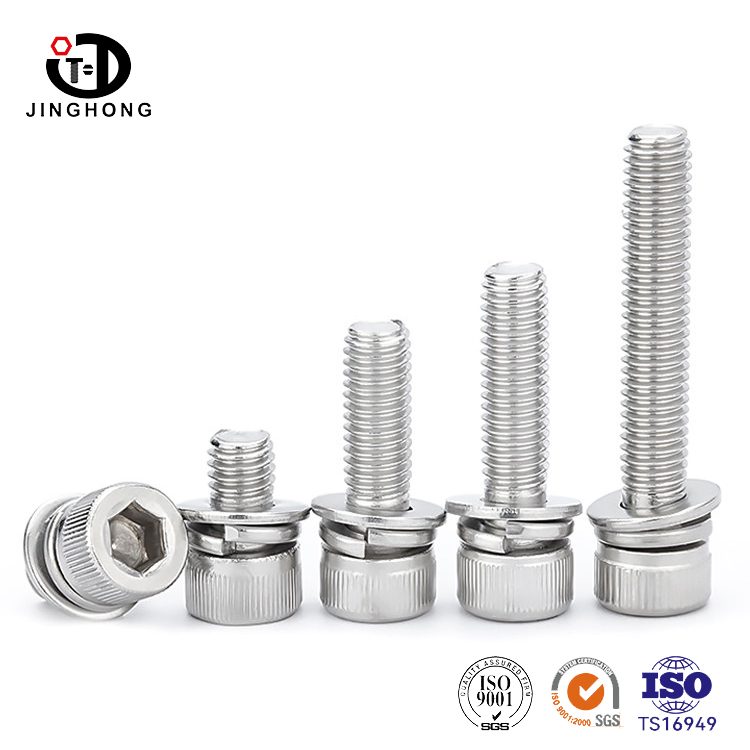

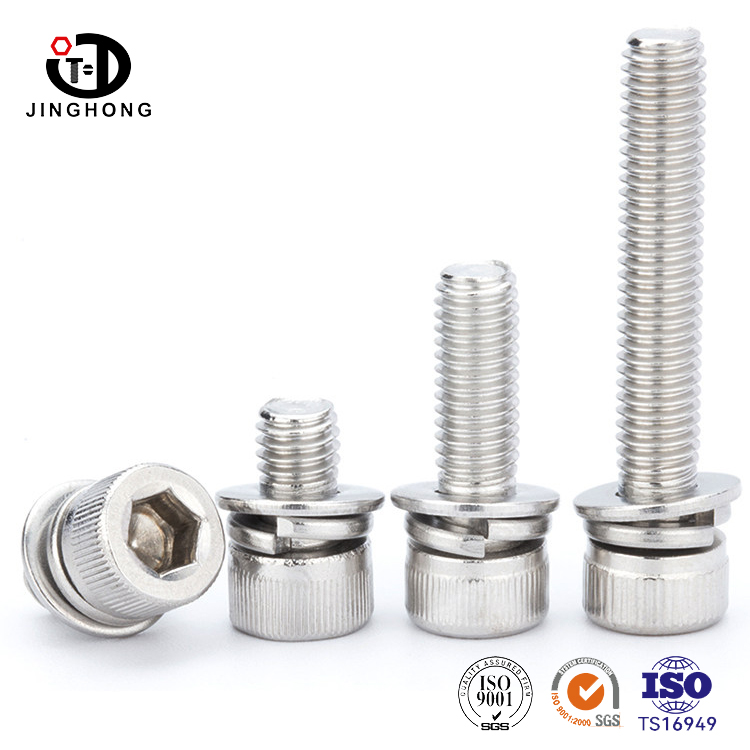

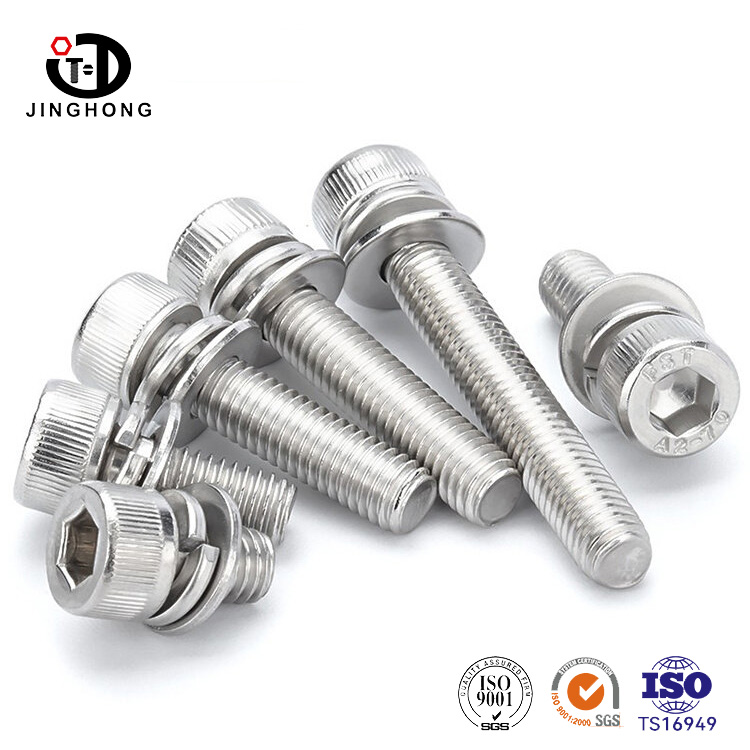

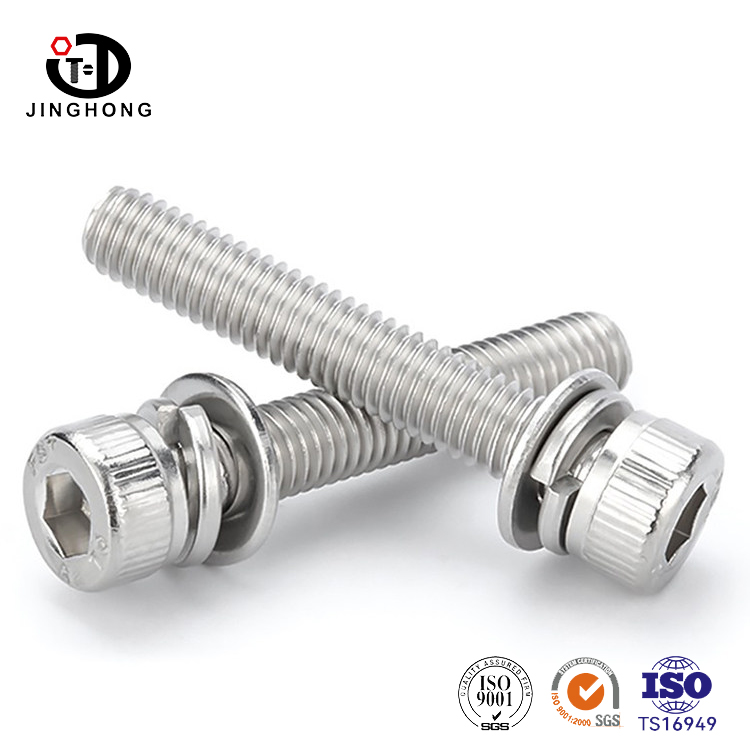

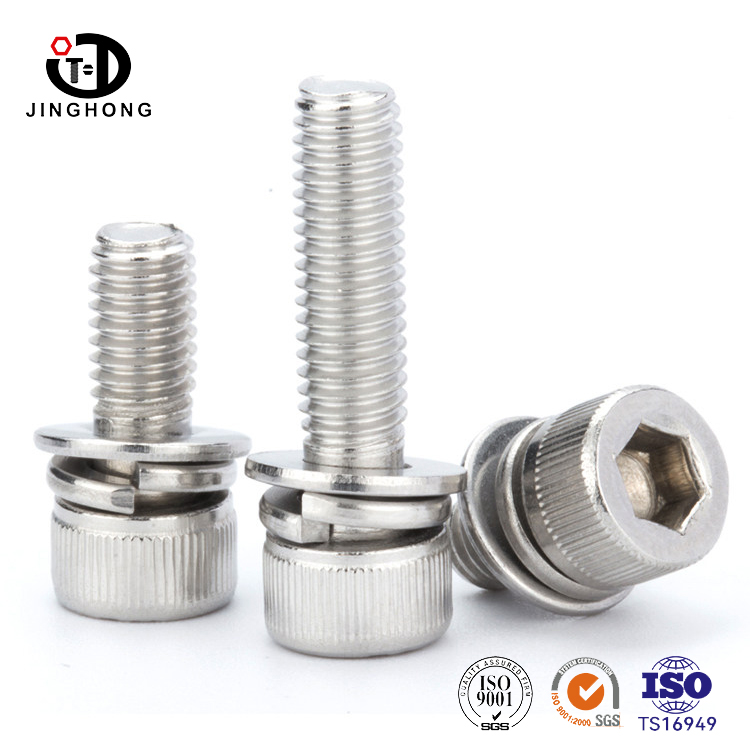

Hexagon Socket Head Cap Screw With Three Components

JINGHONG factory specializes in producing Hexagon Socket Head Cap Screws with Three Components, made of 304 stainless steel, equipped with flush washers and spring washers. The washers are already fitted onto the screws before shipment, ensuring they won't fall off. Each set consists of three pieces, ready to use upon arrival, eliminating the hassle of separately retrieving washers during assembly. The threads are machine-cut standard coarse threads, compatible with various metal threaded holes or nuts

Send Inquiry

Product Description

A three-piece screw set consists of a screw, a flat washer, and a spring washer, which are already threaded together when they leave the factory. The washer is fitted onto the screw shank, ensuring it doesn't fall off. When the worker receives it, they simply thread it into the hole and tighten it, eliminating the need to separately pick up the flat and spring washers from the parts box, and eliminating the concern of missing any washers.

Flat washer: It is placed on the screw rod, closely adjacent to the screw head. After tightening, the flat washer adheres to the surface of the workpiece, distributing the locking force of the screw so that no pits are pressed into the workpiece. When screws are installed on thin plates, without a flat washer, the plate will sink in once the screw head is tightened.

Spring washer: It is sandwiched between the screw head and the flat washer, and after being compressed flat, it generates elastic force, which constantly presses against the screw head. When the equipment vibrates, this elastic force makes the screw less likely to back out. The spring washer is made of 65Mn material, which is carbon steel, with a galvanized surface treatment, providing good elasticity.

Name	Hexagon Socket Head Cap Screw With Three Components
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

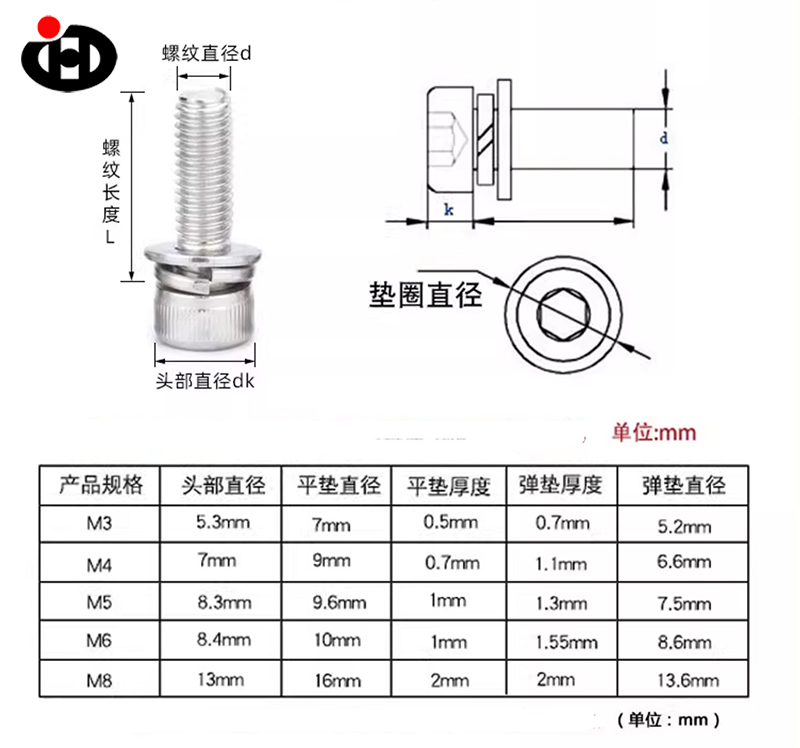

Sizes	M3-M8Metc
Finish	Plain/Black/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Each set consists of three pieces, ready to assemble upon arrival: the screws, flat washers, and spring washers are already pre-assembled, eliminating the need for individual assembly. Workers on the assembly line can simply take one piece and install it, without having to separately pick up washers. This reduces the number of batches that miss assembling washers and saves time spent flipping through parts boxes.

The flat spring washers are complete, providing both anti-loosening and protection: the flat washers protect the surface of the workpiece, while the spring washers prevent vibration and loosening. Each screw comes with two washers, providing all the necessary functions. When used on thin plates, they do not leave indentations; when used on vibrating equipment, they do not loosen.
