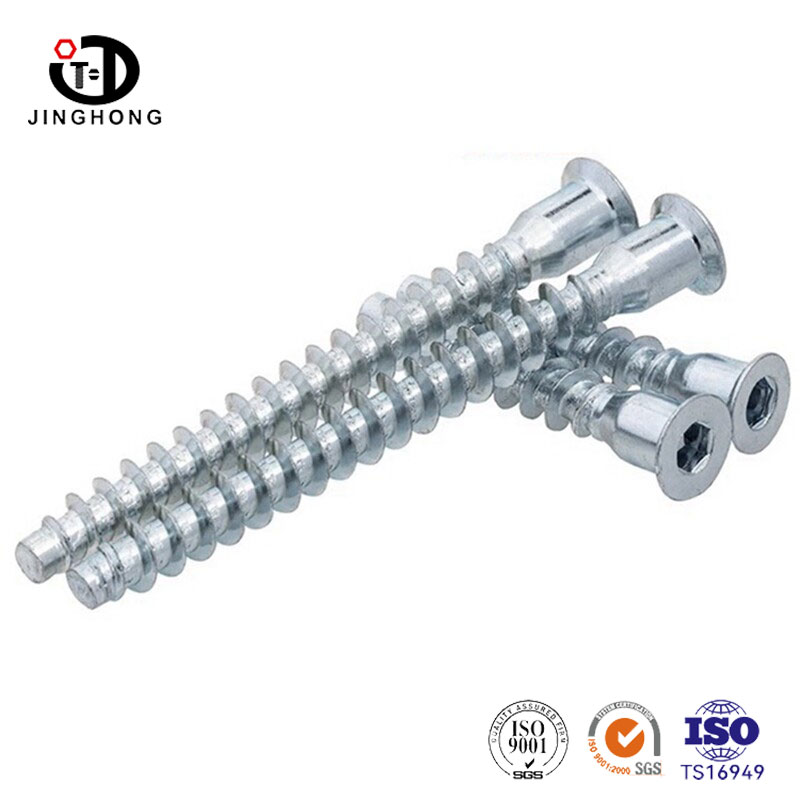

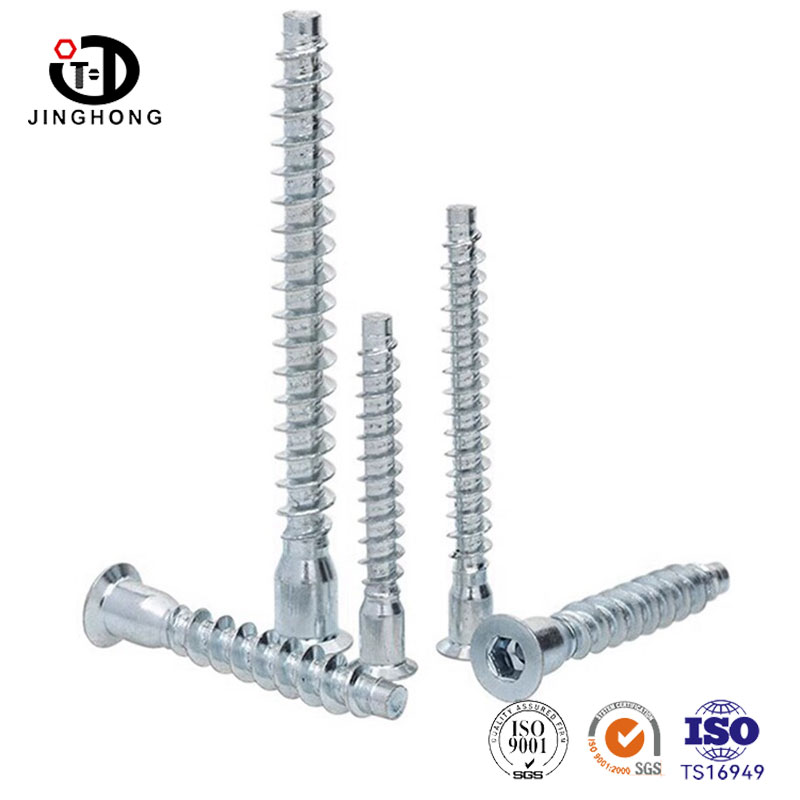

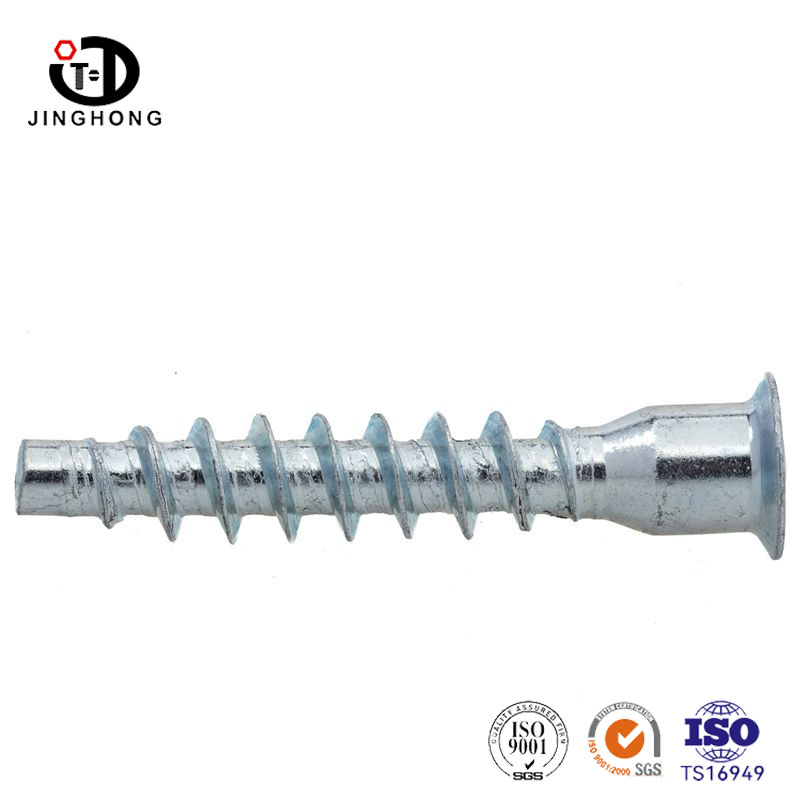

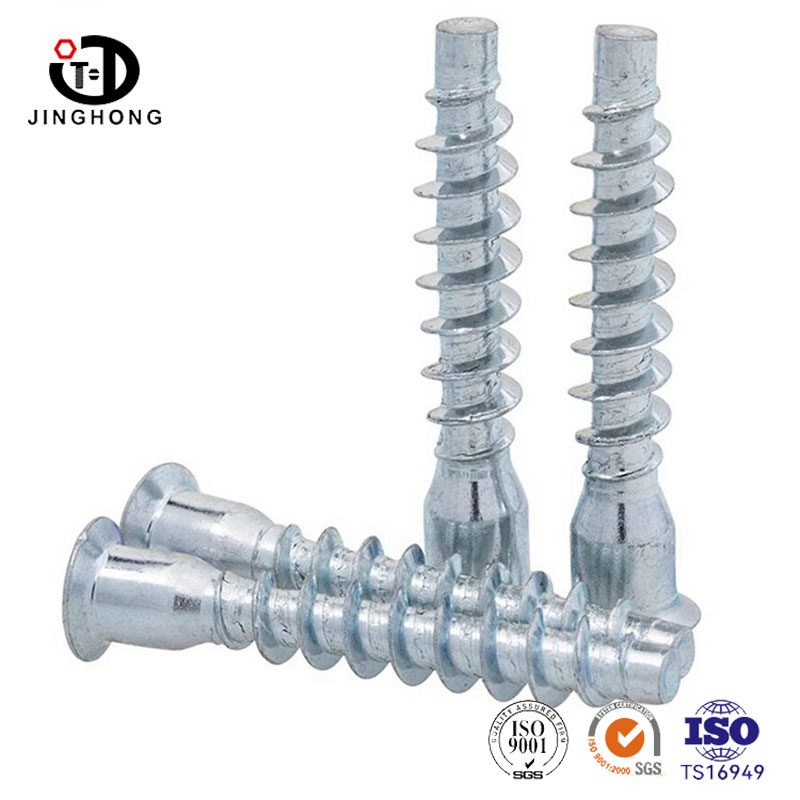

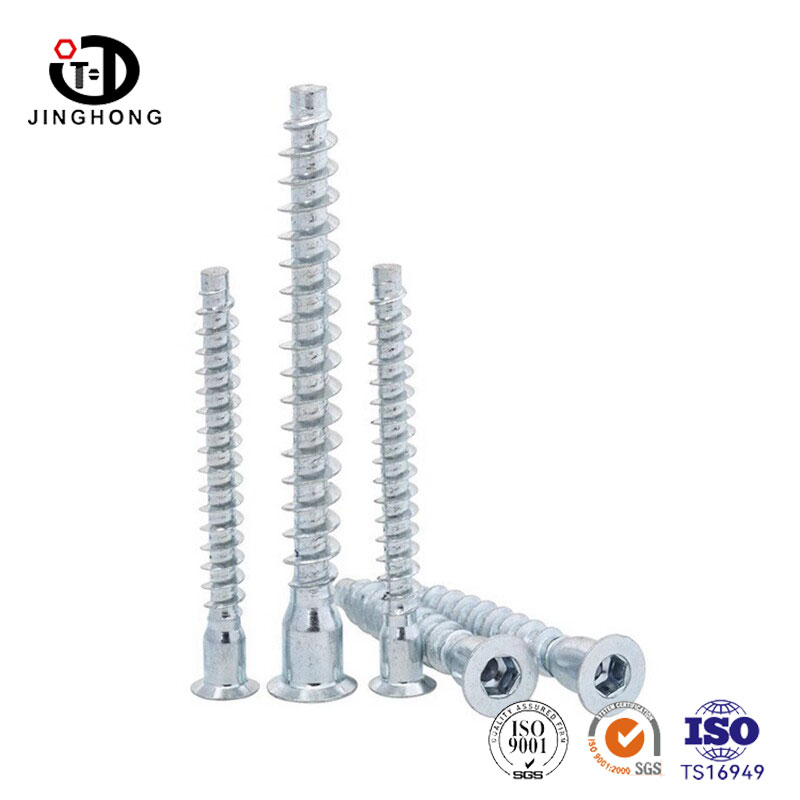

Hex Socket Furniture Connector

Our factory specializes in producing carbon steel galvanized Hex Socket Furniture Connectors, using high-quality carbon steel with a hexagonal countersunk head and coarse self tapping threads. After the installation of the countersunk head, it is flush with the surface of the workpiece. The hexagonal drive can be applied with a large torque using a hexagonal wrench. Widely used in wooden structure connection occasions. Standing stock, supporting non-standard customization.

Send Inquiry

Product Description

Hexagonal drive: The head is countersunk with an internal hexagonal hole on top. Use a hex wrench to tighten. The advantage of an inner hexagon is that it can generate a large torque and does not slip when screwed into wood. If the force on the cross groove is too strong, it is easy to jump out, but not on the inner hexagon. Insert the hex wrench and bite it hard, but it won't slip even when tightened.

Galvanized carbon steel: The material is carbon steel, and the surface is coated with blue and white zinc. Furniture factories use a large number of screws, and the cost of galvanizing carbon steel is much lower than stainless steel. Rust prevention is also sufficient - furniture placed indoors will not be exposed to rain, and the rust prevention of blue and white zinc is sufficient. Salt spray for 48 hours.

Name	Hex Socket Furniture Connector
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

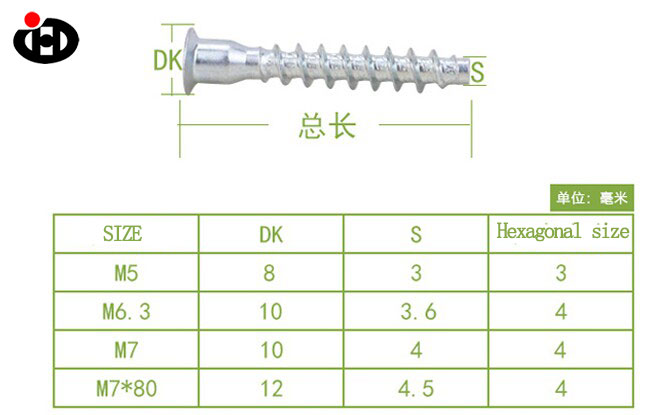

Sizes	M5-M7Metc
Finish	Plain/Black/Zinc plated/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

The sunk head is flush, not protruding or uncomfortable: After installation, the screw head is flush with the surface of the wooden board, and it feels flat when touched on the furniture panel. It won't protrude and hurt people, nor will it hang on clothes. It is also convenient to apply leather or paint on the panel, without the need for putty filling.

Coarse teeth are powerful: the thread pitch is larger than that of ordinary screws, and the tooth depth is also greater. After screwing into the wood, the threaded teeth are embedded into the wood fibers, resulting in strong pulling force. Two boards are locked together and cannot be opened even with a hammer.
