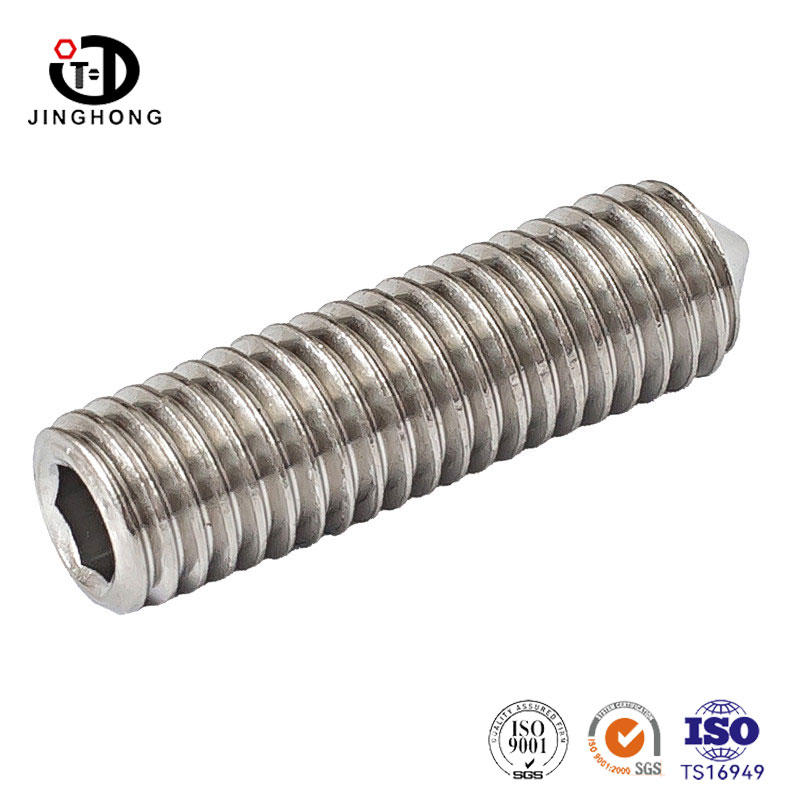

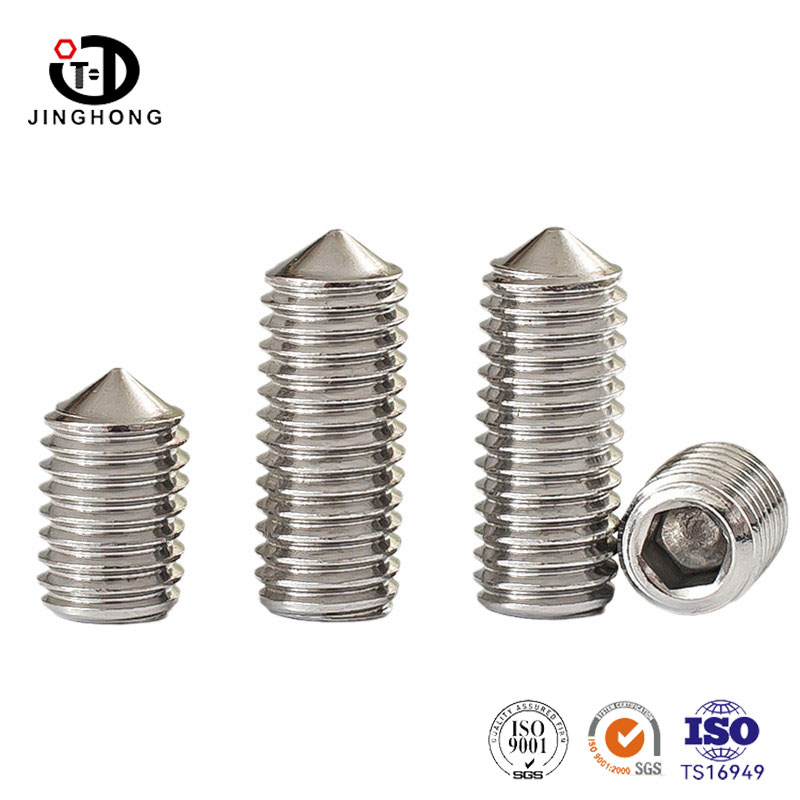

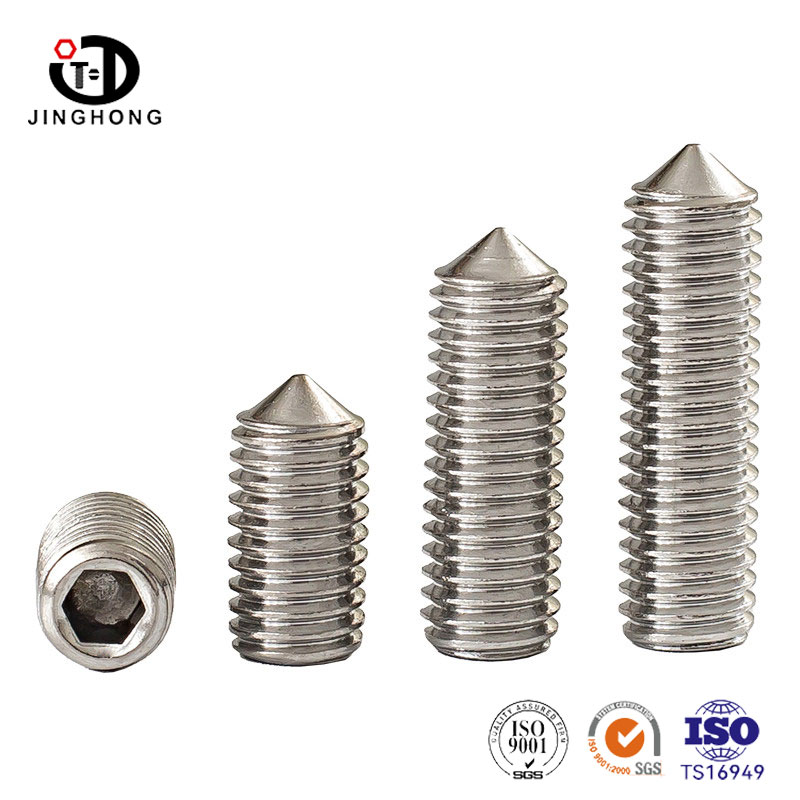

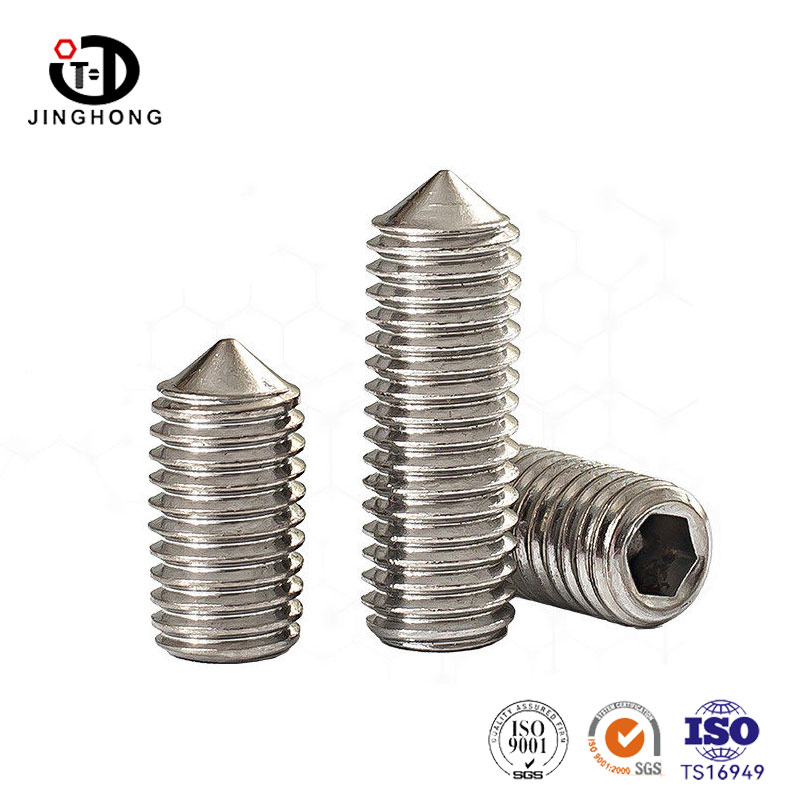

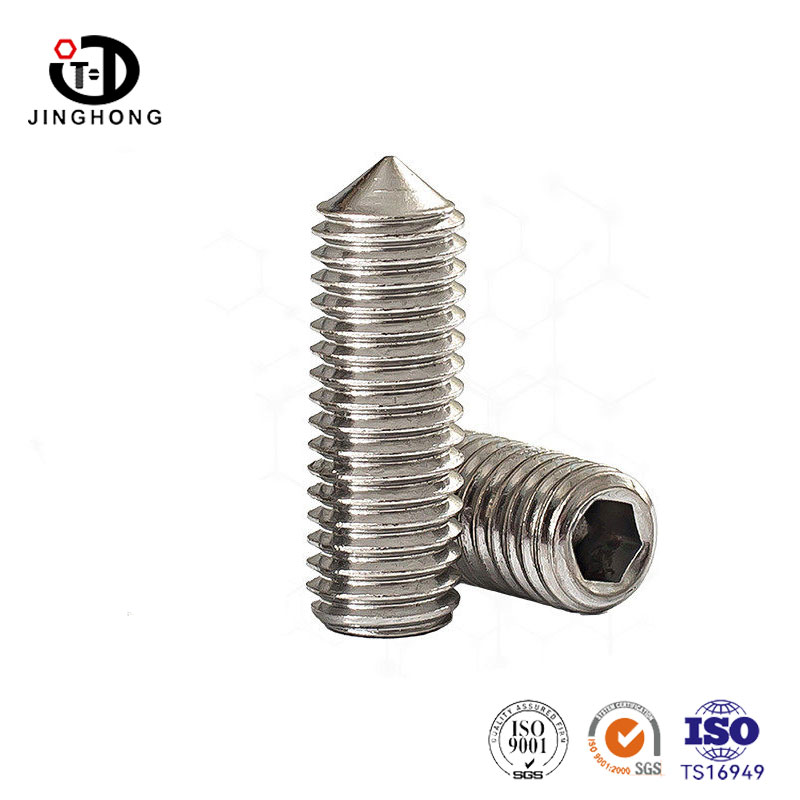

Hex Socket Cone Point Grub Screw

Jinghong Factory specializes in producing Hex Socket Cone Point Grub Screw, which is made of stainless steel with a hexagonal head and a pointed tail. The product is used to fix the position and relies on the tip to firmly position it. Widely applicable in situations that require precise positioning. The specifications range from M3 to M16, with sufficient stock of regular sizes and support for non-standard customization.

Send Inquiry

Product Description

The length of the set screw is different from that of a regular screw. A regular screw is a rod with a cap, while a set screw does not have a cap, just a hexagonal hole drilled on the top of the rod, making the entire screw a pillar. Its function is not to lock two things together, but to hold them together.

What kind of top method? Take this machine rice screw, screw it into the threaded hole of one part, tighten it to the bottom, and the tip of the screw should press against the surface of another part , relying on this pushing force to prevent the two parts from sliding relative to each other. The contact area of the tip is small, and under the same tightening torque, the pressure is greater, making it more firmly pressed.

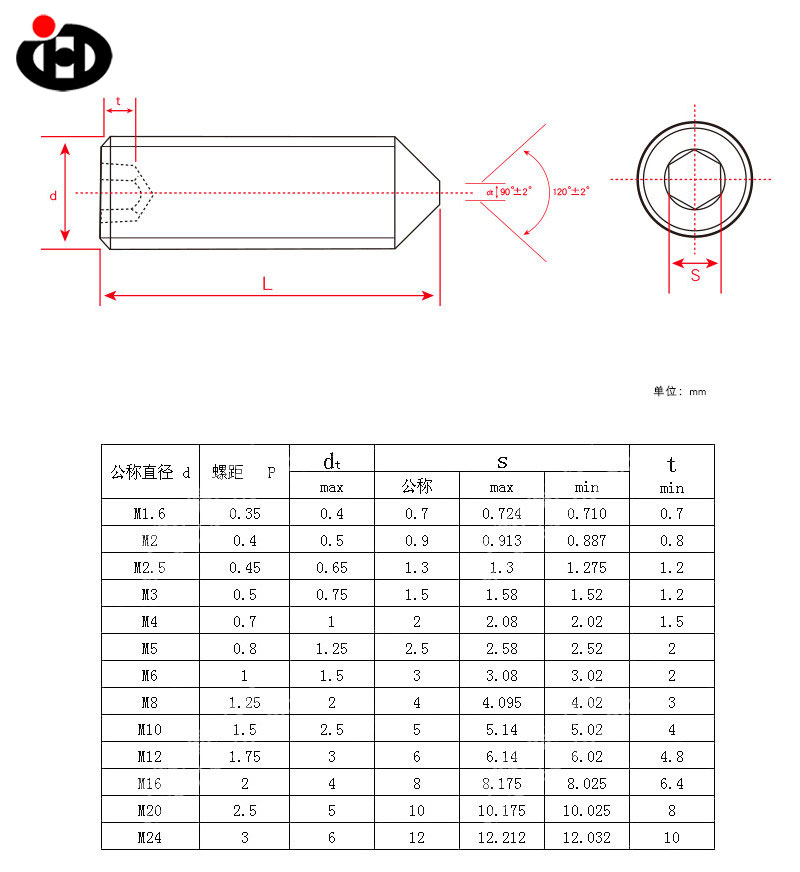

Name	Hex Socket Cone Point Grub Screw
Material	Grub Screw
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M1.6-M24Metc
Finish	Plain/Black/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

The pointed end is firmly pressed: the tail is ground into a conical shape, with a small contact surface, and the same locking force is pressed deeper. When used on the shaft, a small hole can be drilled in advance, and the tip can sink into the hole, so that the shaft and the fixed seat can no longer rotate. The positioning effect is much better than that of flat or concave ends.

Accurate size, thread can pass: The thread is rolled with a rolling machine, the tooth shape is full, and the pass stop gauge is fully inspected. Screw into the nut or threaded hole smoothly, without getting stuck halfway and unable to rotate. The length tolerance is controlled within ± 0.1mm, and the batch consistency is good.
