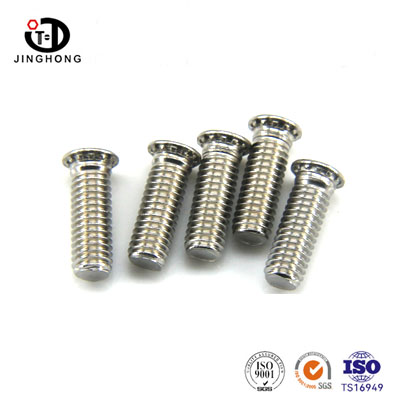

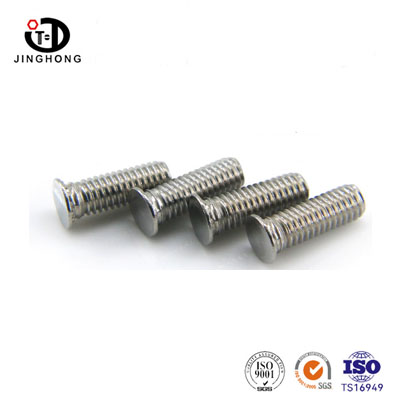

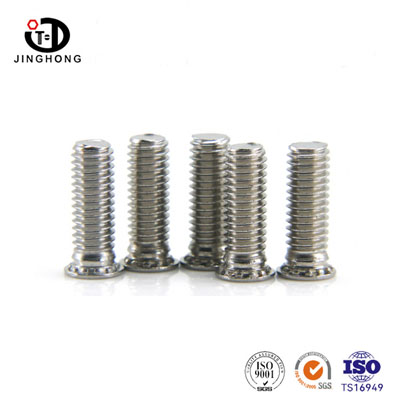

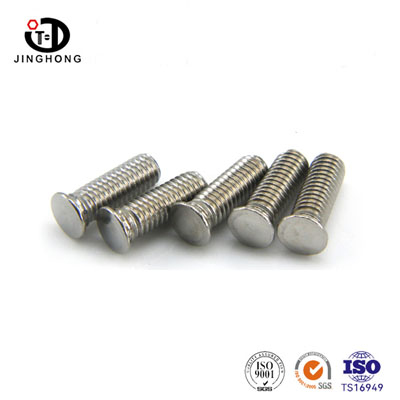

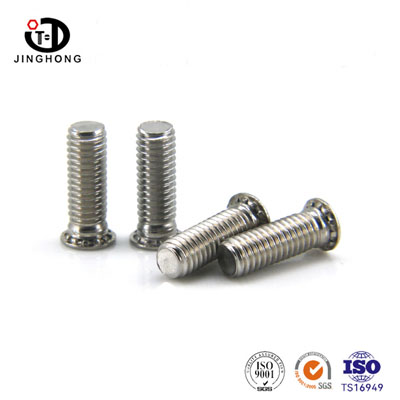

Flush-Head Self-Clinching Studs

The Flush-Head Self-Clinching Studs produced by JINGHONG are made by a single-process processing of SUS304 stainless steel. Their surfaces have undergone passivation treatment, featuring naturally excellent anti-rust and corrosion resistance properties. Their flat-head structure, combined with the full circumferential tooth pattern embossing design at the bottom of the head, enables them to form a firm mechanical interlock and interlocking fit with the sheet after being pressed into the thin sheet. They have strong resistance to being pushed out and rotation, and after installation, the head is basically flush with the surface of the sheet, with no protrusions on the back. This product does not require welding or electroplating. The cold pressing process is efficient and environmentally friendly, and is widely applicable in scenarios where thin sheet metal connections for electronic enclosures, automotive interiors, outdoor distribution cabinets, and medical equipment require high standards of anti-corrosion, flatness of appearance, and cleanliness.

Send Inquiry

Product Description

Flush-Head Self-Clinching Studs are specialized fastening components for sheet materials. They are made of 304 stainless steel and are formed through a single process. The bottom features a ring of rivet teeth. There is no need for welding or tapping. They are directly pressed into the reserved holes in the thin sheet using a pressure device, and after the compression, the teeth ring firmly embeds into the sheet, forming a permanent and secure threaded base. The overall surface is smooth and free of burrs, with stable rust prevention performance. They are suitable for various metal sheet assemblies and achieve single-sided locking and fixation.

Name	Flush-Head Self-Clinching Studs
Material	SS304
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric, UNC, UNF, BSW, BSF

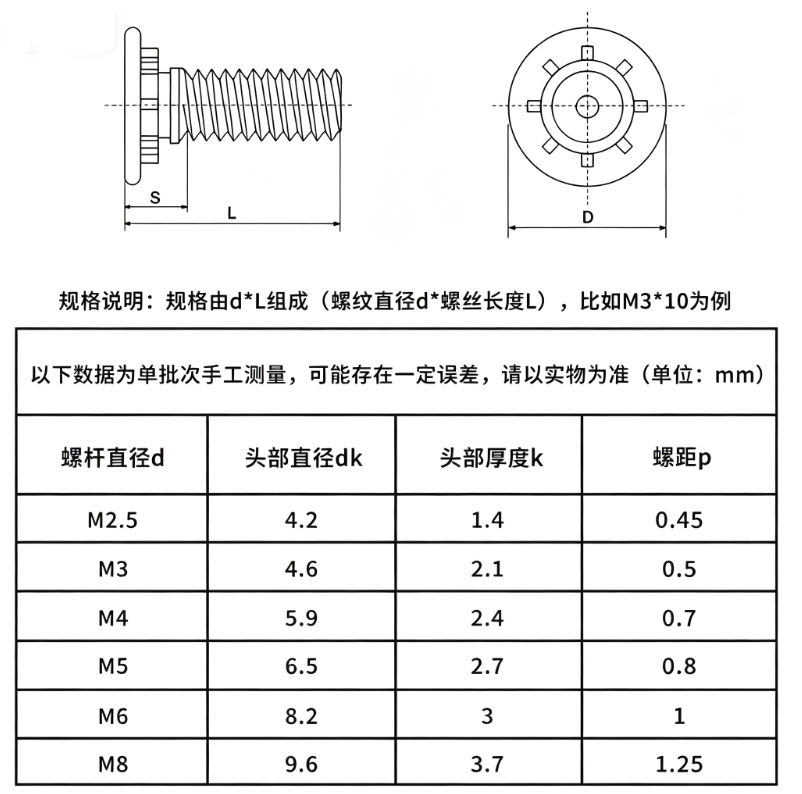

Sizes	M2.5-M8
Finish	Plain
MOQ	Stardard item(Usually little hundred-little thousand)
Price	0.3USD/PCS-25USD/PCS

Product Feature

1.304 stainless steel material, resistant to moisture, mild acid and alkali corrosion, unlikely to rust over a long period of use, suitable for humid and outdoor equipment.

2.Bottom locking teeth structure, after pressing the thin plate, it bites tightly, with strong anti-pulling and anti-twisting capabilities, and will not loosen or fall off.

3.Installation is convenient, only requiring press bed tools to complete assembly, no need for welding, drilling or tapping, higher processing efficiency.

4.After pressing, the board surface is flat without protrusions, does not scratch the matching workpiece, the appearance is neat, and does not affect subsequent spraying and assembly processes.

5.Full thread design, the thread profile is regular and smooth, combined with standard nuts for locking, it is smooth and does not slip.

6.Suitable for various thin metal plates such as cold-rolled steel plates and aluminum plates, with complete specifications and strong versatility.

Our Strength

· Direct from manufacturer to customer, On time delivery

· Completely fastener products,offers one - stop shopping service.

· High quality and competitive price, saving your cost.

· Product complies with iso9001 and ts16949 certification

· After shippment, we will offer the Material report and Test report.

Product Application

It is mainly used for metal enclosures of machinery, cabinets, communication equipment shells, medical device shells, instruments and meters, new energy accessories, elevator decorative thin plates, and metal panels of household appliances, etc. In scenarios where thin plates need to have internal threads and be fixed by single-sided assembly.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
