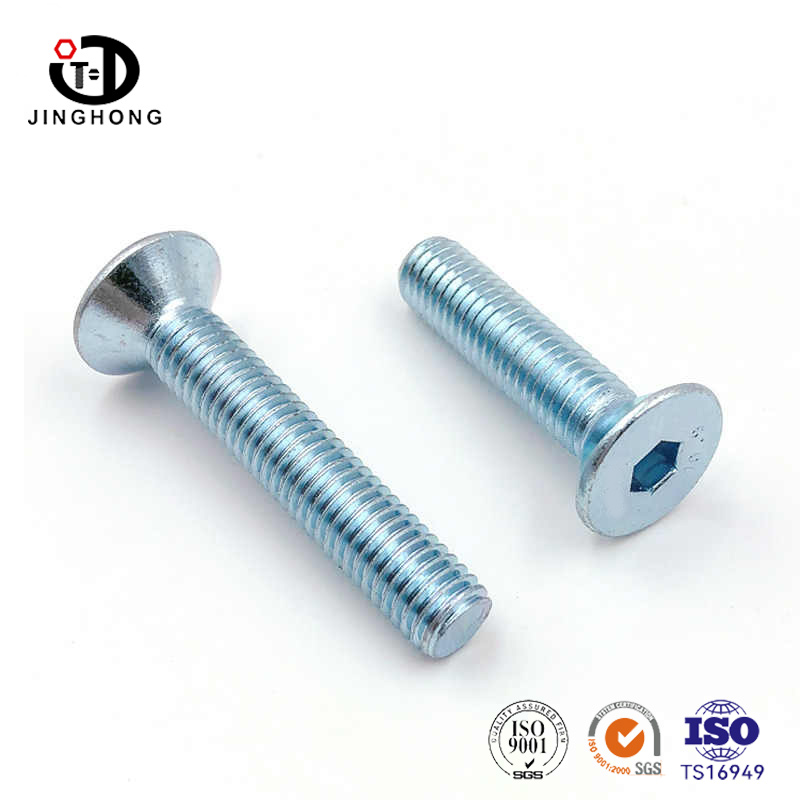

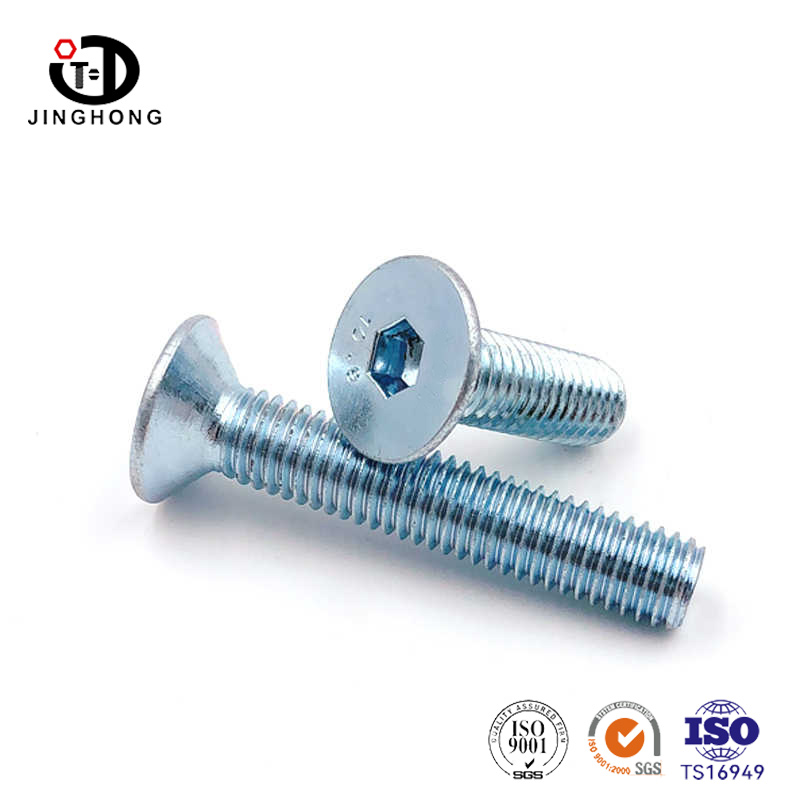

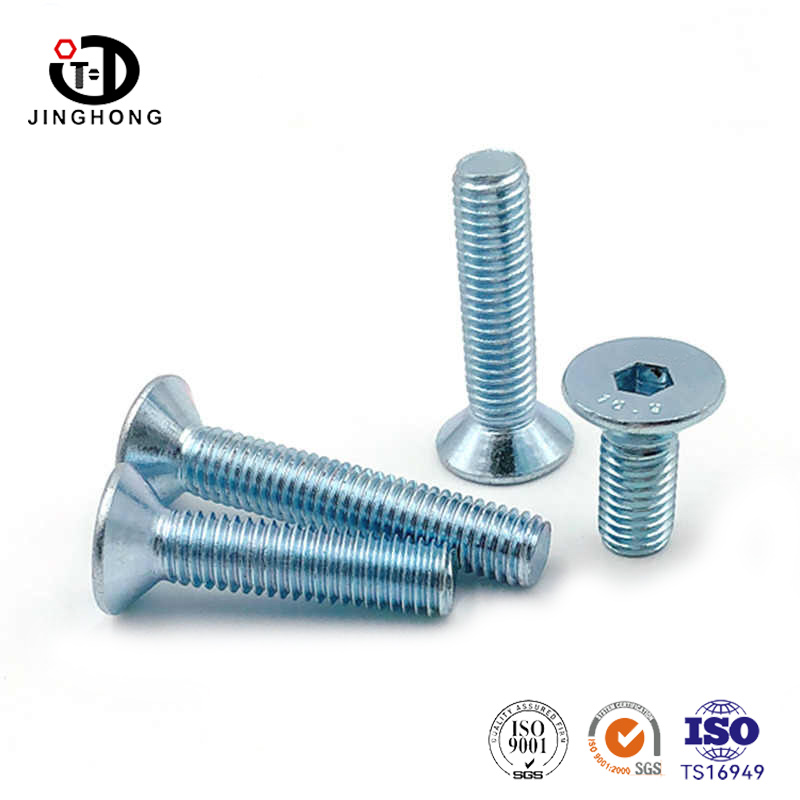

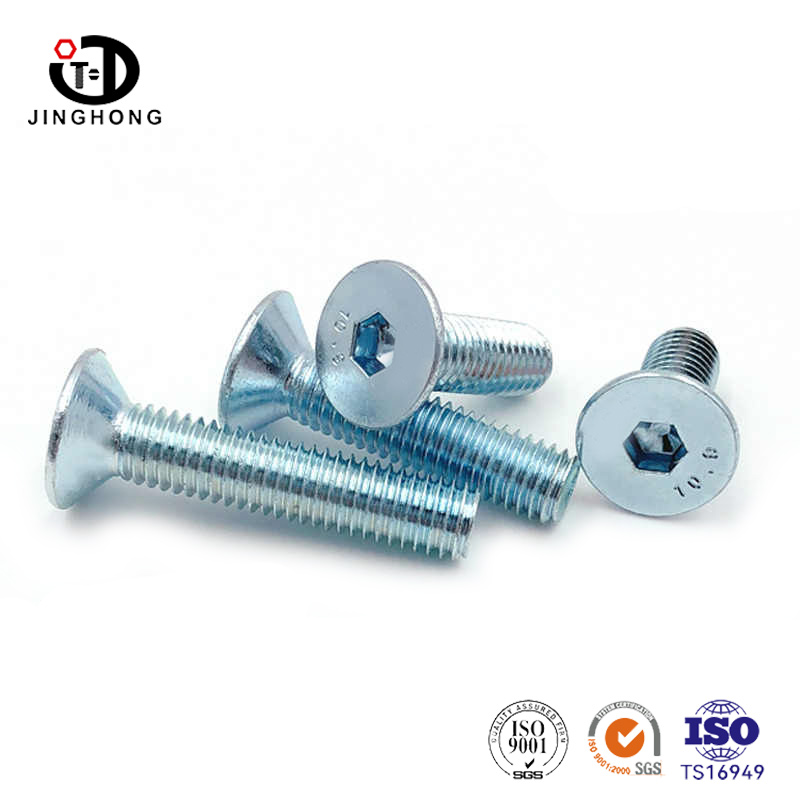

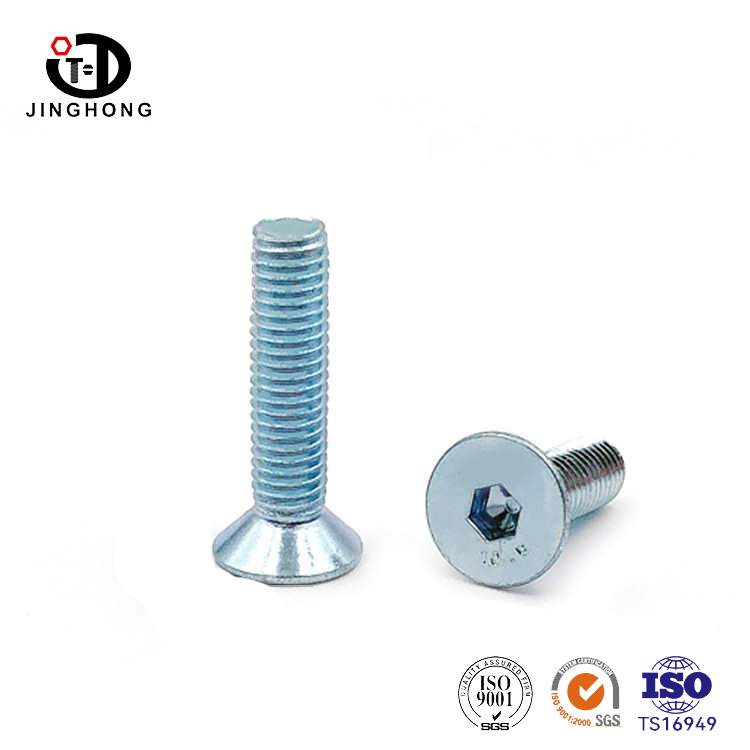

Flat Head Socket Cap Screw

The galvanizing treatment of blue and white zinc on the Flat Head Socket Cap Screw not only gives the screw a silver white metallic luster, but also gives it excellent corrosion resistance. According to salt spray test data, the blue and white zinc coating can withstand more than 720 hours in a 5% neutral salt spray environment, which can effectively extend the service life of the screw and reduce equipment maintenance costs.

Send Inquiry

Product Description

The 90 ° conical head design ensures that the screw is completely flush with the workpiece surface after installation, avoiding safety hazards and aesthetic defects caused by protrusions. Compared with traditional cross grooves, the hexagonal drive hole can withstand higher torque, especially suitable for scenarios that require frequent disassembly and assembly. The flexible combination of full and partial threads can meet high locking force requirements while also considering connection stability.

In precision equipment such as CNC machine tools and injection molds, blue white zinc hexagonal countersunk head screws are widely used in guide rail fixation, mold assembly, and other processes. Their head design can avoid interference in the processing process. In curtain wall installation and furniture manufacturing, the hidden design of screws can improve overall aesthetics.

Name	Flat Head Socket Cap Screw
Material	Carbon steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M1.6-M20Metc
Finish	Black/Plain/Zinc/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Jinghong Flat Head Socket Cap Screw is of high quality and may be your top choice. Jinghong fasteners have over 30 years of experience, and if you need which type and material, it depends on your needs. If you have more specific questions or need more information, you can contact us without any doubt.

Jinghong is a professional fastener manufacturer with perfect after-sales service. If customers have any questions, they can contact us at any time. We will provide solutions and improve ourselves through each customer feedback to make progress.
