External Hexagonal Double Headed Screw

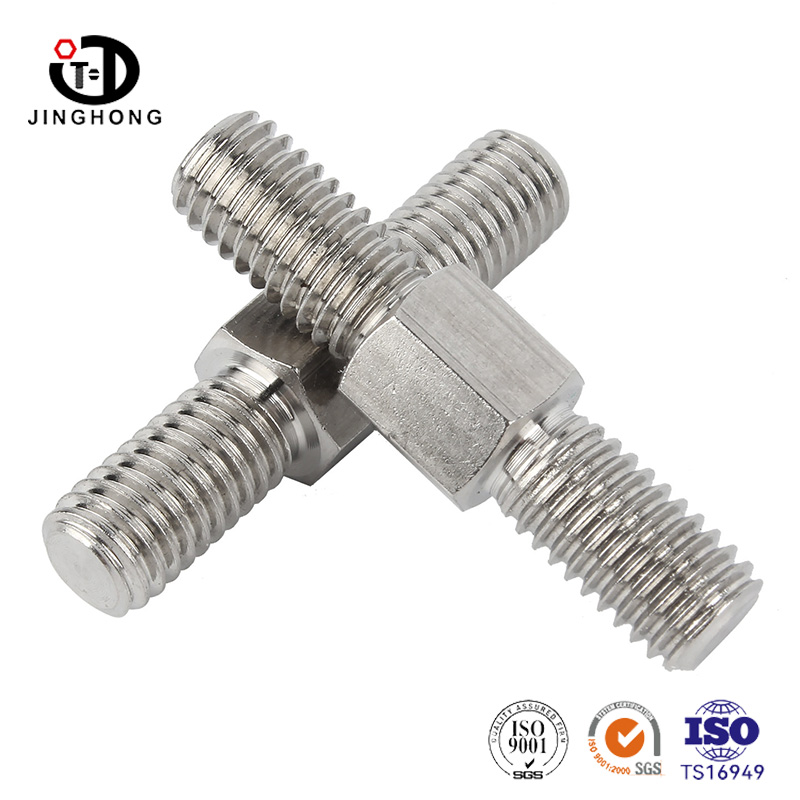

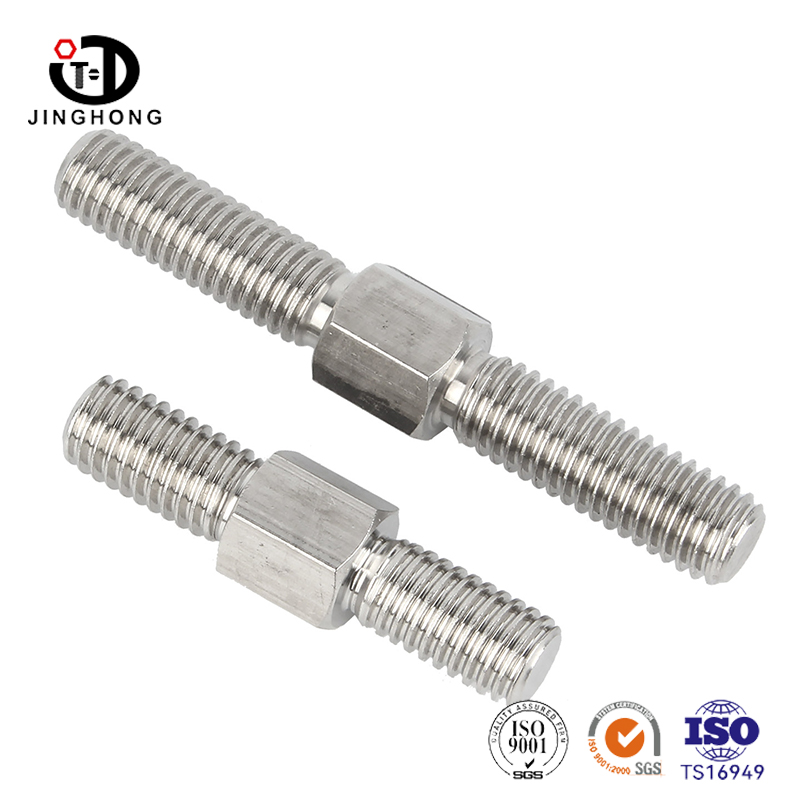

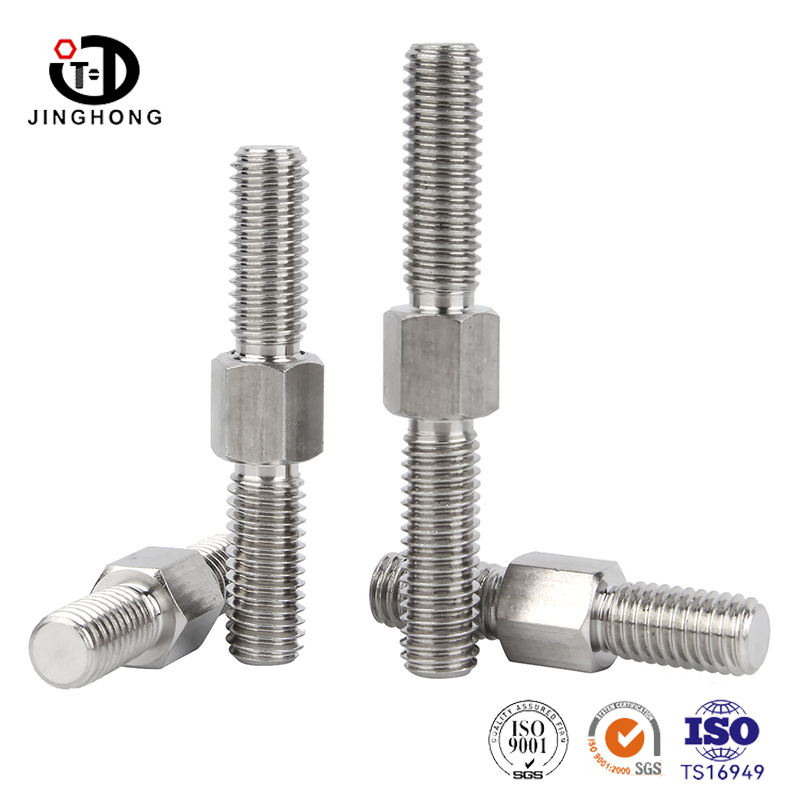

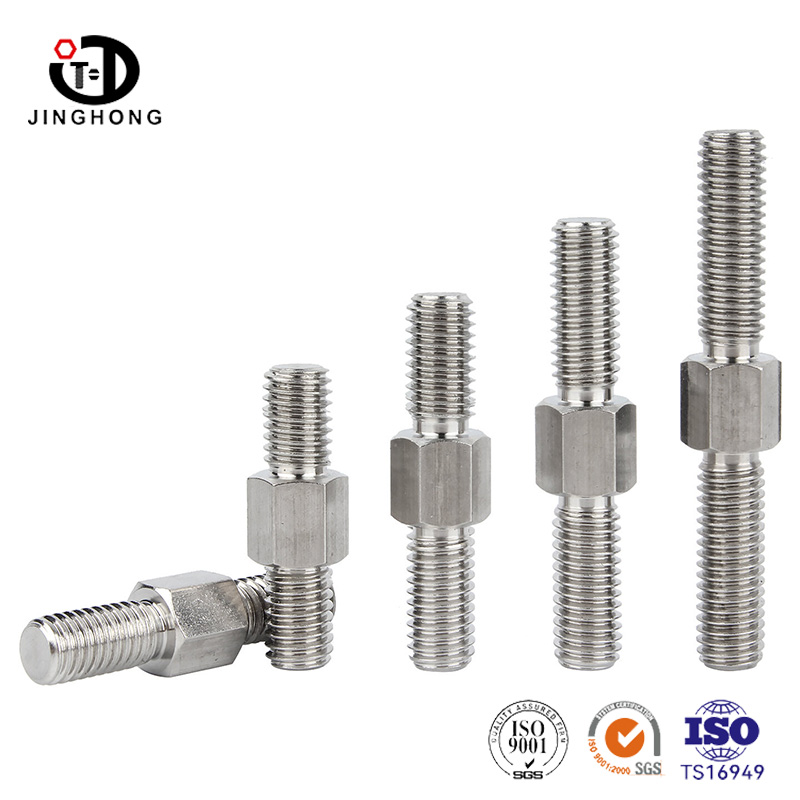

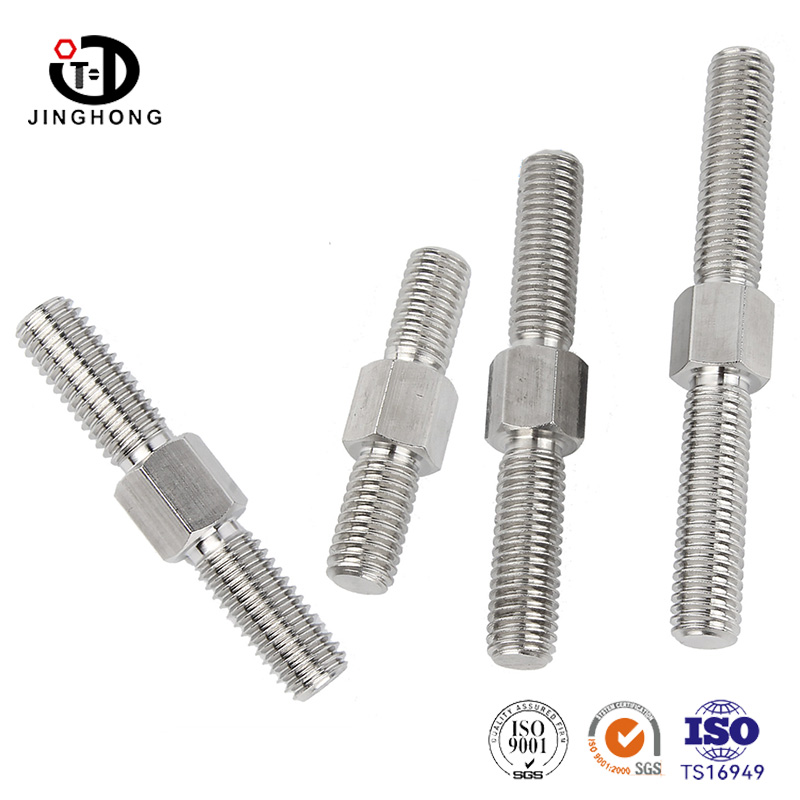

Our factory produces 304 stainless steel hexagonal double headed screws with positive and negative teeth, also known as positive and negative adjustment screws. One end of the double-sided screw with positive and negative teeth is right-handed, and the other end is left-handed. There is a section of outer hexagon in the middle. When using a wrench to hold the hexagon and rotate it, the threads on both ends move inward and inward, and the two connecting pieces are simultaneously closed; Rotate in the opposite direction, and both connecting components are simultaneously extended.

Send Inquiry

Product Description

The most typical use is to adjust distance and tighten. For example, the screw inside the flower basket screw has both positive and negative teeth. The sleeve of the flower basket screw rotates once, and the screws at both ends retract or extend simultaneously, causing the steel wire rope to tighten. There are also sunshade poles, tent poles, and mechanical adjustment links, all based on this principle. One end is fixed, the other end is adjusted, and turning the middle hexagon can precisely control the length.

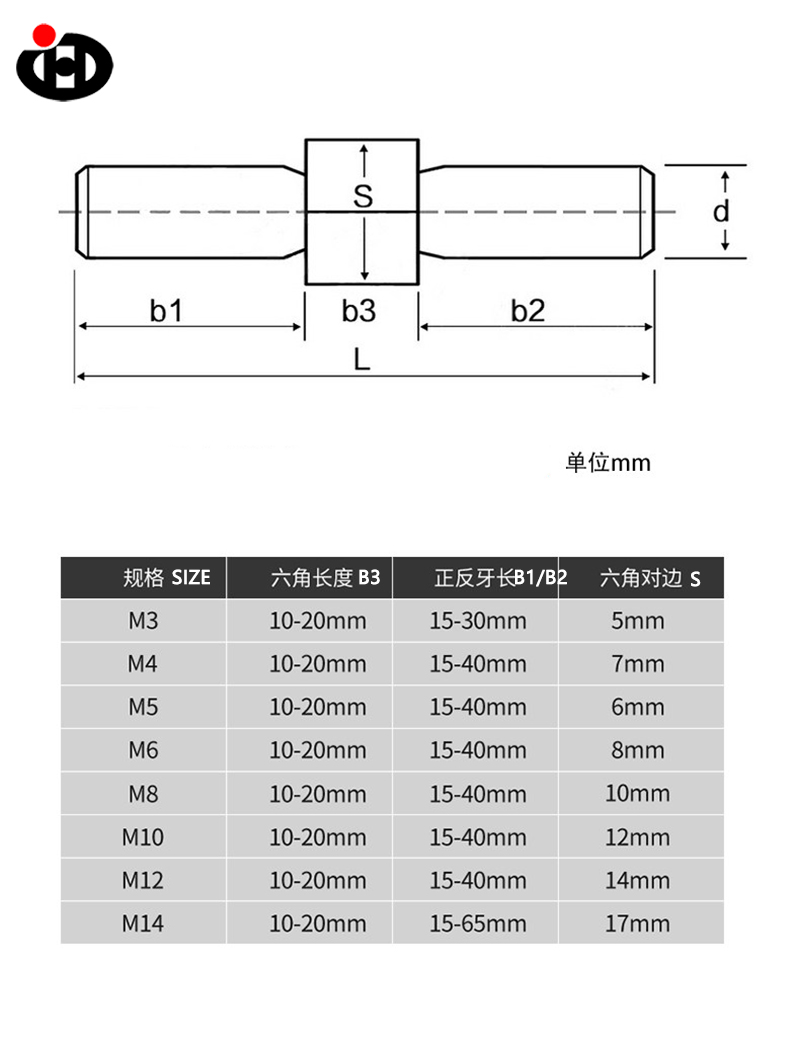

The middle section is hexagonal, like a bolt head, and can be turned by using an open-end wrench or adjustable wrench to hold it. The length and position of the hexagonal segment are made according to the customer's drawing, usually placed in the center, with symmetrical thread lengths on both sides. Some customers also request that the hexagon be biased to one side or have both ends with outer hexagon heads, and be processed according to the diagram.

Name	External Hexagonal Double Headed Screw
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M3-M14Metc
Finish	Plain/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Turn one end left and the other end right, rotate one circle and move both ends at the same time: use a wrench to hold the middle hexagon and rotate one circle, simultaneously retract or support the connecting pieces at both ends, and adjust the distance quickly. Ordinary double headed screws have both ends facing in the same direction, and only one end can be adjusted after one rotation. To adjust both ends, they need to be tightened separately. One step placement of front and back teeth.

The middle outer hexagon can be held by a wrench: the hexagon section is like a bolt head and can be held by both open-end and adjustable wrenches. When turning, do not slip and adjust the distance accurately. The length and position of the hexagonal segment shall be made according to the drawing, and the customer shall provide it at their convenience.
