Double Cap Rivet

Jinghong Factory specializes in producing Double Cap Rivets, using different high-quality materials and various surface treatments to choose from. The product features a chamfered head design, which is aesthetically pleasing and not harmful to the hands. It is driven by an inner hexagonal angle and has a strong locking force. The lock structure is suitable for various scenarios and supports non-standard customization.

Send Inquiry

Product Description

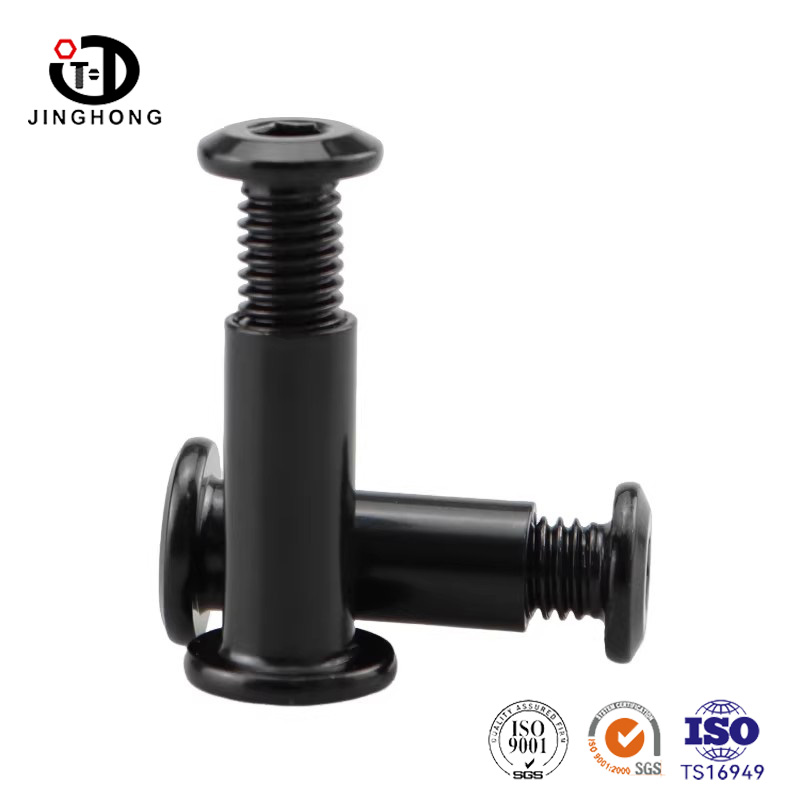

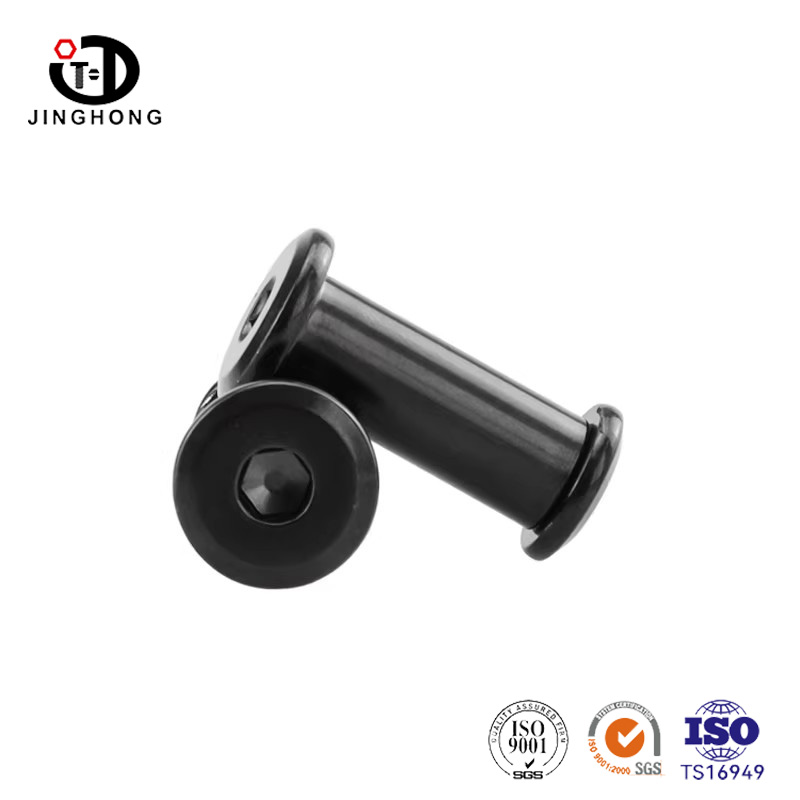

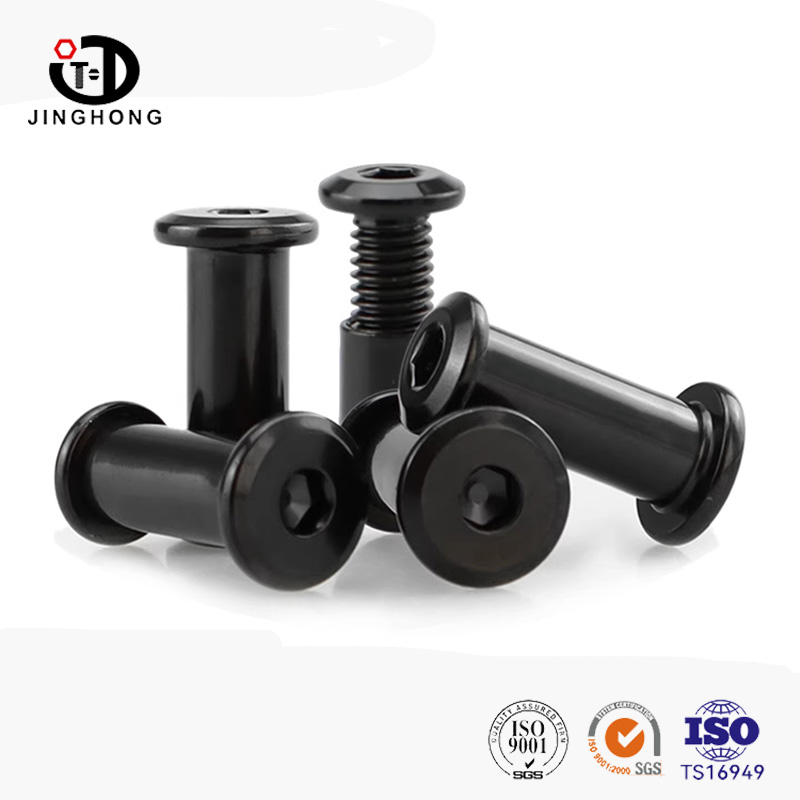

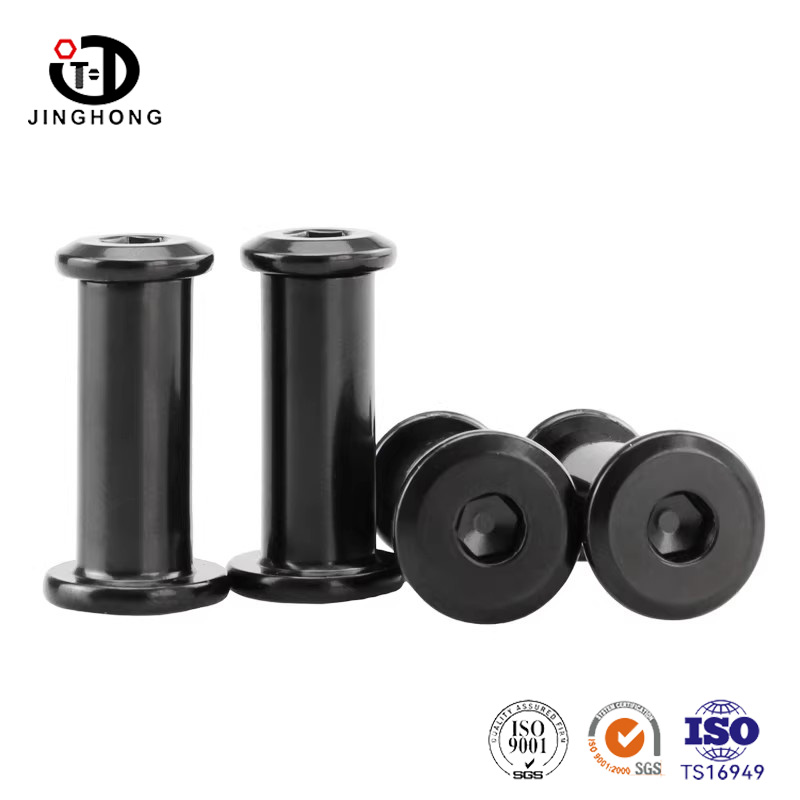

Double Cap Rivet is a double headed locking connector consisting of a screw and a nut (or two screws locked together), which is driven from both ends or one end by a hex wrench to achieve tight fixation of the workpiece. The edge of its head has been chamfered, resulting in a smooth and flat appearance without sharp edges, suitable for occasions that require exposed connections and aesthetic appeal.

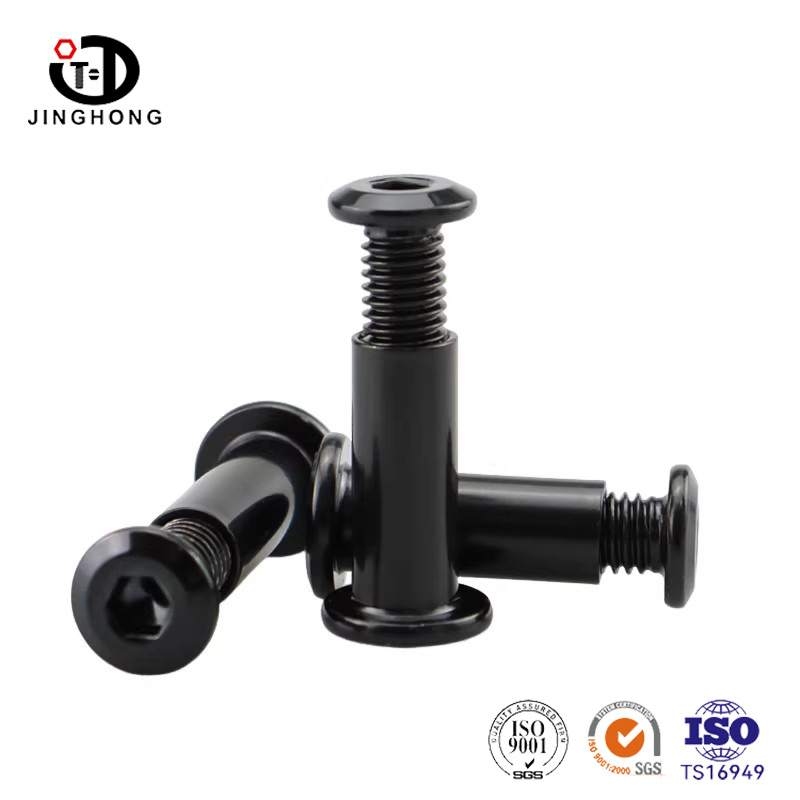

The sub nail with an internal hexagon and the female nail with an internal thread are installed by inserting the sub nail from one side of the board and screwing the female nail in from the other side. They are tightened with an internal hexagon wrench to form a double-sided locking mechanical bite inside the board. This lock structure is equivalent to providing double safety for the connection, effectively preventing loosening problems.

Name	Double Cap Rivet
Material	Stainless Steel/Carbon Steeel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

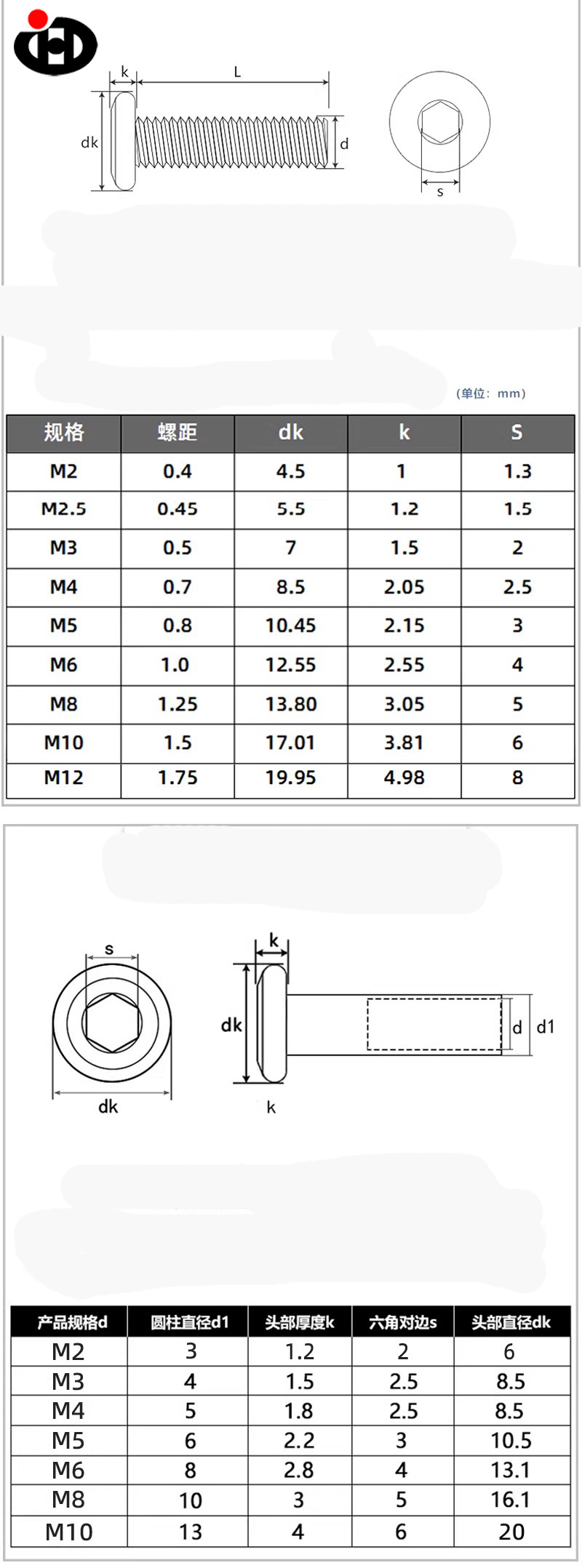

Sizes	M2-M12Metc
Finish	Plain/Black/Zinc plated/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Chamfering design, beautiful and safe: The screw head has undergone precise chamfering process, without sharp burrs. After installation, the transition between the head and the workpiece surface is smooth, which enhances the overall visual effect.

Hexagonal drive with reliable locking: using hexagonal groove drive, it can withstand greater torque compared to cross or straight groove, lock more firmly, and is not prone to slipping teeth. Paired with a standard hex wrench, it is easy to operate and suitable for batch assembly or maintenance scenarios.

Strong adaptability to lock structure: composed of male and female components (or integral threaded ends), it can be locked from the other end through the workpiece, suitable for sandwich panels, hollow structures, thin-walled parts that cannot be tapped, etc. The screw length specifications are complete and can meet the connection needs of different thicknesses.
