DIN915 Hexagon Socket Set Screws with Dog Point

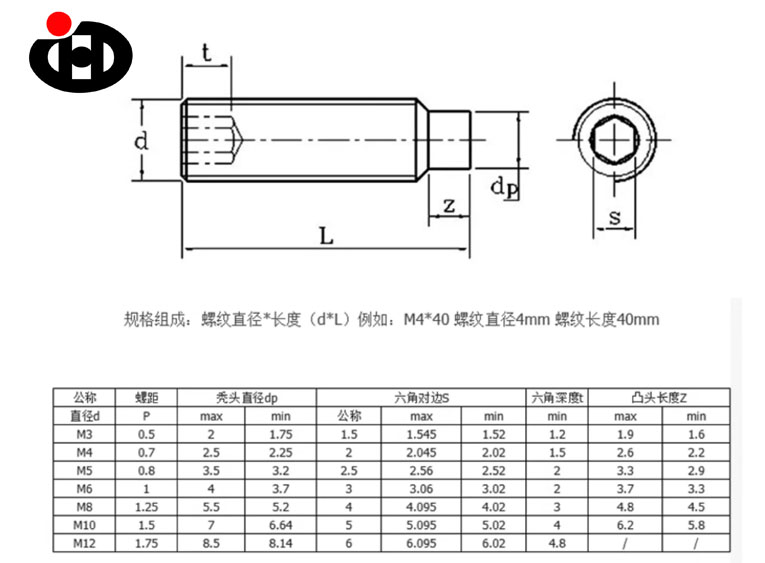

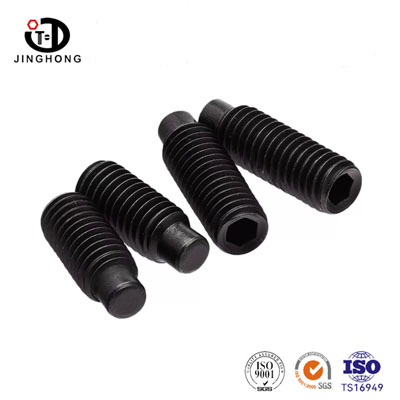

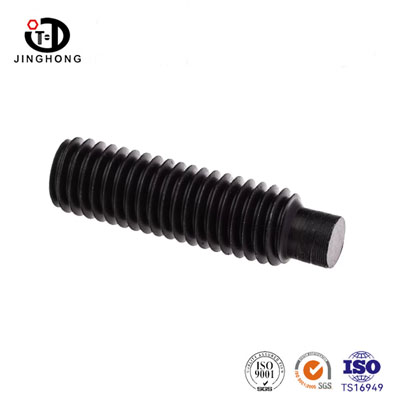

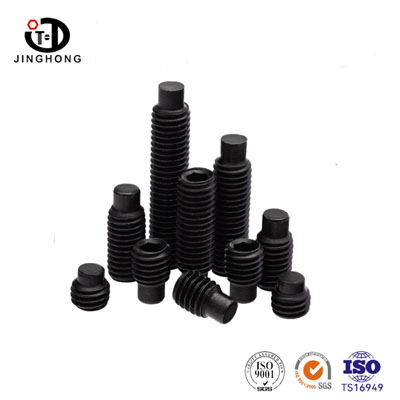

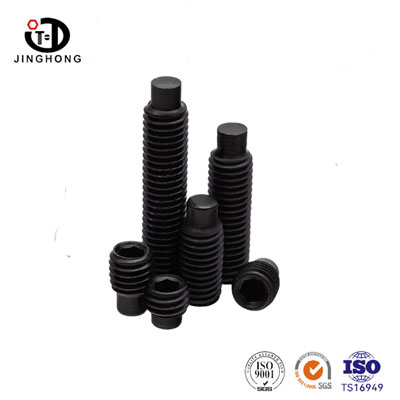

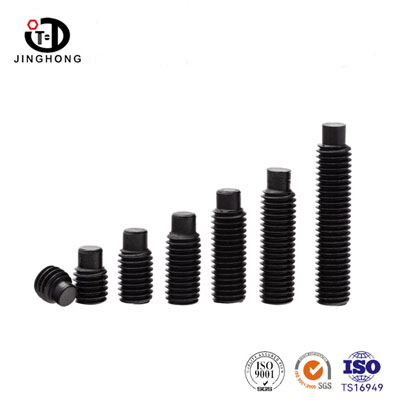

The DIN 915 Hexagon Socket Set Screws with Dog Point produced by JINGHONG FASTENERS are manufactured strictly in accordance with the standard DIN 915 (equivalent to ISO 4028). The product is made from high-quality medium carbon steel or alloy steel and undergoes quenching and tempering treatment to achieve a performance level of 45H (hardness HRC 45–53). The surface is treated with blackening (oxidation) to form a matte black protective film, providing both basic rust prevention and blurring effects. This screw has an all-threaded, headless structure. One end has an internal hexagonal driving hole, and the other end has an extended cylindrical end (Dog Point / cylindrical end). During installation, the cylindrical end is inserted into the pre-drilled holes or grooves on the shaft surface, relying on the shear resistance and positioning effect of the cylindrical end to achieve precise axial fixation and anti-turning of gears, pulleys, couplings or bearings on the shaft. No friction locking is required, and the positioning accuracy is high and the shaft surface is not easily damaged. The specifications cover M2–M20, with common lengths of 3–60mm. It is suitable for mechanical structures with limited space and the requirement for concealed installation.

Product Feature

High strength and wear resistance: The 45H carbon steel material endows the screws with excellent mechanical strength and hardness, enabling them to withstand the tightening requirements under medium loads and avoiding deformation or wear.

Outstanding surface rust prevention: The blackening treatment on the surface forms a dense oxide film on the metal surface, not only giving the appearance a matte black color but also effectively isolating the air, providing basic rust and oxidation protection.

Precise and reliable positioning: The internal hexagonal design facilitates precise installation and disassembly in narrow spaces using a dedicated wrench; the cylindrical end can fit perfectly with the blind holes or grooves on the shaft, relying on the shear resistance of the cylindrical end to transfer loads and effectively prevent component loosening.

Quality system guarantee: Jinghong fasteners, as a professional manufacturer, has its products certified by the ISO 9001 quality management system and the TS16949 automotive industry quality management system, ensuring high precision and consistency of the products.

Our Strength

·  Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

This product is widely applied in fields such as mechanical equipment, automation equipment, machine tools, motors, pump devices, and precision instruments. It is mainly used for axial positioning and fixation of components such as shafts, gears, pulley wheels, couplings, and pulleys, ensuring that each component maintains an accurate relative position during operation.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
