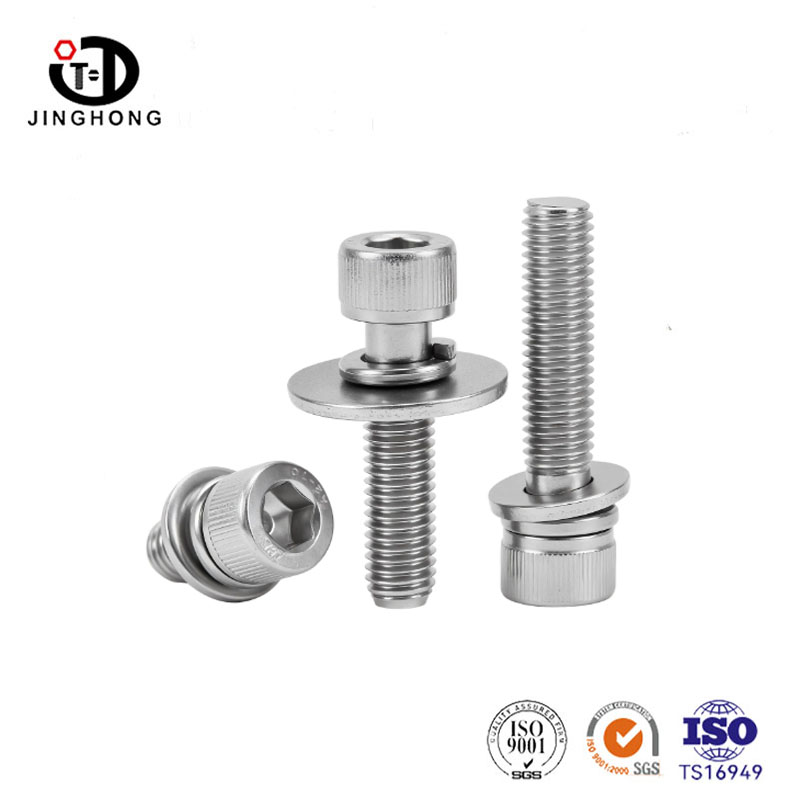

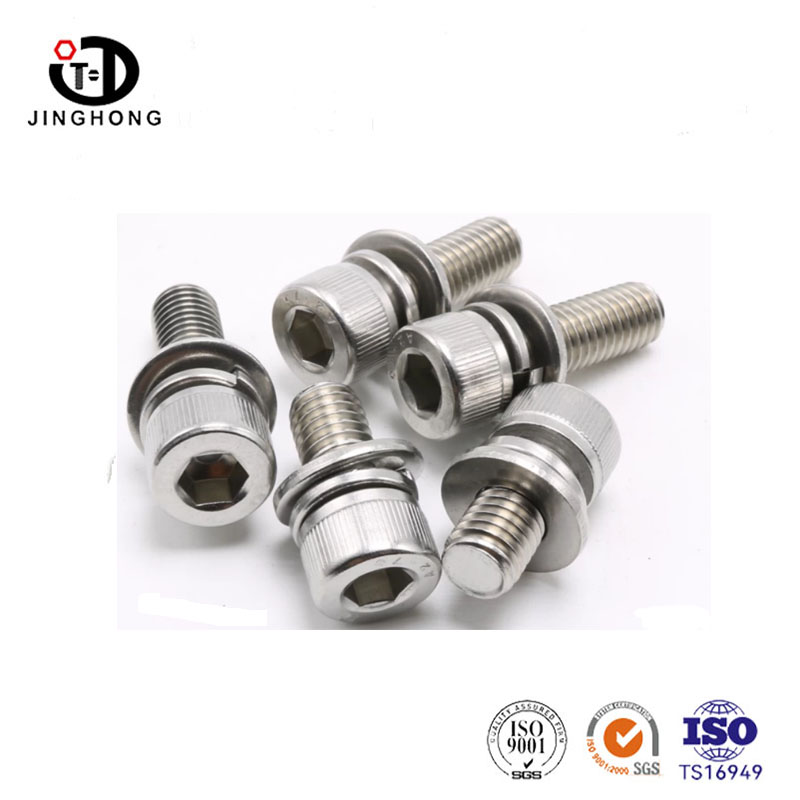

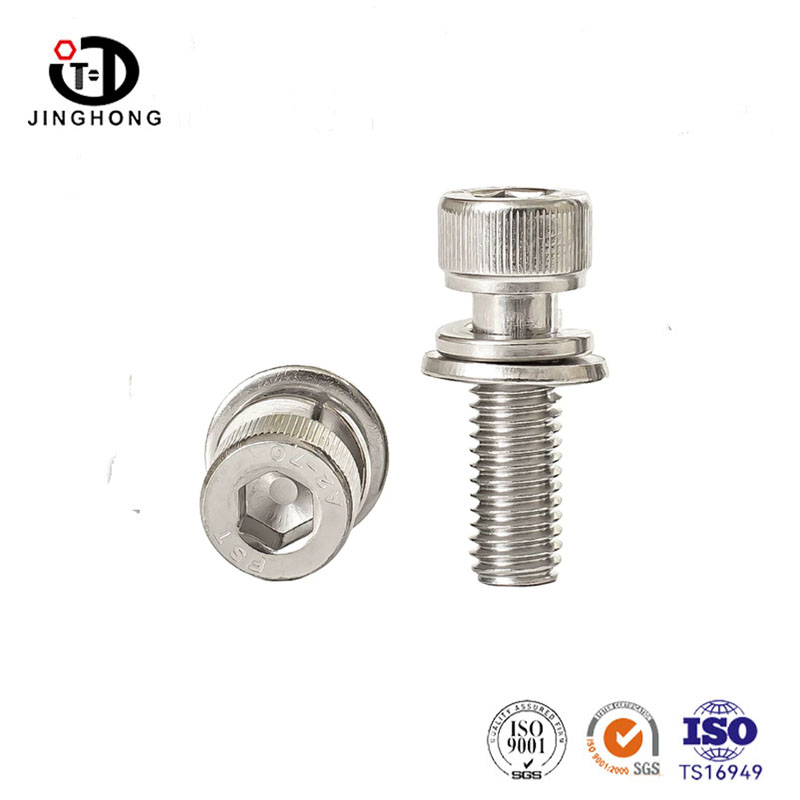

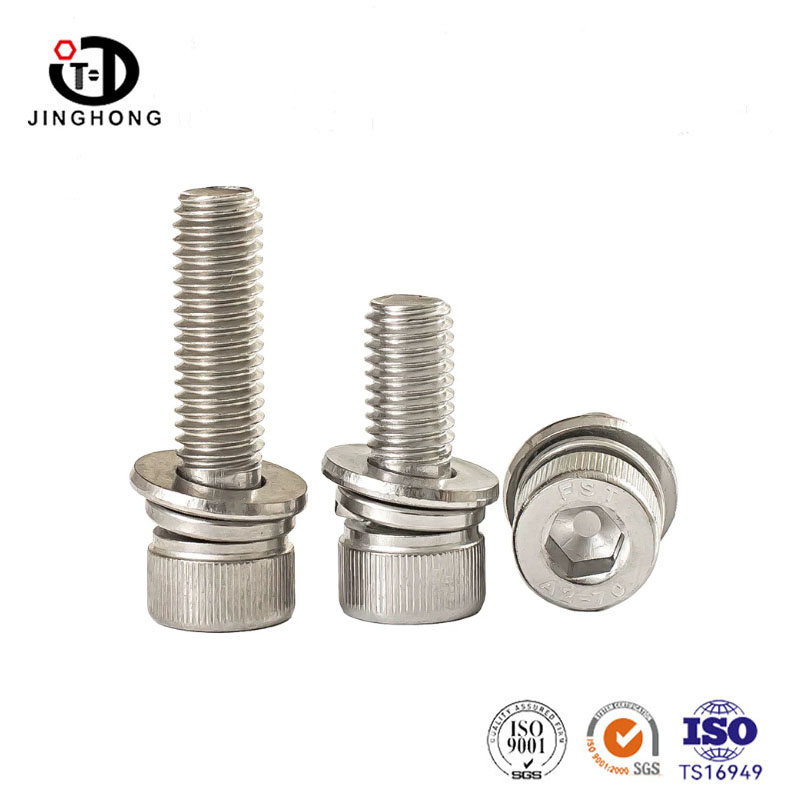

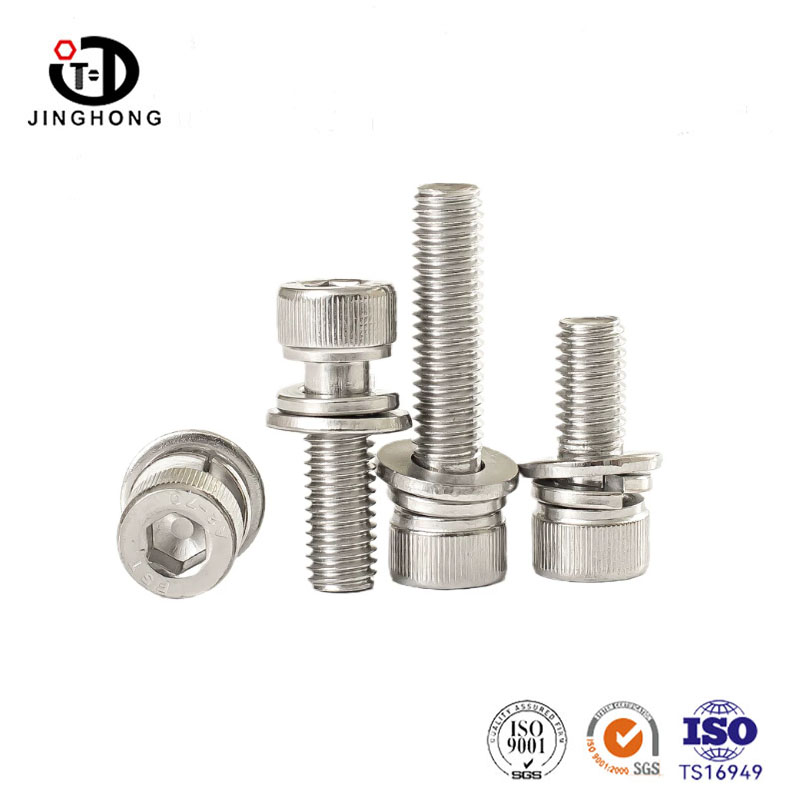

DIN 912 stainless steel socket head cap screw with washers

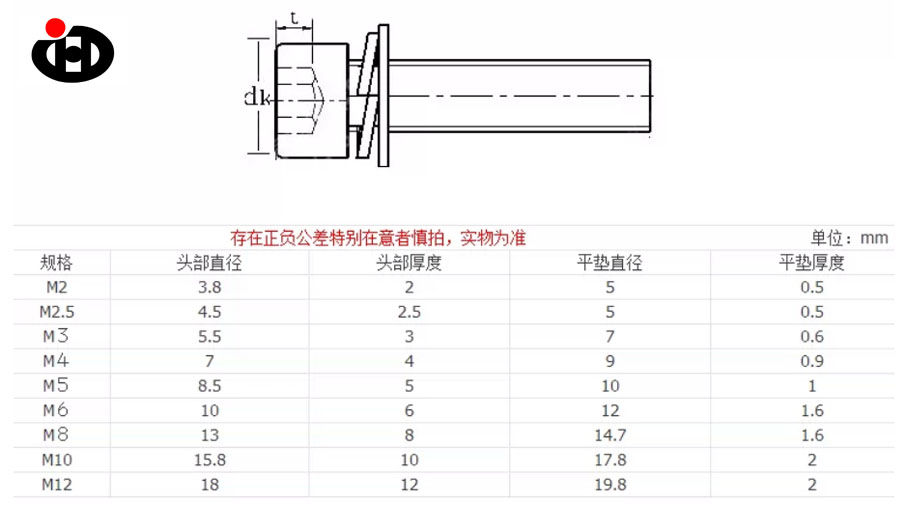

DIN 912 stainless steel internal hexagon three-piece combination screws are a type of combined fastener (SEMS screws) that pre-presses the internal hexagonal cylindrical head screw (DIN 912), flat washer, and spring washer together. The screw body is cold-drawn from 304 (A2-70) stainless steel and is surface-treated with matte finish. Without electroplating, it possesses excellent rust and corrosion resistance, is non-magnetic, and has a clean appearance. The product specifications range from M2 to M12, with full-thread or half-thread options available. The length can be customized according to the working conditions. The three washers and the screw are pre-installed before leaving the factory. During assembly, there is no need to separately provide washers; simply tightening is sufficient, which not only avoids missing the installation of washers but also improves the assembly efficiency of the production line. The internal hexagonal drive design ensures stable torque transmission and is not prone to slipping. The flat washer disperses the compressive stress to protect the thin plate surface, while the spring washer provides elastic compensation to resist general vibration loosening.

Product Feature

Hexagon high-torque: DIN 912 cylindrical head hexagonal drive, with stable force transmission and low risk of tooth slippage, suitable for precision equipment and automatic tightening stations.

Double insurance with flat washer and spring washer: The flat washer disperses compressive stress, protecting the surface of thin plates/soft materials; the spring washer provides elastic compensation and resists general vibration loosening.

Stainless steel without electroplating for rust prevention: 304 suitable for indoor, humid, food/medical environments; 316 can be used in marine, coastal, chemical, etc. chloride ion environments.

Clean appearance: The cylindrical head is sunk or flush-mounted, with a strong metallic appearance, making it more suitable for exposed or clean environments than carbon steel galvanized parts.

Our Strength

·  Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

Automation equipment: PLC control cabinet, sensor base, motor base, robot reducer housing.

Electrical and electronic: Cabinet shell, guide rail bracket, terminal block, instrument panel.

New energy/automotive: Battery pack BMS bracket, high-voltage cover plate, vehicle charging unit housing (not main load-bearing point).

Food/medical: Food machinery, pharmaceutical equipment, surgical instrument housing, requires rust prevention + easy cleaning.

Furniture/decorative/outdoor: Aluminum profiles, stainless steel door control, photovoltaic support, humid environment sheet metal connection.
