DIN 439 Hexagon Thin Nut

Jinghong manufacturer specializes in producing DIN439 hexagonal thin nuts, with specifications ranging from M2 to M64, produced according to the German standard DIN439, divided into two series: fine tooth and coarse tooth. The product is made of high-quality carbon steel cold heading forming, and the surface can be galvanized, blackened or treated with natural color. The thickness is only about half of the standard nut, suitable for situations with limited space or requiring anti loosening fit.

Send Inquiry

Product Description

The DIN439 hexagonal thin nuts from Jinghong factory are hexagonal nuts with significantly reduced height, and their thickness is less than half of the standard nuts of the same specification. This "thin" design can handle assembly with limited space. When the bolt length is limited, the thin nut can provide sufficient thread engagement. When double nut locking is required, the thin design makes the space more spacious. When weight reduction is needed, it can effectively reduce the structural weight.

These two designs are highly compatible with German standard DIN936 and international standard ISO4035 in terms of size, ensuring good international universality. Due to its reduced height, its load-bearing capacity is slightly lower than that of standard nuts. Therefore, when selecting, it is necessary to check according to the actual stress situation. This thin design brings flexibility in design and convenience in assembly.

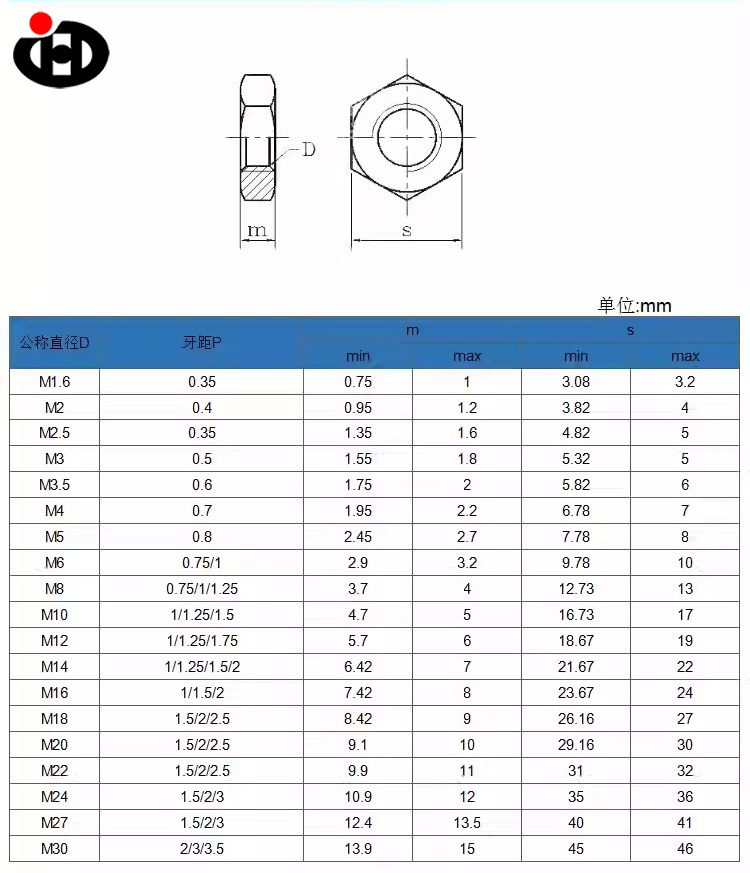

Name	DIN 439 Hexagon Thin Nut
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M1.6-M30
Finish	Plain/Black/Zinc plated/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Produced according to German standards, with precise dimensions: strictly produced in accordance with DIN439 standards, with complete specifications for coarse and fine threads, thread tolerance grades meeting requirements, ensuring smooth fit with bolts of the same specifications and reliable locking.

Thin design, space saving: The thickness is only about half of the standard hex nut, which can effectively solve the problem of limited assembly space and is suitable for heavier occasions.

Complete specifications and flexible customization: We have a stock of M2-M64 thick and fine thread thin nuts in stock, which can be shipped quickly. We also accept special customized processing such as non-standard sizes and irregular nuts, with controllable delivery times.
