Dacromet Carriage Bolt

Carbon steel coated Dacromet carriage bolt, round head with square neck. When tightening the nut, the square neck fits into the groove, and the bolt does not rotate on its own. It can be locked on one side. Dacromet coating, no red rust after 720 hours of salt spray.

Send Inquiry

Product Description

The carriage bolt is a bolt with a circular head and a square under the neck. We call that square neck, its function is to hold it in place. When threading the bolt through the workpiece hole, the square neck is just clamped in the pre punched square hole, and the bolt will not rotate when tightening the nut. One person can lock it, without the need to use a wrench to fix it on the other end.

The head is flat and round, like a mushroom cap. After installation, the round head is exposed outside the workpiece, smooth and rounded. It does not cut the hand when touched, and the clothes will not hang. More suitable for outdoor applications than hexagonal or countersunk heads, it does not accumulate water and is less prone to rusting.

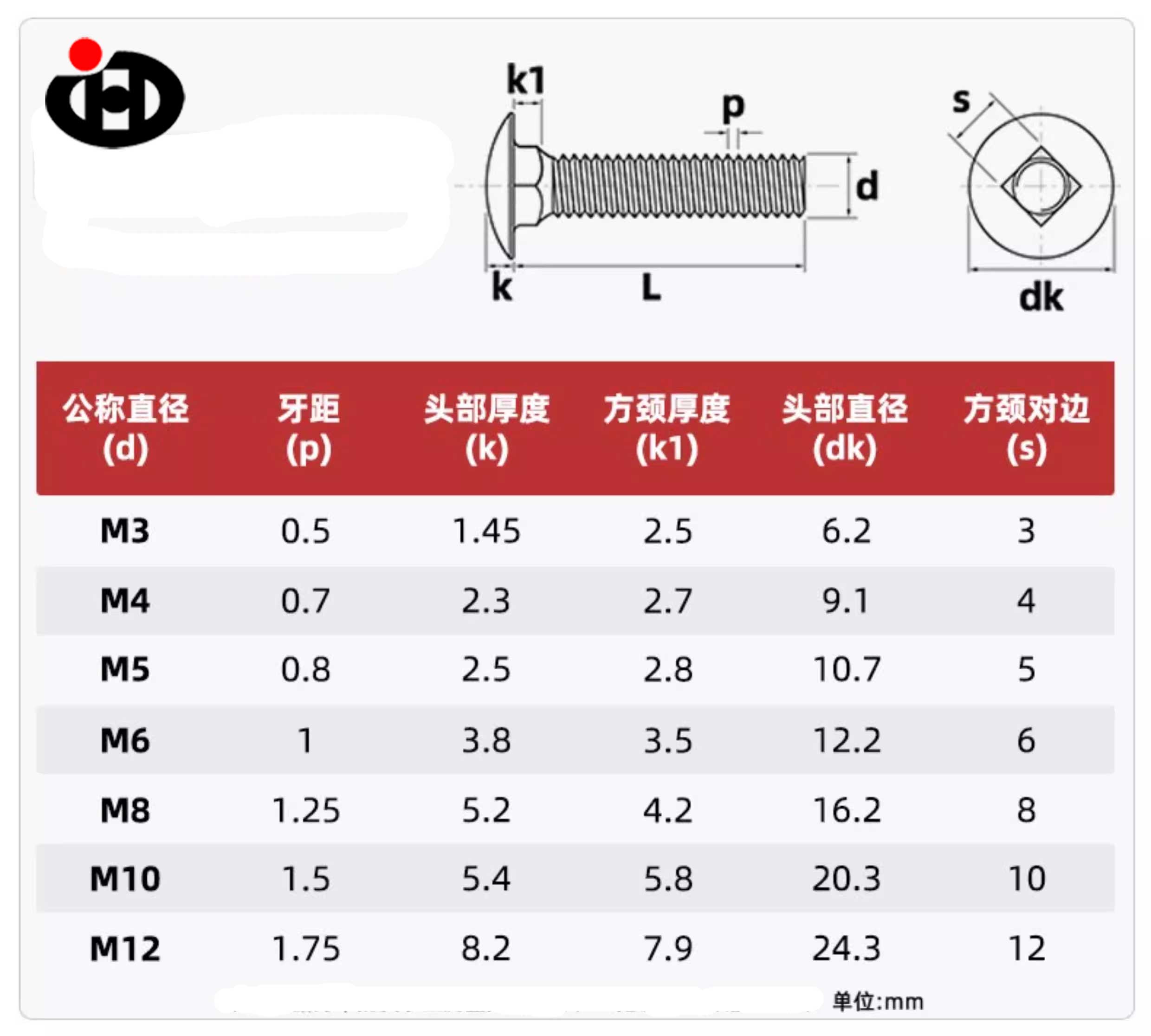

Name	Dacromet Carriage bolt
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M3-M12
Finish	Plain/Black/Dacromet/Zinc plated/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

The most practical benefit of carriage bolts is that the square neck is stuck and cannot rotate. After the square neck is inserted into the square hole, the bolt is fixed and will not rotate when tightening the nut. One person can install it, without the need for two wrenches like a hexagonal bolt. The size of the square neck is regular, and it won't loosen or shake when inserted.

Dacromet anti rust and salt spray resistance: Dacromet coating salt spray test for more than 500 hours, ten times stronger than galvanizing. Used next to outdoor iron towers, seaside facilities, and chemical plants, it remains rust free for several years. The coating is silver gray, evenly covering the inside and outside of the thread without any blind spots.
