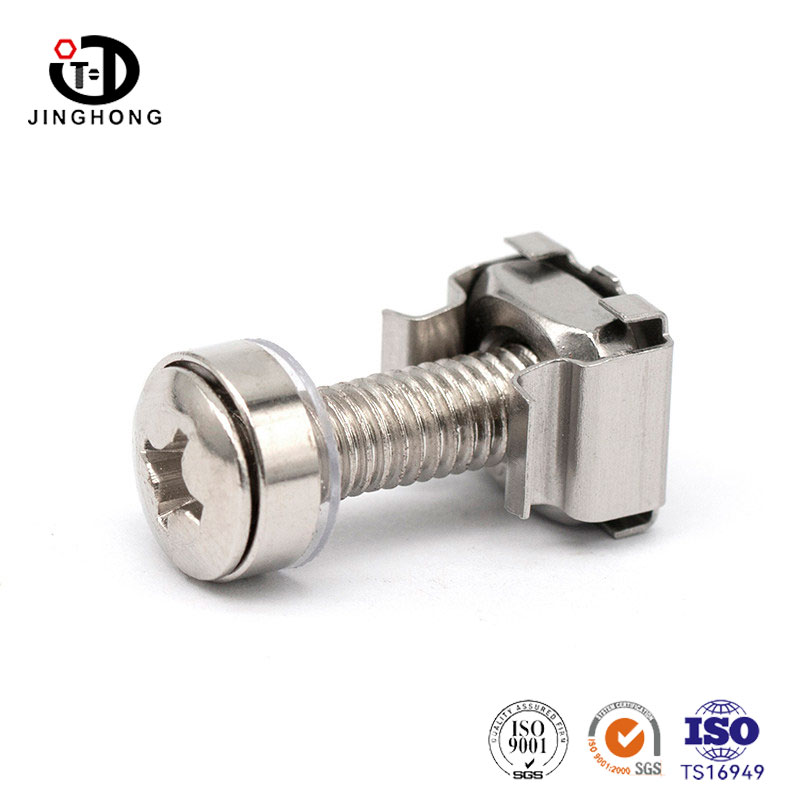

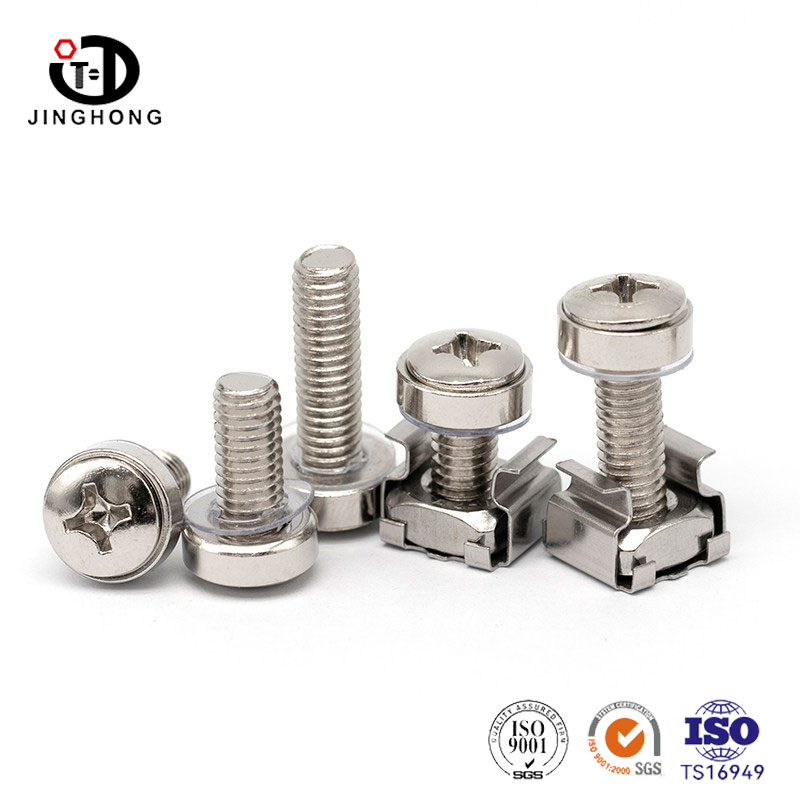

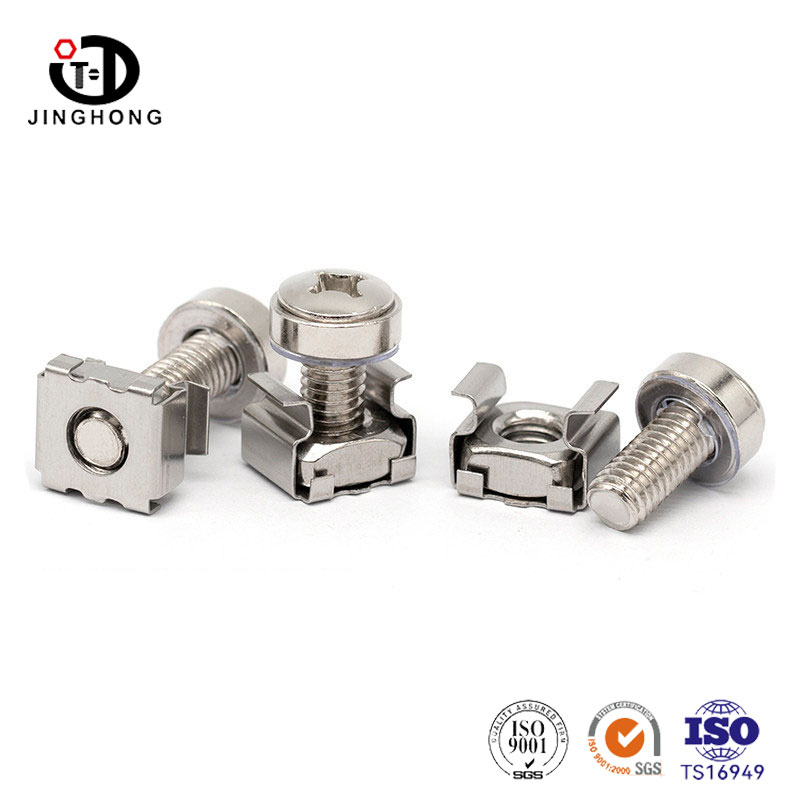

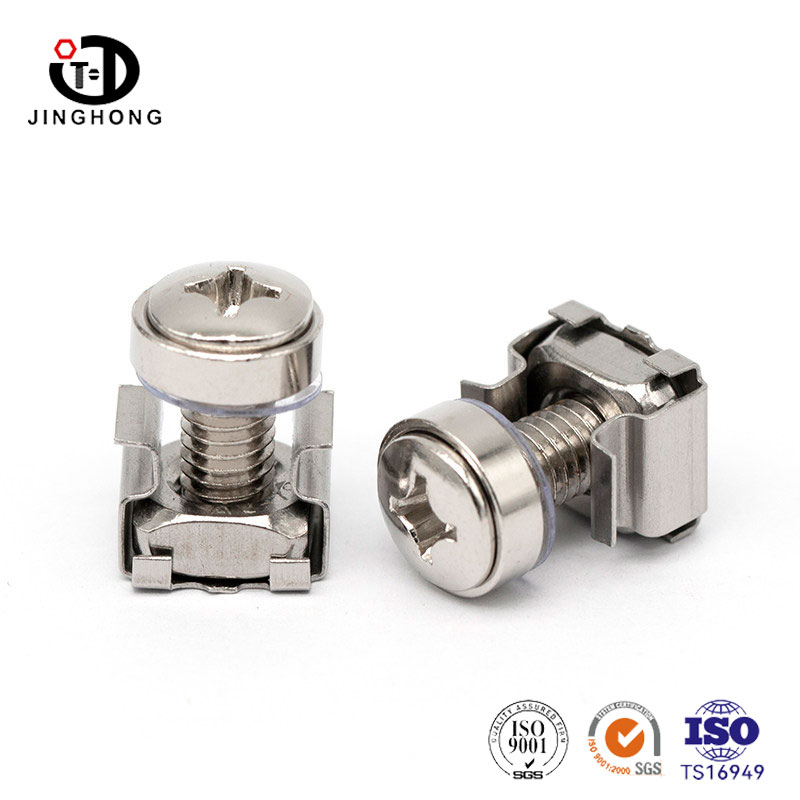

Crown Nuts with Cabinet Screws

Jinghong Factory specializes in producing Crown Nuts with Cabinet Screws, with a complete set for you. The Crown screw head has a special shape and requires specialized tools to be tightened. The snap nuts come with elastic feet that can be pressed into the sheet metal hole to lock them in place. The entire set is pre installed and shipped, and can be directly installed on the surface plate when taken back.

Send Inquiry

Product Description

The crown screw head has teeth, and the tooth pattern is stamped out, with uniform depth. It can be pinched and tightened by hand without slipping. I can still twist my hands with oil or gloves on. The head type is a disc head or a large flat head, with a large compression area. After tightening, the workpiece does not sink in, and there are also cross grooves. When a strong locking is needed, a screwdriver is used to assist.

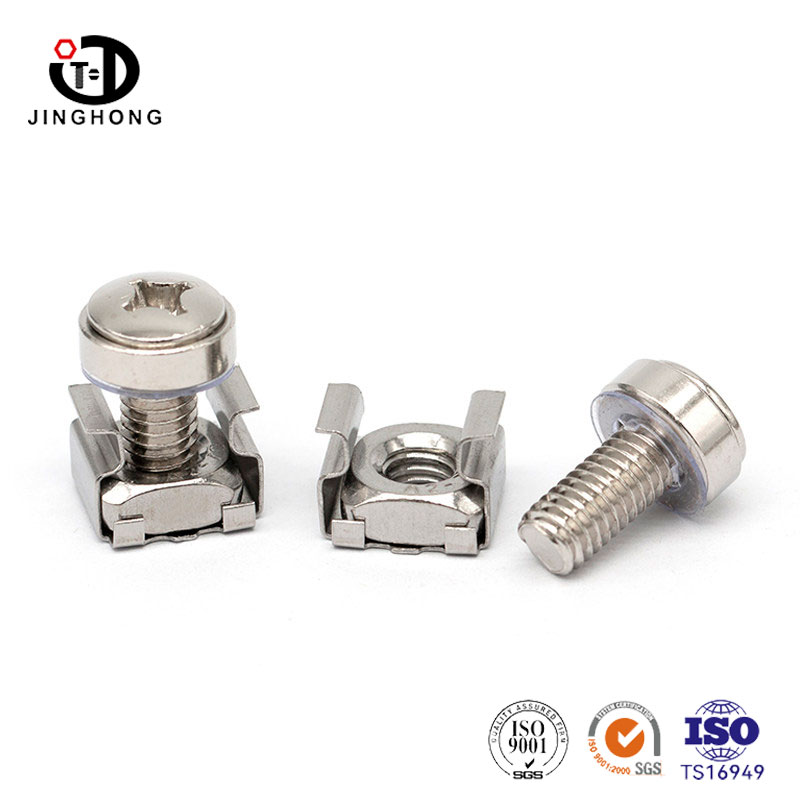

The snap nut is divided into two halves of spring feet, with the nut body in the middle and threads inside. When the two pieces of feet are pinched towards the middle, they are inserted into the square hole of the sheet metal. Once the feet are released, they spring towards the edge of the square hole. The feet are made of spring steel, which has good elasticity and cannot shake off after being inserted.

The pre assembled screws are shipped as a whole and can be used directly when received. Workers on the assembly line can directly pick them up and press them on the box machine panel, and then use the crown screwdriver to tighten them. The anti-theft measures are in place, completing two processes in one step.

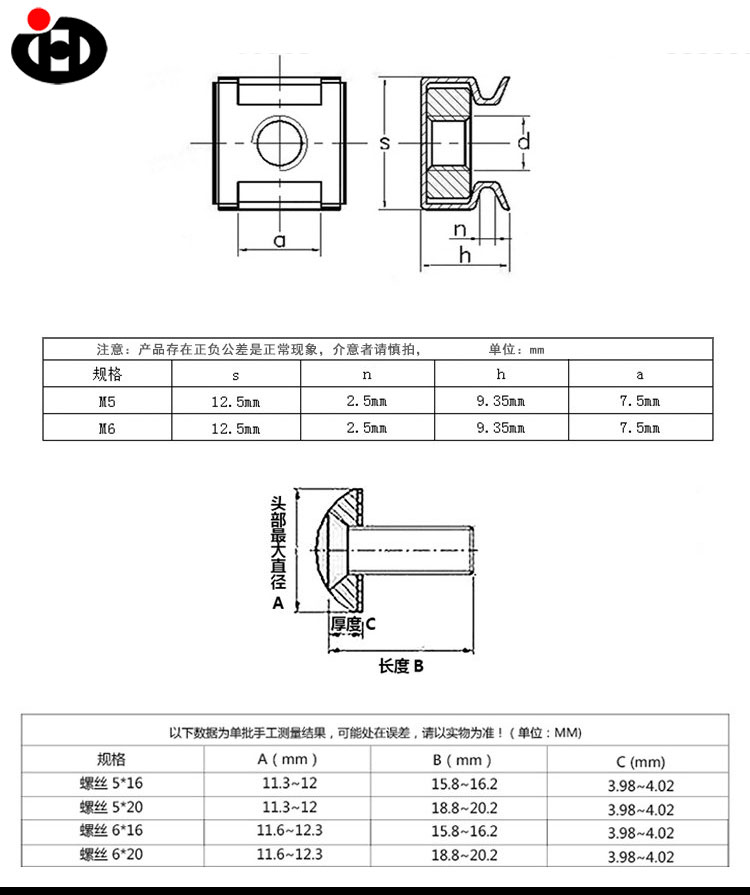

Name	Crown Nuts with Cabinet Screws
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M5-M6Metc
Finish	Plain/Black/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

After installation, it is not easy to loosen: the card nut is clamped in the square hole and supported by the spring clamp foot, which will not shake. After tightening the crown screw, the screw head presses against the surface of the workpiece, and the card nut is tightened and clamped in the square hole. The overall lock is tight, and the vibration environment will not loosen by itself.

Repeatable disassembly and assembly: The snap nut is not disposable. After removing the crown screw, the snap nut is still stuck in the square hole. It can be reused the next time it is installed. After disassembling and assembling dozens of times, the elasticity of the snap foot is still intact and will not loosen or collapse. When disassembling the panel for maintenance, it is still the same as before when it is disassembled and reinstalled.
