Cross Head Flat Tail Self-tapping Screw

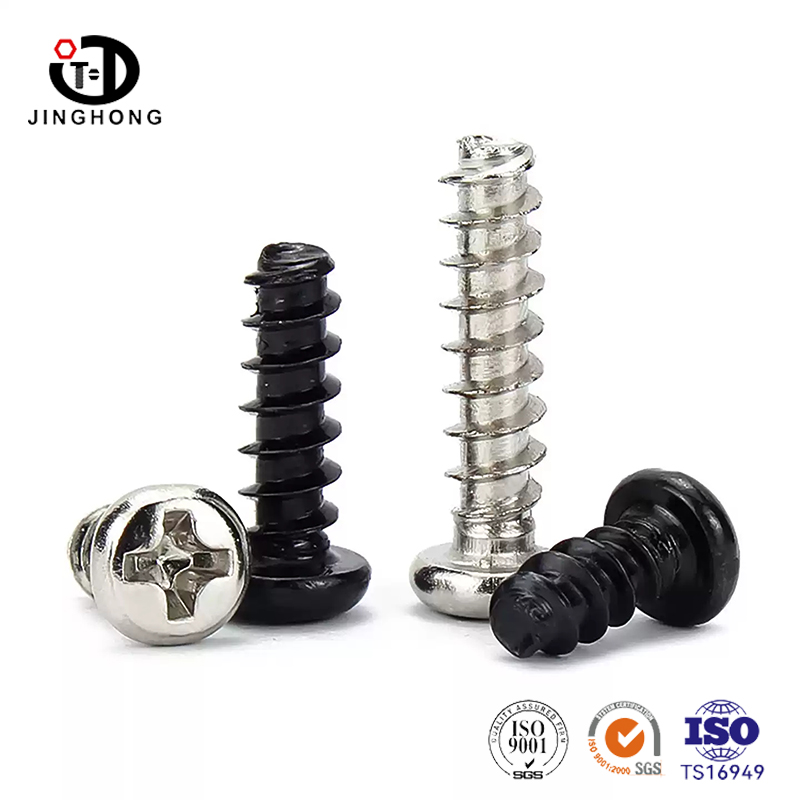

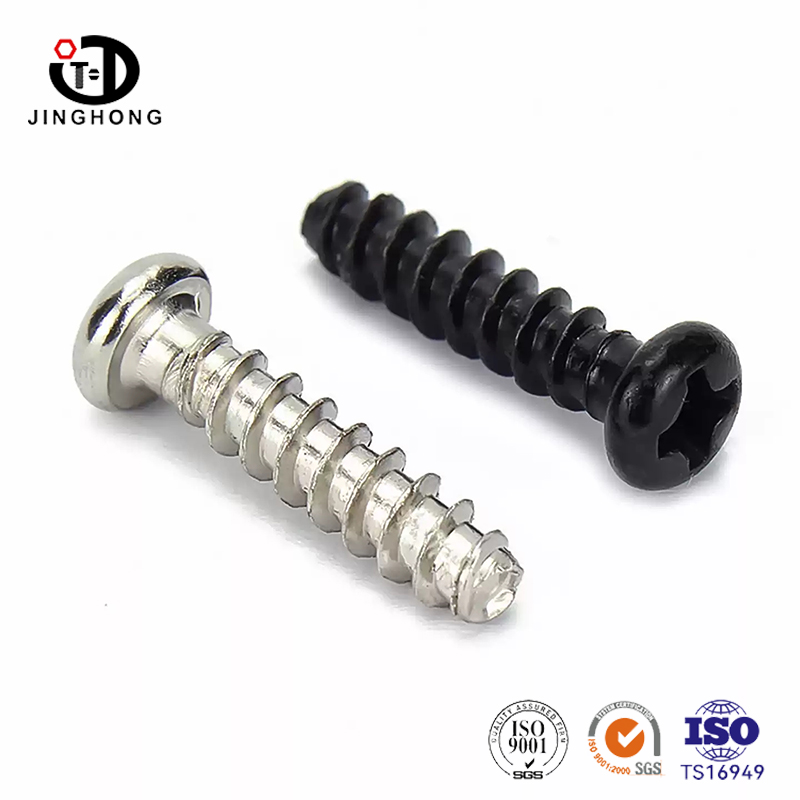

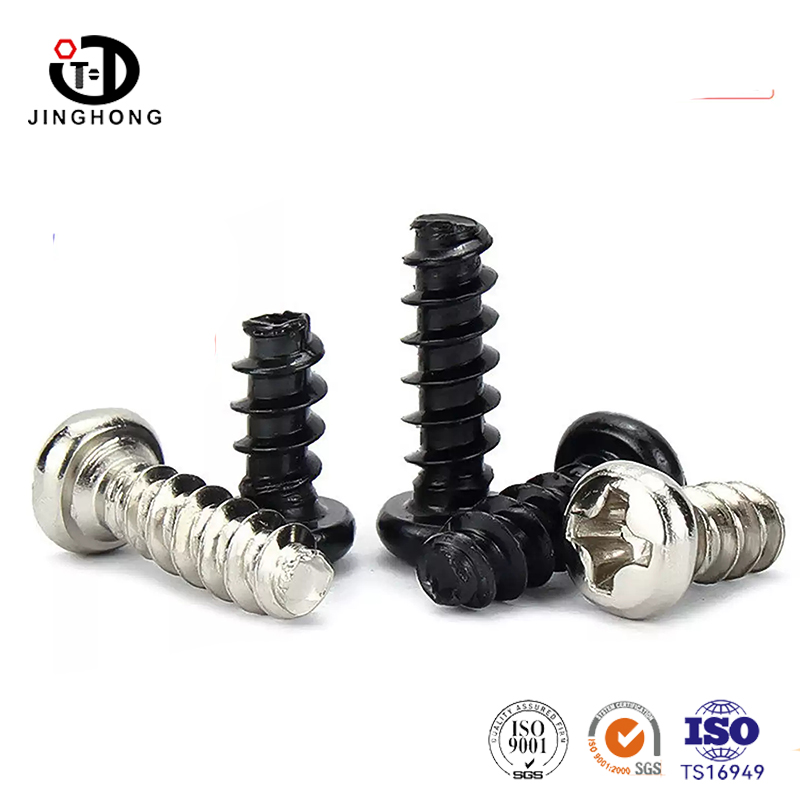

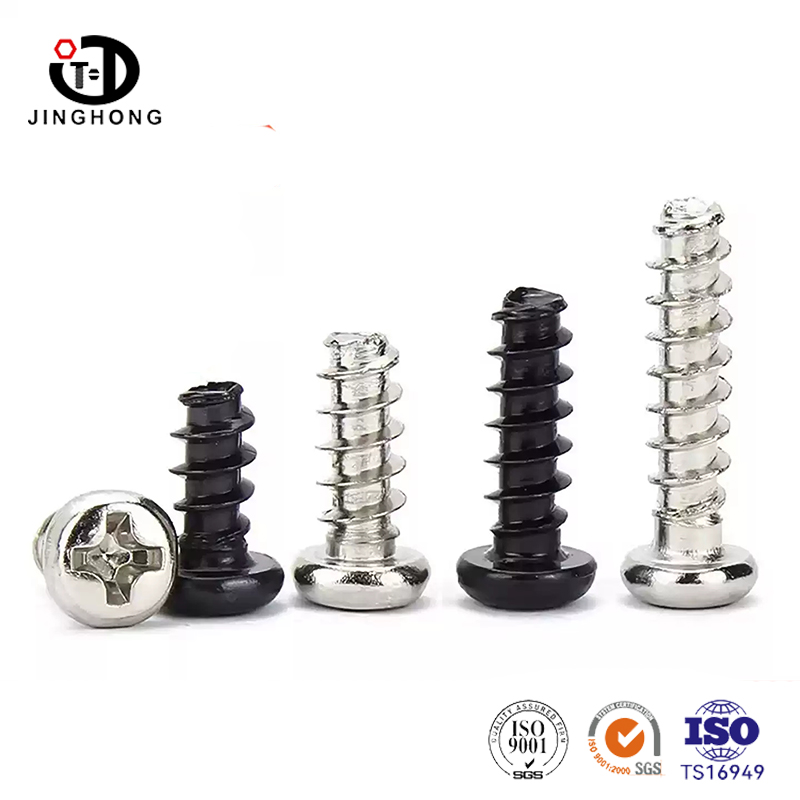

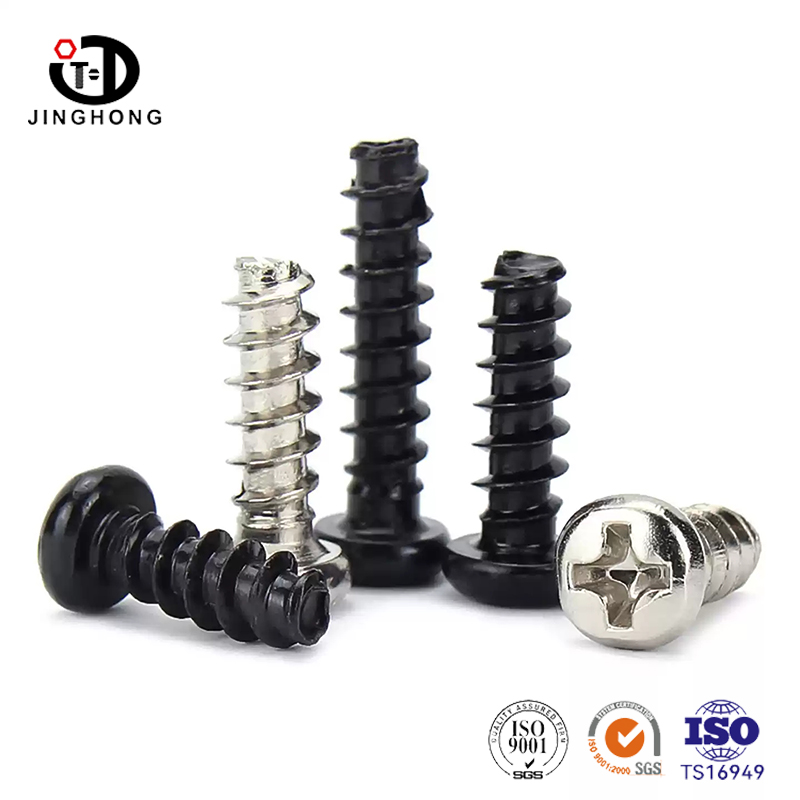

Our factory produces carbon steel Cross Head Flat Tail Self-tapping Screws, available in blackened and nickel-plated finishes. The design of the flat tail differs from the pointed tail - the pointed tail drills its own hole at the tip, while the flat tail requires a pre-drilled base hole on the workpiece before tightening. When fully tightened, the flat tail has a flat back, without protruding a sharp point. The disc head is stable and the cross slot is easy to tighten. It is suitable for use in electronic product casings, small appliances, plastic parts, and thin metal plates.

Send Inquiry

Product Description

The flat-tail self-tapping screw has a flat tail, not a pointed one. You can see the difference by comparing a pointed-tail self-tapping screw with a flat-tail one - the pointed-tail one has a tapered point at the end, while the flat-tail one has a flat head, with at most a slight chamfer. Just this slight difference leads to different applications.

The flat-tail type does not drill, but requires you to pre-drill a base hole in the workpiece before screwing it in. It may sound like an extra step, but the flat-tail type has its advantages - after being fully tightened, there won't be a sharp point protruding from the back of the workpiece. If you've ever taken apart a remote control or small appliance, you'll know that some screws, once tightened through, will protrude with a small sharp point on the back, which can interfere with other components when installing the casing. The flat-tail type doesn't have this issue, as the back remains flat.

Name	Cross Head Flat Tail Self-tapping Screw
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

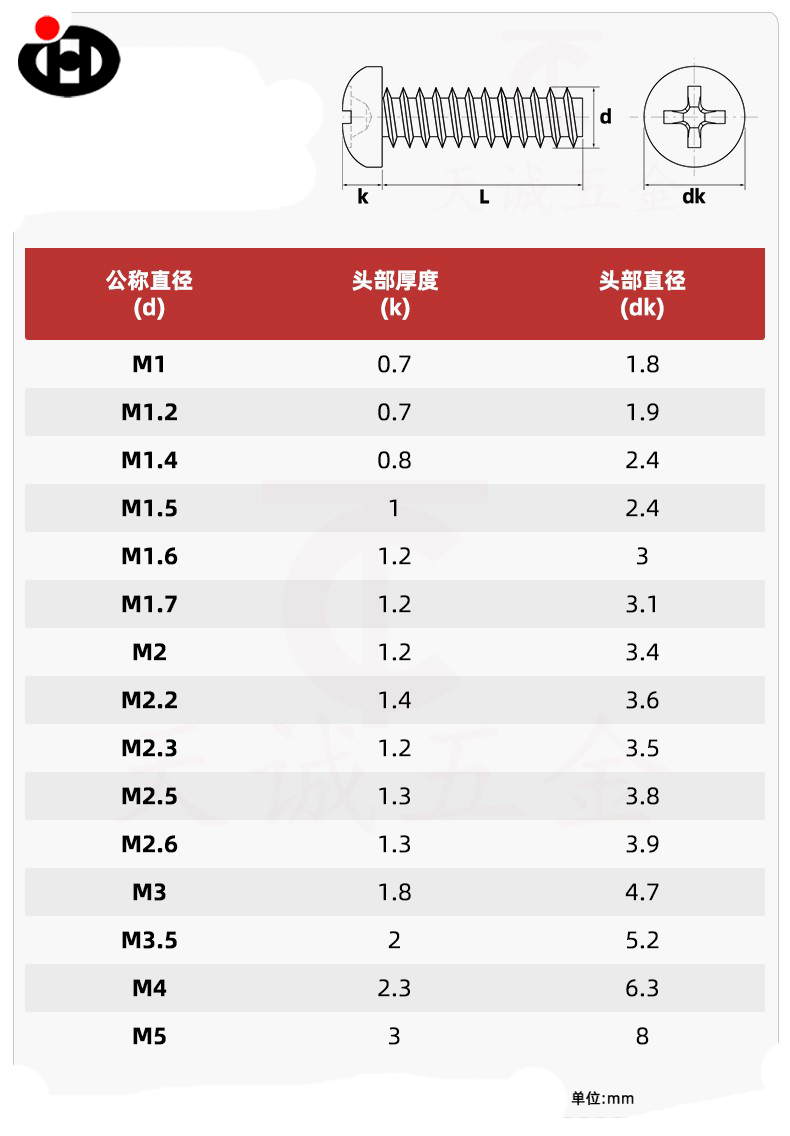

Sizes	M1-M5
Finish	Plain/Black/Nickel plated/Zinc plated/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Flat tail without protruding tip: After being fully tightened, the back is flat, unlike the pointed tail which protrudes a small tip. In thin plates, plastic shells, and tight spaces inside, using a flat tail will not push against other parts.

Made of carbon steel, it has sufficient strength: the locking force is completely adequate for general electronic products and small household appliances. If stainless steel is required, please inquire separately, as we can also produce it.
