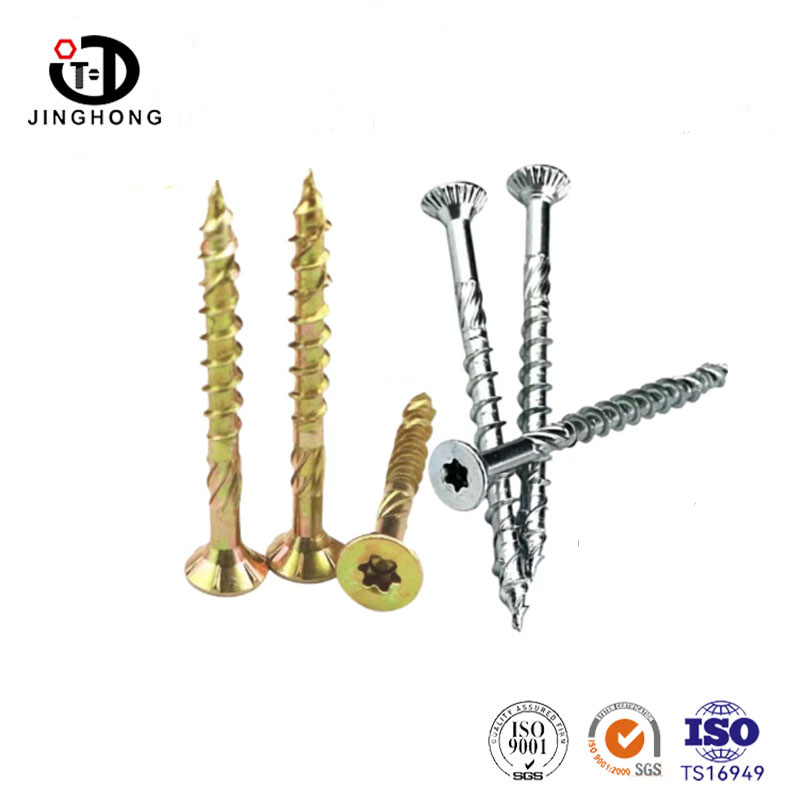

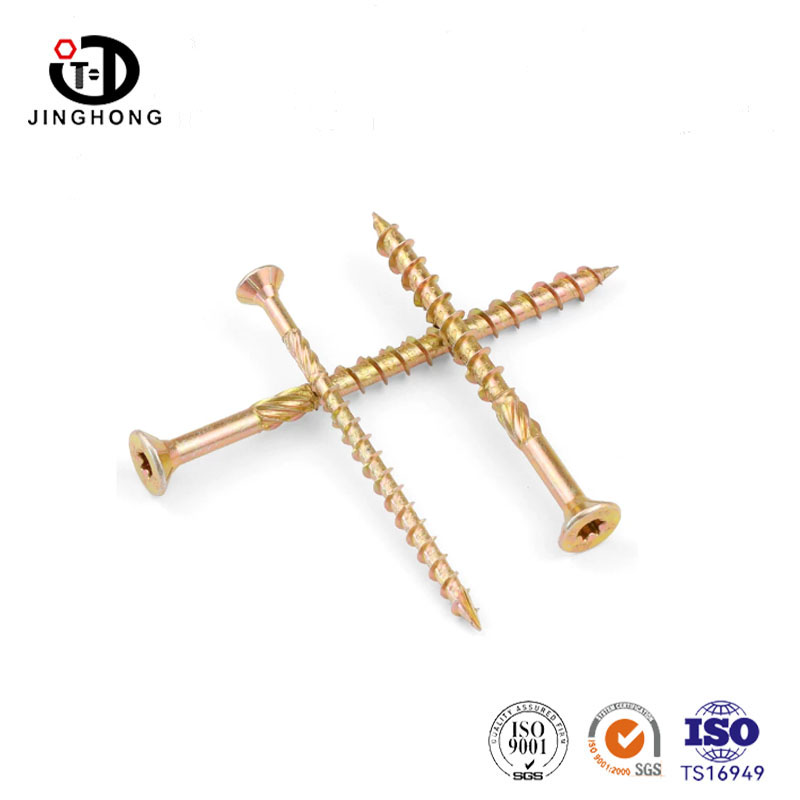

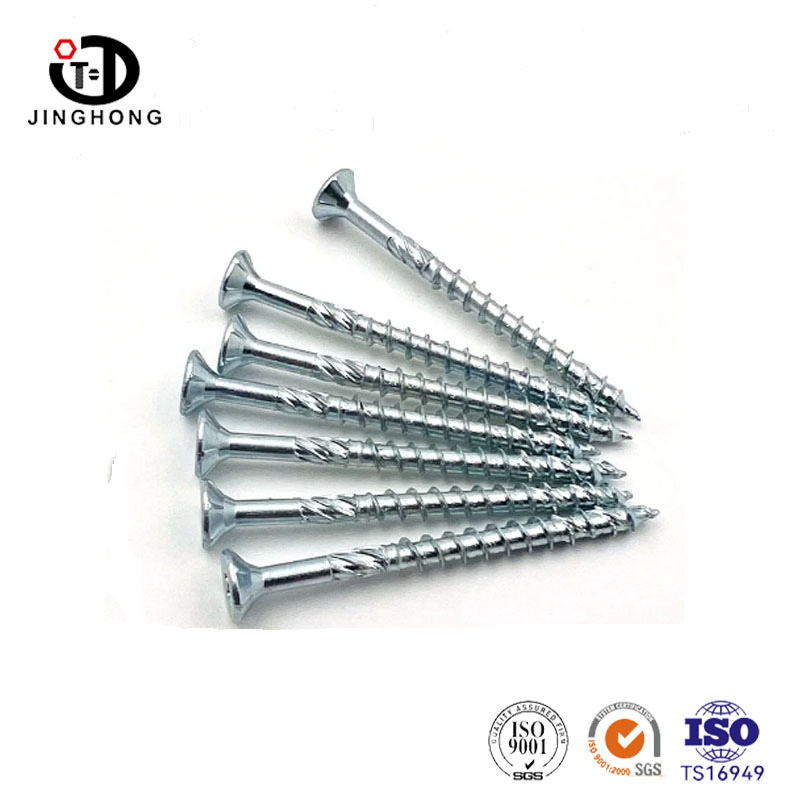

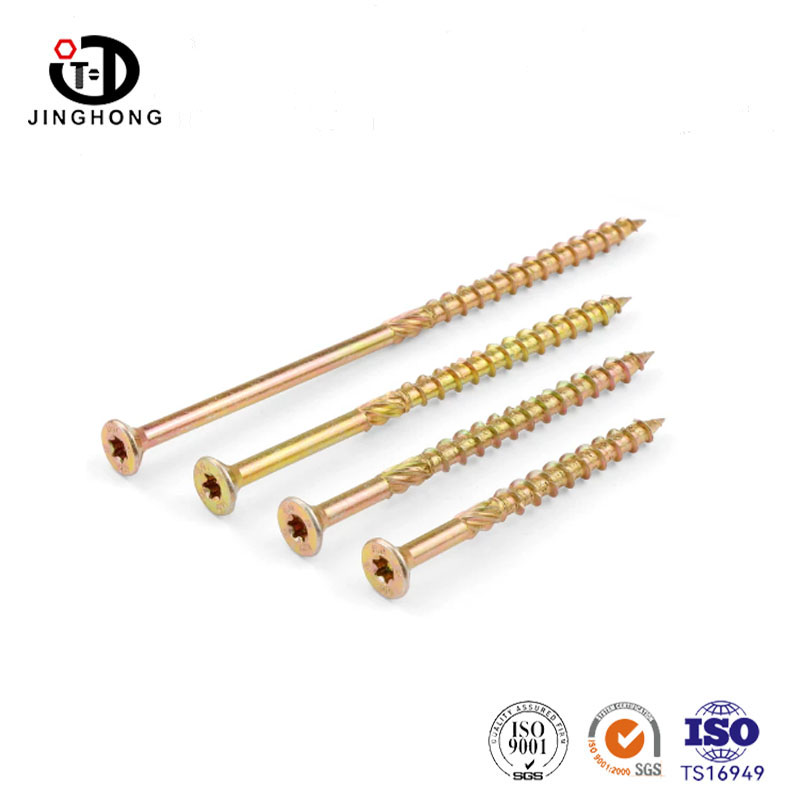

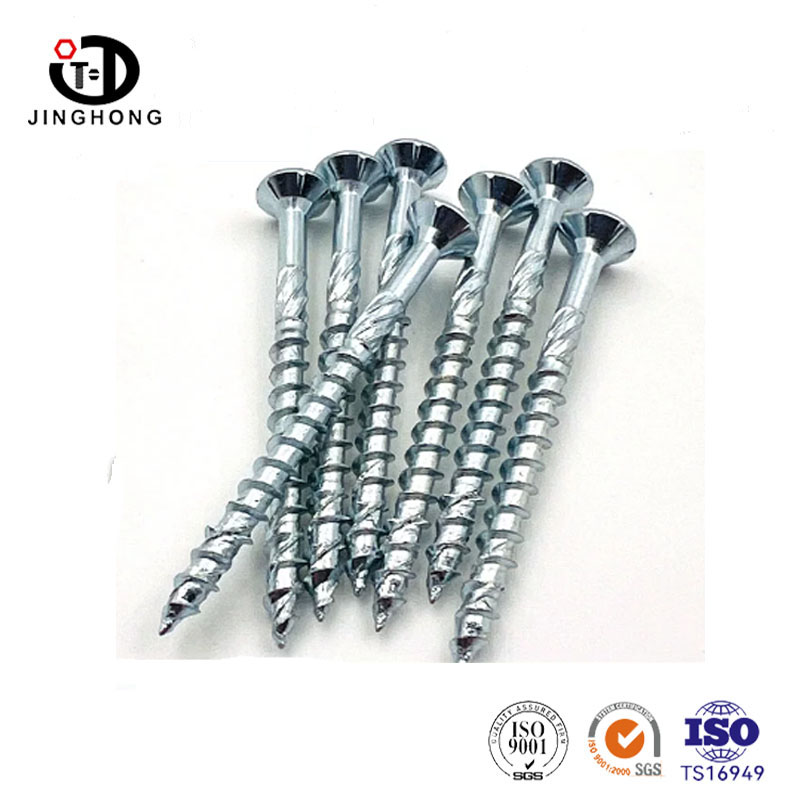

Countersunk Head Torx Drive Six Lobe

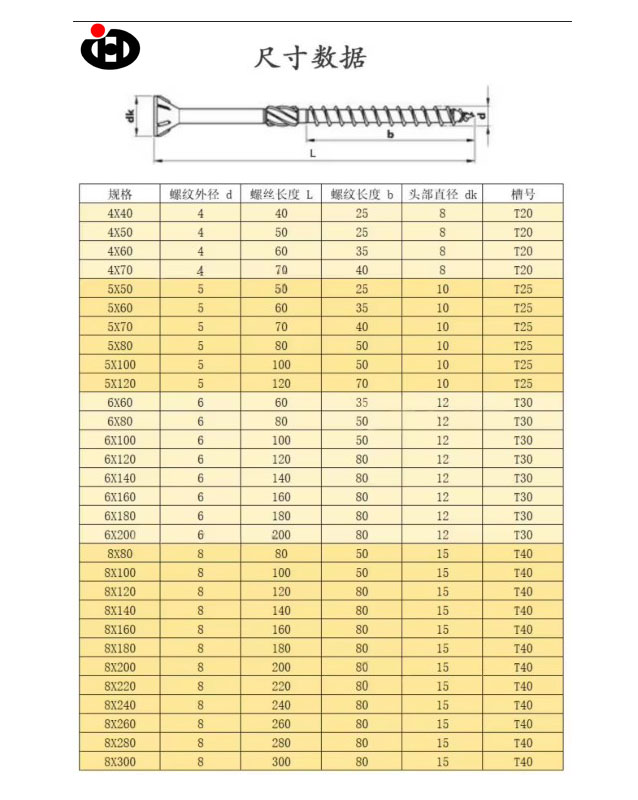

The Countersunk Head Torx Drive Six Lobe is a self-tapping fastener specifically designed for wood connections, manufactured strictly in accordance with relevant wood screw standards. This product is made from high-quality carbon steel through cold heading, with a 90° countersunk head structure. The top is machined with an internal Torx slot， the tail is designed as a pointed head and features cutting threads. The surface treatment offers two options： colored zinc (yellow zinc) and blue-white zinc. The colored zinc passivation film is thicker and has better corrosion resistance； the blue-white zinc has a silver-white clean appearance and complies with environmental protection requirements. The product specifications typically cover diameters ranging from 3.0mm to 8.0mm and lengths from 12mm to 120mm， which can meet the connection requirements of different wood thicknesses. Its countersunk design ensures that the screw head is flush with the wood surface after tightening, and the internal Torx slot ensures efficient torque transmission without slippage, making it the core fastener for woodworking assembly and outdoor wood structure connections.

Product Feature

Efficient drive to prevent slipping: The internal milled grooves have a high degree of meshing, making it easy to screw in and reducing the risk of teeth slipping. This significantly improves installation efficiency.

Quick entry to prevent cracking: The unique dual-threaded or high-low tooth design, combined with the cutting tail tip, enables rapid engagement with the wood and cutting of the wood fibers, effectively reducing the risk of wood cracking.

Smooth surface without protrusion: The countersunk design comes with scraping ribs or knurled surfaces, which assist in smoothly sinking the head into the substrate, achieving a smooth finish without any protrusions.

Our Strength

·  Direct from manufacturer to customer, On time delivery

·  Completely fastener products,offers one - stop shopping service.

·  High quality and competitive price, saving your cost.

·  Product complies with iso9001 and ts16949 certification

·  After shippment, we will offer the Material report and Test report.

Product Application

It is widely used in the assembly of solid wood furniture, outdoor anti-corrosion wood structures (such as wooden houses, pergolas, decks), interior decoration (floor, wall panels, cabinets), wooden packaging boxes and general woodworking connections, etc. It is particularly suitable for wood-to-wood fastening operations that have high requirements for surface flatness, disassembly and assembly convenience, and rust prevention performance.

Send Inquiry

Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it takes around 20 days if the goods are not in stock, certainly,it is according to your quantity.

Q: Do u do Non-standard Fasteners,and How about the OEM/ODM?

A:Yes,we do Non-standard Fasteners,OEM/ODM as well,and we have 20 years more experience in this line.We have complete production line, R&D Center. Pre-sales and after-sales support. Let u no worries about the quality.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free,but u need charge the freight at the first time.

Q:Do you sell little quantity,like few hundred and few thousand?

A: It depends on the stock. if we have ,that's ok. if not,it needs MOQ.
