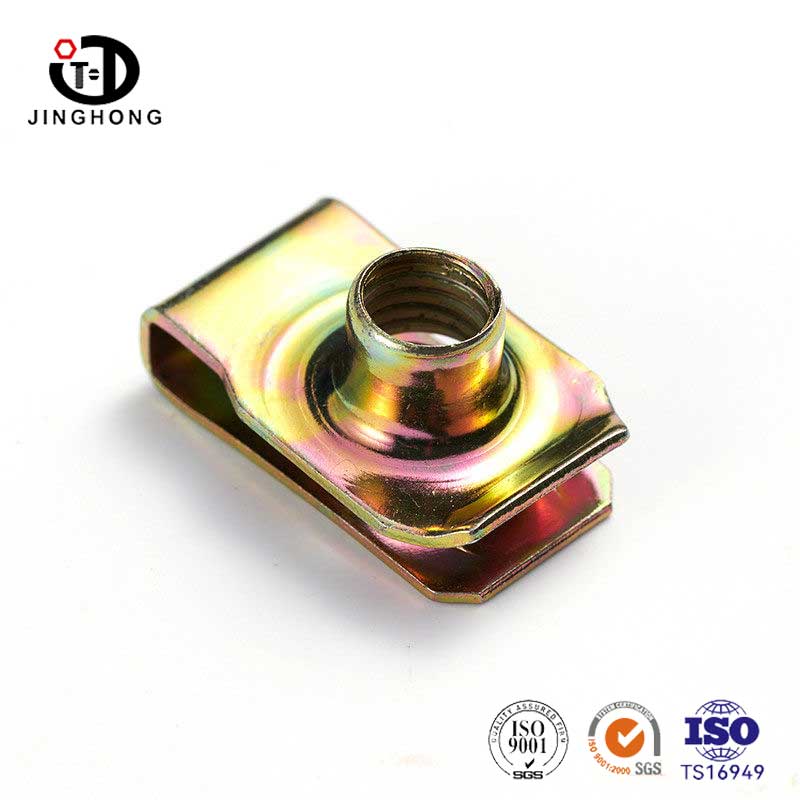

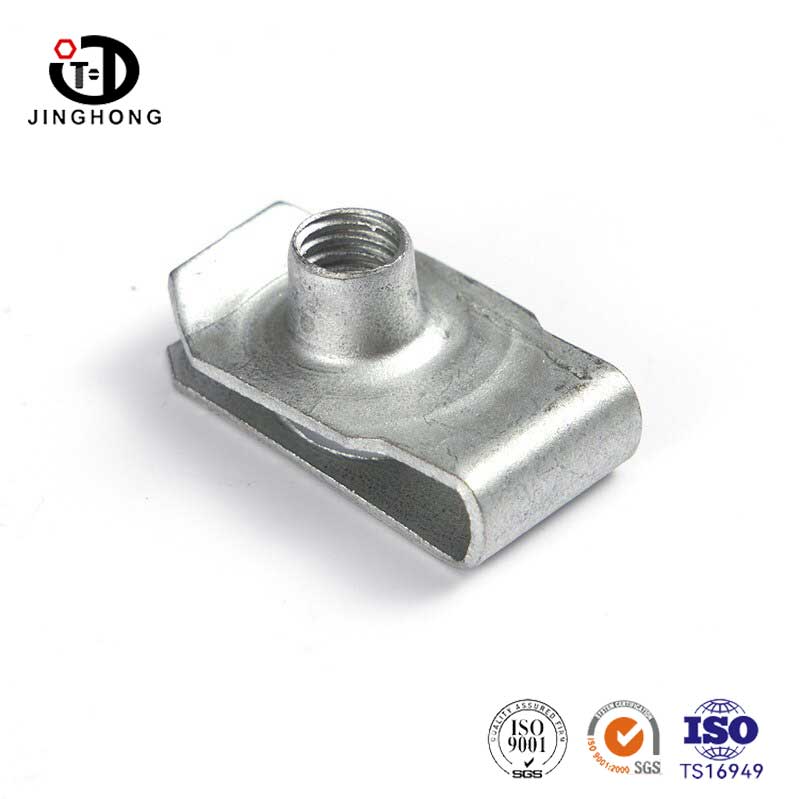

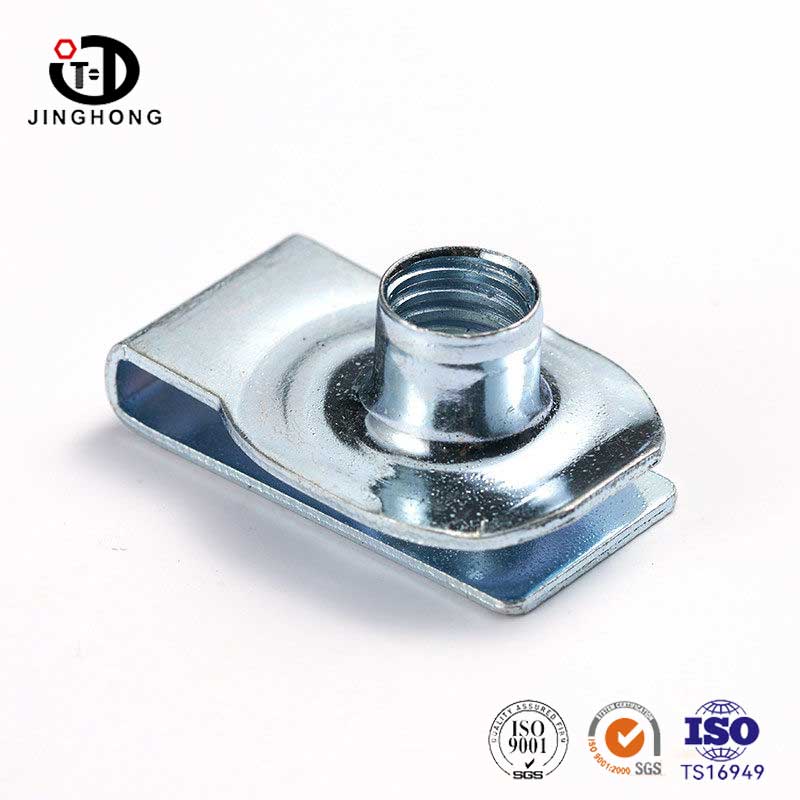

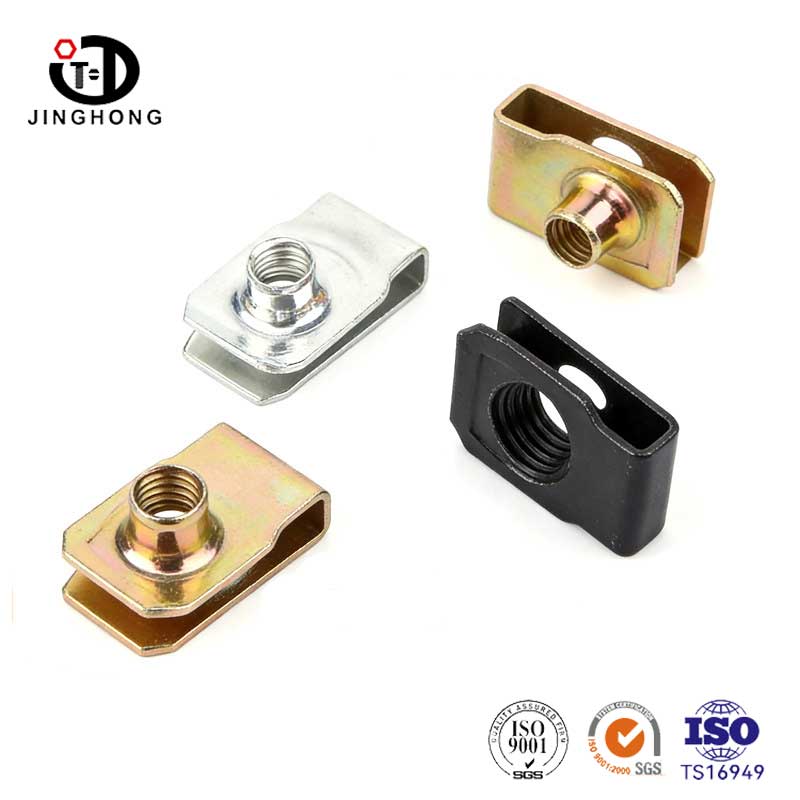

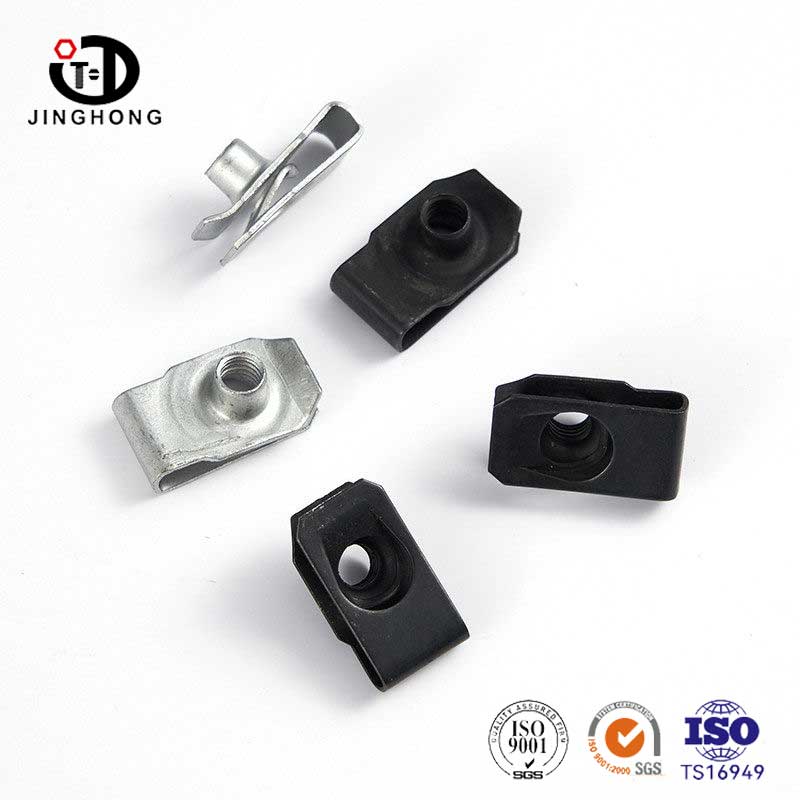

Carbon Steel Spring Nut

Jinghong Factory specializes in producing Carbon Steel Spring Nut, which is stamped and formed from high-quality spring steel, and has a uniformly galvanized surface. The product comes with elasticity and threaded holes, which can be inserted into the holes with just one push by hand, without the need for welding or tapping. Simply screw in the screws to lock it in place. Having regular inventory of M5-M10.

Send Inquiry

Product Description

Carbon Steel Spring Nut is essentially a snap nut with inherent elasticity. Make a hole in the square tube in advance, grab the spring and insert it into the hole. With a "click", it will lock and not slide out. Then align the parts to be fixed, thread the screw into the internal thread of the spring nut, and tighten it.

During the tightening process, the spring plate will expand to both sides under force, and lock tighter with the inner wall of the square tube - precisely by utilizing the positive pressure of tightening screws, this is the mechanism of "tightening more and more" of the spring plate nut.

We used 65Mn spring steel as the material, which has high manganese content, good elasticity, and will not trip under vibration environment. The surface is galvanized.

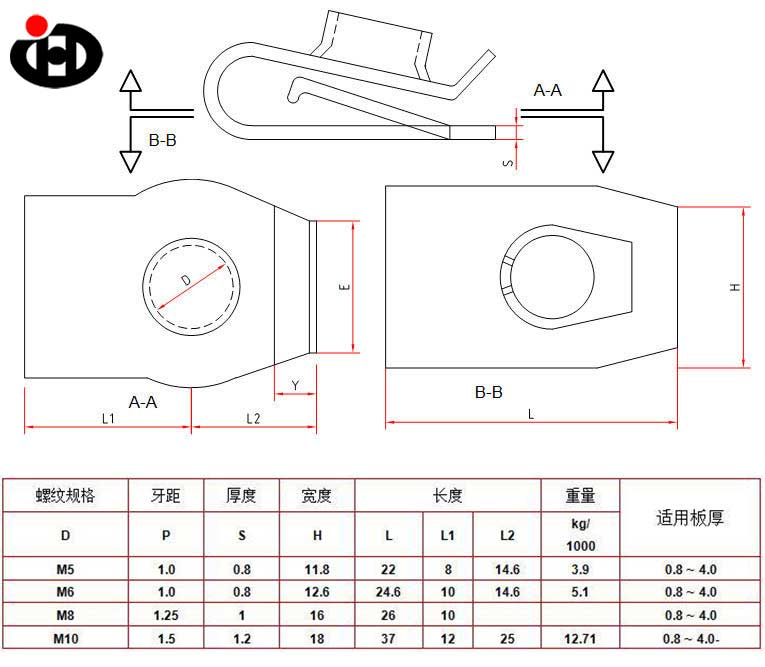

Name	Carbon Steel Spring Nut
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M5-M10Metc
Finish	Plain/Zinc plated/others
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

The spring clamp is tight and will not fall off: The clamp foot made of 65Mn spring steel has good elasticity after heat treatment. After installation, if you pull it hard, the nut will not fall off from the hole, and it will not fall off when moving back and forth during transportation. When you need to remove it, you can pinch the clamp foot with your fingers to take it out without damaging the material.

Manual operation, simple and fast: no machine is required, and there is no need to tighten the nut from the back. After punching the hole, insert the leaf spring nut by hand, and the locking foot will automatically open and hang. One person can complete it on the front without flipping or coordinating with two people.
