Carbon Steel Spring Clamp

Jinghong specializes in providing Carbon Steel Spring Clamp, made of high-quality 65Mn spring steel with galvanized surface treatment. The product utilizes metal elasticity to form a locking force, which can compensate for fluctuations caused by temperature changes or hose aging. It can be installed by hand without the need for tools.

Send Inquiry

Product Description

Spring Clamp is a type of spring steel fastener with a simple structure and quick installation. Unlike clamps that require a screwdriver to tighten, elastic clamps rely on the elastic deformation of the material to generate clamping force, which can be installed by hand or clamp pliers. It is particularly suitable for frequent disassembly or space limited situations.

When the clamp is in normal condition, the inner diameter is smaller than the outer diameter of the clamped hose. During installation, use clamp pliers or pinch the two ear pieces with your hand to increase the inner diameter of the clamp. After inserting the clamp into the hose, loosen it and use its own elastic force to tightly clamp the hose, forming a reliable clamping force.

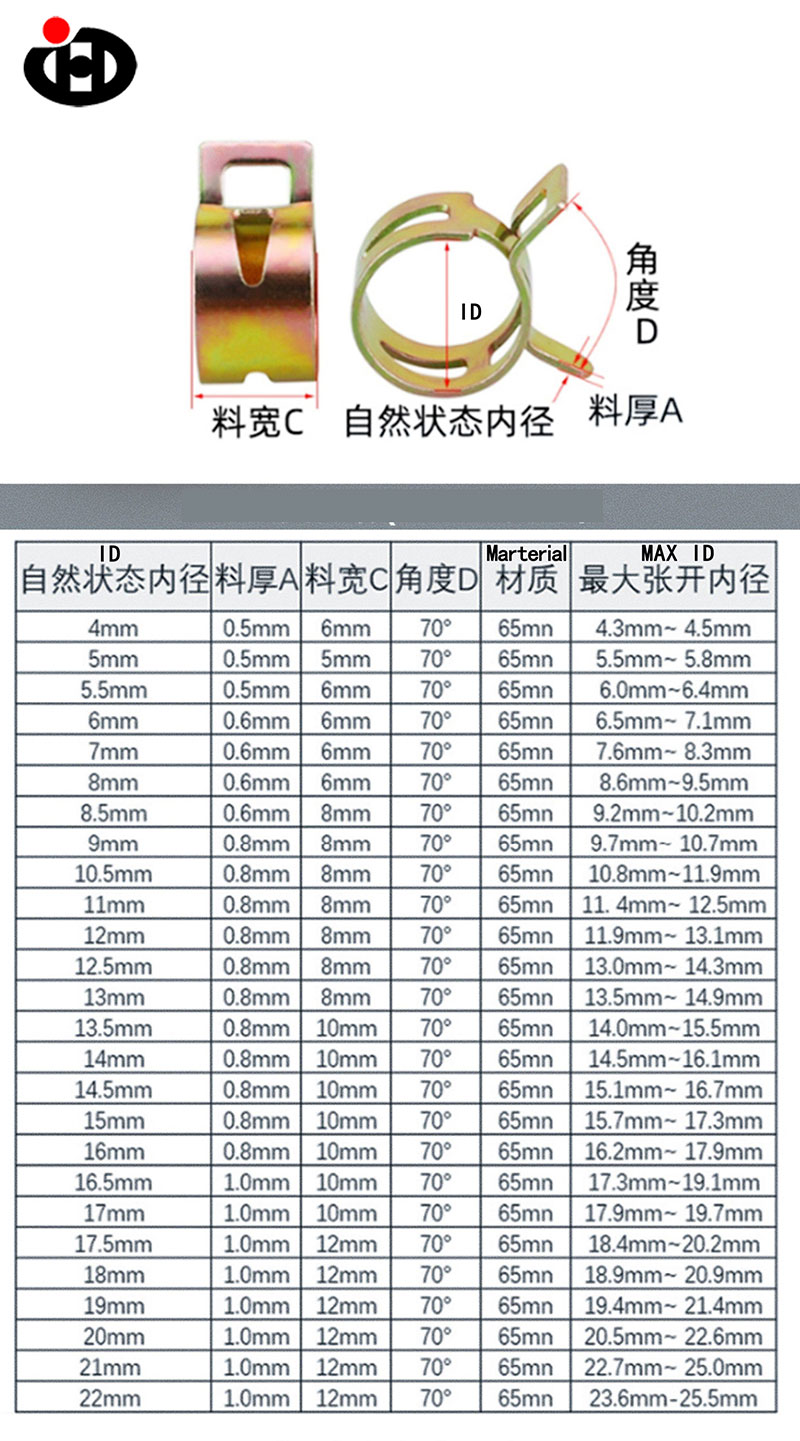

Name	Carbon Steel Spring Clamp
Material	Carbon Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	4-22mm
Finish	Plain/Black/Zinc plated/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Quick installation, no need for tools: Small sized single ear clamps can be manually pinched and installed, while large-sized or double ear clamps require the use of clamp pliers. One pinch, one set, one free, takes three seconds to complete.

Constant force clamping, anti vibration and leak proof: The elastic clamp provides constant pressure and will not gradually loosen due to vibration. When used on equipment with continuous vibration such as engines and water pumps, it should be sealed for a long time to prevent leakage.
