Brass Spacers

Jinghong Manufacturer specializes in providing Brass Spacers, made of high-quality brass with internal threads on one end and hexagonal columns on the other end. The hexagonal shape is easy to tighten with a wrench, and the installation is firm and not loose. The internal thread is used to connect bolts or screws. The product has good conductivity and corrosion resistance. There is sufficient stock of regular specifications in stock, and the length can be customized according to demand.

Send Inquiry

Product Description

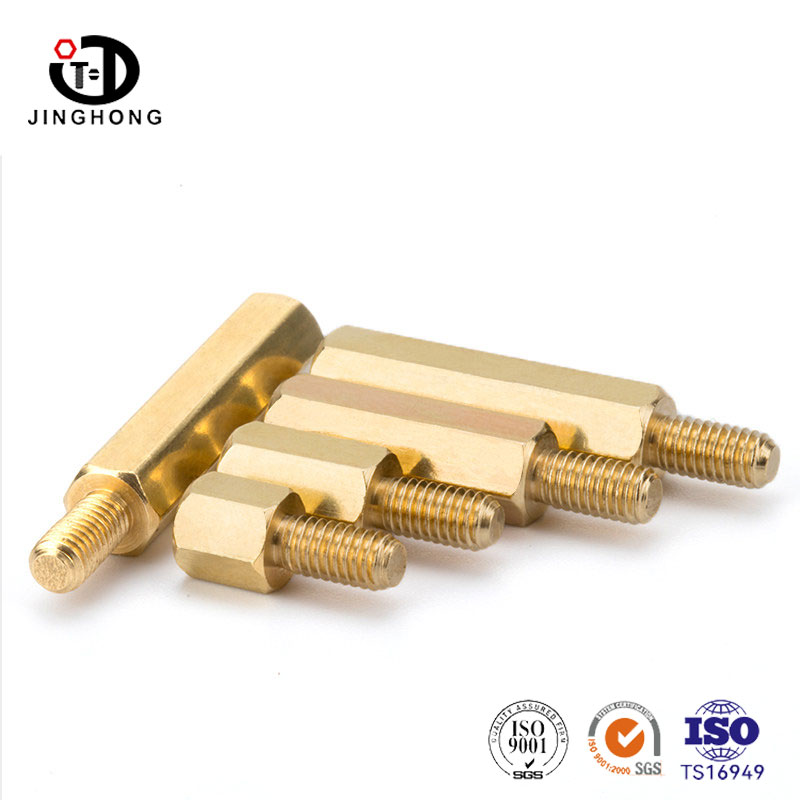

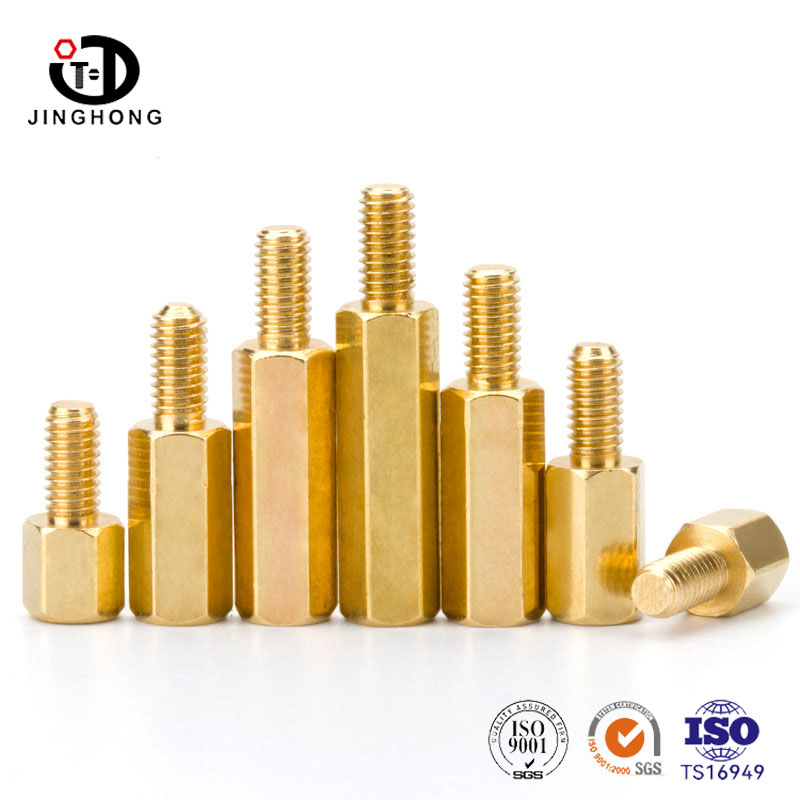

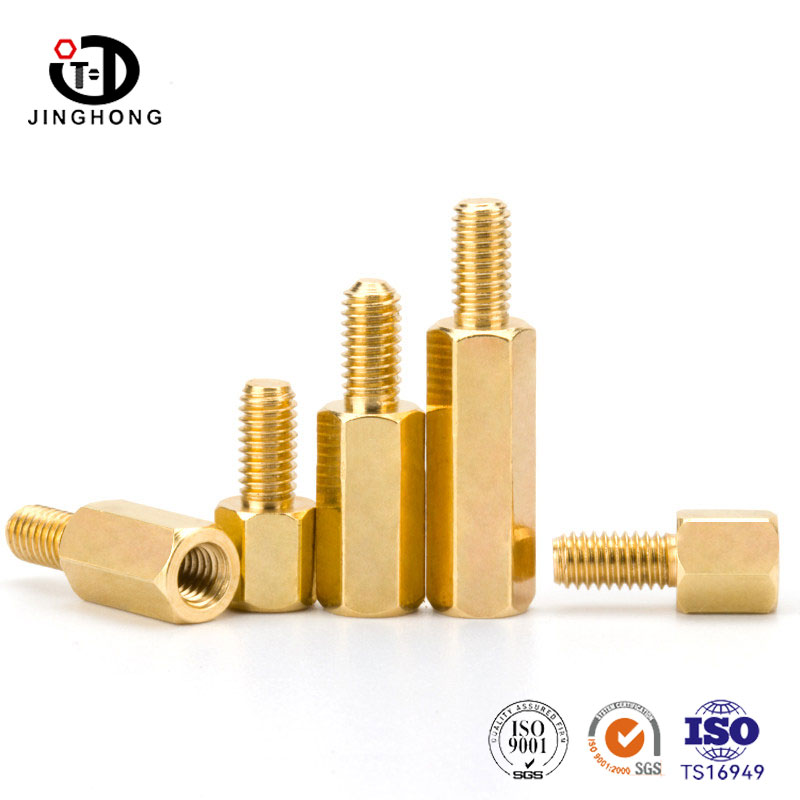

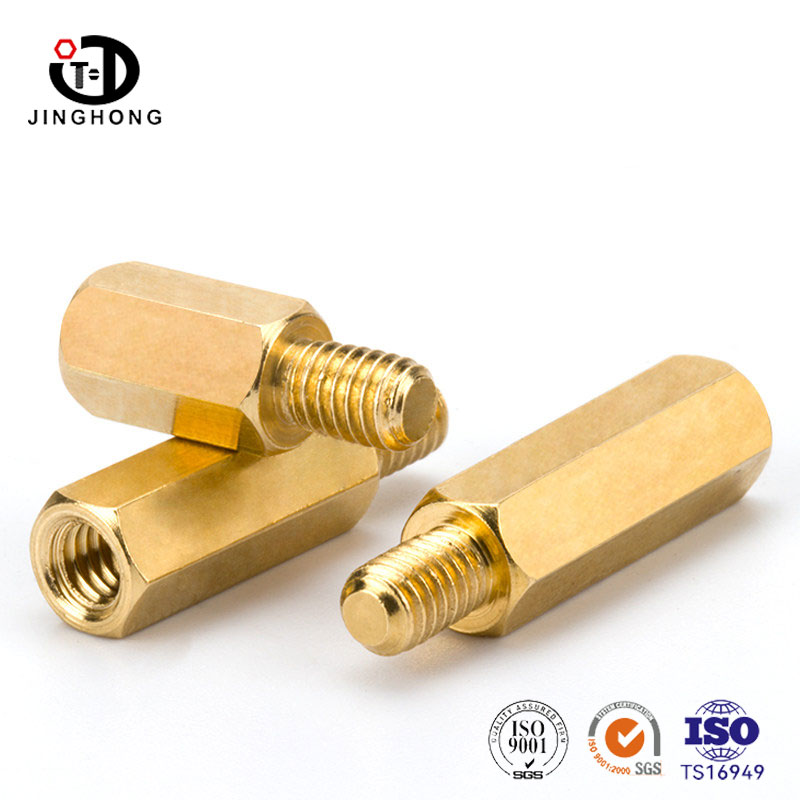

Brass Spaces is a precision hardware component used for supporting and spacing electronic devices, electrical cabinets, and mechanical structures. The product is a hexagonal column with internal threaded holes on one end and external threads on the other end. The thread specifications on both ends can be the same or different. During installation, short the external thread into the threaded hole of the base plate or chassis, while the internal thread is used to secure the upper components. Realize precise isolation and stable connections between layers.

The product is made of high-quality brass material by precision turning, and the surface is polished to present a beautiful golden or silver white color, with both rust prevention and decorative functions. Brass itself has good conductivity and thermal conductivity, and can be used as a part of grounding or heat dissipation paths.

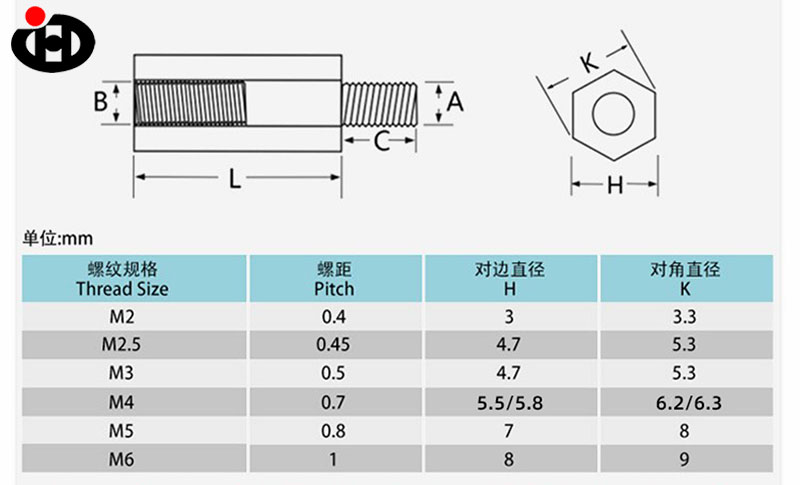

Name	Brass Spacers
Material	Brass
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	M2-M6
Finish	Plain/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Hexagonal column shape, adjustable with a wrench: The dimensions of the hexagonal shape are controlled according to standards, and can be easily tightened with an open-end wrench or socket without slipping during installation. Especially suitable for situations that require significant locking force or frequent disassembly and assembly..

Single head thread design, one column dual-use: one end external thread, one end internal thread, one isolation column simultaneously undertakes the functions of "locking" and "receiving". The external threaded end is fixed on the substrate, while the internal threaded end is used to fix the upper workpiece, saving the trouble of additional nuts and simplifying the installation steps.
