ASTM Split Lock Washer

The anti loosening mechanism of ASTM Split Lock Washer originates from its ingenious structural design. When the bolt is tightened, the opening spiral structure of the spring washer is compressed, generating a continuous rebound reaction force. This reaction force not only increases the friction between the nut and the connected part, but also forms a mechanical wedge effect through the inclined design of the cutting edge.

Send Inquiry

Product Description

The ASTM Split Lock Washer is made of high-quality materials such as spring steel and 304/316 stainless steel, and undergoes surface treatment on each product. Surface treatment methods include galvanizing, spraying, etc. Among them, environmentally friendly electroplating treatments such as environmentally friendly blue zinc, environmentally friendly color zinc, environmentally friendly nickel, environmentally friendly white zinc, etc. are widely favored by the market. The environmental protection concept is in line with the current international concept of harmonious coexistence between humans and nature.

The spring washer needs to be used in conjunction with the flat washer, and the installation sequence is: bolt head → flat washer → spring washer → nut. Flat washers can disperse pressure and protect the surface of the connected parts, while spring washers provide anti loosening force. If the order is reversed, the elastic deformation of the spring washer may be absorbed by the flat washer, resulting in anti loosening failure.

Name	ASTM Split Lock Washer
Material	Carbon Steel /304Stainless steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

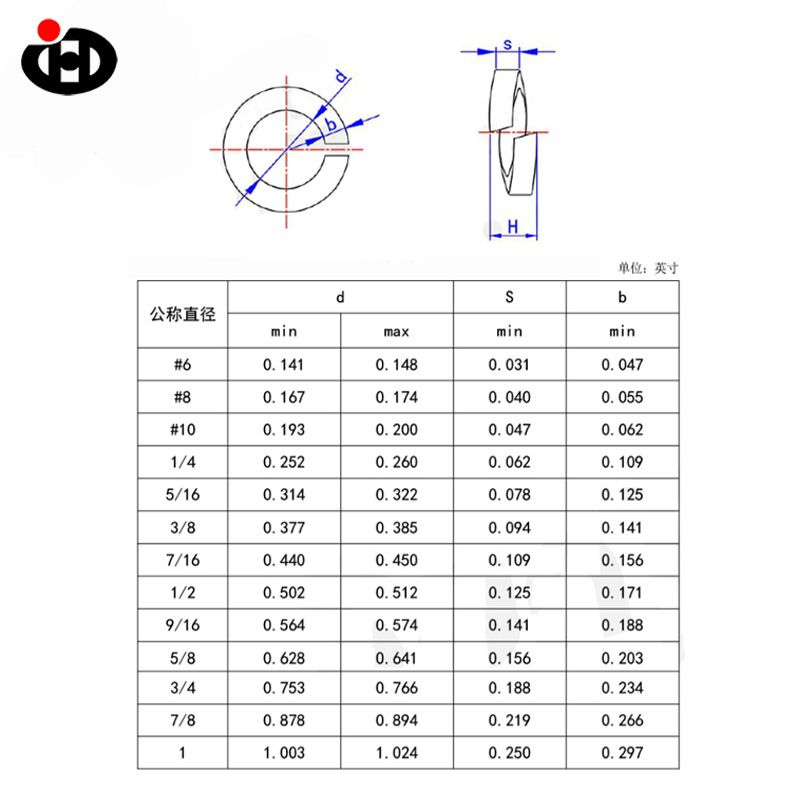

Sizes	6#-1
Finish	Zinc plated/Plain/Black/others
Price	0.04usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

Jinghong Company's standard components are widely used in industries such as light industry, automotive parts, mining machinery parts, household appliances, motors, and paper machinery. We are a private enterprise in the industry, with a large scale and a complete range of standard and non-standard parts production varieties. We use advanced production equipment and complete testing processes to create products that satisfy and reassure customers. Please feel free to choose our products. If you have any questions, please contact us directly.
