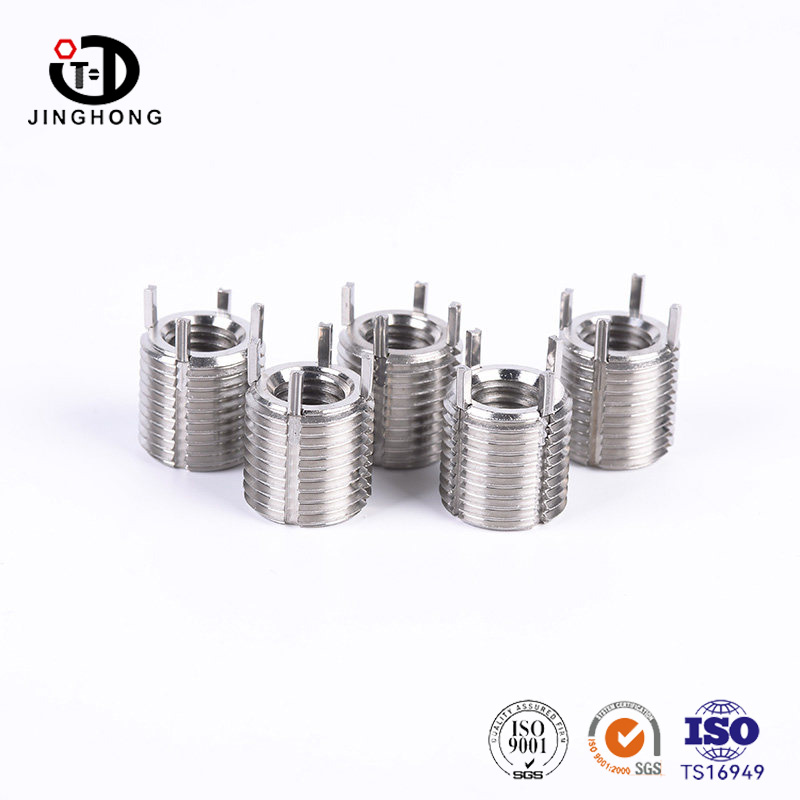

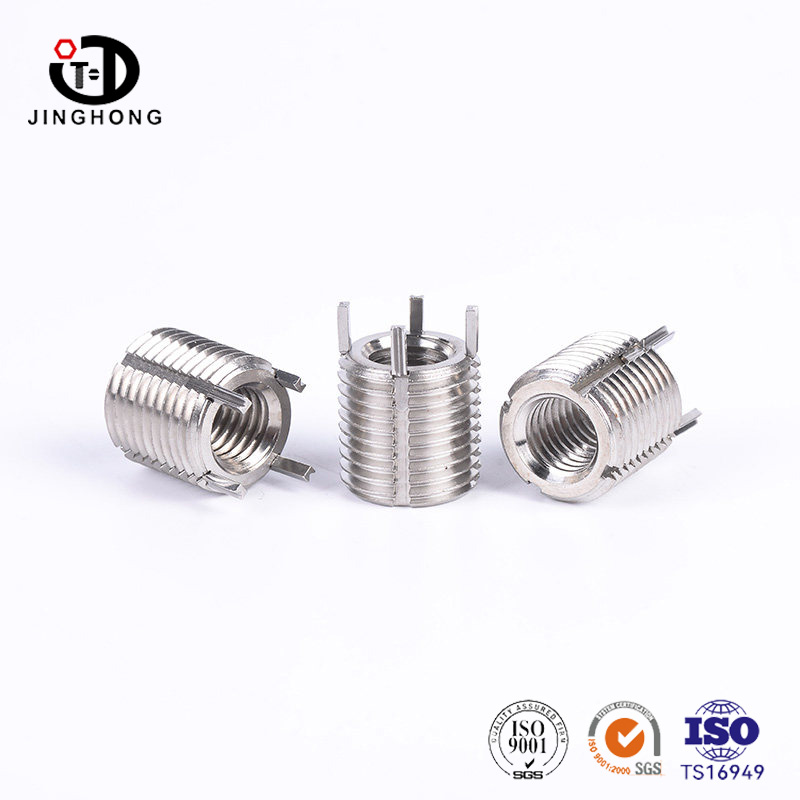

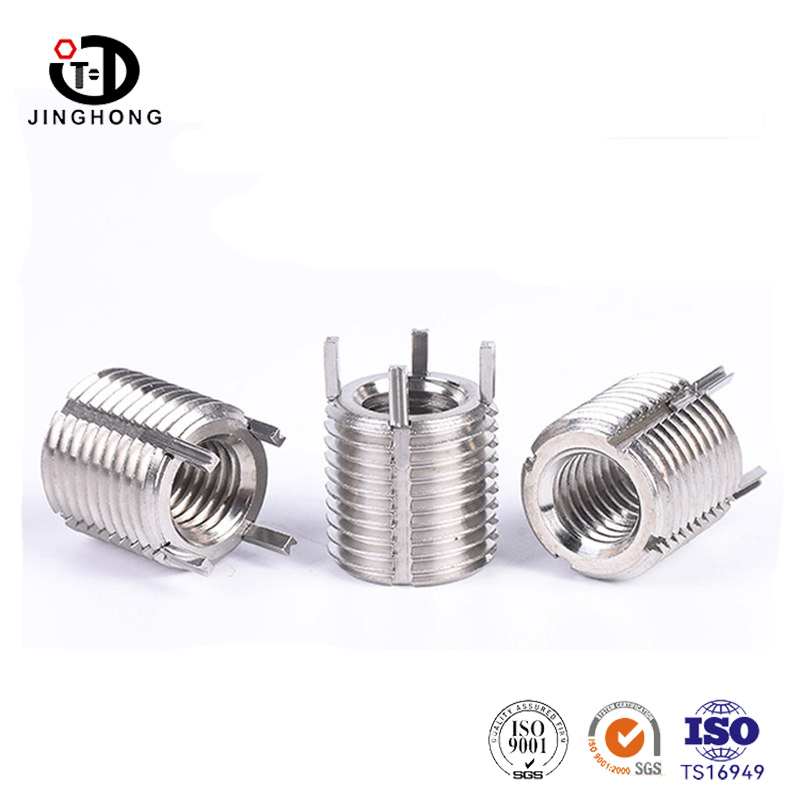

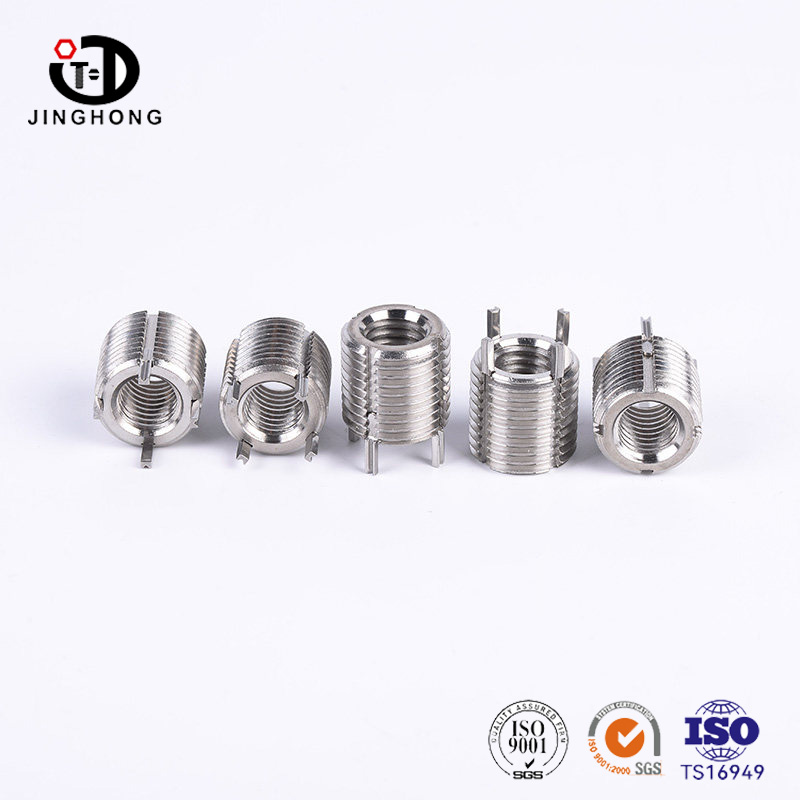

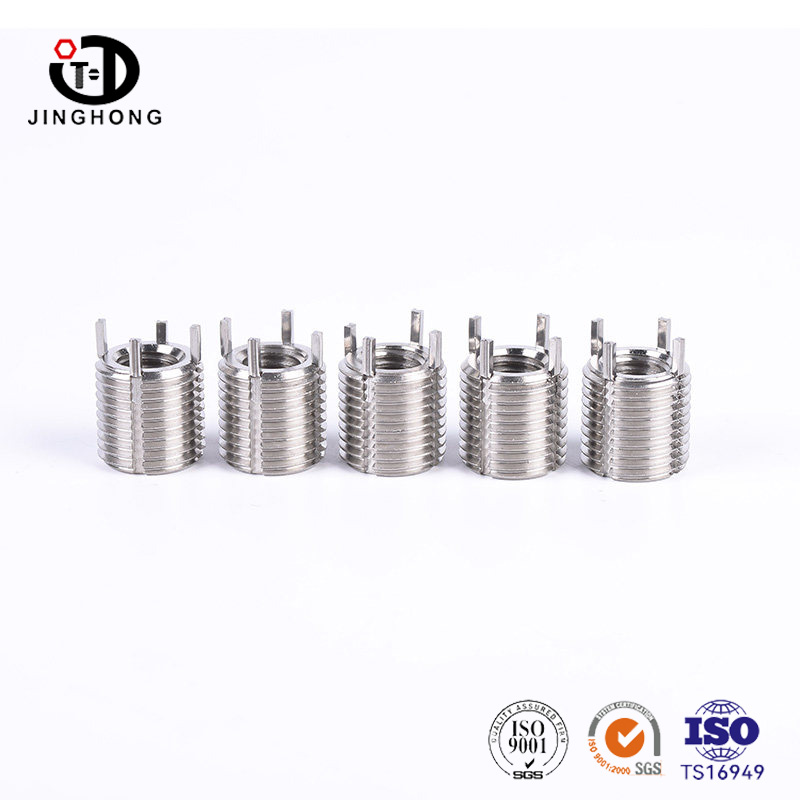

304 Stainless Steel Pin Screw Sleeve

Jinghong Factory produces 304 stainless steel pin screw sleeves, also known as slotted locking screw sleeves or pin type threaded sleeves. External thread with several longitudinal key slots, used together with pin keys. Installed on damaged threaded holes or aluminum or magnesium parts with insufficient strength, after screwing them in, press down the pin key to lock it, and the screw sleeve will not rotate with the screw.

Send Inquiry

Product Description

The steel wire sleeve is a spring coil made of stainless steel wire with a diamond shaped cross-section, which is tightened in the hole by elasticity. The pin screw sleeve is a solid sleeve that is mechanically locked by a pin key. Steel wire thread inserts are suitable for general thread repair and reinforcement, with low cost and fast installation. The pin screw sleeve locks more firmly, with greater resistance to torsion and pull-out, making it suitable for high load, strong vibration, or high safety requirements. There are many pin screws used in aviation, military, and heavy machinery.The sales key is usually paired with the screw sleeve and consists of several small steel keys. When installing, use a special tool or a small punch to press the pin key down along the keyway, and after pressing it to the bottom, the pin key is embedded into the base material. The screw sleeve is stuck by the pin key, and it will not rotate when tightening the screw.

Name	304 Stainless Steel Pin Screw Sleeve
Material	Stainless Steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.

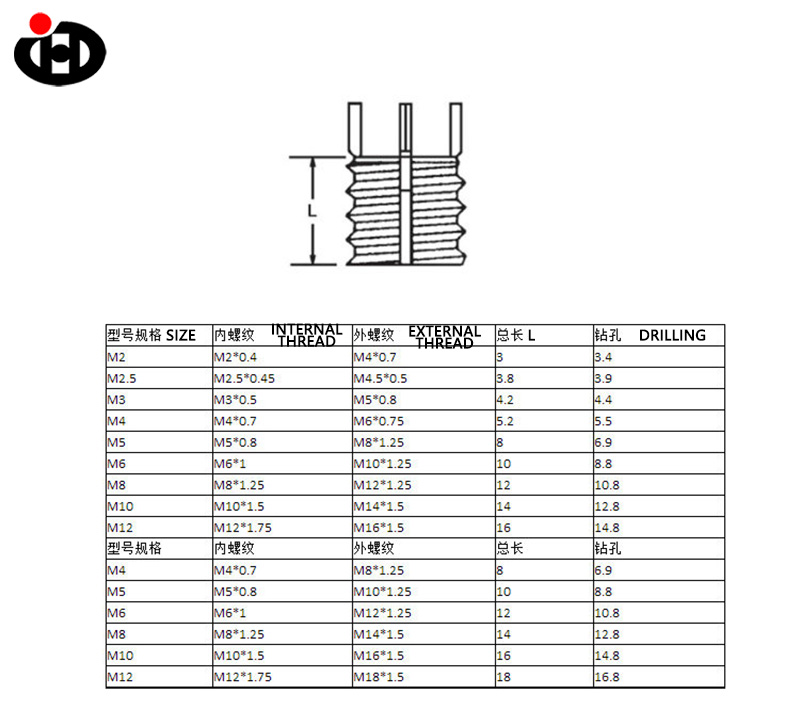

Sizes	M2-M12Metc
Finish	Plain/Black/Other
Price	0.03usd/pcs-0.50usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

High pull-out resistance: After the pin key is pressed into the base, the screw sleeve is mechanically locked with the base, not by friction. The pulling force is greater than that of steel wire thread inserts and ordinary thread inserts. Used on safety and load-bearing components, it has high reliability.

Lock the key and do not follow: After the screw is inserted, press the key into the base, and the screw is mechanically stuck. When tightening the screw, the screw sleeve will not rotate in the hole. The steel wire screw sleeve is tightened by elasticity, and may slip under high torque, but the pin screw sleeve will not. It is safe to use in situations with strong vibration and high load.
