DIN 127 Spring Washer

DIN 127 spring washers, also known as split or helical spring washers, are designed to provide a spring-like action when compressed. These washers are commonly used to prevent loosening of nuts and bolts due to vibrations and other factors. DIN 127 specifies the dimensions and technical specifications for split or helical spring lock washers. These washers are used in conjunction with bolts and nuts to provide a spring tension that helps prevent loosening due to vibrations or other factors.

Send Inquiry

Product Description

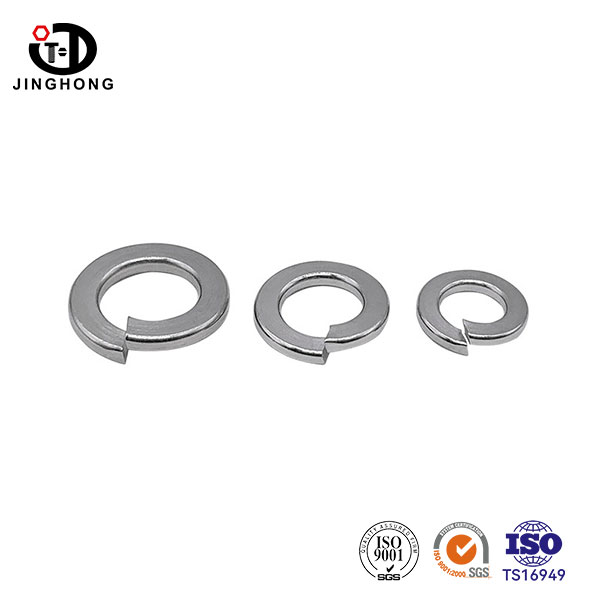

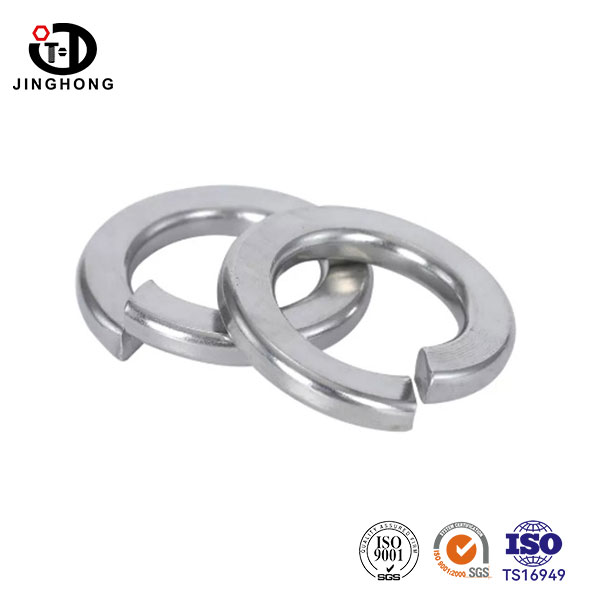

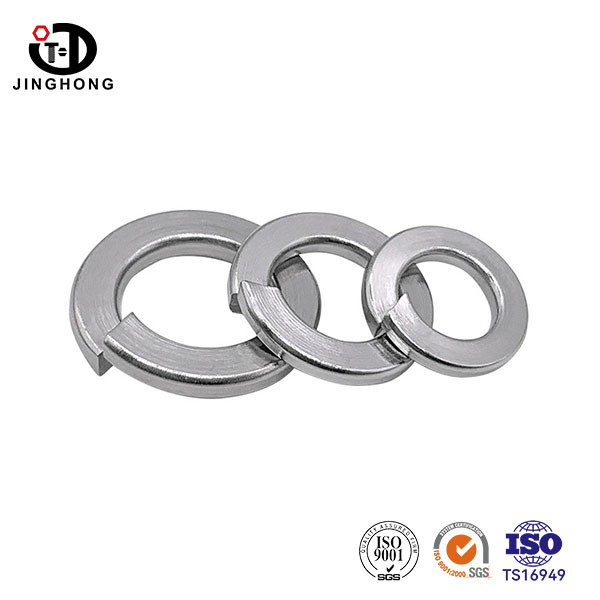

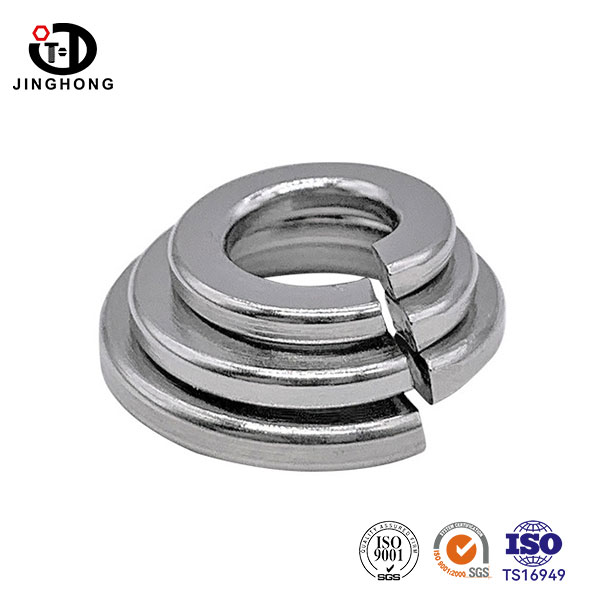

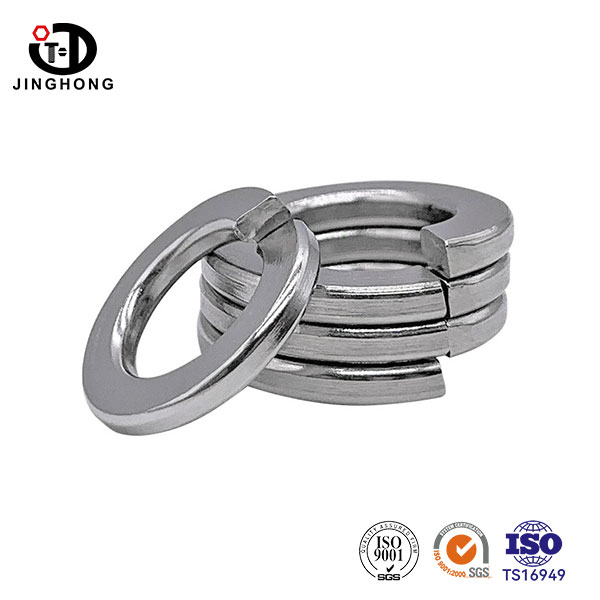

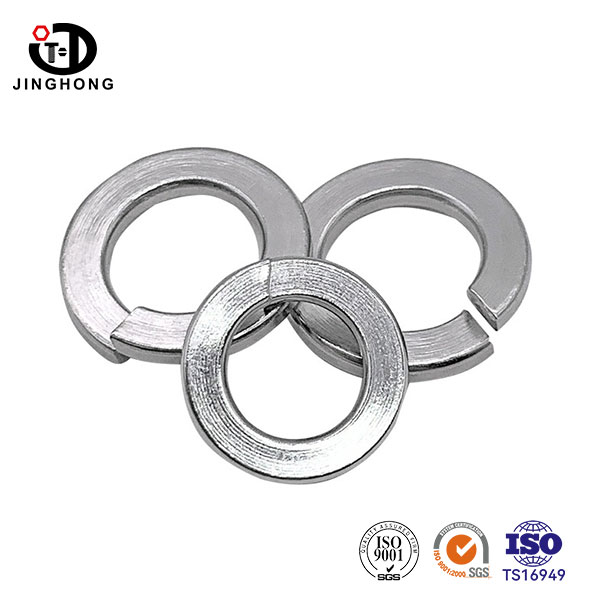

DIN 127 spring washers have a helical or split design, creating a circular shape with a gap. This design allows for compression and the generation of spring force when the washer is installed under a nut or bolt. These washers can be made from various materials, including carbon steel, stainless steel, and other alloys, depending on the specific application requirements. DIN 127 spring washers are commonly used in applications where there is a risk of nuts and bolts loosening due to vibrations or dynamic loads. They are suitable for general-purpose fastening where the spring action helps maintain tension in the assembly.

Product Specification

Name	DIN127 Spring Washer
Material	Stainless steel/alloy steel/carbon steel
Standards	GB,DIN, BSW, JIS, UNC, UNF, Non-standard, Customized Drawing
Thread	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSF.
Sizes	Φ2-Φ36 Metc
Finish	Zinc/Black/Natural/others
Price	0.02usd/pcs-0.30usd/pcs
MOQ	Stardard item(Usually little hundred-little thousand)/determined if non-standard

Product Feature

DIN 127 spring washers can be made from various materials such as steel, stainless steel, or other materials depending on the application requirements.DIN 127 defines two types of spring lock washers: Type A and Type B. The standard covers a range of sizes, including dimensions such as outer diameter, inner diameter, and thickness.Spring lock washers are commonly used in applications where vibration or dynamic loads could cause nuts and bolts to loosen over time. The spring tension provided by these washers helps maintain a secure connection.The washer is typically placed under the nut or the head of the bolt. When the nut or bolt is tightened, the spring washer flattens out, and the spring action creates tension to prevent the nut or bolt from coming loose.
